Машина для извлечения корней солодки из нержавеющей стали

Машина для извлечения корней солодки из нержавеющей стали

Категория: Other Pharmaceutical Machinery >>>
Поставщик: Wenzhou,Chinz,Machinery,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.86 $*	0.60 $*
Aug-15-2025	0.80 $*	0.16 $*
Jul-15-2025	0.87 $*	0.13 $*
Jun-15-2025	0.38 $*	0.94 $*
May-15-2025	0.2 $*	0.28 $*
Apr-15-2025	0.16 $*	0.17 $*
Mar-15-2025	0.99 $*	0.58 $*
Feb-15-2025	0.88 $*	0.67 $*
Jan-15-2025	0.20 $*	0.10 $*

Характеристики

Products Description

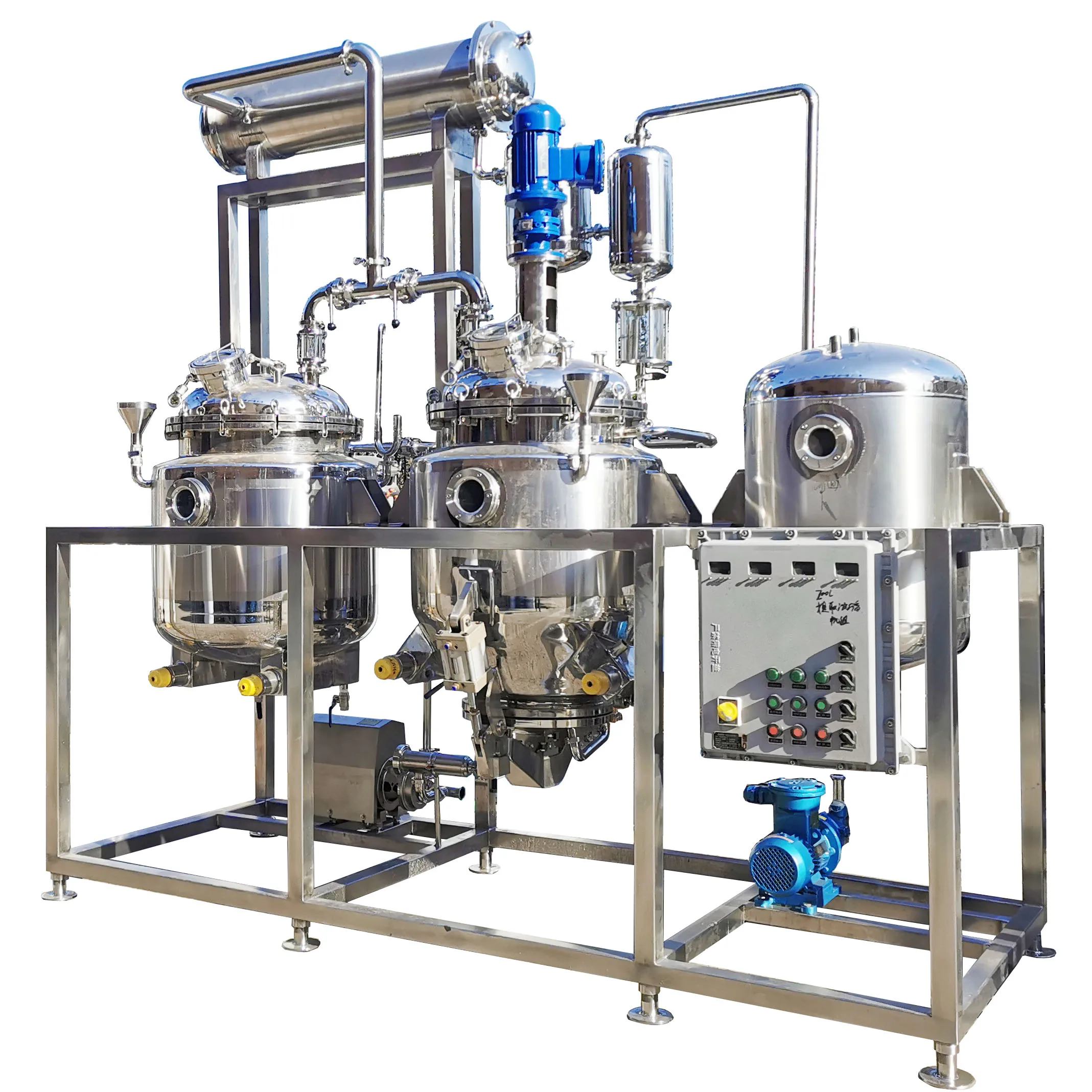

CHINZ stainless steel oil licorice root extraction machine

Usage of multi-function extractor Multi-function upside-down taper extractor is the equipment which is widely used in medicine,
biology, food, chemical leaching extraction. Can provide the material of water extraction, alcohol extraction solvents in volatile
oil extraction and recycling solvent in dross, which is applicable to the diacolation, warm immersion, reflux, circulation
impregnation, pressure or reduced pressure leaching and so on many kinds of craft. Having the advantages of high efficiency, easy
to operate.
Features of multi-function extractor Our company research and development of new multi-function extractor slag linkage control
system consists of four cylinder, double cylinder to open the door, double cylinder contraction, and designs the safety interlock,
slag door sealing adopts pneumatic seal design, easily open the door, no leakage, safe and reliable operation.

Product Paramenters

Model	TQ-0.5	TQ-1	TQ-2	TQ-3	TQ-4	TQ-6	TQ-8	TQ-10
Volume (L)	600	1200	2300	3200	4300	6300	8500	11000
Design pressure in tank(Mpa)	0.09
Jacket design pressure(Mpa)	0.3
Manhole diameter (mm)	400	400	400	500	500	500	500	500
Heating area(m2)	1.7	3	4.7	6.3	8	12	14	16
Condensation area(m2)	4	5	8	10	15	20	25	30
Cooling area(m2)	0.5	1	1	1.5	2	2	3	4
Slag door diameter(mm)	500	800	800	800	1000	1400	1400	1600
Steam consumption(kg/h)	160	245	325	345	430	645	720	850
Water consumption(T/h)	6	8	10	15	20	25	30	40
Motor Power(KW)	2.2	3.0	4.0	5.5	5.5	7.5	11	15
Stirring speed(r/min)	36	36	36	36	36	36	36	36

Company Profile

Wenzhou Chinz Machinery Co., Ltd. is a specialized high technology enterprise integrating the design, manufacture and service of
biochemical pharmaceutical equipment, dairy food and beverage equipment, chemical equipment and sanitary fluid equipment. Our
company is devoted to technology investment and culture construction. We have modern workshops and complete manufacturing
facilities. We absorb and train various talented people. We have one batch of capable, specialized and talented persons of design,
manufacture and installment. Our company establishes a machinery R&D center, a fluid equipment machining and inspecting center and
a machinery manufacturing center. After more than ten years of continuous development, our company has formed a troop of
scientific and innovative team. Many of our products have obtained national invention patents.

Product packaging

FAQ

1. Q : How can customer know the processes of order?

A : We will take photo or video during manufacturing every two weeks to make
customer clear about the order. When goods is finished,we will take more detailed photos or video for inspect. You can also come to our factory to inspect by yourself.

2. Q : Do you supply installation equipment in oversea? A : Yes, if need, we can also send
our installation engineer to your factory to help you do installation and testing. And you need to provides round-trip ticket and accommodation for our engineer. The extra salary of one installation engineer is 200USD/day.

3. Q : How to control quality?

A : All material we use has material certification. Before any piece of equipment leaves CHINZ. It goes through a complete quality and assurance control inspection. This inspection assures your equipment meets all specifications and is in proper working order before it leaves our facility and arrives at your door.

4. Q : What is the shipment schedule?

A : We will send you photographs of your order being loaded into the shipping container at the factory. The shipping container will generally leave port 3-4 days
after loading. We will send you a bill of lading and final statement of account within one week of that time. The bill of lading will include the shipping container numbers. You can track your shipping container. Approximately 10 days prior to delivery, we will send you an ETA (Estimated Time of Arrival) notice from the shipping time. Please remember that the listed delivery date is only an estimate, and is subject to port unloading schedules, customs processing, and the dictates of the local delivery truck company. You will be directly contacted by the shipping company's local truck delivery services approximately 48 hours prior to the date of delivery to schedule a delivery time. If you need to delay the final delivery, there will be a "pull" fee of approximately $100, and a storage fee of approximately $150 per shipping container per day.
