Производитель Tentcool мощность охлаждения от 300 вт до 7500 Вт электрический шкаф кондиционер с боковым и дверным
- Категория: Кондиционеры >>>
- Поставщик: Taizhou,Tentcool,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.95 $* | 0.40 $* |
| Aug-19-2025 | 0.54 $* | 0.6 $* |
| Jul-19-2025 | 0.25 $* | 0.86 $* |
| Jun-19-2025 | 0.36 $* | 0.42 $* |
| May-19-2025 | 0.91 $* | 0.77 $* |
| Apr-19-2025 | 0.61 $* | 0.40 $* |
| Mar-19-2025 | 0.54 $* | 0.15 $* |
| Feb-19-2025 | 0.70 $* | 0.40 $* |
| Jan-19-2025 | 0.68 $* | 0.8 $* |
Характеристики
The Cabinet Air Conditioner designed for Power industry, Communication industry, Chemical industry or related industrial equipment applications of high-performance ac type air conditioning unit, cabinet internal devices suitable for heat, temperature sensitive, and inside and outside completely isolated applications;
The cabinet air conditioning refrigerates the air through inside and outside two independence, and exchanges the heat inside the cabinet to the outside by the heat-exchange. By this way, it can protect the electricity wind chest's electrical element in the controllable temperature range movement. Simultaneously the cabinet air conditioning has dehumidifies the function, which will guaranteed the cabinet interior has the ideal temperature and the humidity.
Working principle
Refrigerating System Principle
Model No. | DKC03 | DKC05 | DKC06 | DKC08 | DKC10 | DKC15 | |||||
Cooling Capacity | 350W | 500W | 650W | 850W | 1000W | 1500W | |||||
1194BTU | 1706BTU | 2218BTU | 2730BTU | 3412BTU | 5118BTU | ||||||
Working Temp | -40℃~55℃ , Heating by PTC * Ceramic Heater | ||||||||||
Power Supply | Standard: 220V/50HZ/60HZ (Available: 110V~400V) | ||||||||||
Rated Current | 1.2A | 1.43A | 1.7A | 2.1A | 2.35A | 2.8A | |||||
Power Input | 220W | 260W | 350W | 415W | 460W | 750W | |||||
Cabinet Airflow | 210m3/h | 210m3/h | 260m3/h | 385m3/h | 400m3/h | 500m3/h | |||||
Ambient Airflow | 260m3/h | 260m3/h | 385m3/h | 385m3/h | 400m3/h | 580m3/h | |||||
Refrigerant gas | R134A | R134A | R134A | R134A | R134A | R134A | |||||
IP Class | Internal Circuit: IP34, External Circuit : IP55 | IP34 | IP34 | IP34 | IP34 | IP34 | |||||
Noise dB(A) | 55 dB(A) | 55 dB(A) | 58 dB(A) | 60 dB(A) | 62 dB(A) | 66 dB(A) | |||||
Net Weight | 17kg | 17.5kg | 19kg | 26kg | 26.5kg | 36kg | |||||
Dimension mm | 290*210*570mm | 290*235*570 | 350*220*700mm | 350*280*950 | |||||||
Color | RAL7035, Also can painting according customer need, also can use Stainless Steel; | ||||||||||
Model No. | DKC25 | DKC30 | DKC35 | DKC40 | DKC50 | DKC75 | |||||
Cooling Capacity | 2500W | 3000W | 3500W | 4000W | 5000W | 7500W | |||||
8530BTU | 10236BTU | 11942BTU | 13648BTU | 17060BTU | 25600BTU | ||||||
Working Temp | -40℃~55℃, Heating by PTC * Ceramic Heater | ||||||||||
Power Supply | Standard: 220V/50HZ/60HZ, (Available: 110V~400V) | ||||||||||
Rated Current | 4.8A | 5.6A | 6.8A | 7.5A | 9.5A | 11.0A | |||||
Power Input | 1080W | 1200W | 1700W | 1850W | 2250W | 3000W | |||||
Cabinet Airflow | 800m3/h | 800m3/h | 1450m3/h | 1480m3/h | 1480m3/h | 1900m3/h | |||||
Ambient Airflow | 1000m3/h | 1000m3/h | 1500m3/h | 1550m3/h | 1900m3/h | 2500m3/h | |||||
Refrigerant Gas | R134A or R22 | R22 | |||||||||
Cabinet IP Class | Internal Circuit: IP34, External Circuit: IP55 | IP34 | IP34 | IP34 | IP34 | IP34 | |||||
Noise dB(A) | 66 dB(A) | 66 dB(A) | 69 dB(A) | 69 dB(A) | 70 dB(A) | 72 dB(A) | |||||
Net Weight | 45kg | 48kg | 62kg | 65kg | 70kg | 85kg | |||||
Dimension mm | 400*270*1150mm | 450*295*1350mm | 485*320*1470 | 550*390*1750 | |||||||
Color | RAL7035, Also can painting according customer need, also can use Stainless Steel; | ||||||||||

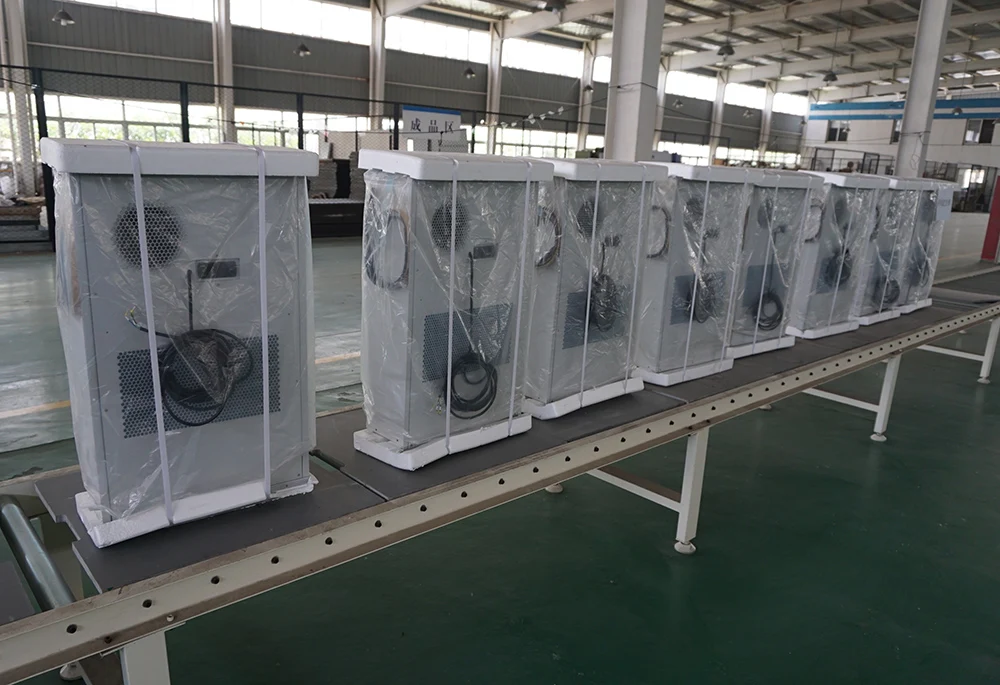

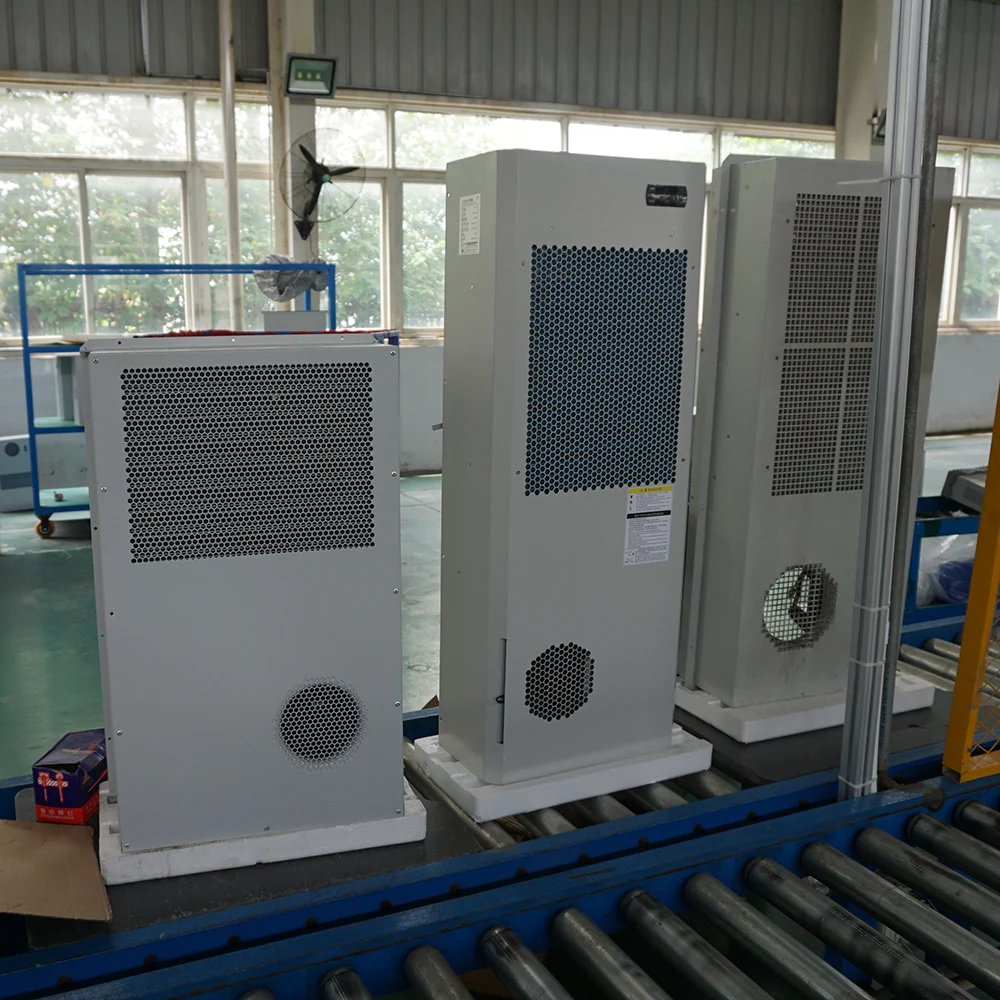

Assembly Line
Assembly Line
Online Refrigerant Gas Charging
Online Cooling Capacity Testing
Durability Testing
Noise Testing
1. Equipment cabin of Mini ICT room;
2. Equipment cabin of RRU outdoor cabinet;
3. Equipment cabin of 4G and 5G base station outdoor cabinet;
4..Equipment cabin of micro station outdoor cabinet;
5. Electric power outdoor cabinet;
6. Industrial control cabinet refrigerating;
7. Laboratory dedicated refrigerating;
8. Museum, wine cellar dedicated refrigeration;
9. Solar and wind power storage container;
