ПЛК 14 головок Multihead Weigher с грибом Малый размер овощей VFFS упаковочная
- Категория: Упаковочный станок >>>
- Поставщик: Top,Y,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 8000.6 $* | 8160.5 $* |
| Jul-15-2025 | 6488.59 $* | 6618.41 $* |
| Jun-15-2025 | 7874.60 $* | 8031.5 $* |
| May-15-2025 | 7811.37 $* | 7967.9 $* |
| Apr-15-2025 | 6236.18 $* | 6361.59 $* |
| Mar-15-2025 | 7685.54 $* | 7839.95 $* |
| Feb-15-2025 | 7622.98 $* | 7774.87 $* |
| Jan-15-2025 | 7559.7 $* | 7710.12 $* |
Характеристики
Products Description
Vffs machine-the machine for your current and future needs! The functions of the packing system mainly are conveying, weighing, bag forming, filling and bag sealing. The flexibility of it allows you to customize your machine to meet your individual requirements!
Vffs machine is suitable for all kinds of the bags made of plastic roll film, such as pillow bag, side gusset bag, quad sealing bag and so on.
Besides, by connecting with different weighing equipments, the packing system can handle various products, such as powder, snacks, dried vegetable or fruit, puffed food, liquid sauce, beverage, etc
Besides, by connecting with different weighing equipments, the packing system can handle various products, such as powder, snacks, dried vegetable or fruit, puffed food, liquid sauce, beverage, etc
Product Paramenters
* PLC controller with touch screen interface
* Servo-driven end seal jaws
* Servo-driven film transport
* Hot printer and film feeding system synchronous
* Quickly changing one-piece bag former
* Eye mark sensor for film tracking
* Stainless steel frame
* Servo-driven end seal jaws
* Servo-driven film transport
* Hot printer and film feeding system synchronous
* Quickly changing one-piece bag former
* Eye mark sensor for film tracking
* Stainless steel frame
Specifications | ||||||||
Model. No | TOPY-VP420 | TOPY-VP520 | TOPY-VP620 | TOPY-VP800 | ||||
Bag Size | （L）60-230mm* （W）60-200mm | （L）100-300mm* （W）80-250mm | （L）100-380mm* （W）100-300mm | （L） 50-380mm* （W）110-400mm | ||||
Bag Speed | 15-60bags/min | 15-60bags/min | 15-60bags/min | 10-30bags/min | ||||
film width | 140-420mm | 180-520mm | 220-620mm | 340-800mm | ||||
Air Consumption | 0.6Mps 0.36m3/min | 0.6Mps 0.36m3/min | 0.6Mps 0.4m3/min | 0.6Mps 0.7m3/min | ||||
Powder Supply | 2.2kw， 220V 50/60HZ | 3kw， 220V 50/60HZ | 4kw， 220V 50/60HZ | 4.5kw， 220V 50/60HZ | ||||
Packed Dimension | (L)1430*(W)970*(H)1600mm | (L)1550*(W)1160*(H)1480mm | (L)1600*(W)1260*(H)1680mm | (L)1600*(W)1500*(H)2050mm | ||||
Packing Solution
The filling system is just for your reference. We will offer you best solution according to your product mobility, viscosity, density, volume, dimensions etc.
A. Powder Packing Solution
A. Powder Packing Solution
Servo Screw Auger Filler is specialized for powder filling such as nutrients powder, seasoning powder,
flour, medicinal powder, etc.
B. Liquid Packing Solution
Piston Pump Filler is specialized for liquid filling such as water, juice, laundry detergent, ketchup etc.
C. Solid Packing Solution

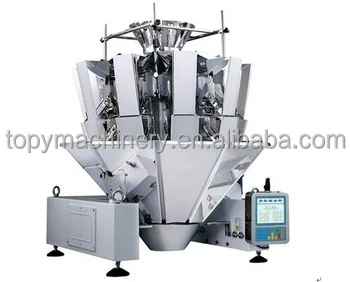

Combination multi-head weigher is specialized for solid filling such as candy, nuts, pasta, dried fruit and vegetable etc.
D. Granule Packing Solution
Linear weigher is specialized for granule filling such as chemical, beans, salt, seasonings etc.
flour, medicinal powder, etc.
B. Liquid Packing Solution
Piston Pump Filler is specialized for liquid filling such as water, juice, laundry detergent, ketchup etc.
C. Solid Packing Solution
Combination multi-head weigher is specialized for solid filling such as candy, nuts, pasta, dried fruit and vegetable etc.
D. Granule Packing Solution
Linear weigher is specialized for granule filling such as chemical, beans, salt, seasonings etc.

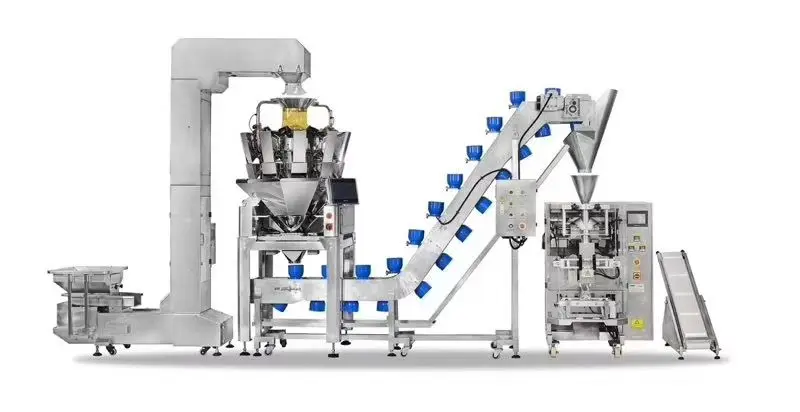

Step1: set the parameters we need on HMI
Step2: pour bulk products into the storage hopper manually or automatically
Step3: mutilhead weigher will dose target weight we need

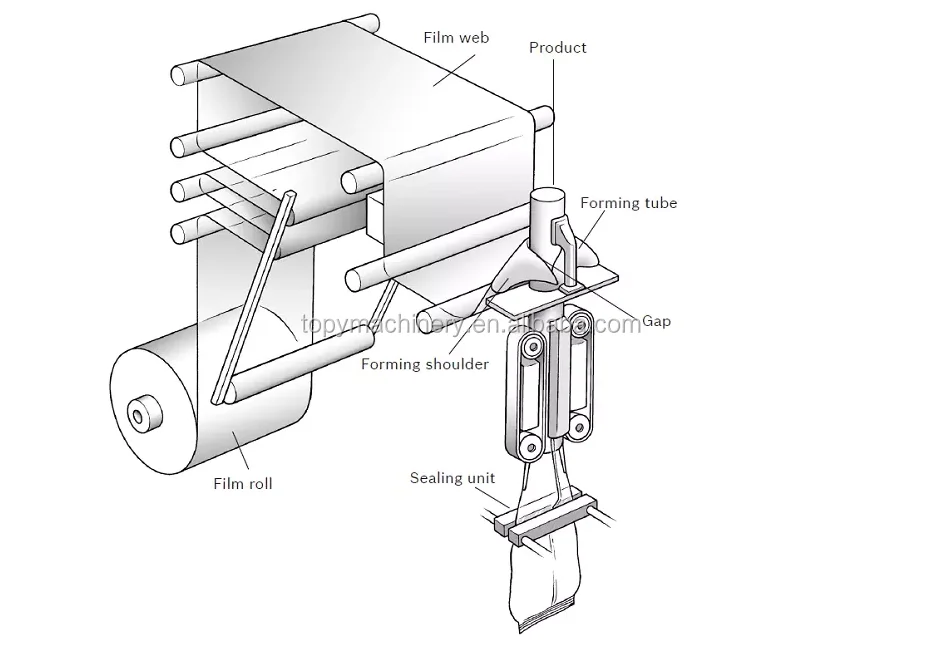

Step4: the packing machine finish the film unwind and bag making
Step5: the weighing machine fill dosed products to the made bags
Step6: the sealing jaws and cutting blade seal and cut the bags automatically
Step2: pour bulk products into the storage hopper manually or automatically
Step3: mutilhead weigher will dose target weight we need
Step4: the packing machine finish the film unwind and bag making
Step5: the weighing machine fill dosed products to the made bags
Step6: the sealing jaws and cutting blade seal and cut the bags automatically
Contact Us
Certifications
Customers & Our Team
Company Profile
Packing & Delivery
FAQ
For liquid we advise piston or motor pump, for powders we advise auger filler or volumetric cup filler, for solid, flake and granules we advise multihead weigher, linear weigher or volumetric cup filler.
Q2, What are the bag sizes and target weight in each pack?
For VFFS packing machine the minimum film width we work on is 120mm, the maximum film width we work on is 1200mm.
Q3, Does your company work on OEM?
Yes, we have a professional design and technical team to do the customization
Q4, What’s the delivery time after the order is placed?
We arrange the shipment in 30-35days for standard machine. It takes us more days for customized machines
Q5, How about the warranty?
The warranty is two years and we provide lifelong maintenance.
Q6, What can you provide after service?
We provide machine running video, instruction manual in English, spare parts and tools for installation. Also our engineers are available to clients’ factory and technical training.
