Машина для вязания жаккардовых этикеток машина эластичной
- Категория: Ткацкие станки >>>
- Поставщик: Guangzhou,Yong,Jin,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.47 $* | 0.68 $* |
| Aug-15-2025 | 0.54 $* | 0.84 $* |
| Jul-15-2025 | 0.11 $* | 0.22 $* |
| Jun-15-2025 | 0.15 $* | 0.49 $* |
| May-15-2025 | 0.6 $* | 0.1 $* |
| Apr-15-2025 | 0.97 $* | 0.29 $* |
| Mar-15-2025 | 0.9 $* | 0.15 $* |
| Feb-15-2025 | 0.50 $* | 0.43 $* |
| Jan-15-2025 | 0.22 $* | 0.33 $* |
Характеристики
Product Description
We are manufacturer (Quality Guaranteed , Integrity Services, Competitive price )

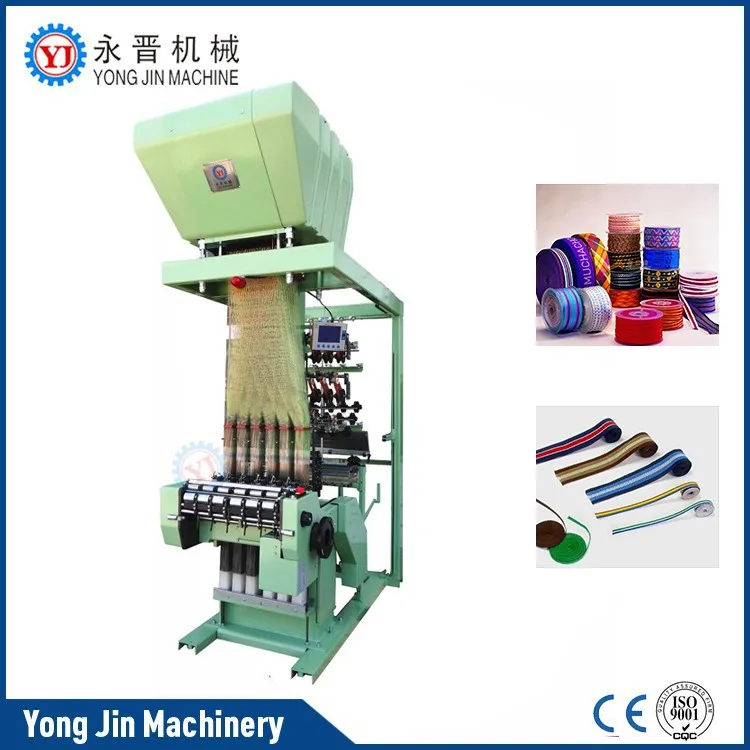

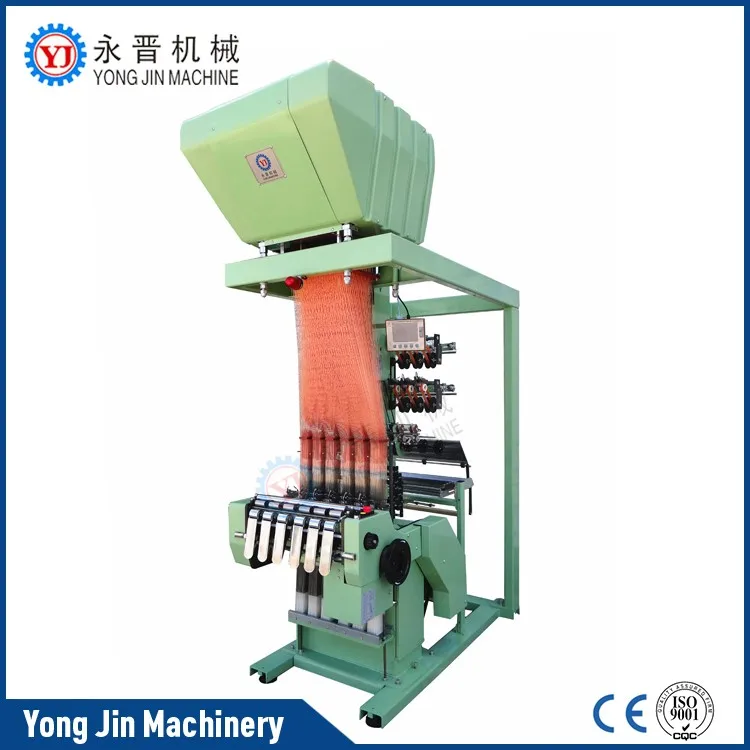

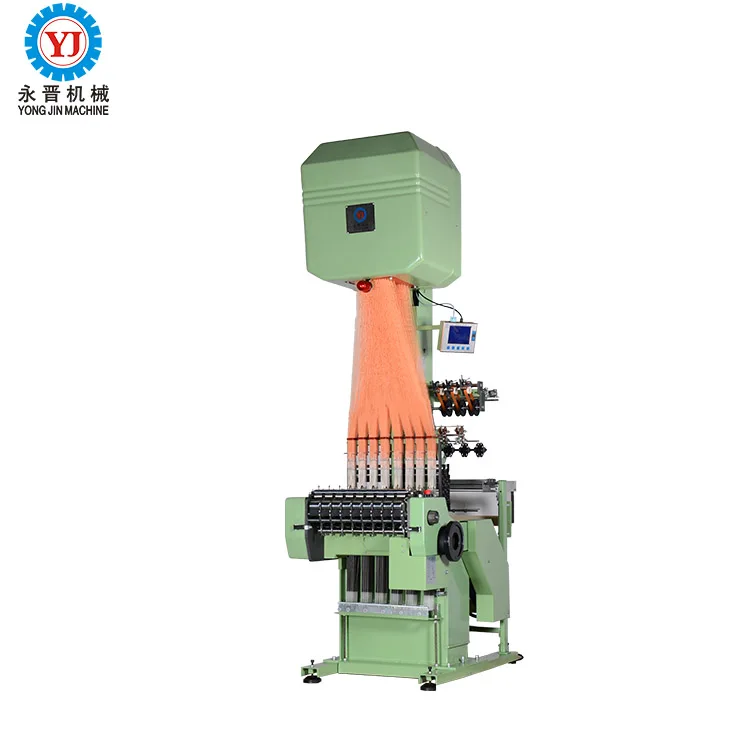

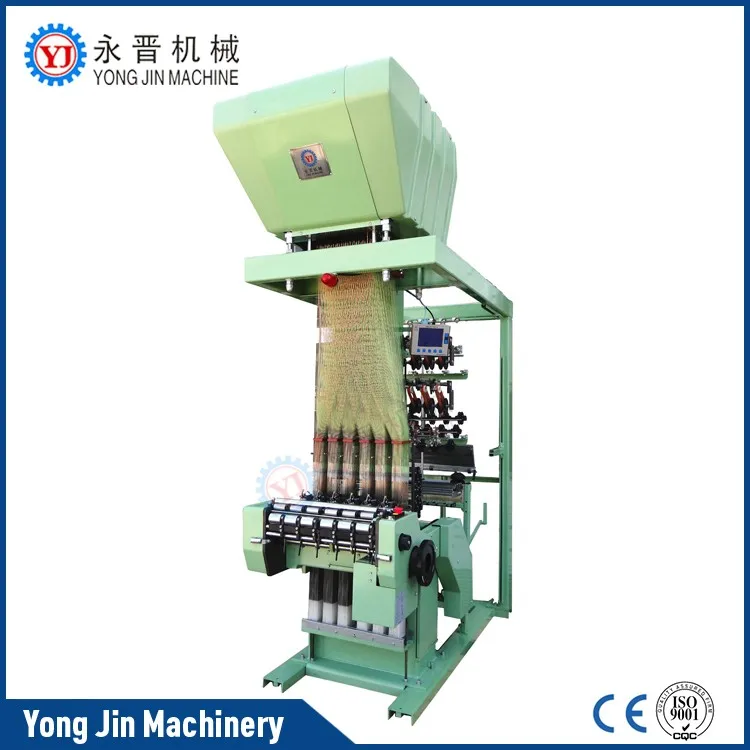

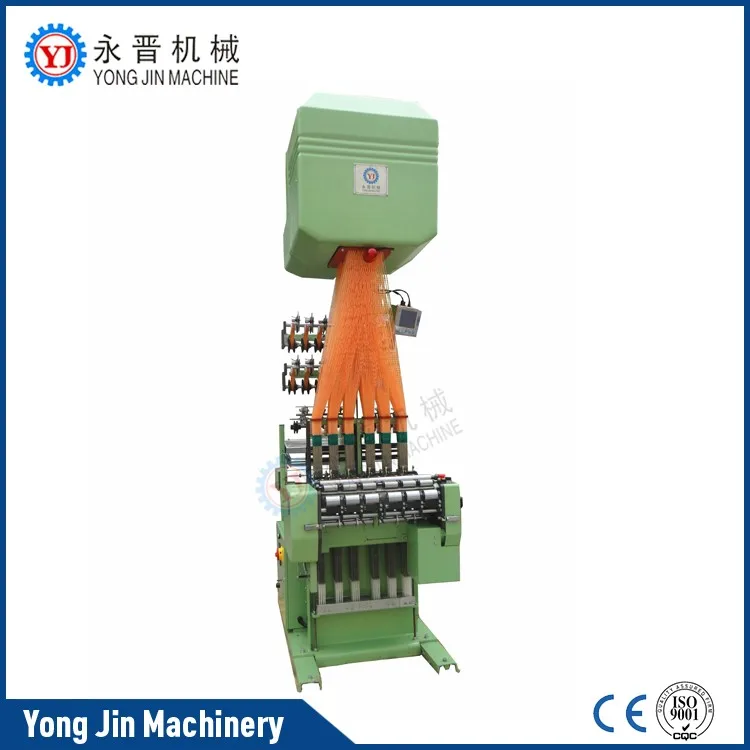

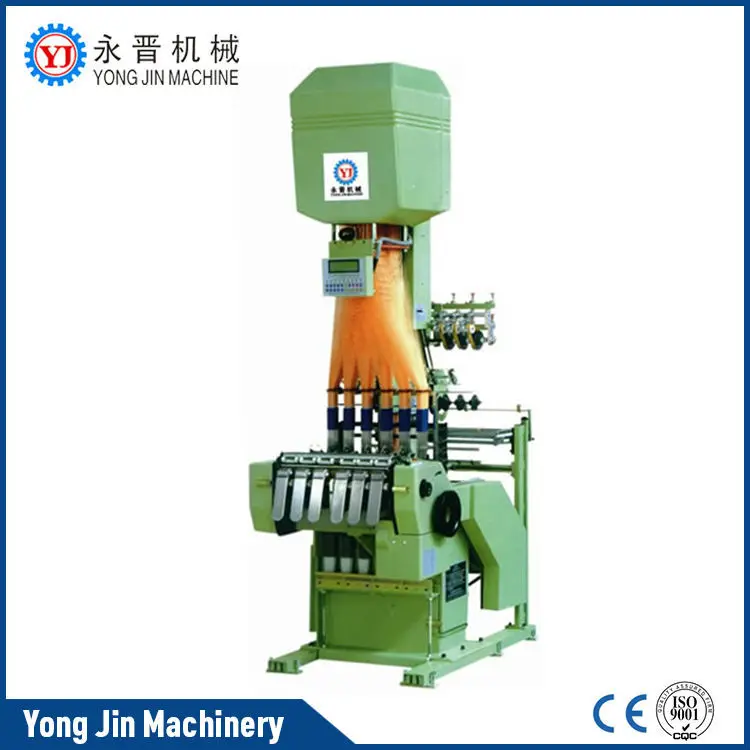

This is jacquard loom to produce shoulder strap, belt, etc., the structure is same as Muller's, over 95% of spare parts can interchange with Muller. please check the following specification.
TNF4/66-192 HOOKS, 240 HOOKS, 320 HOOKS,384 HOOKS,448 HOOKS, 480 HOOKS,512 HOOKS, 640 HOOKS,720 HOOKS.
TNF6/42-192 HOOKS, 240 HOOKS, 320 HOOKS, 384 HOOKS,448 HOOKS
TNF8/27-192 HOOKS, 240 HOOKS,320 HOOKS,384 HOOKS
Besides, we installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.
We also upgrade the structure of machine, in order to improve the speed, to compare with other brand, the output is 15% higher than others.
Video link
https://youtu.be/80VmuYpsSWg
TNF4/66-192 HOOKS, 240 HOOKS, 320 HOOKS,384 HOOKS,448 HOOKS, 480 HOOKS,512 HOOKS, 640 HOOKS,720 HOOKS.
TNF6/42-192 HOOKS, 240 HOOKS, 320 HOOKS, 384 HOOKS,448 HOOKS
TNF8/27-192 HOOKS, 240 HOOKS,320 HOOKS,384 HOOKS
Besides, we installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.
We also upgrade the structure of machine, in order to improve the speed, to compare with other brand, the output is 15% higher than others.
Video link
https://youtu.be/80VmuYpsSWg
Product Paramenters
Model | TNF8/27A | TNF6/42A | TNF6/42B | TNF4/66A |
Number of hooks | 192/240 | 192/240/320/384 | 384/448/480/512 | 192/240/320/384 |
Number of tapes | 8 | 6 | 6 | 4 |
Width of reed | 27 | 42 | 42 | 66 |
Maximum of tapes | 25 | 40 | 40 | 62 |
Number of frame | 12 | 12 | 12 | 12 |
Circulation | 1:8/16-32 | 1:8/16-32 | 1:8/16-32 | 1:8/16-32 |
Speed | 500-1200rpm | 500-1200rpm | 500-1200rpm | 500-1200rpm |
Model | TNF4/66B | TNF6/55A |
Number of hooks | 384/448/320/512/640/720 | 192 |
Number of tapes | 4 | 6 |
Width of reed | 66 | 27 |
Maximum of tapes | 64 | 25 |
Number of frame | 12 | 12 |
Circulation | 1:8/16-32 | 1:8/16-32 |
Speed | 500-1200rpm | 500-1200rpm |
Main Features
1. The open warp is horizontal construction.The iron frame runs at proper speed without having too much noise enhancing the stability and reliability of the machine.
2. The integration solenoid valve setting is small in size and sensitive while working.
3. Being the most advanced micro electronic jacquard unit, its construction is simple and compact, and it is easy to maintain.
4. The tension of warp is controlled automatically with the help of advanced technology.
5. The easy-dismounting construction of monofilament can lessen the workers’ labor intensity.
6. The unique CAD printmaking system for woven tape is easy-to-use and is featured by the externally self-locking.
7. The woven flower shape is showed on windows directly and clearly.
8. Equipped with a built-in program and data system, the control system can record and show all kinds of producing data.It can also show all kinds of producing data. It can also show the fault point and its reason, and copy the data on time when accident happens.
2. The integration solenoid valve setting is small in size and sensitive while working.
3. Being the most advanced micro electronic jacquard unit, its construction is simple and compact, and it is easy to maintain.
4. The tension of warp is controlled automatically with the help of advanced technology.
5. The easy-dismounting construction of monofilament can lessen the workers’ labor intensity.
6. The unique CAD printmaking system for woven tape is easy-to-use and is featured by the externally self-locking.
7. The woven flower shape is showed on windows directly and clearly.
8. Equipped with a built-in program and data system, the control system can record and show all kinds of producing data.It can also show all kinds of producing data. It can also show the fault point and its reason, and copy the data on time when accident happens.
Recommend Products
Company Profile
Product packaging
FAQ
Q1: Are you a factory or trading company?
A1: We are a factory with our own trading department.
Q2: Where is your factory?
A2: Our factory is located in the economic centre of Guangzhou province and welcome to Guangzhou.Warnty welcome to visit our factory.
Q3: How does your factory do regarding quality control?
A3: Quality is first priority.We always attach great importance to quality controlling.Our product has passed ISO9001 international quality system certification.
Q4: How does your service oversea?
A4: We have professional technical learn to install and setup our machine sold to abroad.We’re responsible for qualiy of the machine for 1 year.And engineers will provide technical support.
Q5: Can you make some change for me for my own design?
A5: Sure we can made OEM and ODM machines for you as long as you can tell us your idea specifically or provide drawings.
Q6: How long is the warranty period?
A6: 12 months warranty,if problem caused by quality factor,we will send you free spare parts by air within one week.
A1: We are a factory with our own trading department.
Q2: Where is your factory?
A2: Our factory is located in the economic centre of Guangzhou province and welcome to Guangzhou.Warnty welcome to visit our factory.
Q3: How does your factory do regarding quality control?
A3: Quality is first priority.We always attach great importance to quality controlling.Our product has passed ISO9001 international quality system certification.
Q4: How does your service oversea?
A4: We have professional technical learn to install and setup our machine sold to abroad.We’re responsible for qualiy of the machine for 1 year.And engineers will provide technical support.
Q5: Can you make some change for me for my own design?
A5: Sure we can made OEM and ODM machines for you as long as you can tell us your idea specifically or provide drawings.
Q6: How long is the warranty period?
A6: 12 months warranty,if problem caused by quality factor,we will send you free spare parts by air within one week.
