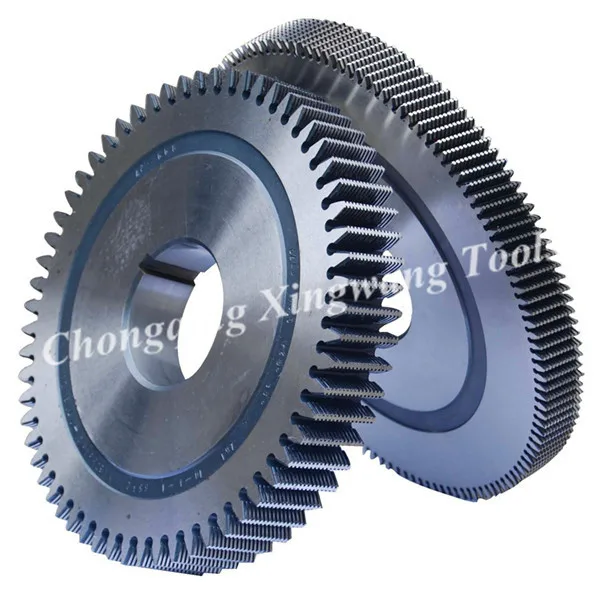

Conventional Shaving Cutter for Internal and Outside Gears

  1),normal module:m6.5,pressure angle:PA 20 degree

  2),nominal pitch diameter:240mm,tooth number:Z35

  3),innber bore:63.5mm,thickness/depth:25mm

  4),helix angle:HA 15 degree or 5 degree, helix direction:right hand or left hand

  5),quality:class A to GB standard

  6),HSS Material:M2, with Hardness HRC63~66





 Brief Introduction for High Performance Conventional Module and DP Gear Shaving Cutters:

  1),Shaving cutter is the gear cutting tool that have many serrated grooves at the tooth flanks.

  2),The both gear and the cutter is mounted on the shaving machine with intersecting angle.

  3),Then it makes sliding action on these flanks by rotating shaving cutter to finish the flanks of the gear teeth.
