Горячая Распродажа 3D flyknit компьютеризированные обувные

Горячая Распродажа 3D flyknit компьютеризированные обувные

Категория: Машина для плетения >>>
Поставщик: Changshu,Silk,Road,Import,&,Export,Co.,Ltd.

Цена:8 500,00 $ - 8 800,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	10115.15 $*	10621.30 $*
Aug-16-2025	10030.58 $*	10532.96 $*
Jul-16-2025	8415.55 $*	8836.5 $*
Jun-16-2025	9860.49 $*	10353.83 $*
May-16-2025	8585.72 $*	9014.74 $*
Apr-16-2025	9690.90 $*	10175.70 $*
Mar-16-2025	9605.55 $*	10085.41 $*
Feb-16-2025	9520.41 $*	9996.26 $*
Jan-16-2025	9435.57 $*	9907.56 $*

Характеристики

Product Description

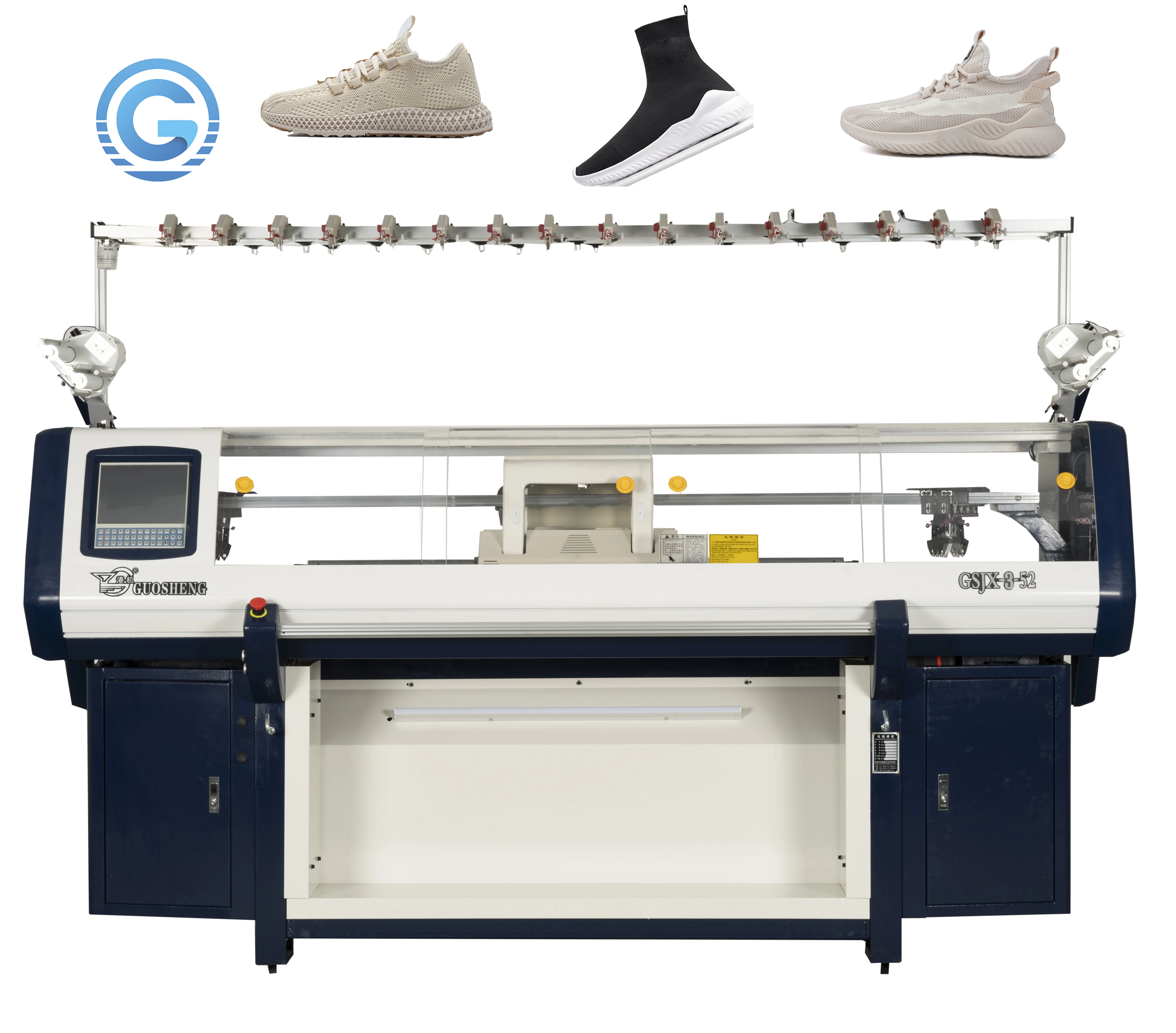

GUOSHENG 3D Flyknit vamp knitting machine series:

1:High speed &high output
2:CE and ISO certificate.
3:knitting system:Single carrier with three system
4.Max speed:1.2m/s.

SPECIFICATION FOR SHOE UPPER KNITTING MACHINE
GAUGE	14G
KNITTING SYSTEM	Three system single carriage
KNITTING WIDTH	36INCH 52INCH 60INCH 66INCH 72INCH
KNITTING SPEED	MAX.1.2m/sec
KNITTING FUNCTION	Tranfer,Tuck,Miss,Jacquard,Intarsia,Hide or Apparent Shaping
STITCH DENSITY	Stitch system controlled by stepping motor ,32 section stitch selectable ,adjustable scope supported by subdivision technology :0-650.
RACKING	Controlled by AC servo motor,racking within 2 inches and with fine adjusting function.
Drive System	Synchronous belt drive,AC servo system.
Needle Selection	Controlled by computer,electric magnet needle choose system with high efficiency.
Yarn Carrier	2x8YARN CARRIERS ON EACH SIDE OF 4 GUIDE RAILS,SHIFTABLE ON ANY NEEDLE POSITION
Take Down Roller	Programmed instruction controlled by stepping motor,32 section levels selection adjustable area:0-100.
Protection System	The machine will automatically alarm if yarn breaking,float yarn,rewind,end of knitting,fail of racking,needle breakage and error programming occur ect.Automatic reset needle detector is convenient and reliable.
Control System	1.Adopt lcd screen,input device:usb,system memory 2G,a great amount of design files can be stored. 2.Monitoring menu,each knid of operating parameter,can be shown,and they can be adjusted at any time when the machine is running. 3.Design system is visual and easy to understand and upgrad. 4.Multi language version,there are chinese,english etc.
Power	220v,single-phase,have memorizing function at the power-off moment.

PRODUCT OVERVIEW

This is fully jacquard compuerized flat knitting machine with single carriage three system.It applies digital technology to achinve Tranfer,Tuck,Miss,Jacquard,Intarsia,Hide or Apparent Shaping and other regular pattern knitting funtions .It can knit basic stitch like plain stitch ,rib fabric,links and links ,interlock stitch ,etc.

Details Images

Steady production,more pricise ...:

AC servo motor control ,precise fine adujsting function ,more stable,more energy-efficient...

Multi-color:

2*8 yarn carriers on each side of 4 guide rails,replaceable segment needle bed, 8 feedrs, max for 16colors

Carriage:

The speed can be adjusted swiftly and the position is precise ,which avoids the useless movement and greatly elevates the productivity of the machine.

Needle bed:

Divided structure ,steel sheet made from import high quality steel precisely punched and fine polished to reduce the resistance with needles and increase the longvity.

Yarn transportation device:

With anti-winding device
Yarn transportation device uses electroplating ceramic
technology is smoother and nor easy to wind yarn.

Our workshop

Company Profile

Changshu silk road imp & exp Co., LTD

Changshu silk road imp & exp Co., LTD is founded in 2008, mainly engaged in knitting machine,mask machine and other import & export machinery and equipment.Our own factory products computerized flat knitting machine , mask machine and other machines .Our company enjoy a high reputation in Southeast Asia including Korea, Bangladesh, Indonesia ,India and Turkey etc, and successfully made enormous development and strides in China's knitting field.
