Высокая точность ADMT-1A 0-300 м минерального детектора/металл/золото/мульти-функциональное электрическое геофизический

Technical parameters of High accuracy ADMT-1A 0-300m Mineral detector /Metal detector/Gold detector/Multi-Function Electric Geophysical Instrument:

     ADMT-1A  is a multi-function mineral detector &geophysical instrument with high precision,reliable quality and flexible range which could be used for gold detection,mineral prospecting ,ground water detecting,and other rare metal exploration.It could precisely measures the resistivity variation produced by different geologic substance to determine underground metal ,mineral and water location.The principle is nearly the same with traditional resistivity prospector while the ADMT-1A mineral detector enhances the speed more than 10 times by using advanced natural electric field measuring technologies,in addition,ADMT-1A mineral detector greatly simplifies the operation of metal detection,it means that every unprofessional people could skillfully use it through maybe one or two hours training.ADMT-1A mineral detector has won enormous acclaim from our globe customers by its excellent performance.

Characteristics of High accuracy ADMT-1A 0-300m Mineral detector /Metal detector/Gold detector/Multi-Function Electric Geophysical Instrument:

1. Full intellectual property
2. High-tech product
3. Efficient, easy to operation
4. High accuracy, wide frequency range

5. Fast and high efficiency: 2 people could operate; each testing needs several seconds
6. Easy to carry: the entire weight of this mineral detector is less than 5kg; it’s very easy to carry;
7. Easy operation: User-friendly interface, high-speed CPU, menu prompts, learn the operation into two minutes;
8. High accuracy: with imported core parts, FFT digital filtering technology, high-performance amplifiers and AD converters, the resolution is up to 0.1uV ± 1%, and the fixed error of frequency is

    only 0.1%;
9. Wide frequency range: the frequency respond range is from 0.1Hz to 5KHz, to greatly improve the surveying depth.

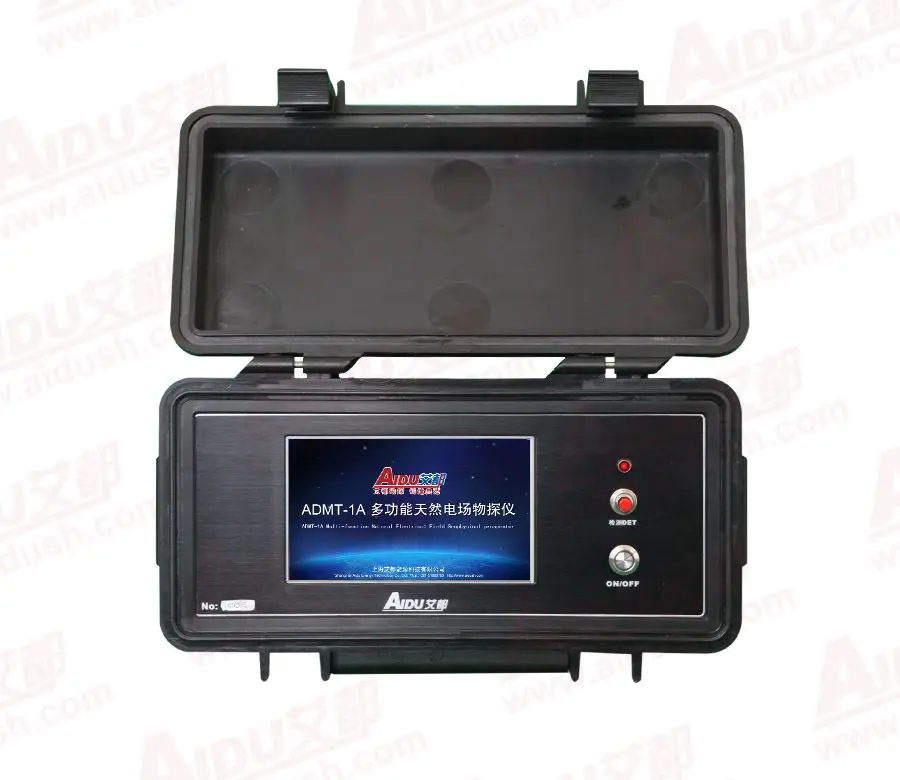

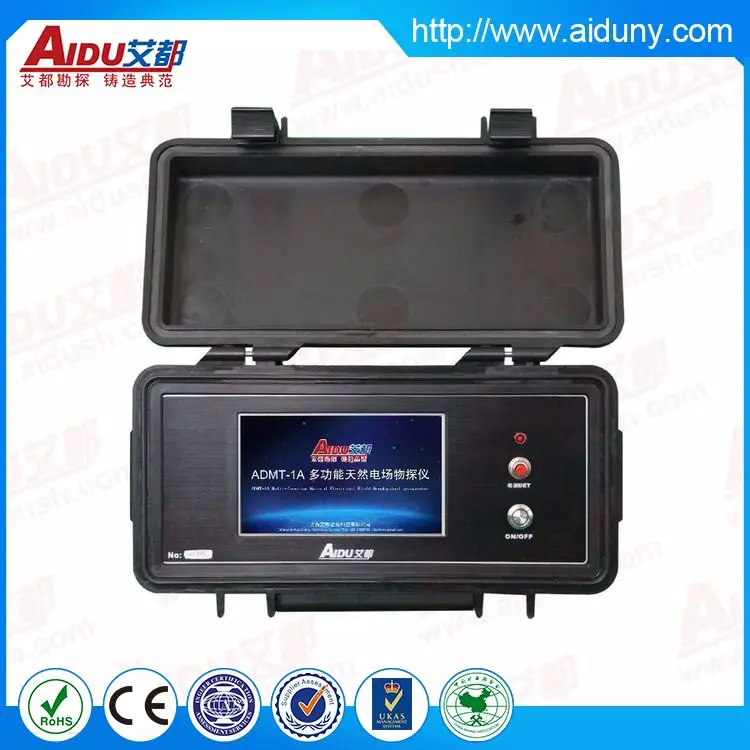

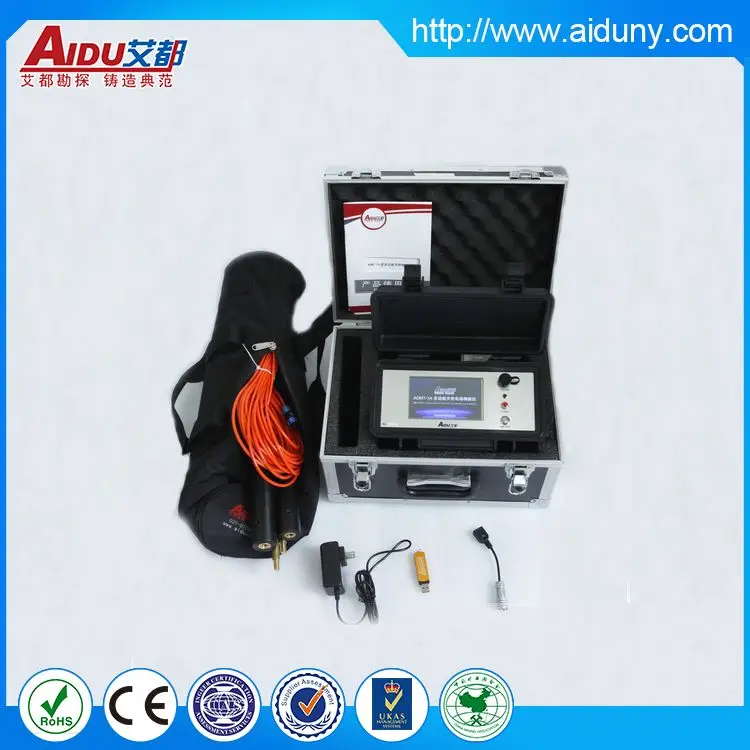

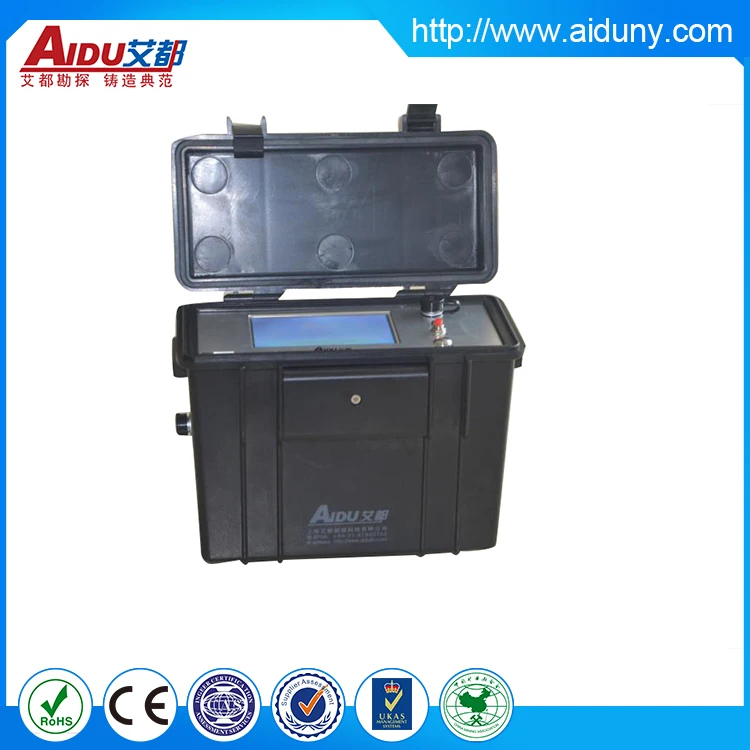

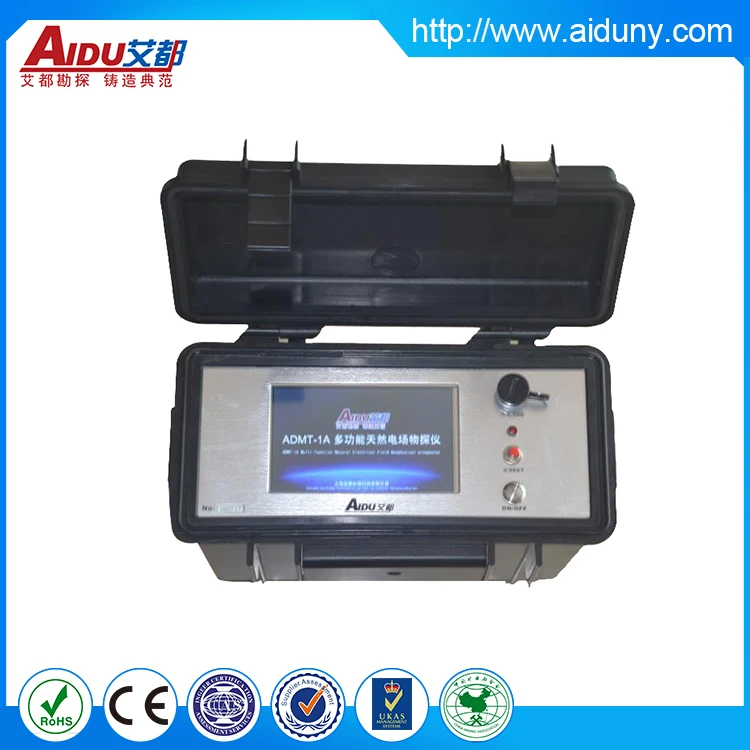

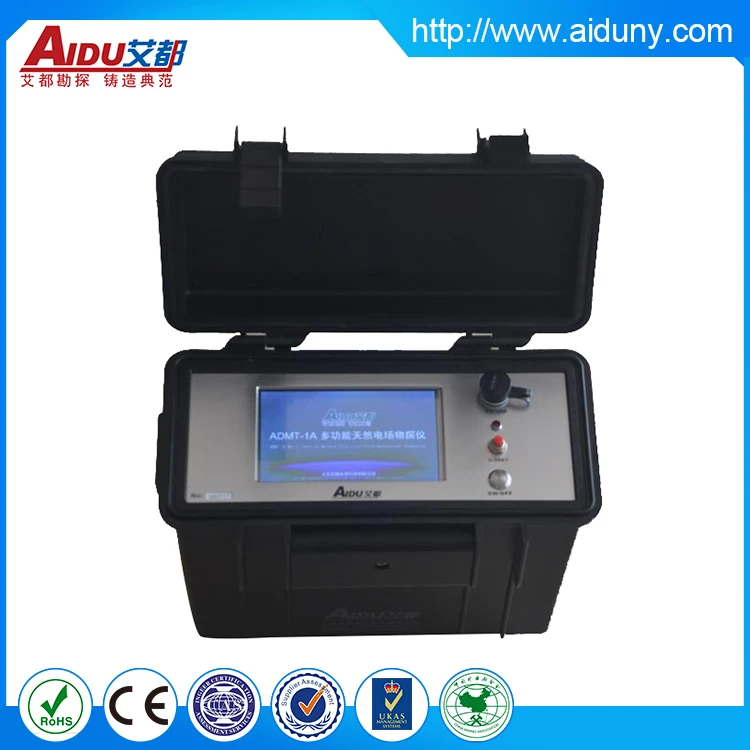

Pictures of High accuracy ADMT-1A 0-300m Mineral detector /Metal detector/Gold detector/Multi-Function Electric Geophysical Instrument:

The Principle of High accuracy ADMT-1A 0-300m Mineral detector /Metal detector/Gold detector/Multi-Function Electric Geophysical Instrument:

     The principle of ADMT-1A mineral detector is nearly the same with traditional resistivity prospector, but enhances the speed more than 10 times.ADMT-1 mineral detector applies 25Hz, 67Hz and 170Hz as basic frequencies , judges and analyzes the geological abnormity needed to search by measuring relative parameters change as resistivity generated by different structure, we can estimate underground geological formation nature (ground water) and mineral conditions like location, buried depth, shape and volume etc. after doing interpretation to abnormity.

Application of High accuracy ADMT-1A 0-300m Mineral detector /Metal detector/Gold detector/Multi-Function Electric Geophysical Instrument:

1.Decrease mineral invest venture and increase exploration success rate;
2.Underground water detect in all kinds of the geological conditions;
3.Meet demand of drinking water, industrial usage and agricultural irrigation;
4.Engineering geological prospect and disaster geological detect;
5.Coal goaf, archaeological mining, city exploration and non-metal pipe survey.

Successful Cases--High accuracy ADMT-1A 0-300m Mineral detector /Metal detector/Gold detector/Multi-Function Electric Geophysical Instrument:
