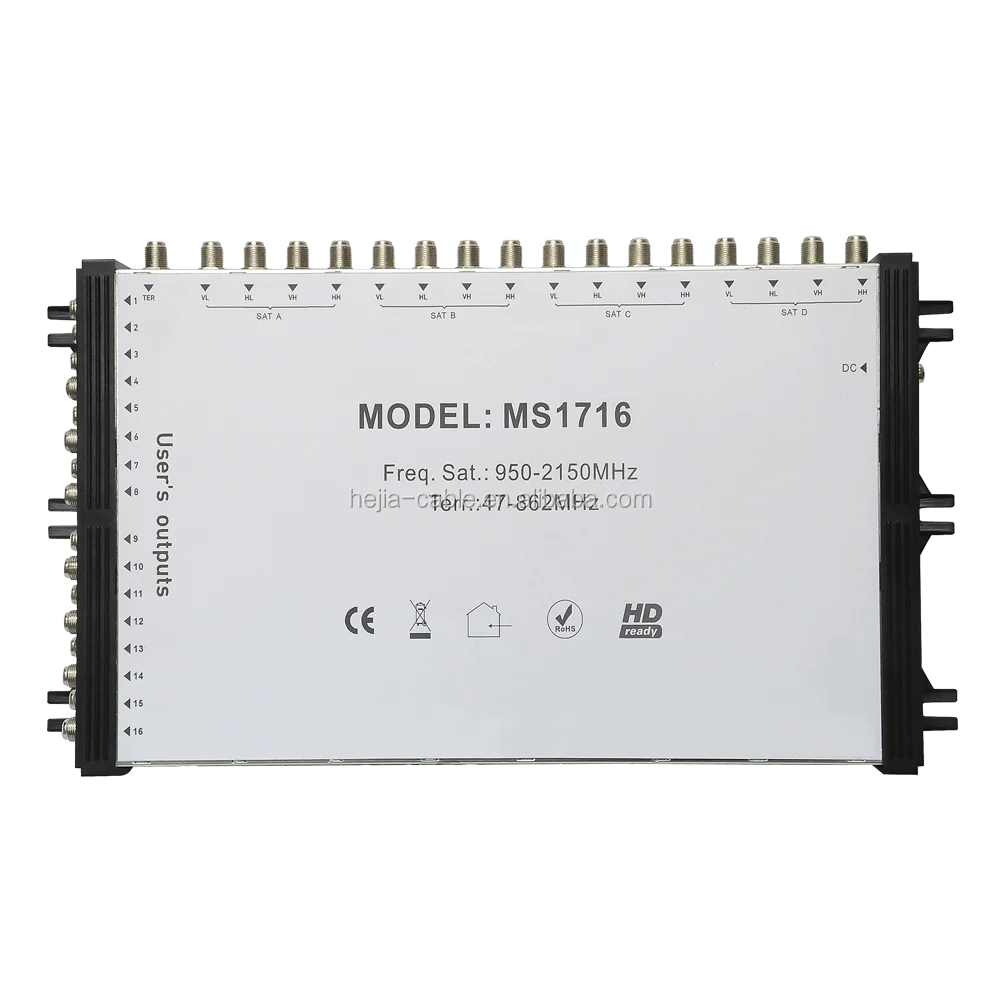

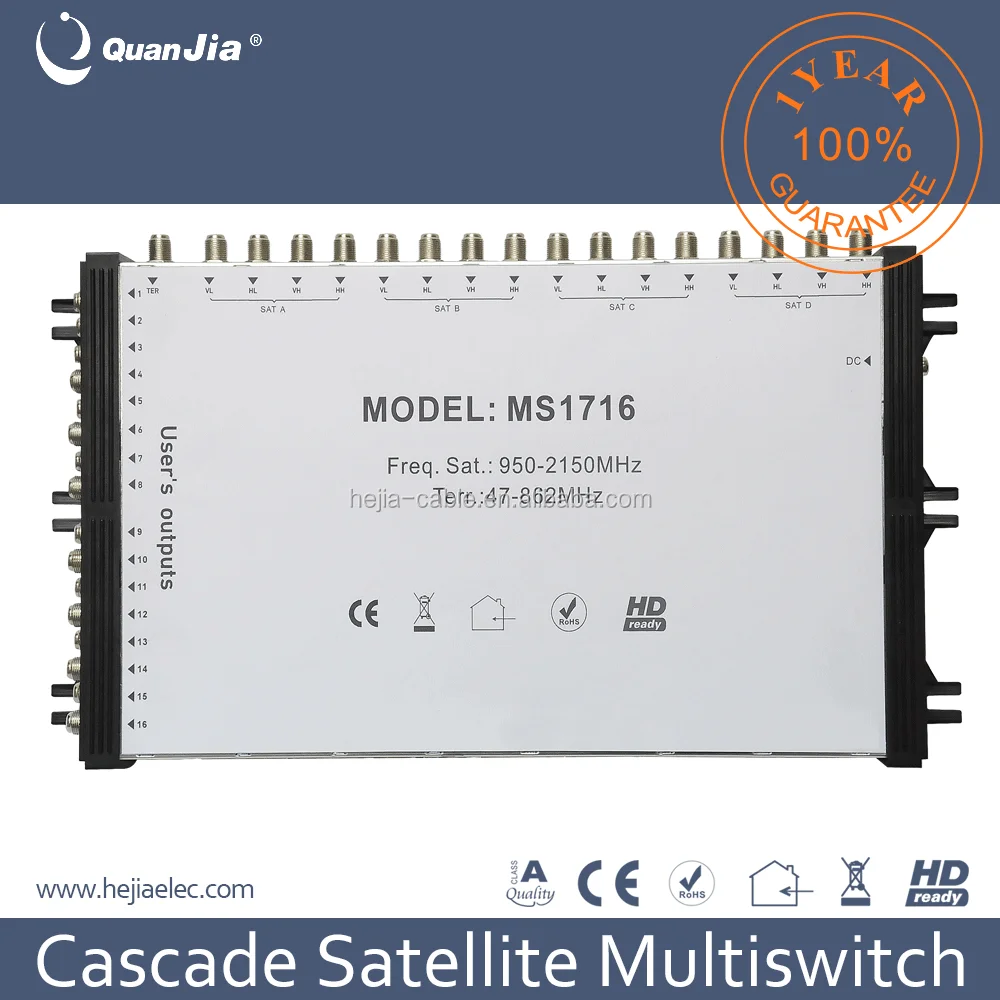

16 satellite IF and 1 terrestrial TV inputs for 16 satellite receiver
16 satellite IF inputs selected by 13V,18V,22KHz and DisEqC 2.0 signal
Low insertion loss, high isolation and return loss
SAT-IF-PATHs to the subscribers are active and supplied by the receiver
Sheet metal housing with plastic holder
Design good for indoor usage
Specifications
Specifications Item
Typical
QC Limit
Remark
Frequency Range
Terr.:47~800MHz SAT:950~2150MHz
Inputs
16 SAT+1 Terr.
F connectors
Outputs
16 Receiver
F connectors
TAP Loss
Terr.
20
22
SAT
4
6
Return Loss
Terr.
9
7
SAT
10
8
Stop band attenuation
Terr.
35
30
SAT
35
30
Isolation
H/V
25
20
REC-REC
35
30
Power Adapter
IN:100~240V OUT: 12V2A
Dimensions (L,W,H)
373×206×43
mm
Application Diagram
