Китай лучшая CE керамическая лабораторная печь для спекания зубов до 1800 °C оптовая продажа электрическая высокотемпературная
- Категория: Laboratory Heating Equipments >>>
- Поставщик: Nanyang,Xinyu,New,Material,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.23 $* | 0.29 $* |
| Aug-16-2025 | 0.56 $* | 0.32 $* |
| Jul-16-2025 | 0.92 $* | 0.55 $* |
| Jun-16-2025 | 0.70 $* | 0.78 $* |
| May-16-2025 | 0.11 $* | 0.84 $* |
| Apr-16-2025 | 0.36 $* | 0.49 $* |
| Mar-16-2025 | 0.10 $* | 0.77 $* |
| Feb-16-2025 | 0.49 $* | 0.25 $* |
| Jan-16-2025 | 0.40 $* | 0.49 $* |
Характеристики
Specifications

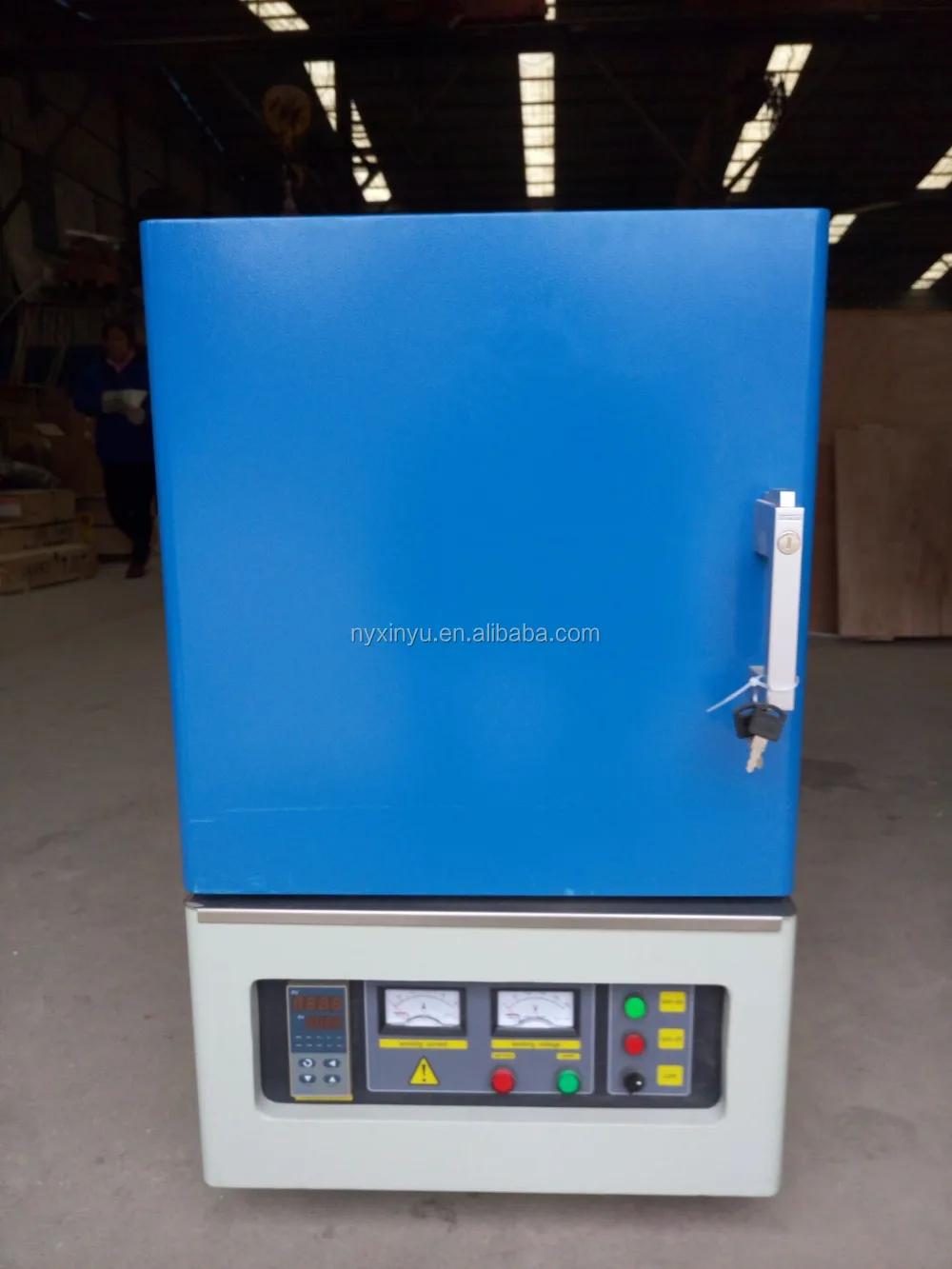

High temperature muffle furnace
Max temP:1800C
Chamber size 200*200*200mm
MoSi2 Heating element
XY-1800Mini Lab Box oven Heated by MoSi2 Heating Element | ||
| Main Specifications: | ||
| Inside Chamber Size | 200 x 200 x 200 mm (8"x8"x8", 8 Liter) | |
| Standard Working Temperature | 1700C ( continuous ) | |
| Maximum Working Temperature | 1800C ( < 3 hrs) | |
| Temperature Control | 30 steps programmable and PID automatic control | |
| Heating Rate | 0~ 40.C/ min (suggestion: =< 20.C ) | |
| Temperature Accuracy | +/- 1 .C | |
| Furnace structure | double shell with fan cooling | |
| Heating Element | MoSi2 heating elements | |
| Thermocouple | B type | |
| Working Voltage | AC 380V Three Phases 60/50 Hz (or according to your requirement) | |
| Max. Power | 8KW | |
| Outside Size | 550 x 540 x 820 mm | |
| Net Weight | 170 Kg | |
| XY series box furnaces are the most cost effective bench-top high temperature muffle furnace. The furnace consists of high quality alumina fiber brick and MoSi2 heating elements with special design, and furnace temperature is controlled by high precision SCR (Silicon Controlled Rectifier) digital controller with accuracy +/-1 deg oC and 30 segments programmable. It is an ideal tool for materials annealing and sintering in your research laboratory. | ||

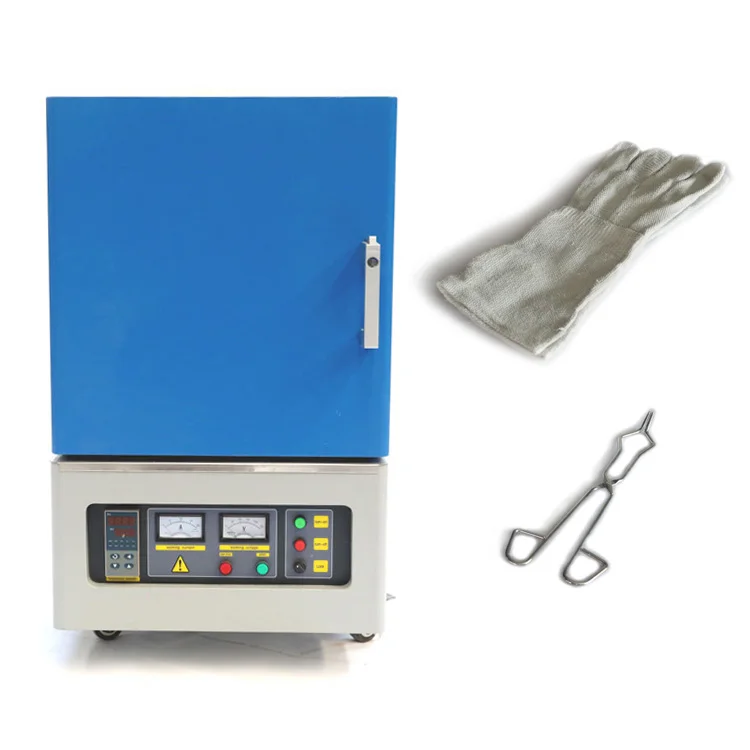

| Standard package included with the furnace | ||
| Part description | Quantity | |
| Thermal couple | 1 pc | |
| Stainless steel hook | 1 pc | |
| Furnace door block | 1 pc | |
| Thermal gloves | 1 pair | |
| Operation manual | 1 pc | |
| Standard Sizes: | ||
| Model | Chamber size(WxHXYmm) | Max. Temperature |
| XY-1700M | 120x120x130mm | 1800.C |
| XY-1700M | 150x150x150mm | 1800.C |
| XY-1700M | 200x200x200mm | 1800.C |
| XY-1700M | 200x200x300mm | 1800.C |
| XY-1700M | 250x250x300mm | 1800.C |
| XY-1700M | 300x300x400mm | 1800.C |
| XY-1700M | 450x450x500mm | 1800.C |
| XY-1700M | 600x600x600mm | 1800.C |
Package: Plastic paper inside, Polyfoam filled, Wooden box outside.
Payment: L/C T/T, West union,etc.
Shipping and Delivery: by air , in 15 days after receiving the payment
Warranty:Our products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost. This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.
Replacement will be shipped to you after photo or other evidence are provided and investigated.
