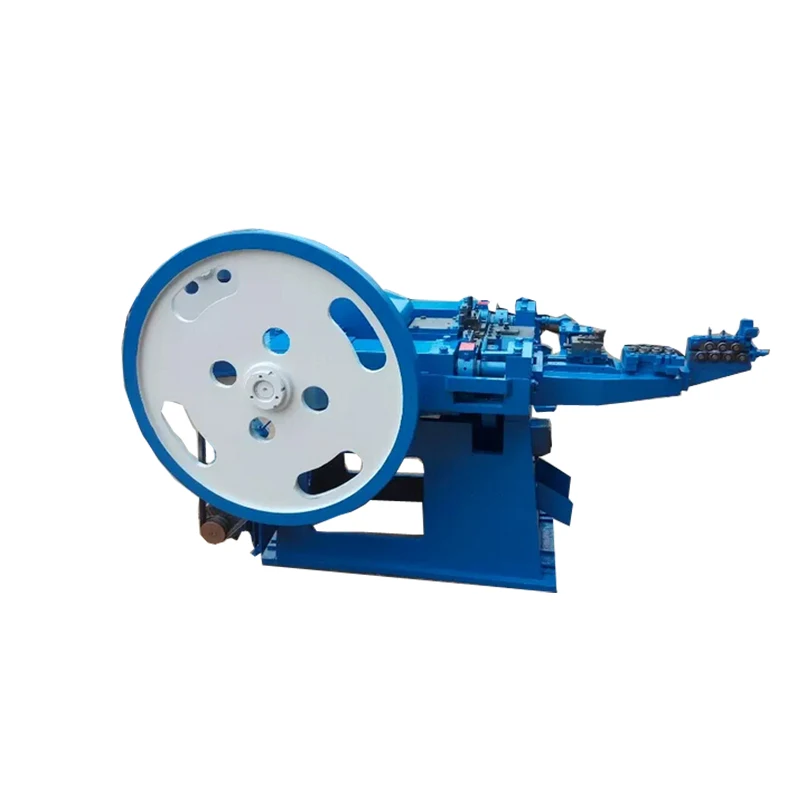

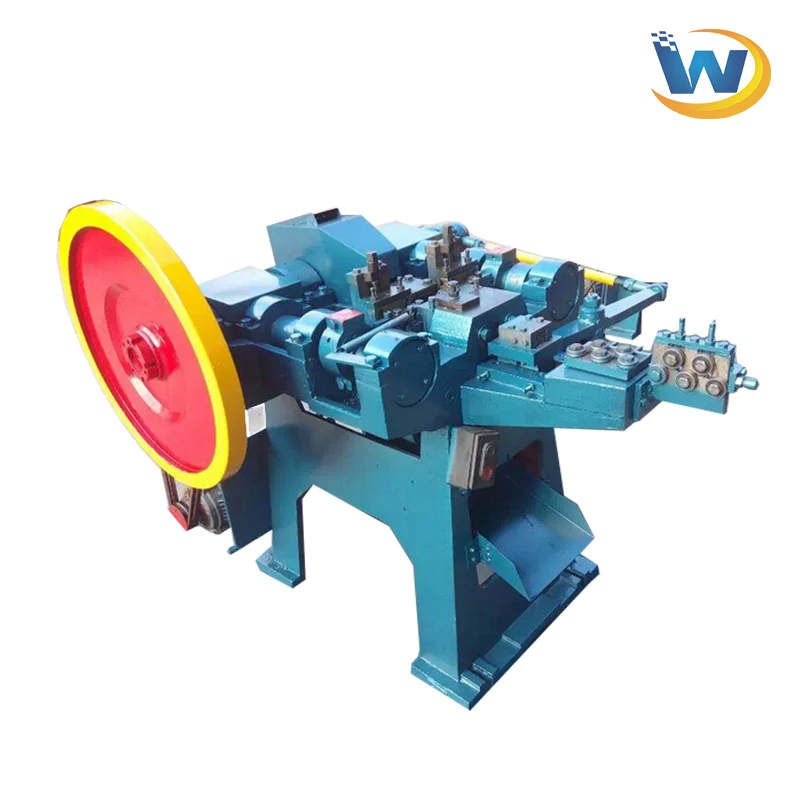

Screw japan small nail making machine

Product Description

Introduction of Nail making machine line:
1. This nail making machine adopts plunger type structure so as to ensure the features such as high speed, low noise and less impact.
2. Especially,our nail making machine can make the high quality of oil rivet nail and other shaped nails used for high speed welding nailer and nail gun.
3. Feature of our nail making machine: Using plunger type structure to ensure the high working speed, low noise, and less chance of impact. It has the features of advanced design, compact conformation, and good type. It is easy and safe to operate.

Wire drawing machineNail making machinePolishing Machine
1fg.jpgNail making machine 5Nail making machine
This machine is used to draw wire,for example,you need 4.2mm wire to make 4inch of nails,but the wire of yours is 5mm,you need use this machine to draw the wire into 4.2mm first.

This machine is used for making nail

After making nails from nail making machine,you need put all nails into this machine,every time 400-500kg to polish in order to make the nail more beautiful.

Knife sharpen MachineWire printer machineWire welding machine
Nail making machine 3Nail making machine 61db.jpg
This machine is used to grind the knife of nail making machine.After long time using,in order to make the knife sharp as before,you need use this machine to sharp.

This machine is used to print wire,when the head of some wire is bigger than the head of wire drawing machine,you can use this machine to press wire into small size,then it can work in wire drawing machine.

This machine is use to weld wire,when the wire is broken during wire drawing machine or during nail making machine,you can use this machine to weld the wire,then you can continue the wires.



Application:

Make nail from used reinforcing steel bar is the high technical usage and recycle the waste to make nail.

Advantage:  low motor. Energy saving, high quality.

Whole line of working processing

New Wire ----wire drawing machine—nail making machine---polish machine—Final nail

Raw material:

Dia <8mm, length>10 cm , the waste steal. Wedding rod as raw material.

This machine could produce 20-180 mm(1.5,2,2.5,3,4,5,6,7 inches), the mold could change for the different nails.

Nail making machine 2Nail making machine 5Nail making machine 4

Packaging picture:

Nail making machine 1Nail making machine

Final product:

Nail making machine 3



Specification

Technical information:

Data/ model

WSDZ-5C

WSDZ-4C

WSDZ-3C

WSDZ-2C

WSDZ-1C

Max dia of nail

5.0mm

5.0 mm

3.7 mm

2.8 mm

1.6 mm

Min dia of nail

3.4mm

3.4 mm

2.0 mm

1.2 mm

0.9 mm

Max length of nail

180mm

110 mm

80 mm

50 mm

25 mm

Min  length of nail

70mm

70mm

40mm

16mm

9mm

Capacity

200pcs\\min

220 pcs/Min

280 pcs/min

350 pcs/min

450 pcs/min

Motor

5.5kw

4 kw

3kw

3 kw

1.5 kw

Weight

2400

2000 kg

1400 kg

1200kg

800 kg

Size mm

2600×1600×1650mm

2400×1600×1650mm

2000*1400*1400mm

1700×1300×1400mm

1440×1040×1270mm
