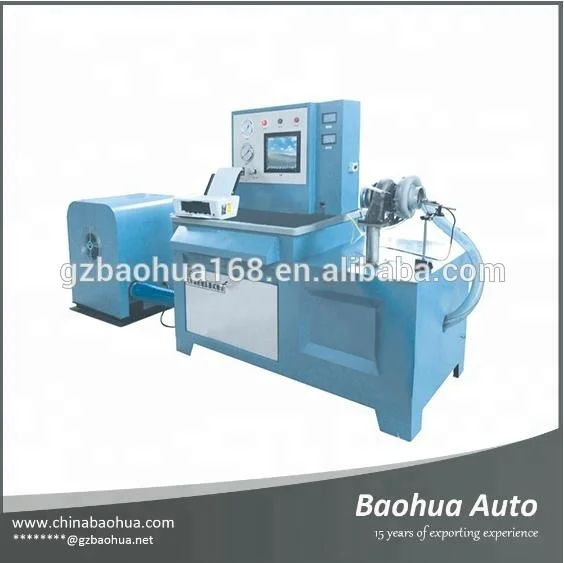

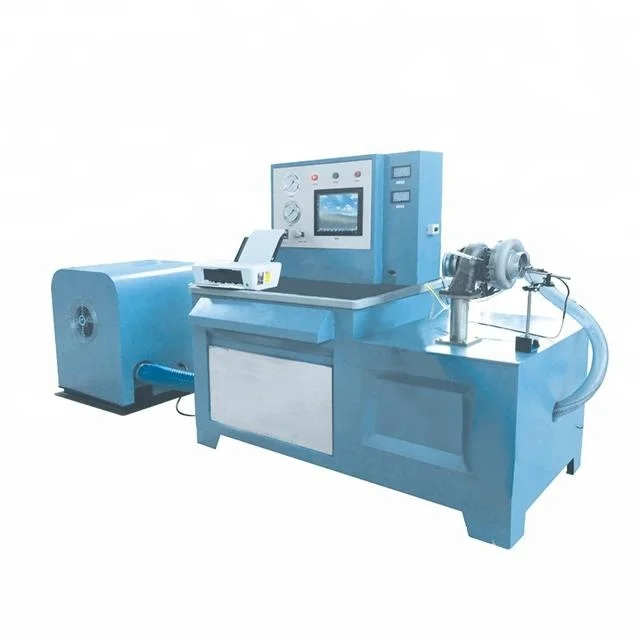

Model:QZY-2  Bench for Testing Automobile Turbochargers

Technical parameter:

Language	English
Material	Metal plate
Painting	Powder painting, durable and beautiful
Color	Blue
Voltage	380V 50 Hz 3P
Power of air generator	5.5KW
Frequency converter power	7.5KW
Speed of air generator	0-20000r/min(can be made with higher speed)
Maximum air pressure of airflow generator	5Kpa
Maximum flow of of airflow generator	1500cbm/h
Power of oil pump	370W
Rated pressure of oil pump	0-1.6Mpa
Maximum displacement of oil pump	6L/min
Accessories:	Accessory wires, clamps, etc.
Others you may want to know:
MOQ	1set
Warranty period	12 months
Payment term	T/T 100% in advance, the balance should be paid before delivery
Delivery time	40 days after receiving downpayment
HS code	90312000.90
Packing sizes	1850x1050x1600mm=3.11CBM 890x700x1040mm=0.65CBM Total is 3.76CBM

General introduction
This turbocharger test bench is applicable for testing performance of turbocharger on various models truck engines and can carry out dynamic test of boost pressure, air flow and lubrication of turbocharger and display measured data by digital instrument.
It can carry out contrast test of inlet & outlet air pressure difference of various turbochargers and read the values
Advantages:

1.      It is with indicator lamp following each step and warn you the problems.

2.      It possesses high control sensitivity and strong controllability.

3.      It is easy to learn and operate.

4.      It has a protective cover to avoid danger during test

5.      It can test various kinds of turbochargers as long as they are with the same working principle

6.      It can be matched with PLC computer to operate, display, save & print test results and curves.

Test items:
1.      Test speed of turbocharger
2.      Test air flow of turbocharger
3.      Test boost pressure of turbocharger
4.      Test air inlet pressure of turbocharger
5.      Test lubrication state of turbocharge
