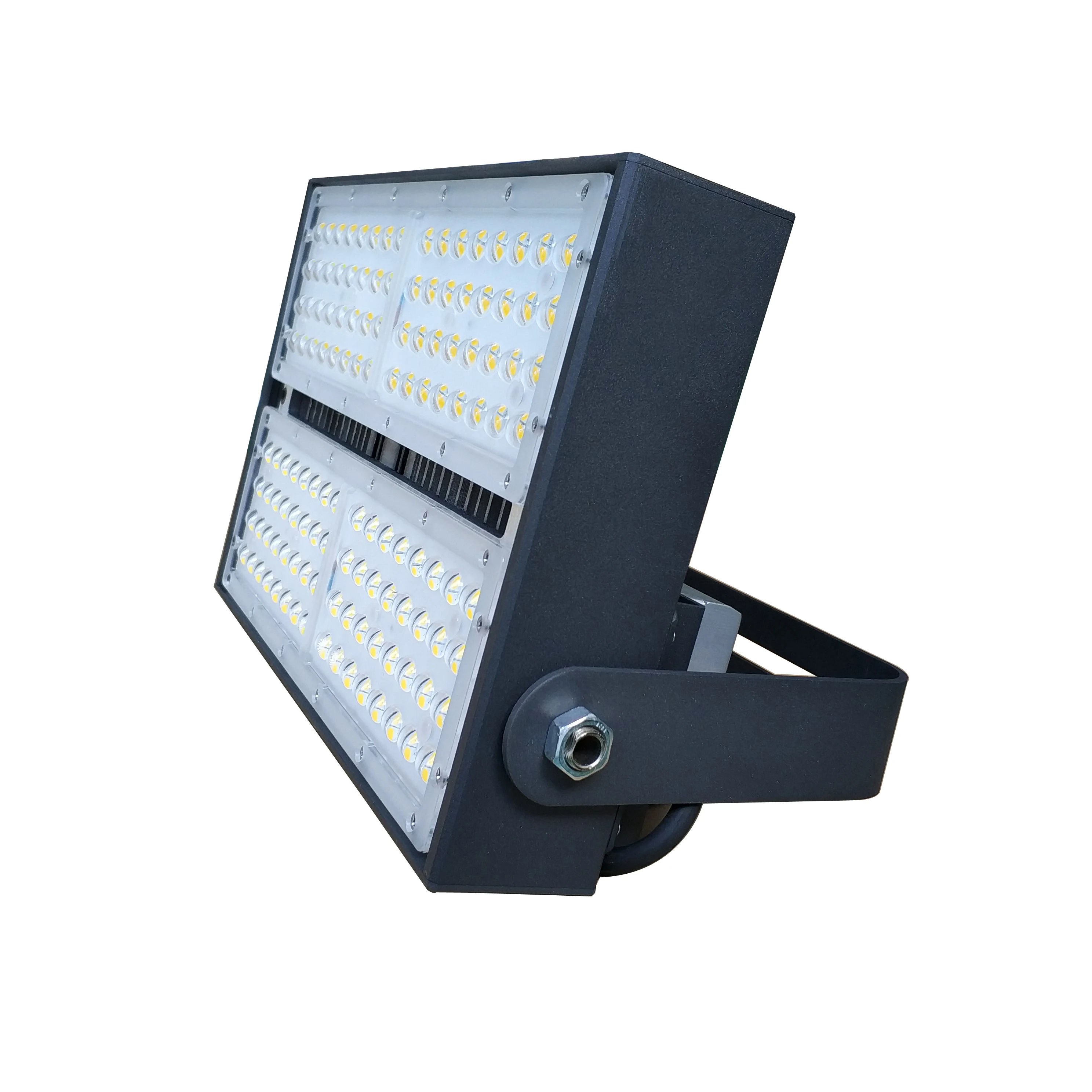

500 лм/Вт футбольное поле 600 Вт Светодиодный прожектор

Model No.

VIS-PLF-600W

Power

600W

Led Luminous Efficiency

150LM/W

Luminous Flux

90000LM

CCT

2800-6500K

CRI

Ra>80

Beam Angle

150*80°, 90°

Input Volatge Range

90-295VAC 127-417VDC

Frequency Range

47-63Hz

Power Factor

PF>0.97/115VAC,PF>0.95/230VAC,PF>0.9/277VAC@full load

Total Harmonic Distortion

THD<20%(@load≥65%/115VC,230VAC; @load≥75%/277VAC)

Efficiency

90%

AC Current

0.7A/115VAC  0.4A/230VAC  0.3A/277VAC

Leakage Current

<0.75mA/277VAC

Over Current Protection

Hiccup mode, recovers automatically after fault condition is remoted

Over Temperature Protection

Shut down o/p voltage, re-power on to recover

Working Temperature

Tcase=-40 ~ +85℃(Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)

Max. case Temperature

Tcase=+85°C

Working Humidity

20 ~ 95% RH non-condensing

Storage Temperature Humidity

-40 ~ +80℃, 10 ~ 95% RH

Temperature Coefficient

±0.03%/°C (0 ~60℃)

Withstand Voltage

I/P-O/P:3.75KVAC

EMC Emission

Compliance to EN55015, GB17743, GB17625.1, EN61000-3-2 Class C (@load≥65%) ; EN61000-3-3, EAC TP TC 020

EMC Immunity

Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, EN55024, light industry level(surge immunity:Line-Line:2KV), EAC TP TC 020

IP Grade

IP66

Working Life-span

50000H
