Плата контроллера ЖК-дисплея FHD AV USB Type C
US $50.00-$99.00
Edp 30 контактный разъем платы ЖК-панель с сенсорной
- Категория: LCD Boards & Accessories >>>
- Поставщик: Clientop,Technology,Co.,Ltd.,(Shenzhen)
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.57 $* | 0.72 $* |
| Aug-17-2025 | 0.15 $* | 0.50 $* |
| Jul-17-2025 | 0.67 $* | 0.36 $* |
| Jun-17-2025 | 0.31 $* | 0.71 $* |
| May-17-2025 | 0.83 $* | 0.13 $* |
| Apr-17-2025 | 0.7 $* | 0.52 $* |
| Mar-17-2025 | 0.7 $* | 0.54 $* |
| Feb-17-2025 | 0.71 $* | 0.69 $* |
| Jan-17-2025 | 0.56 $* | 0.7 $* |
Характеристики
Product Description
This EDP 30 pin connector controller set including below kits:EDP panel VVX11F019G00,EDP 30pin controller board,IR light with wire,keyboard with wire,etc .You can choose to order any part or the whole set base on your need.
Kindly send me message if any question.

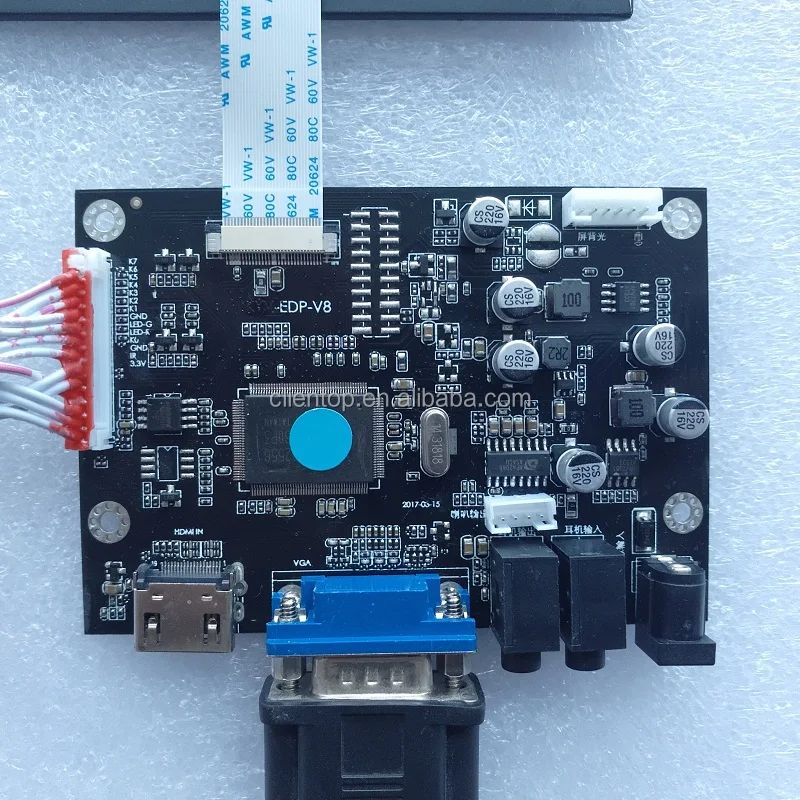

This EDP controller board can transfer HD and VGA signal into EDP output signage.Which is very easy to drive EDP panels directly.And it can support resolution from 800*600 to 1920*1200.Which means can be compatible with all kinds of EDP panels.
VVX11F019G00 is a high quality EDP panel supports eDP ver1.3 two lane with PSR and ASSR function.
Display mode including Transmissive mode and Normally black mode.
The board is very Low consumption and is compatible with 3.3V panel interface,easy compatible.It support HD VGA signal input with outstanding color performance.Suitable for 1LANE、 2LANE、 EDP panels.Such as: N156HCE-EBA、VVX10F011B00、LP156WF6-SPK1、LQ133M1JW03、LQ133M1JW02、N116HSE-EJ1、B156HTN03 4、B156XW04 V6、CLAA133UA03,etc.all kinds of EDP panel
VVX11F019G00-3 is a 11.6inch supports resolution 1920*1080,with active area 256.896*144.504mm,pixel pitch is 0.1338*0.1338 and 190ppi Pixel density.
With eDP 1.3 interface.Brightness is 400nits.
Weight about 158.8g.
Size | 10.1inch | ||||||
Signal interface | VGA,hdm* | ||||||
Resolution | 1920*1080 | ||||||
Panel interface | edp | ||||||

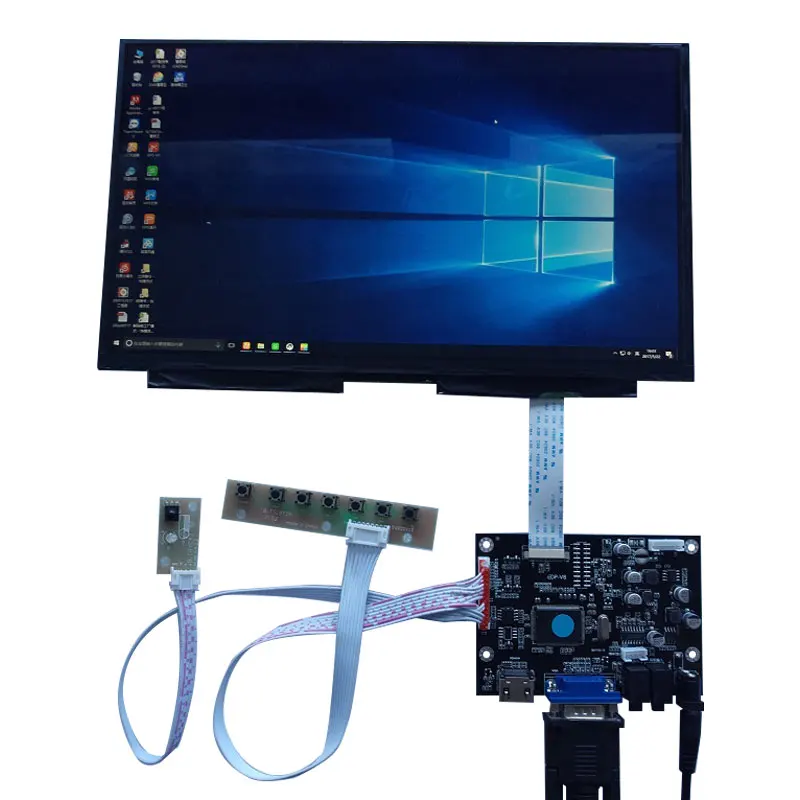

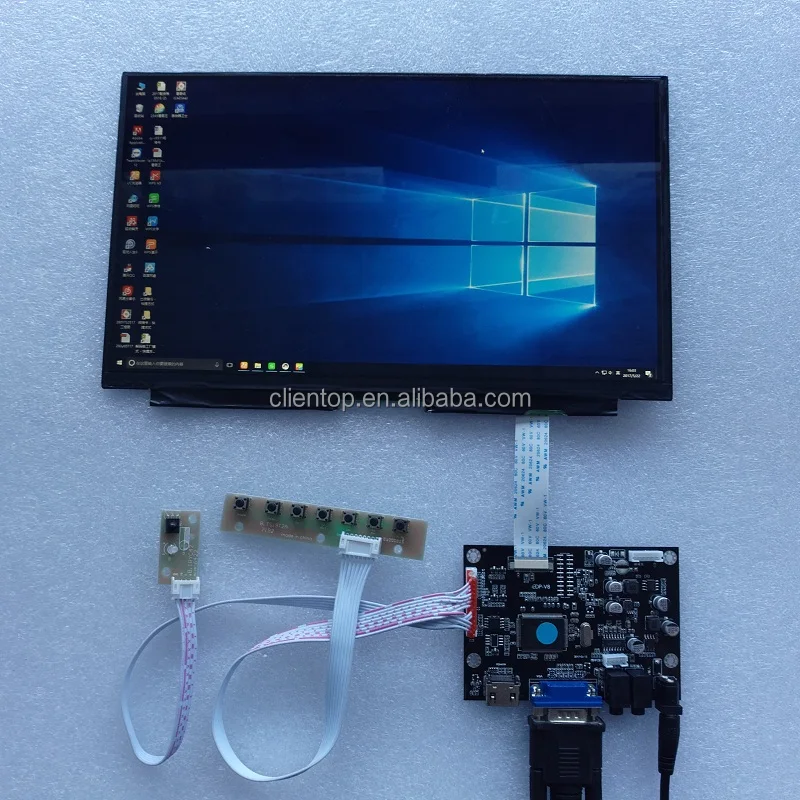

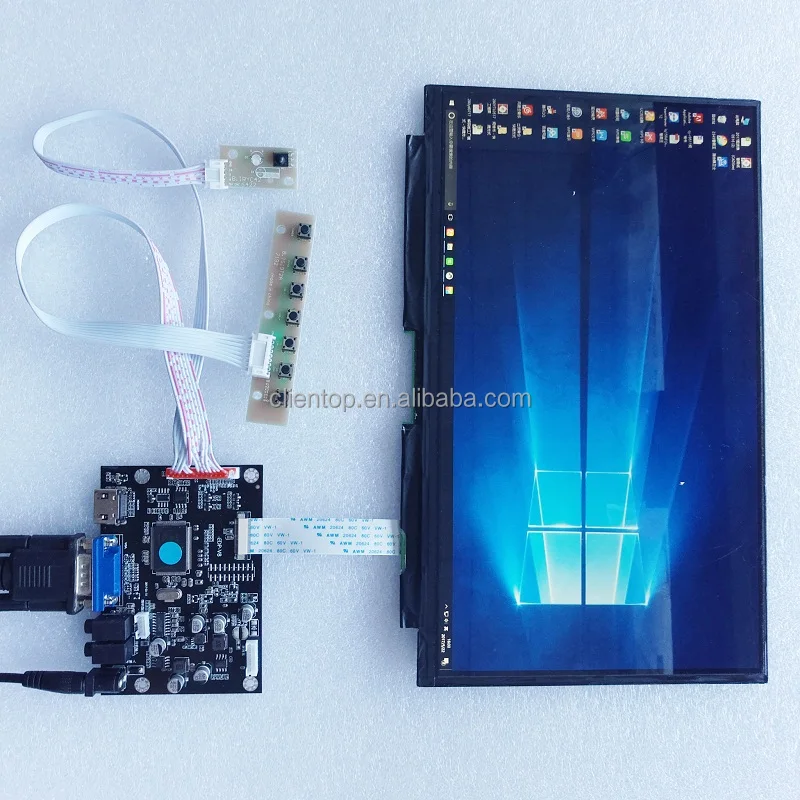

Overlook of the whole EDP lcd set.

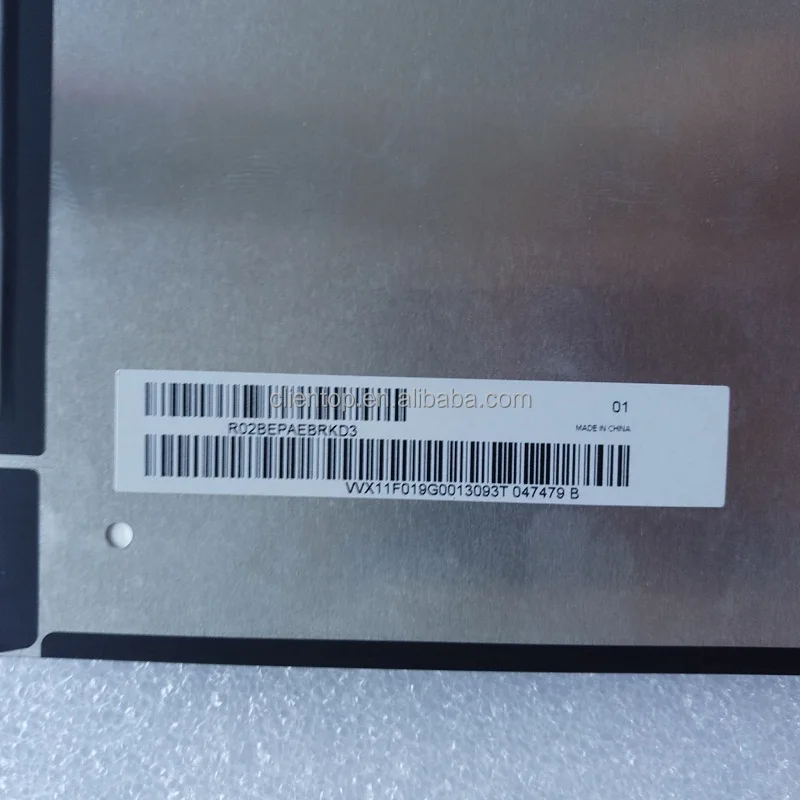

Panel
Related Products
EDP controller board 30pin
10.1 inch lcd module set
10.6inch LVDS pc panel
Our Company
Clientop Industrial Co.,Ltd ,a company with full experience in producing LCD advertising products and LCD kits.also a leading company of this line for more than 10year,with good quality and competitive price as well as very good service.
In order to make sure clients can receive qualified iterm, we do 100%product test before shippment.
We provide wholelife professional after-sale technical support as well whose purpose is try our best to provide best shopping experience for you!
Packing & Delivery
Packing
Standard export package: Bubble bag+hard paper carton
Delivery
3 days after the payment.The transport mode base on customer's requirment
FAQ
1 . About the quality
All of our product will be testing before shipping . So you can be assured the quality of our products .
However, If you found any problem after received the goods , Please feel free contact to us .
We will be willing to deal with your problem at the first time .
2. About the payment
Sample order :A Aliexpress B Paypal C Union Western
Large order: HSBC bank (Company account)
3. About warranty and Return
We offer one year warranty for most of our products and professional technical support .
Please contact us if there are any problems and we will do my best to fix it out. Here is our misrepresented & unsatisfied merchandise policy.
-- 1. We accept returns for replacement or refund within 5 days after receipt of item(s). Items MUST be in their original condition, not worn or altered.
-- 2. We do not reimburse the return shipping charge. Refunds will be for the original price paid, and will be issued within 7 business days after receipt of the return.
