Витой пара кабелей 6x0 14 мм liycy

Категория: Control Cables >>>
Поставщик: Shanghai,Jiukai,Wire,&,Cable,Co.,Ltd.

Цена:0,30 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	0.48 $*	0.64 $*
Aug-18-2025	0.17 $*	0.89 $*
Jul-18-2025	0.14 $*	0.46 $*
Jun-18-2025	0.22 $*	0.3 $*
May-18-2025	0.73 $*	0.42 $*
Apr-18-2025	0.30 $*	0.40 $*
Mar-18-2025	0.23 $*	0.70 $*
Feb-18-2025	0.50 $*	0.40 $*
Jan-18-2025	0.76 $*	0.52 $*

Характеристики

LiYCY 6x0.14mm liycy (tp) twisted pair cable

Product Name/Code : LiYCY PVC/TCWB/PVC Control Cable

Application : Indoor installation for electronic control and regulating gear office machinery. These cables have feature for screening which defect external electrical influences and ensures precise flues transmission.
Standards: Generally to BS6500 and VDE0250
Conductor: Fine Wire Strands of Plain Annealed Copper strands to BS6360.
Insulation: PVC
Laying UP: Cores twisted together
Wrapping: Polyester tape
Screen: Tinned Copper Wire Braid
Sheath: Grey PVC
Voltage Rating : Working Test
0.14 - 0.34 mm2 250v 1000v
0.5 - 1.5 mm2 300v 2000v
2.5 - 6 mm2 500v 2000v
Temperature Range: Static -20°C to +80°C ,Flexing -5°C to +70°C
Minimum Bending Radius: Fixed: 6 x Cable Diameter ,Flexing: 15 x Cable Diameter
Core Identification : Number Coded, Black Cores with White Numbers + Green/Yellow
Mutual capacitance: C/C approx 120 nF / km ,C/C approx 160 nF/ km
Inductance: approx. 0,65 mH/km

0.14 mm 2 LiYCY control cable

Part NO.	Cores & mm 2	Weight Kg/KM	O/D mm
LiYCY-1C0.14SQ	1 x 0.14	16	3.6
LiYCY-2C0.14SQ	2 x 0.14	20	3.8
LiYCY-3C0.14SQ	3 x 0.14	25	4.0
LiYCY-4C0.14SQ	4 x 0.14	30	4.3
LiYCY-5C0.14SQ	5 x 0.14	36	4.6
LiYCY-6C0.14SQ	6 x 0.14	40	5.0
LiYCY-7C0.14SQ	7 x 0.14	41	5.2
LiYCY-8C0.14SQ	8 x 0.14	44	5.6
LiYCY-10C0.14SQ	10 x 0.14	56	6.3
LiYCY-12C0.14SQ	12 x 0.14	60	6.4
LiYCY-14C0.14SQ	14 x 0.14	65	6.7
LiYCY-16C0.14SQ	16 x 0.14	81	7.2
LiYCY-18C0.14SQ	18 x 0.14	93	7.6
LiYCY-21C0.14SQ	21 x 0.14	103	8.3
LiYCY-24C0.14SQ	24 x 0.14	117	9.0
LiYCY-25C0.14SQ	25 x 0.14	120	9.0
LiYCY-27C0.14SQ	27 x 0.14	124	9.1
LiYCY-30C0.14SQ	30 x 0.14	136	9.4
LiYCY-36C0.14SQ	36 x 0.14	160	10.0
LiYCY-40C0.14SQ	40 x 0.14	170	10.3
LiYCY-44C0.14SQ	44 x 0.14	186	11.1
LiYCY-52C0.14SQ	52 x 0.14	200	11.5
LiYCY-61C0.14SQ	61 x 0.14	250	12.1

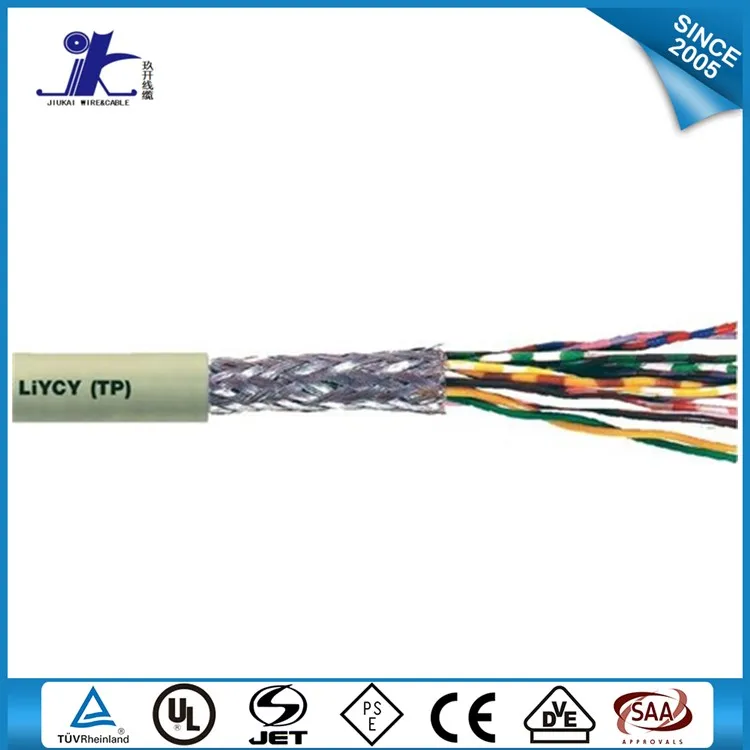

LiYCY(TP) Shielded Data Transmission Cable

Product Description

Application

The cable can be used as connecting cable, widely used in the smaller electronic equipment devices which need shield . such as for the computer systems, electronic control equipment, office automation equipment, measuring equipment, etc.. Applies to places that require a flexible cable, and in dry and wet indoor environments where free movement without tensile stress or movement under the force. but not for the open-air environment.

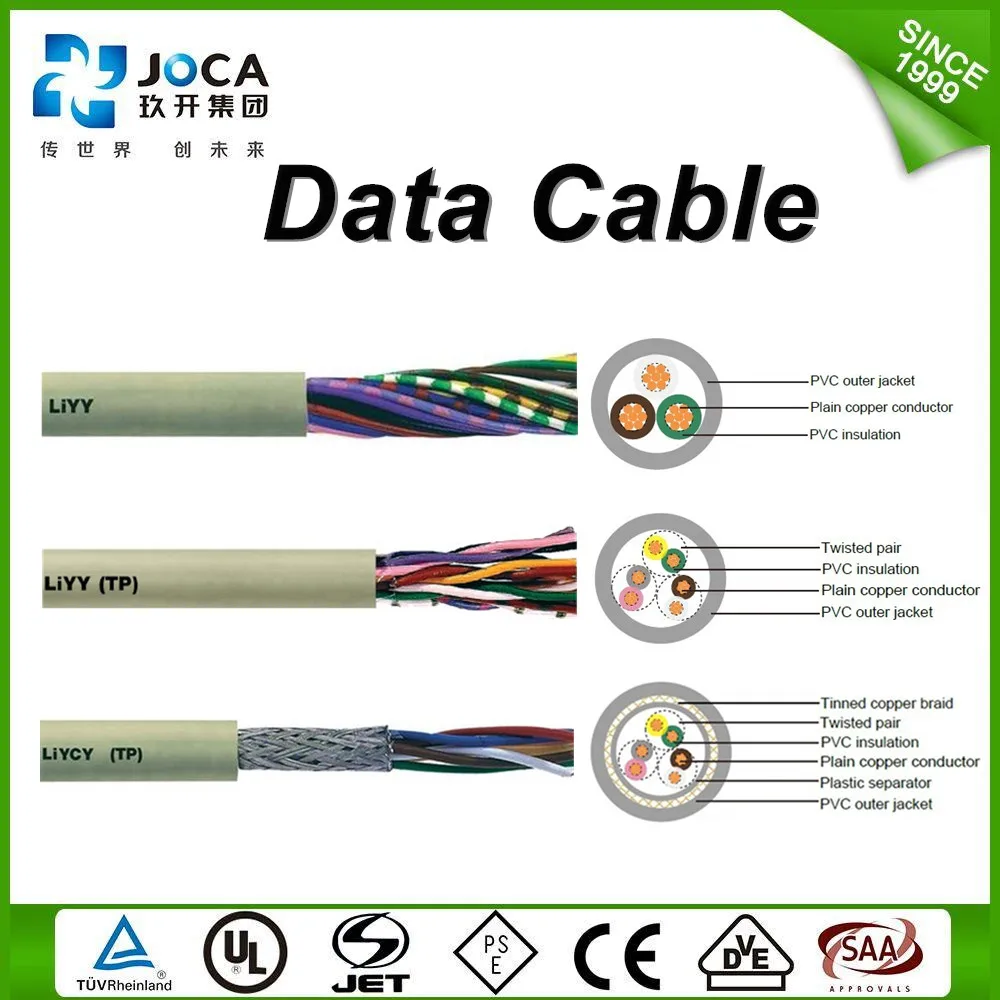

Construction

Conductor Stranded of fine copper wire (class 5) comply with VDE0295/IEC60228 standard.

Insulation: Special PVC mixture material.

Color coded cores in accordance to DIN47100 (can be customized colors)cores twist lay together.

Plastic film coated overall(Tinned) copper shielding braid coverage of 85%outer sheath: Special PVC mixture material

Gray (RAL7032) (color can be customized according to customer requirements)

Technical data

Operating voltage: 0.14 mm2: 350 V , >= 0.25 mm2: 500 V

Insulation resistance:> 20 MOhm x kmMinimum bend radius: movable installation, 15x cable outer diameter, fixed installation 6x cable outer diameterOperating Temperature Range: Movable installation: - 5 ° C to +70 ° C fixed installation: -30 ° C to +80 ° CFlame-retardant characteristics: PVC self-extinguishing and flame retardant to meet IEC60332-1 specified inAnti-radiation intensity: up to 80 × 106cJ/kg

Packaging & Shipping

100m/200M/500M each roll ,Packaged in a drum or Roll or Wooden

LIYCY 02.jpg
