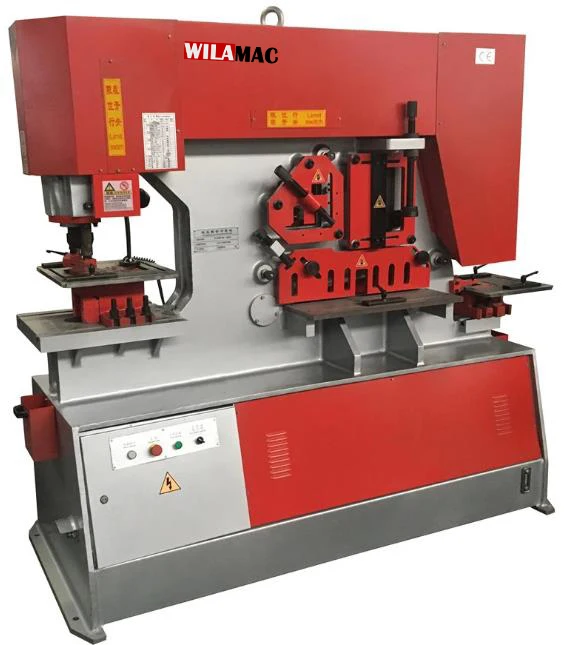

Q35Y Series Hydraulic Iron Worker

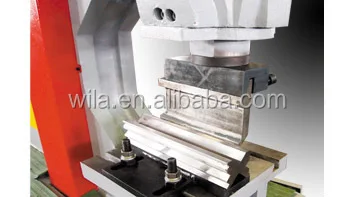

 Q35Y series hydraulic hydraulic guillotine shearing machines/metal processing adopt hydraulic driving system.metal processing can cut punch all kinds of holes.Various metal plates,square bar,angle steel,round iron,flat bar,profiled bars,channel steel and joist steel can be cutted,punched and notched on the machines.



Detailed function of Q35Y Sheet metal Hydraulic Ironworkers as follow/ metal processing:

1) Robust and accurate steel frame

2) Large punch table with scales

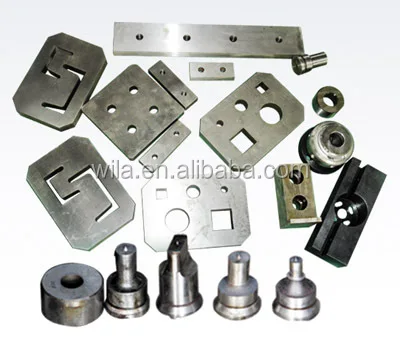

3) Removable bolster for punching flanges and channel and beam

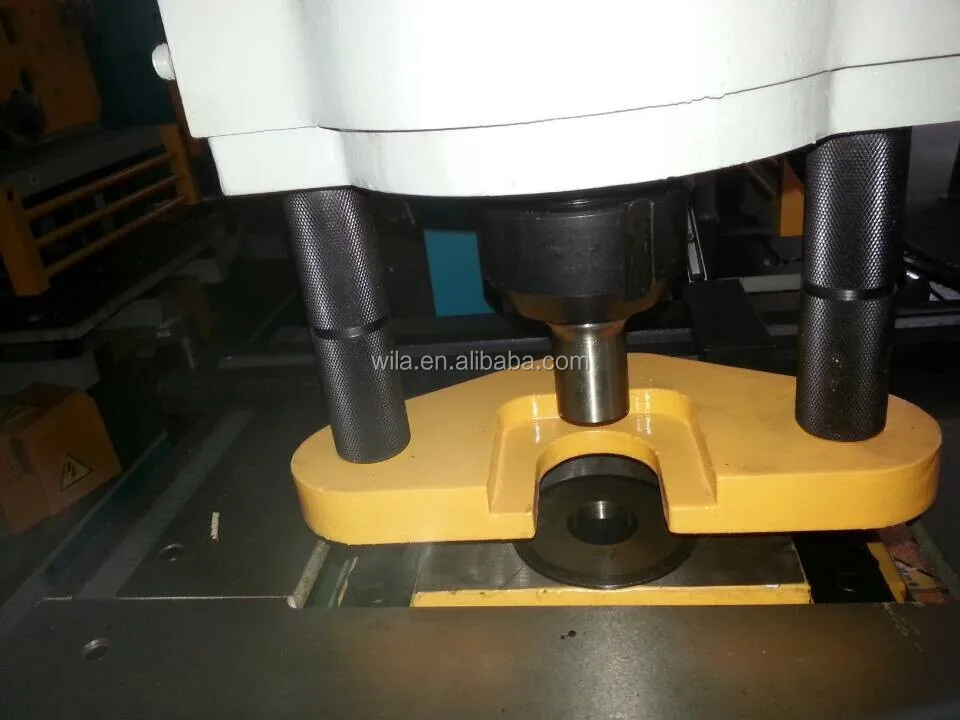

4) 2 independent hydraulic cylinders

5) 2 shielded foot controls

6) 2 Separate Die Openings for oversized punching

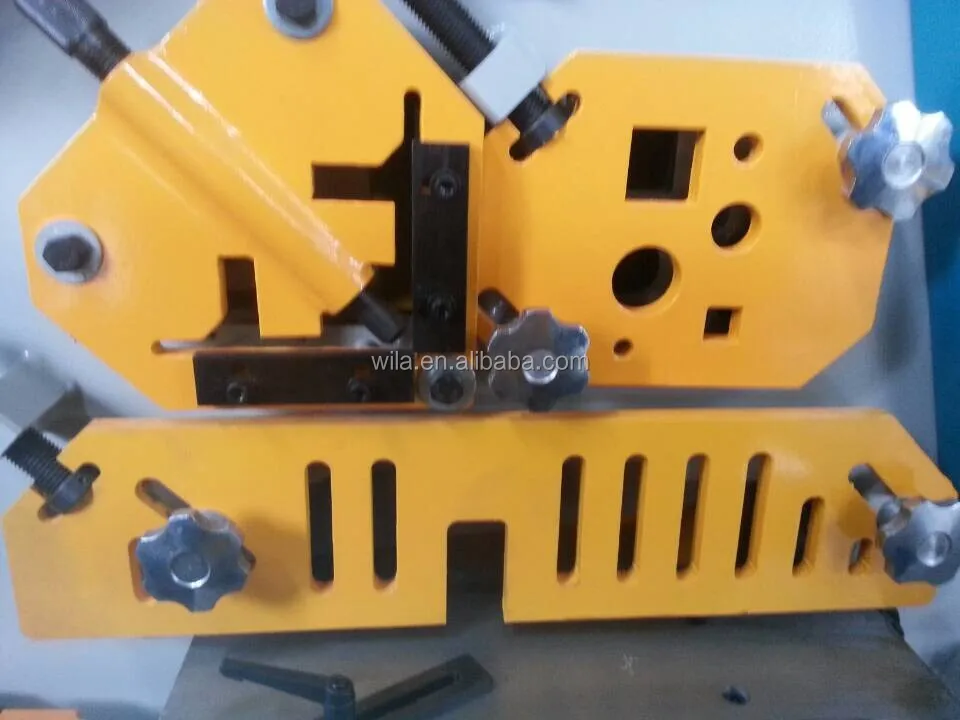

7) 5 working stations for wide applications

8) Power inching on all 5 work stations

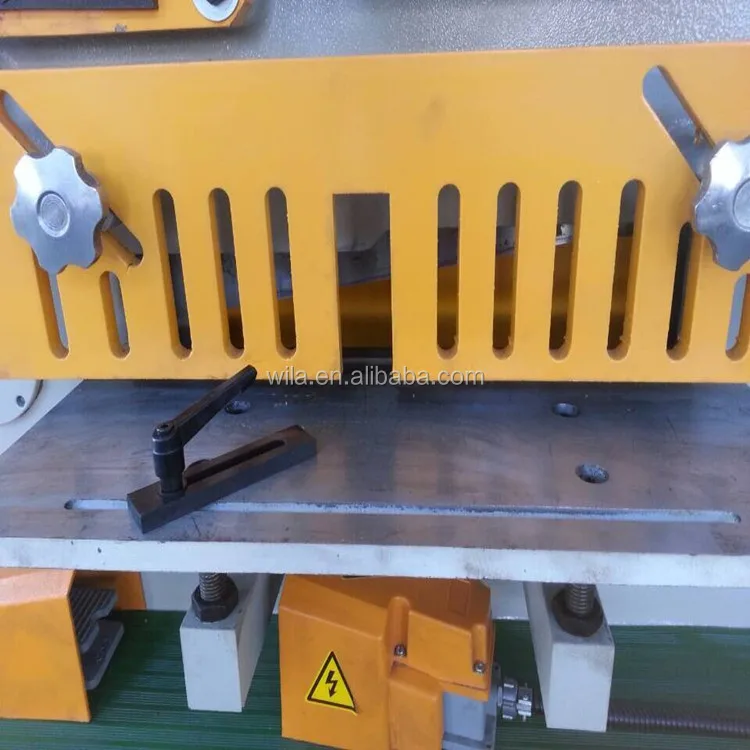

9) Plate shear support/table and notching table

10) Adjustable stroke controls with indicators on both cylinders

11) Movable work light as standard

12) Overload protection on hydraulic system

13) Electric back gauge.



Model	Q35Y-16	Q35Y-20	Q35Y-25	Q35Y-30
Pressure(Ton)	60	93	120	160
Max.cutting thickness(mm)	16	20	25	30
Plate strength(N/mm2)	≤450	≤450	≤450	≤450
Cutting angle(degree)	7°	8°	8°	8°
Sheraing size of one stroke(mm)	16*250 8*400	20*330 10*480	25*330 16*600	30*355 20*600
Ram stroks(mm)	80	80	80	80
Number of strokes(cpm)	8	8	6	6
Throat depth(mm)	300	355	400	600
Punching thickness(mm)	16	20	25	26
Max.Punching diameter(mm)	25	30	35	38
Power of main motor(kw)	4	5.5	7.5	11
Overall dimensions(L*W*H)mm	1640*730*1770	1860*800*1900	2355*960*2090	2680*1040*2300
Weight of machine(kg)	1600	2000	4800	6800



A Special order for the joist and channel moulds needed.



Profile	Round Bar	Square Bar	Equal Angle		T-Bar		joistq	Channel
			90°Shearing	45°Shearing	90°Shearing	45°Shearing
Section View
Q35-16	45	40*40	125*125*12	100*100*10	125*125*12	100*100*10	180*94*6.5	180*68*7
Q35Y-16	45	40*40	125*125*12	50*50*5	120*120*12	60*60*8	126*74*5	126*53*5.5
Q35Y-20	50	50*50	140*140*12	50*50*5	140*140*12	70*70*10	160*86*8	160*60*6.5
Q35Y-25	60	50*50	160*160*14	50*50*5	160*160*14	80*80*10	200*102*9	210*75*9
Q35Y-30	65	55*55	180*180*16	60*60*6	180*180*16	80*80*10	280*124*10.5	280*86*12
