Клетка Qihang HDPE для аквакультуры кронштейн

Категория: Aquaculture Traps >>>
Поставщик: Qingdao,Qihang,Fishing,Cage,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	0.44 $*	0.75 $*
Aug-18-2025	0.28 $*	0.13 $*
Jul-18-2025	0.52 $*	0.67 $*
Jun-18-2025	0.23 $*	0.55 $*
May-18-2025	0.21 $*	0.98 $*
Apr-18-2025	0.49 $*	0.74 $*
Mar-18-2025	0.21 $*	0.34 $*
Feb-18-2025	0.93 $*	0.63 $*
Jan-18-2025	0.81 $*	0.98 $*

Характеристики

Product Description

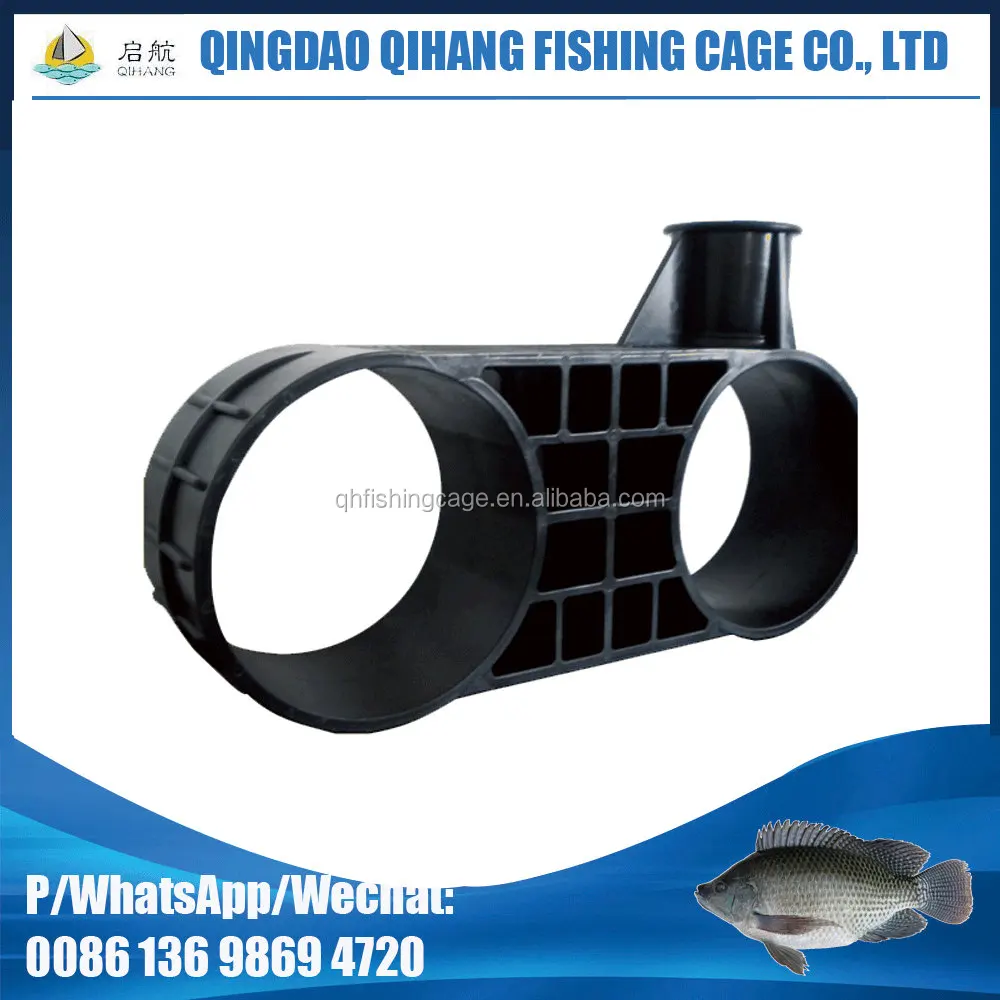

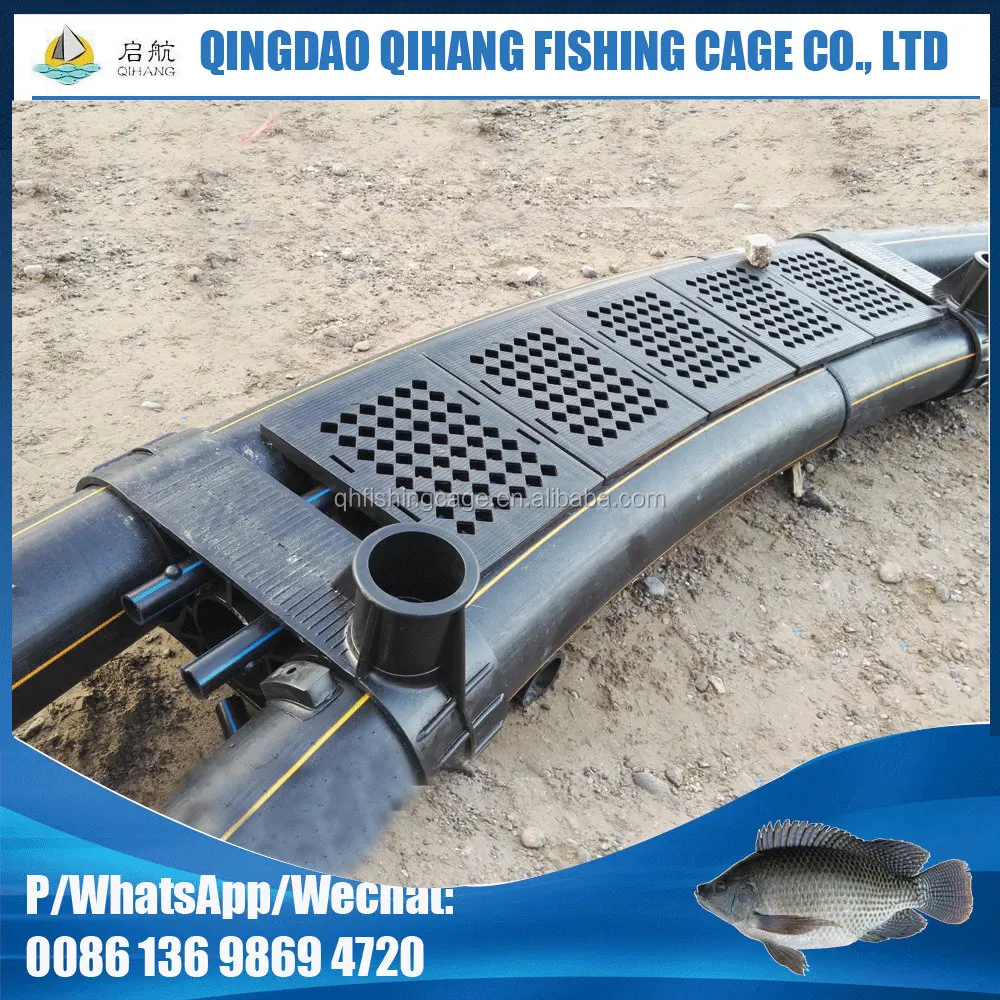

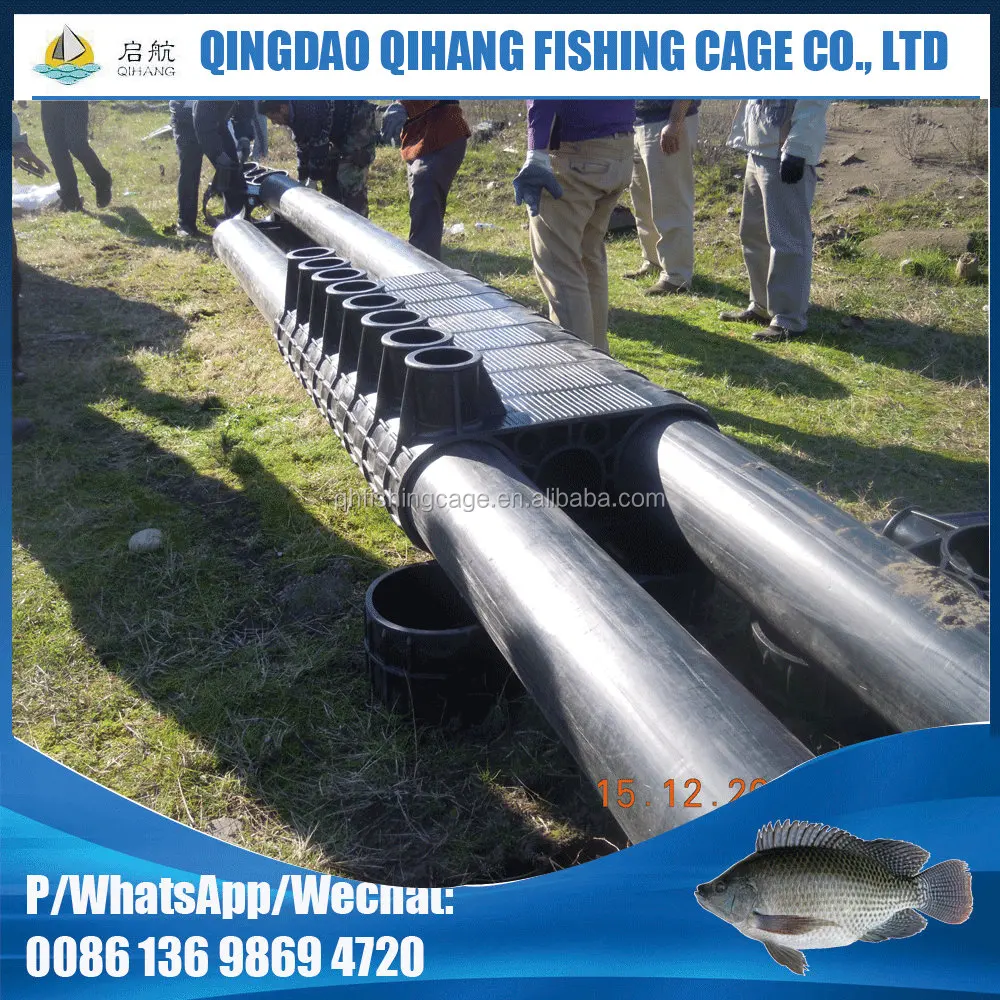

Qihang HDPE aquaculure cage aquaculture bracket for fish farming

Qihang Fish Cage and bracket is made from HDPE tubular product and cage fitting, using foreign imported special-cage purpose polyethylene raw material. This kind of tubular product has good strength and tenacity. Using unique structure design by our company, the frame will have the ability to resist stormy waves, meanwhile all frame materials go through the ultraviolet rays aging resist and seawater corrosive resist process, and the service life is over 15 years.

According to customer demand the circumference from 30m to 160m, net depth from 5m to 30m. Effective farming up to 30,000 m3.

Specification and Size
Perimeter	30m-50m	40m-80m	60m-120m	120m-160m
Floating Pipe	dia 200mm	dia 250mm	dia 315mm	dia 400mm
Bracket	L200	L250	L315	L400
Handrail Pipe	dia 90mm	dia 110mm	dia 110mm	dia 125mm
Sinker Pipe	dia 110mm	dia 125mm	dia 160mm	dia200/250mm

L*W(M)	Diameter of floating pipe(MM)	Diameter of handrial pipe(MM)	Diameter of stand pipe(MM)
3m * 3m	200mm	90mm	110mm
4m * 4m	200mm	90mm	110mm
5m * 5m	200mm	90mm	110mm
6m * 6m	200mm/250mm	90mm/110mm	110mm/125mm
7m * 7m	250mm/315mm	110mm	125mm
8m * 8m	250mm/315mm	110mm	125mm
9m * 9m	250mm/315mm	110mm	125mm
10m * 10m	315mm	110mm	125mm
12m * 12m	315mm/350mm	110mm/125mm	125mm/--
15m * 15m	315mm/350mm	110mm/125mm	125mm/--
20m * 20m	350mm/400mm	125mm	--
