Оптические линзы из кварцевого стекла с Плавленым УФ покрытием AR плоские выпуклые/вогнутые Biconvex/линзы
- Категория: Линзы >>>
- Поставщик: Wuhan,Especial,Optic,Inc.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 6.83 $* | 6.23 $* |
| Jul-20-2025 | 5.79 $* | 5.73 $* |
| Jun-20-2025 | 6.14 $* | 6.49 $* |
| May-20-2025 | 6.19 $* | 6.81 $* |
| Apr-20-2025 | 5.93 $* | 5.53 $* |
| Mar-20-2025 | 6.93 $* | 6.53 $* |
| Feb-20-2025 | 6.80 $* | 6.95 $* |
| Jan-20-2025 | 6.57 $* | 6.85 $* |
Характеристики
Product Description
Optical Lenses are optical components designed to focus or diverge light, widely applicated from microscopy to laser processing. A Plano-Convex or Double-Convex lens causes light to focus to a point, while a Plano-Concave or Double-Concave lens diverges the light which traveling through the lens. Achromatic Lenses are ideal for correcting color, aspheric lenses are designed to correct spherical aberration. Ge, Si, or ZnSe lenses are suited for transmitting the Infrared (IR) spectrum, fused silica is well suited for the Ultraviolet (UV), BK7/K9 glass is widely used in VIS applications.
Wuhan Especial Optic offers a wide range of Optical lenses: Plano Convex lenses, Bi-convex lenses, Plano Concave lenses, Bi-concave lenses, Meniscus lenses, Ball lenses and Aspherical lenses, as well as crown and flint flass Achromatic doublet lenses.
Product Name | UV Fused Silica Lens |
Diameter Tolerance | +0.0/-0.1mm |
Thickness Tolerance | ±0.1 mm |
Focal Length Tolerance | ±2% |
Surface Quality | 60/40, 40/20 or better |
Material | UV Fused Silica, BK7/K9, Ge, Si, CaF2, ZnSe |
Clear Aperture | >95% |
Centering | <3 arc min |
Coating | AR coating |
Bevel | Protective bevel as needed |

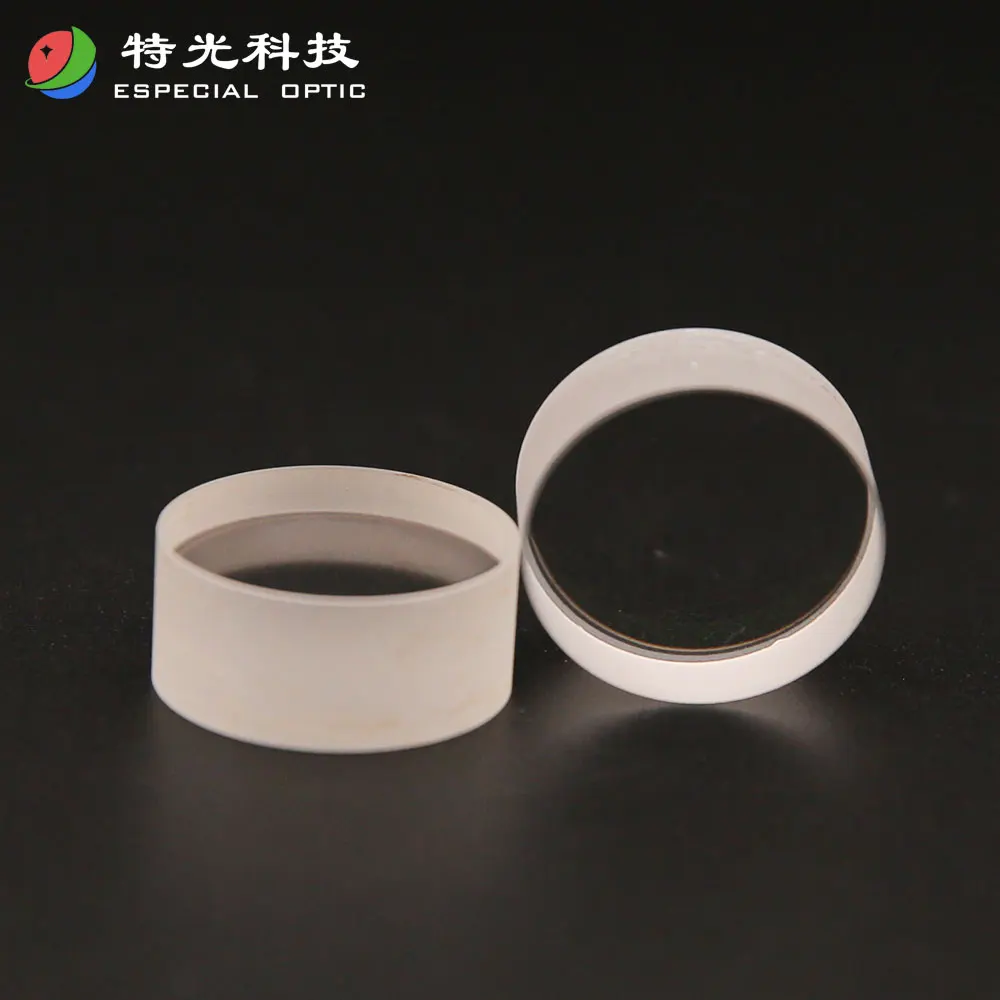

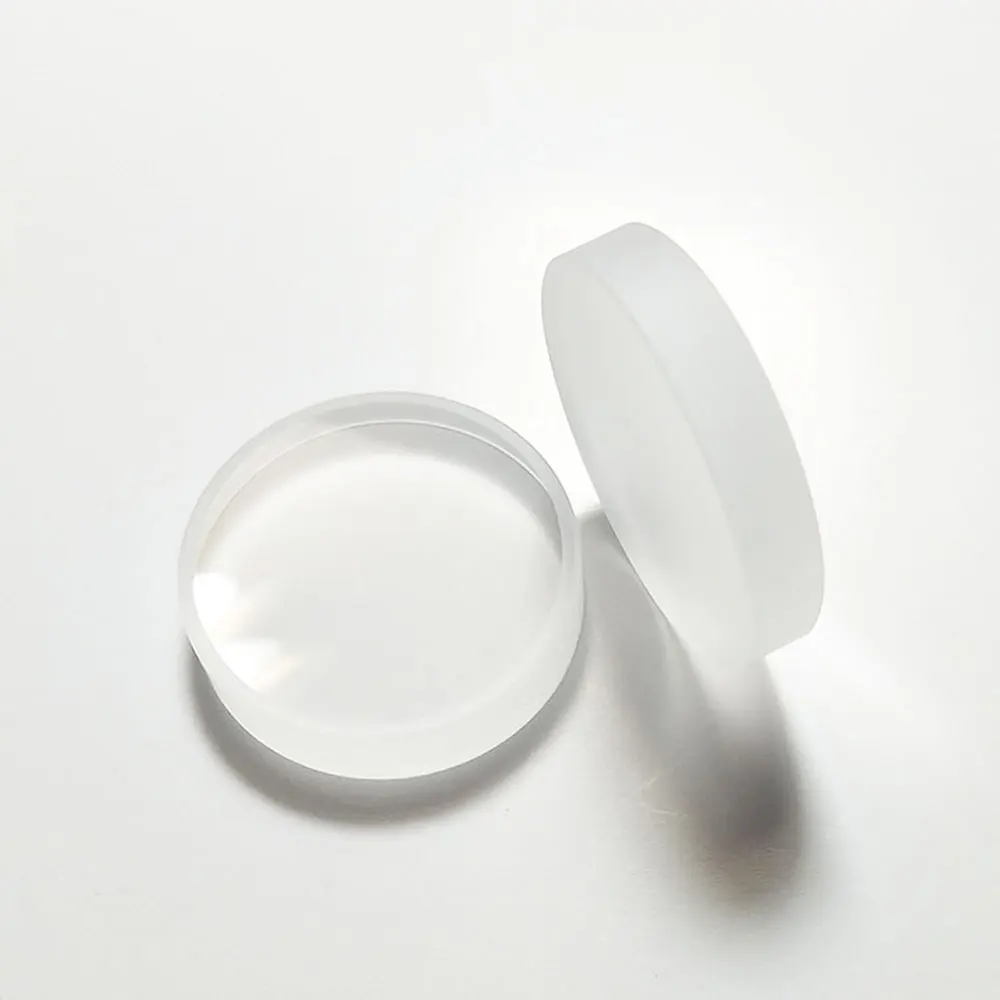

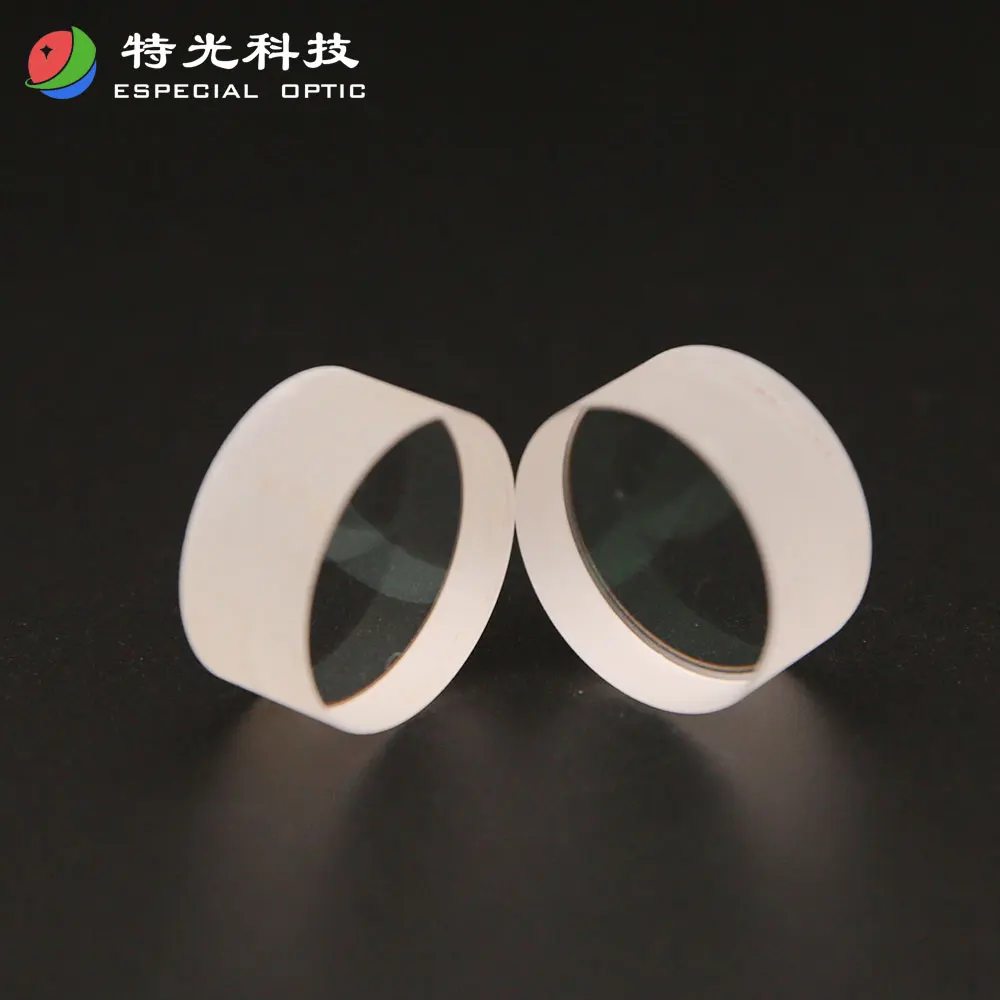

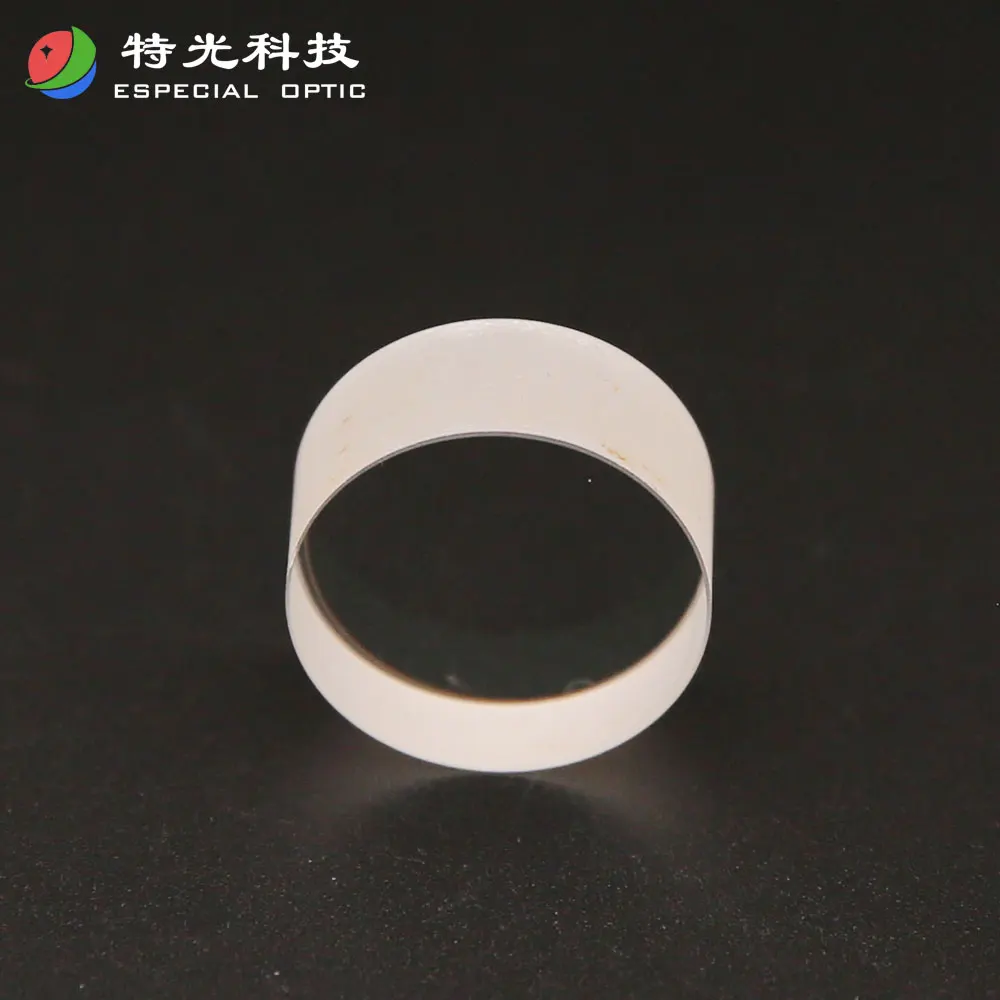

Detailed Images
Our Company
Wuhan Especial Optic.,INC was founded in 2012,located in Wuhan East Lake High-tech Development Zone.
Especial Optic focuses on the design, development and production of infrared optical components and visible optical components, and is good at developing and producing kinds of infrared optical components of ultra high precision, ultra thin, very large, ultra small and customized service. The company has optical optimization design, precision optical processing and optical coatingtechnology and production technology, with complete production processing and testing equipment, perfect quality management system.
After many years of unremitting efforts, Especial Optic has successfully produced a variety of special customized products and small batch infrared optical components, accumulated rich experience, we look forward to continue to provide more perfect service for our customers.
With continuous technological progress and management innovation, we will create more value and provide better products and services for our customers.
Especial Optic focuses on the design, development and production of infrared optical components and visible optical components, and is good at developing and producing kinds of infrared optical components of ultra high precision, ultra thin, very large, ultra small and customized service. The company has optical optimization design, precision optical processing and optical coatingtechnology and production technology, with complete production processing and testing equipment, perfect quality management system.
After many years of unremitting efforts, Especial Optic has successfully produced a variety of special customized products and small batch infrared optical components, accumulated rich experience, we look forward to continue to provide more perfect service for our customers.
With continuous technological progress and management innovation, we will create more value and provide better products and services for our customers.
Factory
Lobby
Coring
Forming
Rounding
Polishing
High speed polishing
Low speed polishing machine
Mould warehouse
Interferometer
Spectrophotometer
Central deviation measuring instrument
30-fold microscope
Coating machine
Our Service
a: Dimesion size : 5-300mm , thickness up to customer requirements
b: Many material could be choosed, like BK7, Fused Silica, Sapphire, MgF2, CaF2,Ge, Si, Znse,ZnS and so on.
c: AR HR DLC coating or as your request
d: Product shape : As required
For more information, kindly visit our website: www.wheo.cn
Our products
uncaoted BK7 windows
caf2 window
AR coating Ge window
ZnSe window
AR coating SI window
AR coating ZnS window
Sapphire window
Fused Slica window
optical lens

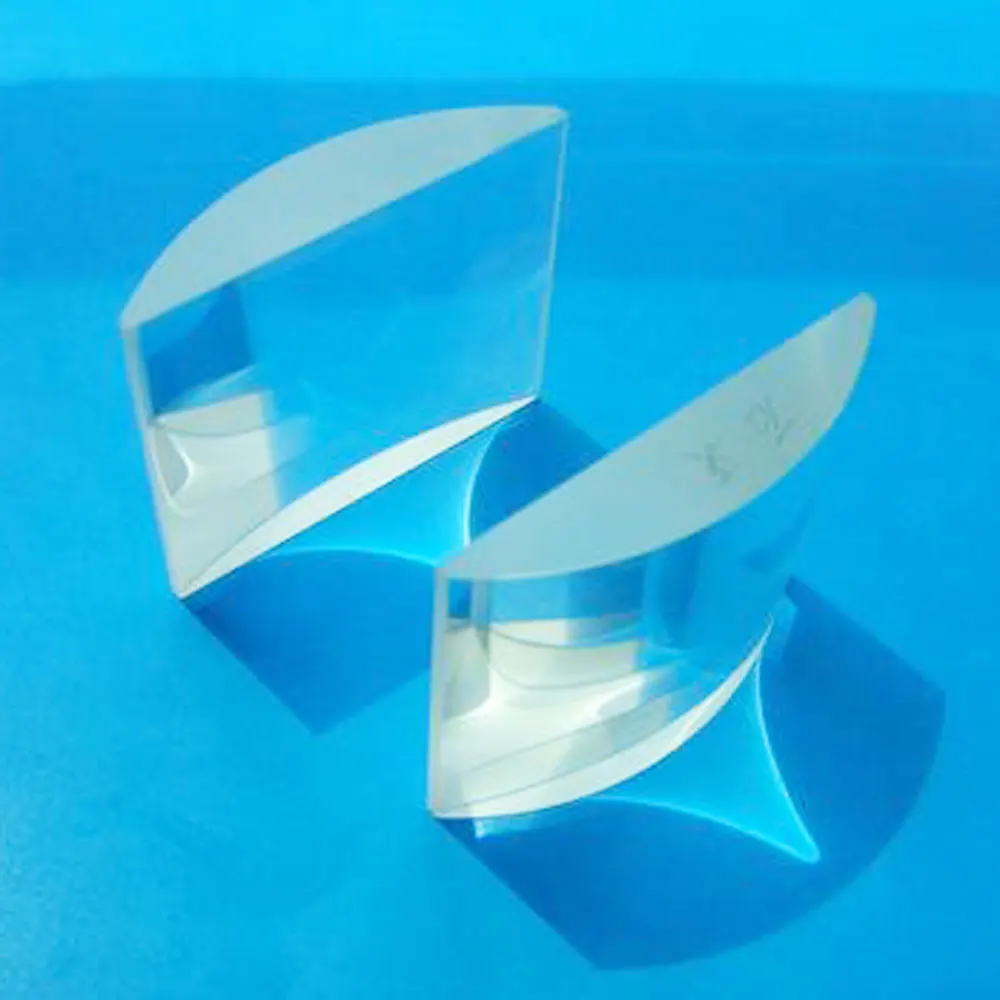

cylindrical lens
Si lens
optical convex mirror
Al coated mirror
gold coated mirror
optical bandpass filter
optical prism
Si galvanometer
Packing & Delivery
Packing Details: Protective film or Capacitor paper,Pearl cotton,Cardboard box.
Delivery Details: 7 days for stock.
3-4 weeks for custom-made products for sample.
in common, 4 weeks for mass production
Contact us
Wuhan Especial Optic.,INC
Contacts: David Liu
T: 86-027-87504830
P: +86 18622556450
Skype: +86 18622556450
Email: David(at)wheo.cn
Website: www.wheo.cn
FAQ
What's the way of shipping?
We accept DHL, Fedex, TNT, UPS, SF, EMS etc. If you have your own express account, it's great.
How to pay?
We usually draft Trade Assurance Order on Alibaba, you can pay by the most convenient way which also protect most of your rights.
What's the deliver time?
For inventory: the delivery time is around 5 workdays.
Customized products: the delivery time is 10 to 30 workdays. According to the quantity and precision.
How to ensure the safety of payment?
Wuhan Especial Optic.,INC is the gold supplier and supports Alibaba Trade Assurance. Payment<=5000USD, 100% in advance. Payment>5000USD, 50% T/T in advance, balance before shippment.
Can I customize the products based on my need?
Yes, we can customize the material, specifications and optical coating for your optical components based on your needs. OEM is available.
