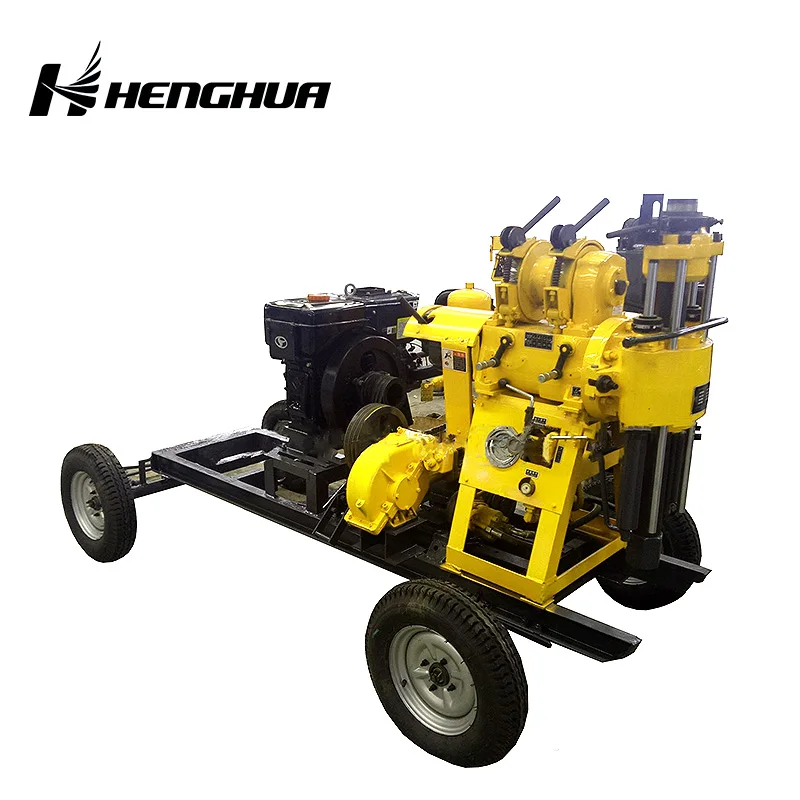

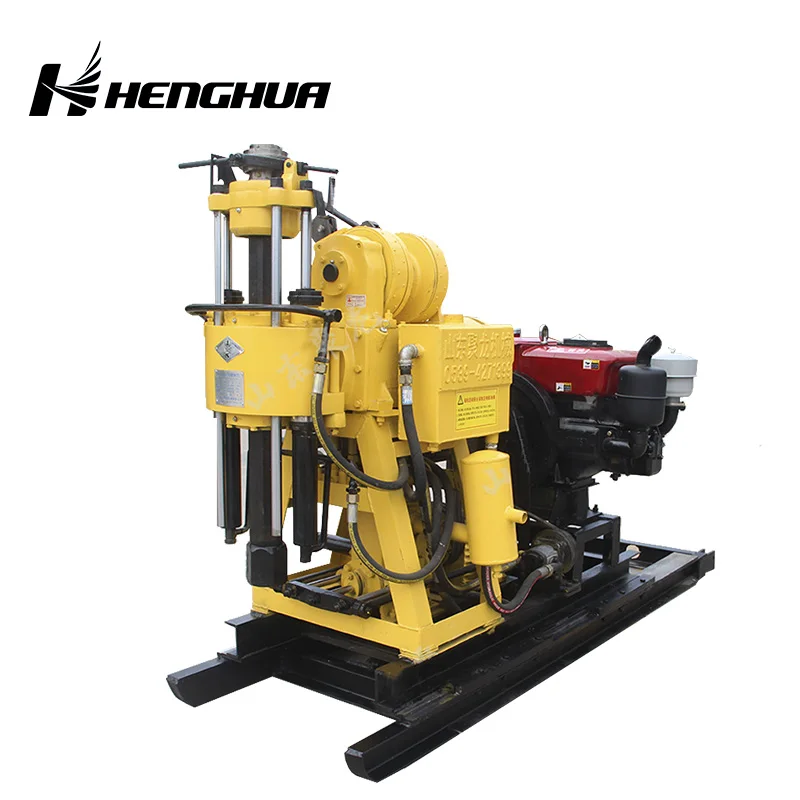

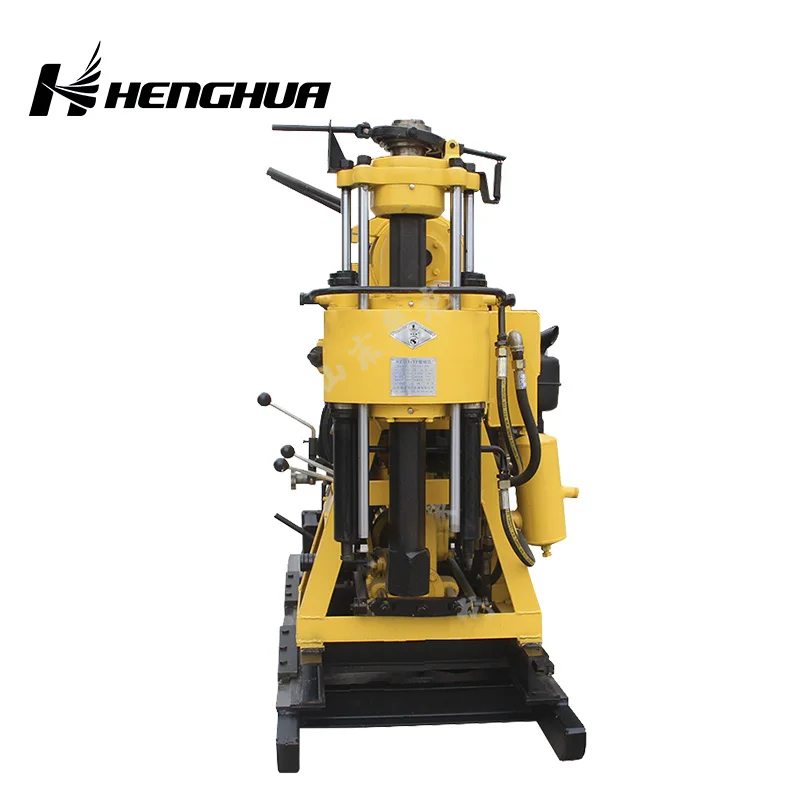

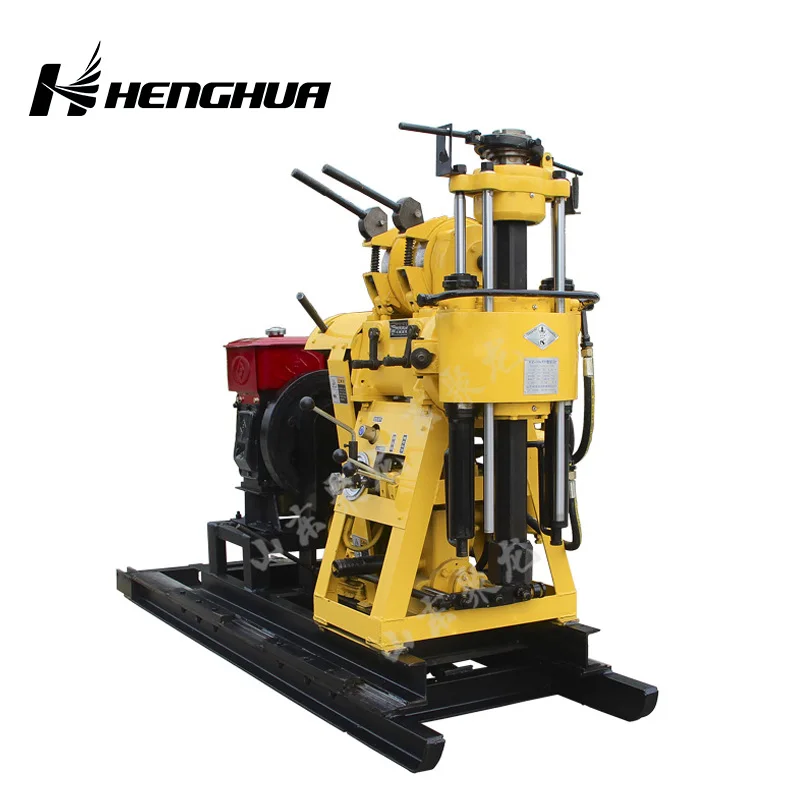

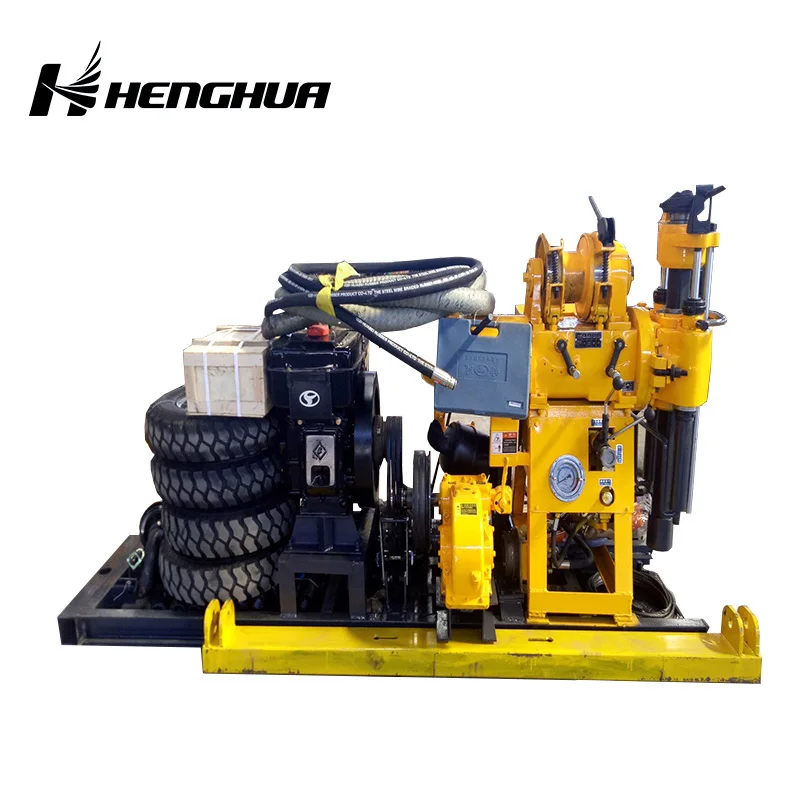

Китайское производство Высококачественная небольшая буровая установка для бурения скважин под землей 200

Описание и отзывы

Трекер стоимости

Характеристики

 PRODUCT  DESCRIPTION

 General geological survey exploration, road and high-rise building foundation exploration, various concrete structure inspection holes, river embankments, subgrade grouting hole drilling and direct grouting, civil water wells and ground temperature central air conditioning, etc.



PRODUCT FEATURE

1. The hoist is equipped with a cage to form a double-sided supporting star wheel structure, which can withstand strong impacts;

2. The four sets of bearings in the vertical axle box are positioned to ensure that the gyrator has sufficient rigidity to deal with complex geological conditions such as gravel and pebble layers;

3. This machine adopts the taper clutch of national patent technology, which has the outstanding characteristics of large transmission torque, convenient operation and maintenance-free;

4. It adopts 53×59 hexagonal active drill pipe, which has strong rigidity and large transmission torque.





TECHNICAL PARAMETER



Model	HZ-130Y/130YY	HZ-180Y/180YY	HZ-200Y/200YY
Drilling depth(m)	130	180	200
Open hole dia.(mm)	220	220	325
End hole dia.(mm)	75	75	75
Drill rod dia.(mm)	42-60	42-60	42-60
drill angle(°)	90-75	90-75	90-75
Matching power(kW)	13.2	13.2	15
Weight without power(kg)	600/740	620/750	880/970
Dimension Length*width*height(mm)	2.4*0.7*1.4	2.4*0.6*1.4	2.7*0.9*1.6
Vertical shaft speed(r/min)	142/285/570	130/300/480/730/830/1045	64/128/287/557
Vertical axis stroke(mm)	450	450	450
Max Single rope lifting force(kg)	2000	2100	2500
Single rope lifting speed(m/min)	0.41-1.64	0.35-2.23	0.12-0.95
Wire rope diameter(mm)	φ9.3	φ9.3	φ12.5
Wire rope capacity(m)	27	35	35
Rated load(ton)	18	18	18
effective height(m)	6.5	6.5	6.5
Dispalcement(L/min)	95	95	145
Max.pressure(Mpa)	1.2	1.2	2
Number of reciprocations(Times/min)	93	93	93
Diameter of suction pipe(mm)	51	51	51
Outlet diameter(mm)	32	32	38

Question 1: What are your advantages compared with your competitors?

Answer:

With rich industry experience and strict Product Quality Control systems, we provide:

1). Stable and reliable product at reasonable price

2). Good customer service: Fast response to any inquiry or question

3). On-time delivery.



Question 2: Can you customize the machine for me ?

Answer: Yes, we can customize according to customer's requirements.



Question 3: What shall we do if breakdown occurs?

Answer: Please informed us once the breakdown occurs. During warranty period, if breakdown occurs, we shall respond in time after receiving the notification of the buyer. We shall handle failure over the telephone/ fax or arrange relevant personnel to the site according to the buyer’s requirements.
