Грузовик с платформой для авиационных работ XCMG Official 21

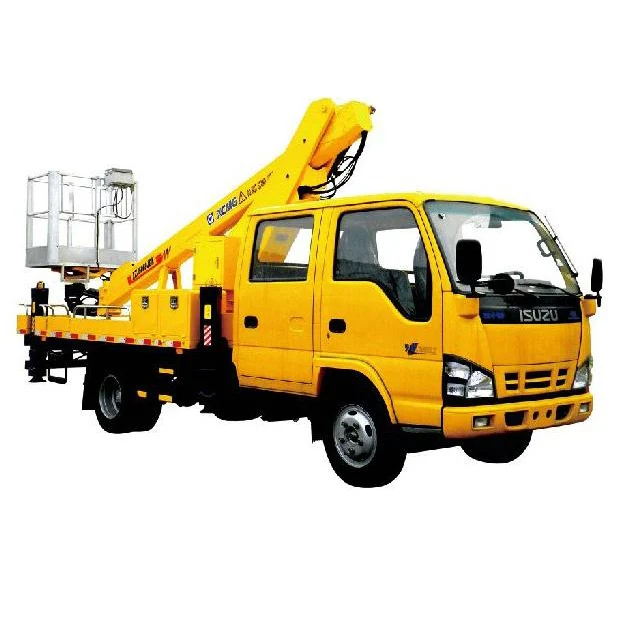

XCMG Official 21m hydraulic Aerial Working Platform Lift Truck

• Originally imported Germany Hawe solenoid valve (main control valve), proportional valve, and proportional handle.
• Electro-hydraulic proportional control, stepless speed regulation, and superior operational performance.
• The turntable and work platform can work together, and both the operation can achieve remote control of the engine.
• The internally mounted leveling system ensures that the work platform always keeps level.
• The horizontal and vertical extension and withdrawal of the four outriggers can be independently controlled, featuring good adaptability.
• There is elevation angle limit device for the upper arm, which can avoid danger.
• The interlock between the superstructure and undercarriage and the soft outrigger protection function ensure safe operation.
• When the horizontal outriggers are not extended,  the slewing of the work arm is limited, while it can still be lifted or lowered, which ensures safety and improves efficiency.
• The emergency pump is available.
• The electronic timer can add up the work time for timely maintenance.
• The imported key parts has high reliability, good performance and long service life.
• The synchronic telescopic arm structure has high work efficiency and wide work range.
• The multifunction integrated handle is very convenient, smooth and comfortable to operate.
• The PLC control has superior safety performance like automatic amplitude limit and danger alarm function.
• The special energy-saving design ensures that the engine is automatically adjusted to ideal speed during engine idling.
• The interlock between the superstructure and undercarriage can effectively avoid misoperation, which is safe and reliable.
• The large outrigger span features good stability, and the outriggers can be operated simultaneously or independently, which can be applicable to various kinds of work conditions.
• The emergency power unit can effectively cope with unexpected failures.
• The work platform is mounted at the rear part, which is convenient to enter or exit the cab; and it also reduces the gravity of the whole machine and improves travel performance.
• The work platform can slewing ±90°, which is convenient for the aerial work.

XCMG is a construction machinery manufacturer with over 70 years of experience. Over the years, we have grown to become the world’s most comprehensive construction machinery manufacturer and influential multinational company. In 2015, we rank No.1 in China and No. 5 in global heavy equipment industry.

XCMG’s construction machinery covers an astonishing range of equipment, including cranes, earth-moving  machinery, road machinery, excavators, concrete machinery, mining machinery, piling machinery, lumber machinery, fire-fighting machinery, heavy trucks, sanitation machinery, agricultural machinery, and more. We have the world’s most comprehensive product line, and offer customers complete solutions for construction equipment.  Our other businesses include finance, leasing, and remanufacturing.
