Проволочные резисторы серии KNP 1/2 Вт 1 2 3 4 5 6 8 10
- Категория: Resistors >>>
- Поставщик: Shenzhen,HS,Electronic,Limited,[Guangdong,China]Shenzhen
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.82 $* | 0.3 $* |
| Aug-19-2025 | 0.18 $* | 0.55 $* |
| Jul-19-2025 | 0.27 $* | 0.61 $* |
| Jun-19-2025 | 0.34 $* | 0.52 $* |
| May-19-2025 | 0.40 $* | 0.77 $* |
| Apr-19-2025 | 0.92 $* | 0.79 $* |
| Mar-19-2025 | 0.33 $* | 0.83 $* |
| Feb-19-2025 | 0.7 $* | 0.69 $* |
| Jan-19-2025 | 0.93 $* | 0.63 $* |
Характеристики
Our website: http://hs-electronik.com

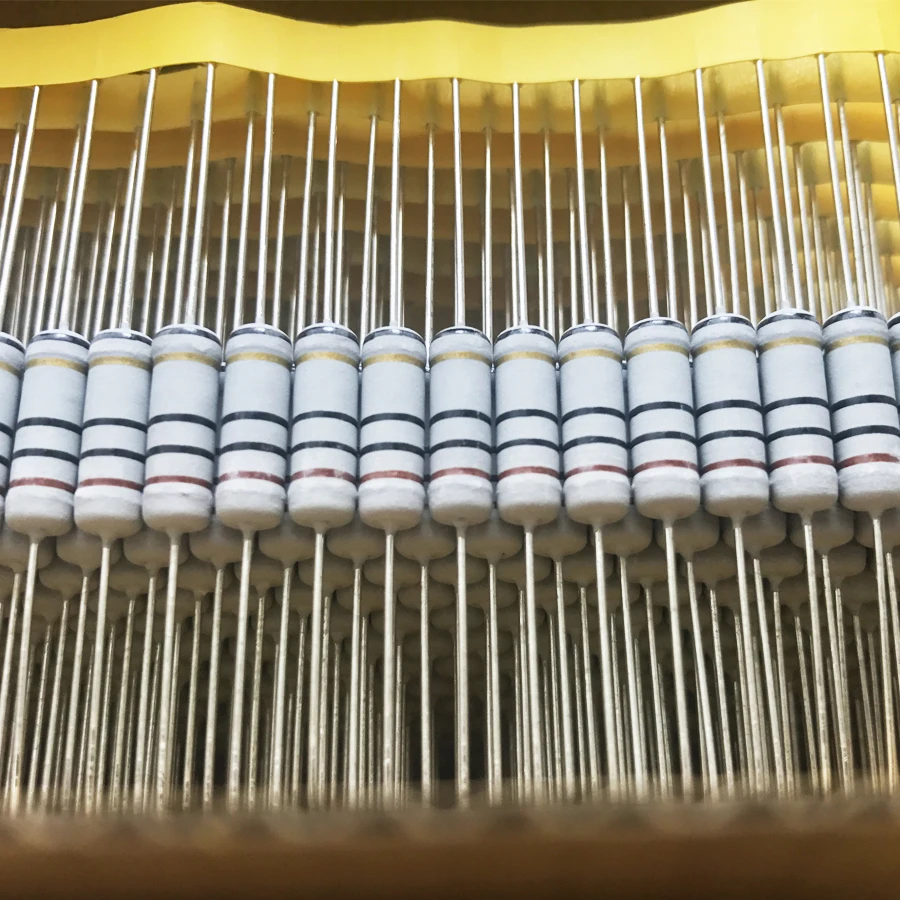

Wirewound Resistors KNP Series 1/2W 1W 2W 3W 4W 5W 6W 8W 10W 12W
Coating Color: Gray
Marking: Color band, Alpha/Numeric
Lead Wire: Copper Wire
Remark: RoHS & Lead Free
DIMENSIONS
| TYPE | DIMENSIONS(mm) | |||
| L max | D max | d±0.05 | L±3 | |
| KNP1/2W(RX21) | 10.5 | 3.9 | 0.5 | 25 |
| KNP1W(RX21) | 12 | 5 | 0.6 | 25 |
| KNP2W(RX21) | 16.5 | 5.5 | 0.6 | 25 |
| KNP3W.4W(RX21) | 18.5 | 6.5 | 0.6 | 25 |
| KNP5W.6W(RX21) | 26 | 9.5 | 0.78 | 25 |
| KNP8W(RX21) | 34 | 10 | 0.78 | 25 |
| KNP10W(RX21) | 40 | 10 | 0.78 | 25 |
| KNP12W(RX21) | 48 | 10 | 0.78 | 25 |
SPECIFICATIONS
| TYPE | RATED WATTAGE (70°C) | TCR (PPM/°C) | RES. RANGE(Ω) | RATING. AMB. TEMP | OPERATING. TEMP. RANGE | |
| F(+ 1%) | J( + 5%) | |||||
| KNP1/2W(RX21) | 0.5W | ±250 | 1-68 | 0.01-68 | +70°C | - 55°C/ -+ 125°C |
| KNP1W(RX21) | 1W | 1-300 | 0.01-300 | |||
| KNP2W(RX21) | 2W | 1-3K9 | 0.01-3K9 | |||
| KNP3W.4W(RX21) | 3W(4W) | 1-8K2 | 0.01-8K2 | |||
| KNP5W.6W(RX21) | 5W(6W) | 1-9K1 | 0.01-9K1 | |||
| KNP8W(RX21) | 8W | 1-27K | 0.01-27K | |||
| KNP10W(RX21) | 10W | 1-33K | 0.01-33K | |||
| KNP12W(RX21) | 12W | 1-39K | 0.01-39K | |||
CHARACTERISTICS
| TEST ITEM | SPECIFICATIONS | TEST METHOD |
| GB/T5729-94 IEC115-1 | ||
| SHORT TIME OVERLOAD | ΔR<= ± (1%R+ 0.05Ω) | 4.13 |
| RESISTANCE TO SOLDERING HEAT | ΔR<= ± (1%R+ 0.05Ω) | 4.18 |
| WEATHER CYCLE | ΔR<= ± (5%R+ 0.1Ω) | 4.23 |
| VIBRATIONS | ΔR<= ± (1%R+ 0.05Ω) | 4.22 |
| SOLDER ABILITY | 95% COVERAGE MIN. | 4.17 |
| TERMINED STRENGTH | ΔR<= ± (1%R+ 0.05Ω) | 4.16 |
| LOAD LIFE | ΔR<= ± (5%R+ 0.1Ω) | 4.25.2 |
| SURFACE TEMP. RISE | < 250 °C | 4.14 |
| TEMP. CYCLE | ΔR<= ± (5%R+ 0.1Ω) | 4.19 |
| FLAME PROOF | 4.26 |
FORMING THE LEG & CUTTING THE LEG
