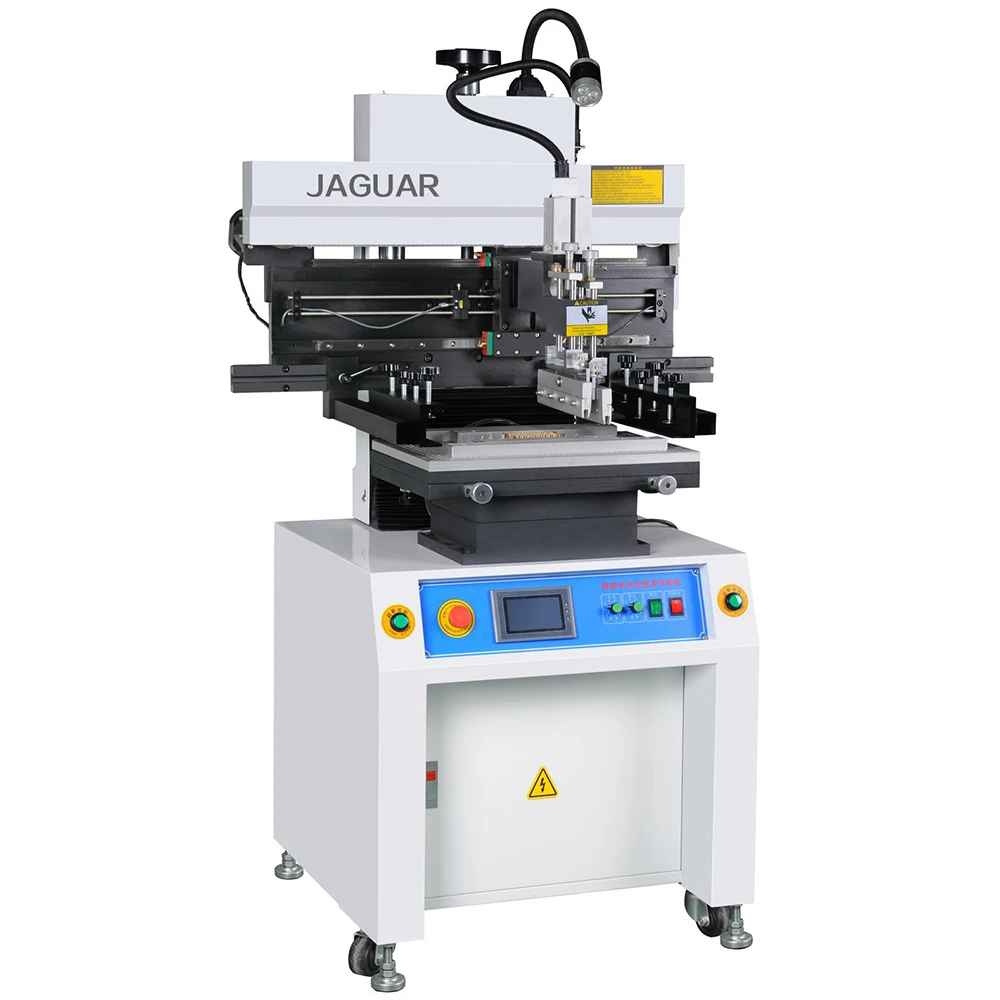

Economic Semi-auto Solder Paste Printer For SMT EMS Factory
Product Description
Feature:
1.Using precision guide rail and the import motor to drive the blade seat conversion, printing, and high accuracy.
2.Printing scraper can rotate 45 degrees fixed up, easy printing stencil and squeegee cleaning and replacement.
3.Block can be adjusted before and after the blade, to choose the right printing position.
4.Combined with a fixed groove printing platen and PIN, easy installation and adjustment, for single, double sided printing.
5.School Edition way to move a steel mesh, combined with printed (PCB), X, Y, Z. Convenient fine adjustment.
6.Can be set to one-way and two-way, a variety of printing methods.
7.With the automatic counting function to facilitate the production of output statistics.
8.Adjustable blade angle, steel blade, rubber scraper are suitable.
9.Touch screen with a screen saver function, the time can be adjusted to protect the touch-screen life.
10.Printing speed display, can be adjusted.
Model
JAGUAR S400
Dimensions
850×720×1650mm
Platform size
320×400mm
PCB size
250×350mm
Template size
550×680mm
Printing speed
0-8000mm/min
PCB thickness
0.2-2.0mm
PCB fine tuning range
Front/side±10mm
Power supply
1PAC220V 50/60HZ
Platform height
850±20mm
Repeating precision
±0.02mm
Printing Accuracy
±0.02mm
Positioning mode
Outside/Reference hole
Weight
Approx.300Kg
Packaging & Shipping

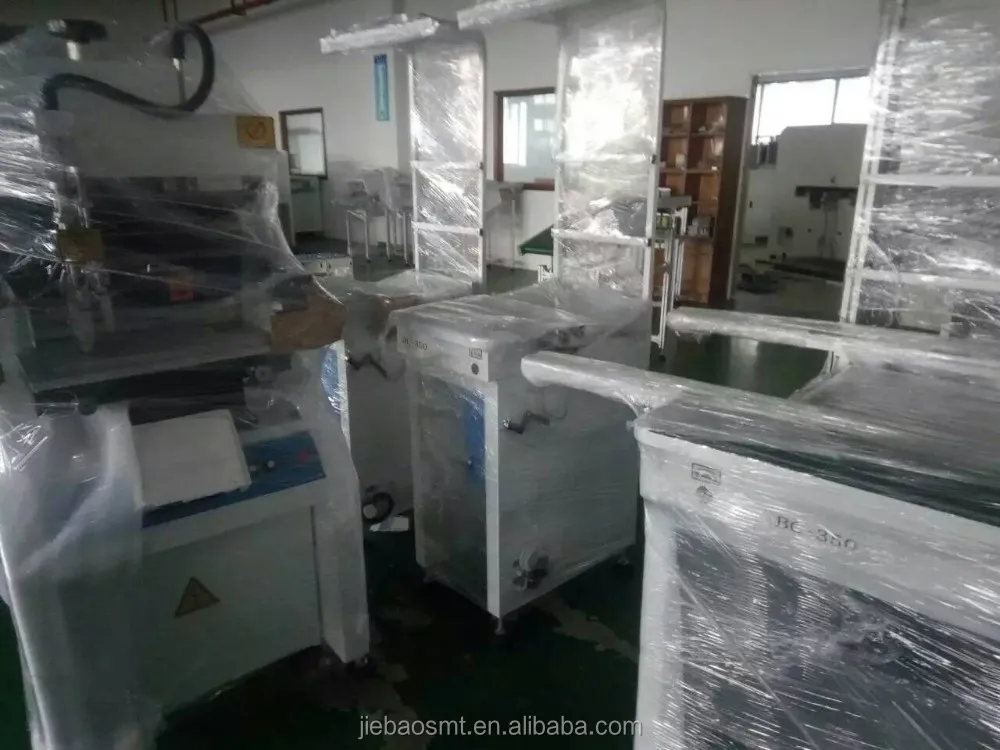

Mahcines are deliveried in polywood case with vacuum package.
Our Services
1, our service tenet: fast, thoughtful and thorough 2, service goals: service quality to win the user satisfaction 3. the service efficiency: the warranty period or the warranty as equipment failure, the supplier in the receipt of the notification, the maintenance personnel in one hour to respone. 4, service principle: product warranty period of 12months, in the guarantee period the supplier will free maintenance and replacement of quality caused by the damaged parts.
Company Information

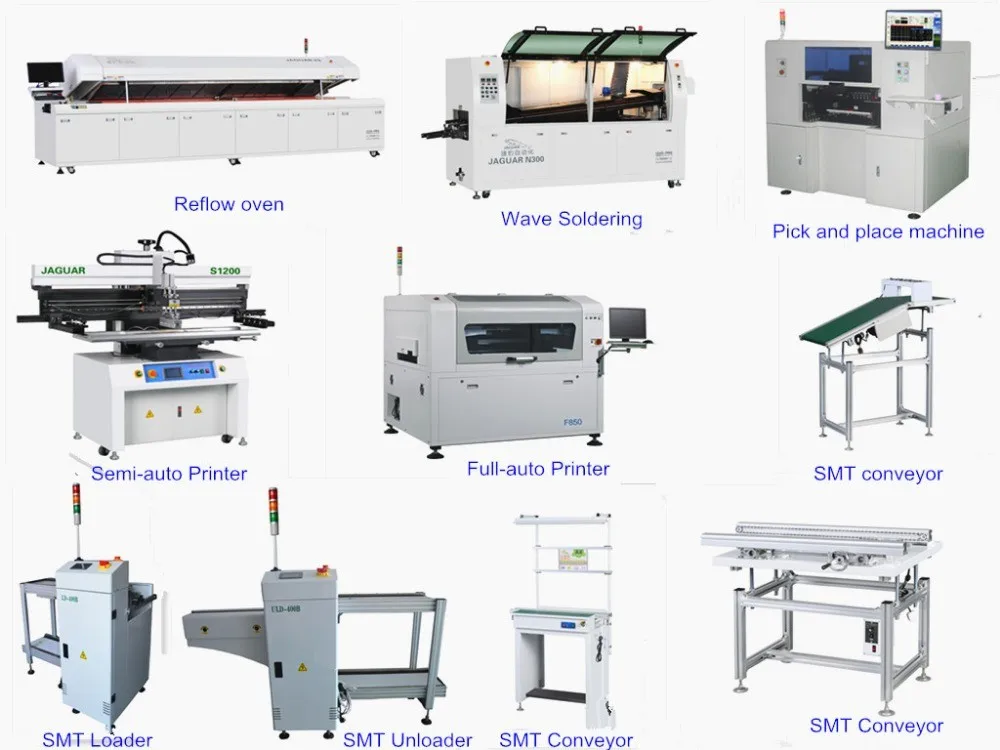

JAGUAR Automation - one of the well-known lead-free smt machines manufacturers in China, Founded in 2009, headquartered in Shenzhen. JAGUAR has been committed to lead-free equipments research and development, and manufacturing lead-free reflow oven, wave soldering machines and other lead-free electronic devices since foundation. Currently has the R8 series of high-end dual-track lead-free reflow soldering, the F8 series of lead-free reflow ovens, A8 Series of lead-free reflow solder ovens and N series wave soldering equipments. Jaguar products: Fully Automatic smt stencil machine,smt solder paste printing machine, screen printing equipment solder paste printer, stencil printer, SMT Stencil Printer, Semi-Automatic Printing machines, PCB buffer conveyor, reflow ovens, lead-free reflow solder ovens, reflow soldering ovens,wave solder or wave soldering machines, smt chip mounter,Smt Pick and Place Machine, smt machine/Smt Equipment and smt peripheral equipments.
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? Very easy and flexible !
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
