Трубогибочный станок с ЧПУ

Категория: Гибочные станки для труб и трубок >>>
Поставщик: Zhangjiagang,Sanco,Machinery,Co.,Ltd.

Цена:7 900,00 $ - 8 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	9401.23 $*	9871.33 $*
Aug-18-2025	9322.45 $*	9788.3 $*
Jul-18-2025	7821.95 $*	8212.81 $*
Jun-18-2025	9164.83 $*	9622.94 $*
May-18-2025	7979.8 $*	8378.98 $*
Apr-18-2025	9006.96 $*	9456.17 $*
Mar-18-2025	8927.59 $*	9373.55 $*
Feb-18-2025	8848.69 $*	9290.75 $*
Jan-18-2025	8769.87 $*	9207.4 $*

Характеристики

Product Description

www.sancomachine.com to know more about us.

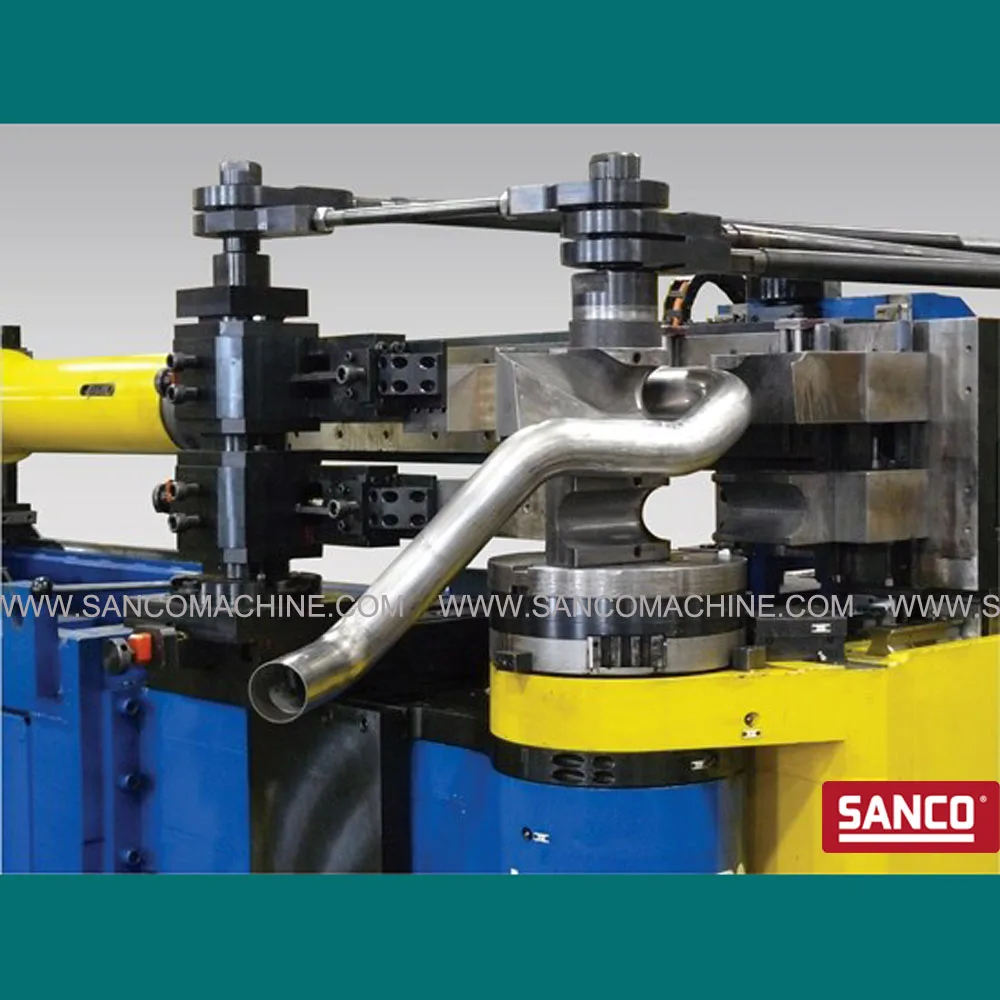

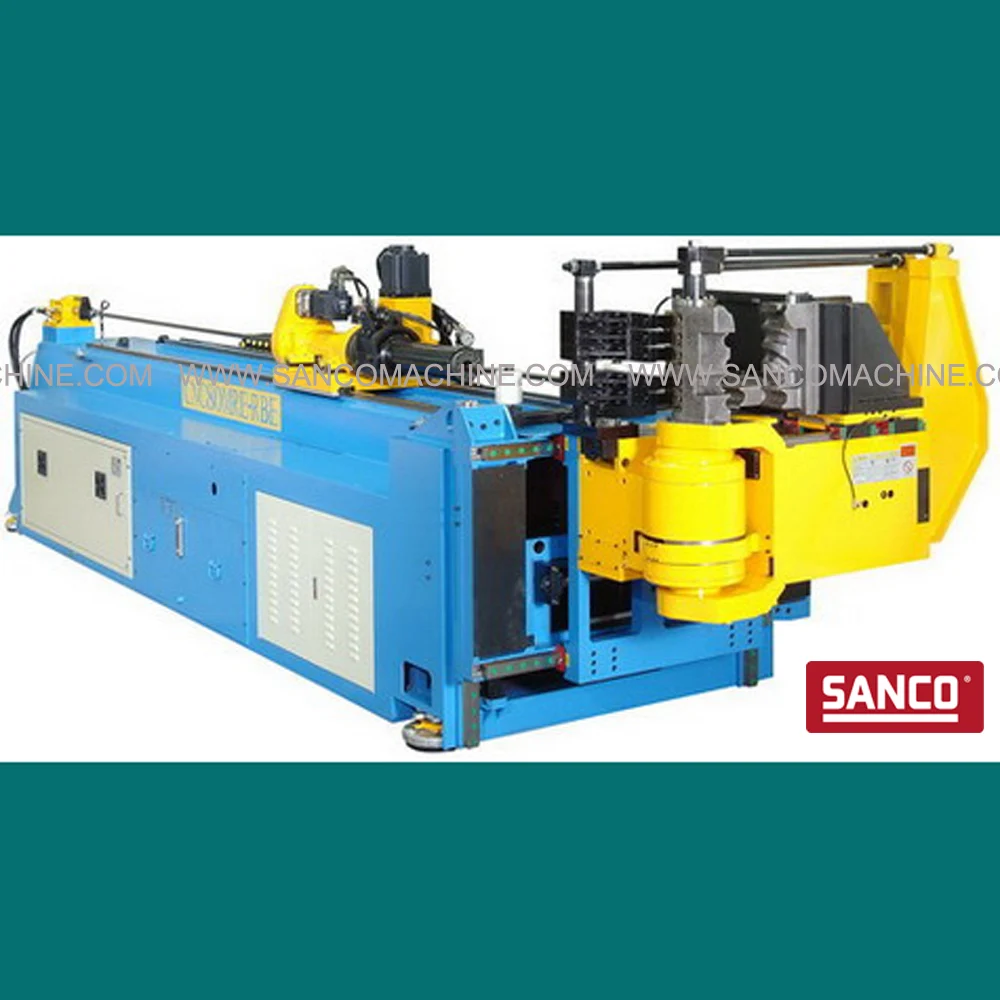

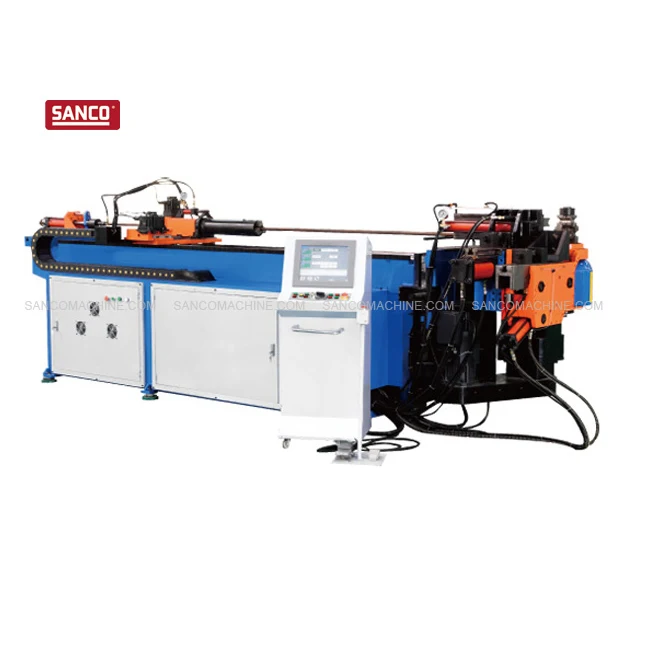

Gym Equipment Tube Bending Machine for Fitness Equipment Pipe

Full automatic zhangjiagang china cnc tube bender for tube is full automatic type machine for bending three dimensional complicated workpiece., which can input YBC or XYZ into controlling system, and machine make the tube bend accordingly.

Bending-Auto driven by servomotor, Rotaion-Auto by servomotor, Feeding-Auto by servomotor

Pneumatic movement of machine------clamp, pressure clamp, clutch, mandrel (High speed)

Automatic lubrication system of machine head and mandrel

XYZ transferred to YBC which is convenient for user

Different tooling design customized for user

Anticipated Mandrel Extraction good for tube of very small thickness

Reclamp function suitable for tube length without limitation

Optional function ------punching hole, cutting, multiple radius, roll bending, etc

Standard tooling including clamp die, wiper die, mandrel, pressure die, bend die

Seperate oil tank with oil filter--easy for cleanning

Option control system----Industrial computer with function of 3D simulation, 3D view, inch input, drawing input, remote control

\t SPECIFICATIONS FOR SB-89CNCMR PIPE/TUBE BENDING MACHINE
\t Servomotor Speed	\t Feeding	\t mm/s	\t 200-700
	\t Rotation	\t °/s	\t 20-150
	\t Bending	\t °/s	\t 15-32
\t performance parameters	\t Maximum working capacity	\t mm	\t O.D894mm 3.5".15"
	\t Mandrel working length	\t mm	\t 3000 (standard) Can be customized)
	\t Bending radius range	\t	\t 1D-300mm (standard) Can be customized
\t Hydraulic system	\t Hydraulic motor	\t KW	\t 11
	\t Pressure	\t Mpa	\t 16
	\t Voltage	\t V	\t 220/380/415

Main Features

1)Mitsubishi PLC, servomotor, servo driver

2) XYZ input---bring convenient to customer hold standard drawing

3) Accuracy made bending tooling ensure customer's product according to drawings

Detailed Images

Machine Parts

Name:Hydraulic Motor

Brand:ABB

Original: Germany

Main Part

Name: Electric servomotor
Brand: Mitsubishi
Original: Japan

Machine Parts

Name: Auto lubricator
Original:China

Main Features

Name: PLC
Brand: Mitsubishi
Original: Japan

Our Service

Pre-Sales Service

* Inquiry and drawing consulting support.

* Sample testing support (if need)

* Visit our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

www.sancomachine.com to know more us.

Packing & Delivery

\t Packaging
\t Size	\t 6800(L) * 1300 (W) * 1600 (D)
\t Weight	\t 5 T
\t Packaging Details	\t The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
