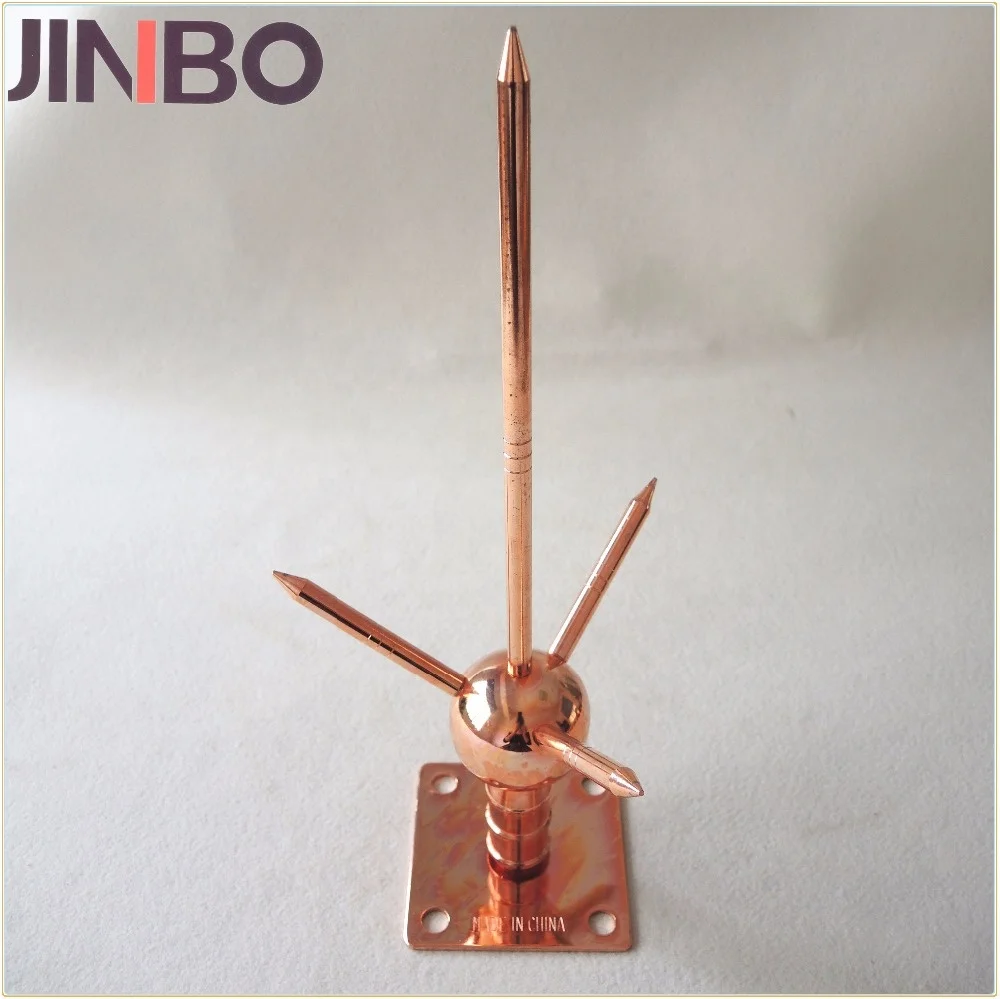

Lightning Protection Air Terminal is used for protecting buildings from lightning strikes. Lightning Rod plays a very important role in the air termination network of lightning protection system. It is installed on the building and transfers the electric to earthing metal to protect the building on lightning.



We are factory producing all kinds of air termianl ever since 2005 and we can make the size acc. to customers' requirement.



Product Parameter :

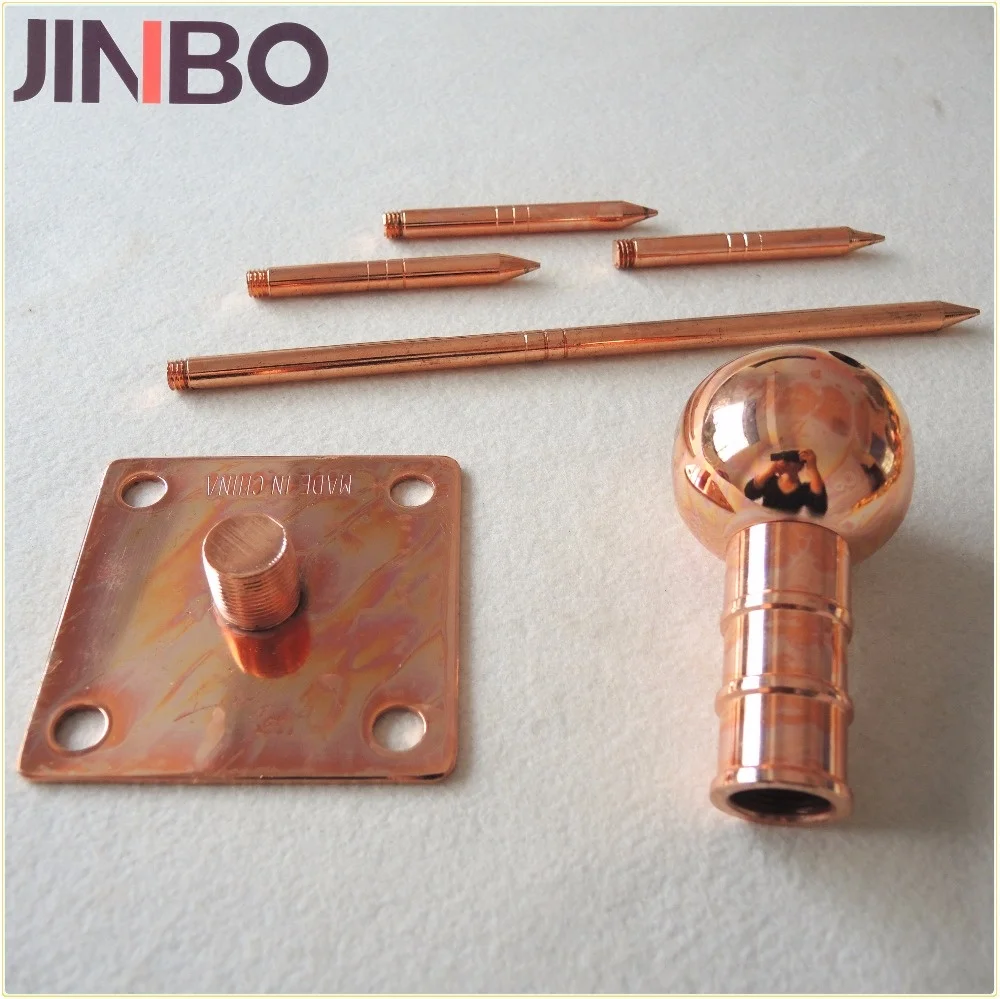

Description	Size	Material
Lightning rod	dia. 10mm x L270mm	Stainless Steel, Copper clad steel
Three point needle	dia. 9.7mm x L97mm
Ball	dia. 59mm
Holder	dia.29mm* H 60mm
Base	100mm x 100mm
Total Height	370mm





 TIPS FOR AIR TERMINAL



(A)Attention when install lightning rod



(1)The lightning rod and other metal part on the building should be connected together.

(2)Low voltage cable or communication cable can not be installed on the rod.



(B)Installation of earthing tape and earthing grid



Place to Install: installed at the ridge ,eave(abat-vent) or edge of roof



(1)Installation at the concrete base of roof :The base can be made with the roof together ,and fixed to the roof.



(2) Installation on the parapet wall or gutter bracket

Installed along parapet wall and fixed with bracket ,and the bracket should be installed earlier .The working height of bracket should be less than 150mm . The bracket for direct line should be first and then for the middle .The bracket should be 0.25-0.5m away to the turning point if turning needed . The horizontal spacing of bracket is 1-1.5m ,and vertical interval is 1.5-2m and even distribution



(3) Installation at ridge ,eave or edge of roof by using concrete base or bracket.

If make the base on site , please remove the corner of ridge tile first, and make the bracket and ridge tile together;

The bracket should be 0.25-0.5m away to the turning point if turning needed . The horizontal spacing of bracket is 1-1.5m ,and vertical interval is 1.5-2m and even distribution





Established in 2005, Shaoxing Jinbo Lighting Protection Equipment Manufacturing Co., Ltd is a professional Manufacturer-Exporter of wide range of earthing and lightning protection materials for China and international markets. Our products covers earth rods and accessories, lightning rods and accessories, lightning air terminal, connectors and clamps, tapes and wires, bus bars and other related accessories.

With years' efforts, we have gained tremendous popularity among the quality conscious customers worldwide. Now our products have been exported to more than 20 countries all over the world like America, Sweden, England, UAE, Australia and so on.

We'll devote ourselves as always to improve our quality and service to meet your requirements. It is the company pursuit as always to manufacture high-quality and reputation-earning products. And we will always aim at the endless surpassing and non-stopping progress.
