Новейшие алюминиевые одномачтовые воздушные платформы по индивидуальному заказу с современным

Новейшие алюминиевые одномачтовые воздушные платформы по индивидуальному заказу с современным

Категория: Work Platforms >>>
Поставщик: Shenchuan,(shanghai),Heavy,Industrial,Machinery,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	0.24 $*	0.6 $*
Aug-18-2025	0.40 $*	0.30 $*
Jul-18-2025	0.48 $*	0.36 $*
Jun-18-2025	0.58 $*	0.51 $*
May-18-2025	0.75 $*	0.67 $*
Apr-18-2025	0.5 $*	0.79 $*
Mar-18-2025	0.15 $*	0.58 $*
Feb-18-2025	0.94 $*	0.41 $*
Jan-18-2025	0.91 $*	0.92 $*

Характеристики

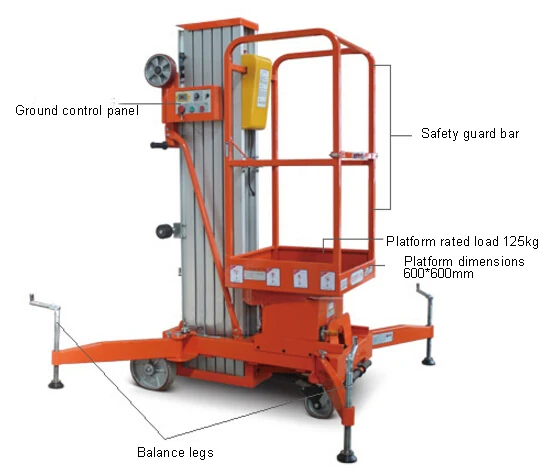

Newest Custom-made Aluminum Single Mast Aerial Work Platforms with Modern Design

1.. For single-climbing operations;
2.. improve the safety and efficiency
3.. compact design, the platform to the bottom through a narrow channel or low doorway.
4.. the original sets of international advanced hydraulic pump station;
5.. Design redundancy techniques used to make the product failure rate is reduced to a minimum;
6.. Patented guide wheel device, between mast guide rollers more seamless fit to lift the balance using the platform freely, and to ensure that more fully synchronized lifting mast Group;
7.. lifting system, hydraulic system parameter optimization, so that the platform lift for optimum stability;
8.. Use stabilizer platform, its leg double leg protection, indexable stable job allows the blind to minimize aerial work platforms;
9.. movable fence assembly, a vertical movement through the platform, use the patented support clamping device is locked, instant;
10.. Lifting mast all with high-strength aluminum alloy, light weight, moving very light;
11.. Precision level display device to ensure that the leveling accurate and reliable.
12..sucker leveling legs with level indicator always provides a solid platform for stable ground support, even in a slightly uneven ground;

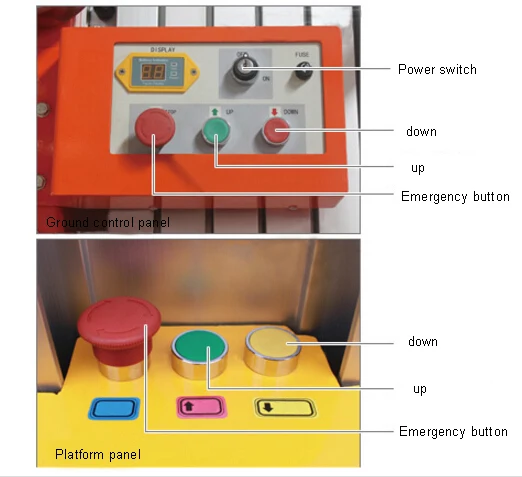

13.. When electrical accident fault, ground and aerial operations personnel can operate the emergency stop button to stop the lifting platform;

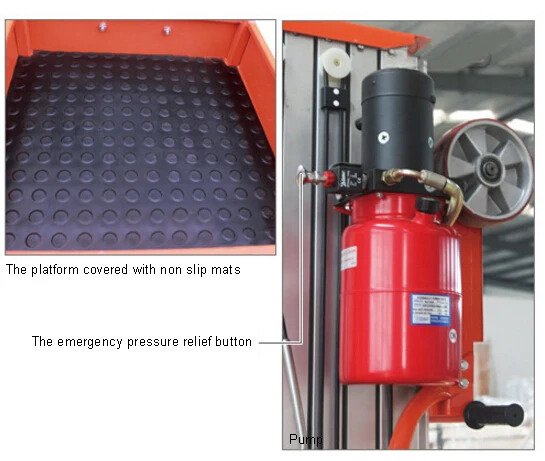

14.. unexpected loss of power when opening the emergency lowering device, platform slowly returns to its original position;
15.. High compressive strength steel tubing is much greater than the maximum pressure of the hydraulic system, to ensure the pipeline's safety;
16.. hydraulic system is equipped with anti hose rupture valve, then even if the pipeline rupture accident, but also to avoid the rapid decline platform;
17.. The power switch leakage protection device configuration, the shield caused by accidental leakage risks;

Standard configuration: Imported electronic control system responsive, easily manipulated, improved safety and efficiency.
Optional configurations:

running gear angle sensor

DC motors
AC and DC Pressure Overload buzzer
Anti--Wind Level: 5
