OD24 * ID10 H20-18 сегментов коллектора
- Категория: Другие запчасти двигателя >>>
- Поставщик: Nantong,Bestar,Auto,Parts,Co.,ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.83 $* | 0.45 $* |
| Aug-20-2025 | 0.13 $* | 0.23 $* |
| Jul-20-2025 | 0.68 $* | 0.89 $* |
| Jun-20-2025 | 0.55 $* | 0.4 $* |
| May-20-2025 | 0.14 $* | 0.93 $* |
| Apr-20-2025 | 0.76 $* | 0.26 $* |
| Mar-20-2025 | 0.76 $* | 0.62 $* |
| Feb-20-2025 | 0.38 $* | 0.53 $* |
| Jan-20-2025 | 0.9 $* | 0.17 $* |
Характеристики

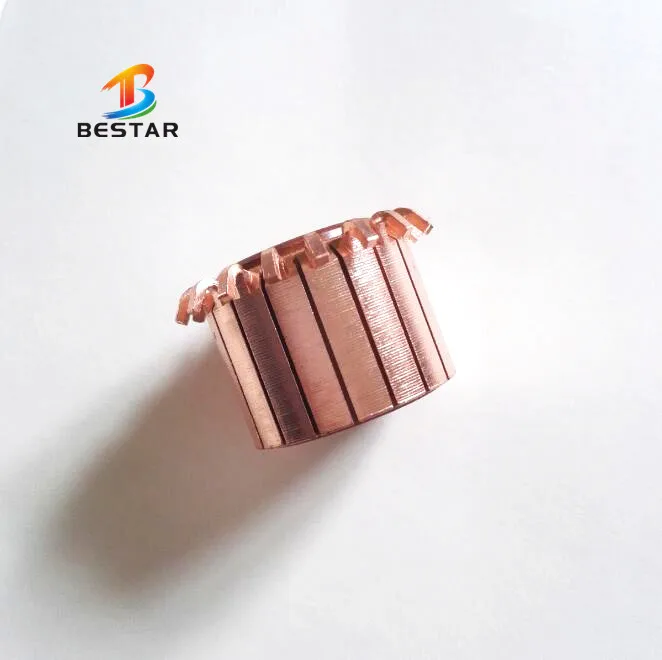

Product Description
| Size | OD24*ID10*H20-18P |
Material | 0.03% or0.08% silver copper/ bakelite CN6551 |
Structure: | Segmented hook/ slot commutator |
Usage: | AC/DC motor spare parts |
Voltage | 8V 12V 24V 48V 60V |
Sample | For Free(In Stock ) |
Delivery | 5-30 wokingdays |
Packing | Plastic box/carton/pallet/customized |
Term of trade | FOB shanghai/ ningbo/....... |
Transport | By sea/ air/ train/Fedex/Dhl...... |
Payment | T/T ,paypal ,western union...... |
Production capacity | 1,000,000pcs/month |
Service& Warranty | Best service for all customers, with 6 months' warranty |
Technical Specifications:
1. To be free from void(bubble) more than 1mm and cracks in molded resin surface, but air hole(depth 1.4± 0.1, width 0.5± 0.05 ) should be tolerated. |
| 2. Voltage Test: Bar to bar at 450V, 1s, and bar to shaft at 1500V, 1 min, there will be no breakdown or sparl |
| 3. Spin Test: Under 180±2 ℃ , 3000rpm, 3mins, the max change in OD is 0.01mm and the max deviation between bar to bar is 0.003. |
4. Insulation Resistance: The insulation resistance is greater than 50MΩ under 500V. |
Product Uses
1.Commutator for household machines : hair dryer, mixer, vacuum cleaner, washing machine, source juice machine ,whisk, juicer, soymilk, and for other household appliances
2. commutator for automotive motor industry:Starting , generator , Wiper , Air conditioner , electric window driving , Seat adjustment , Mirror motor , Electronic brake , Radiator fan , electronic steering, headlight steering , Blower fan,heater fan , Cooling water tank radiator ,and for other auto eletronic machines .
3.Commutator for power tools : Weeding machine, electric drill, angle grinder, electric saw, hammer, cutting machine, electric saw, planer and for other electrical tools .
4. Commutator for other industry : Pump, car batteries, motorcycle, yacht pumps, toys, electric door, fitness equipment, aerial photography and so on.
commutator workshop
Packaging & Shipping
Our team and service
