Настенный Трансформатор переменного/постоянного тока 19 в 20 21 22 В 24 30 100 мА 200 400 450


Поделиться:


Цена:3,00 $ - 4,50 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-15-2025 4.70 $* 4.43 $*
Jul-15-2025 3.98 $* 3.5 $*
Jun-15-2025 4.53 $* 4.96 $*
May-15-2025 4.67 $* 4.92 $*
Apr-15-2025 3.43 $* 3.21 $*
Mar-15-2025 4.39 $* 4.40 $*
Feb-15-2025 4.2 $* 4.22 $*
Jan-15-2025 4.90 $* 4.3 $*

Характеристики



Features


Meet ROHS

> Universal Input 100-240 VAC
> Modified and Custom Design Available
> Output with Low Ripple Noise
> 3Year Warranty
             Electrical
             > Dielectric
             Burn-In Test
             Leakage Current
             Efficiency
             MTBF

3000VAC
100% full load
0.21mA
DOE VI
30000Hrs




AC Input

> Voltage Range: 90-264 VAC
> Input Frequency: 47-63Hz
> Input Current: 200mA max
> Inrush Current: 30A max
> Efficiency: 82% min


DC Output

> Voltage Range: 19V-30V
> Current Range: 0.01A-500mA
> Inrush Current: +1% Voltage Max
> Power: 13W Max.



Mechanical

> Case Dimension (L*W*H mm)

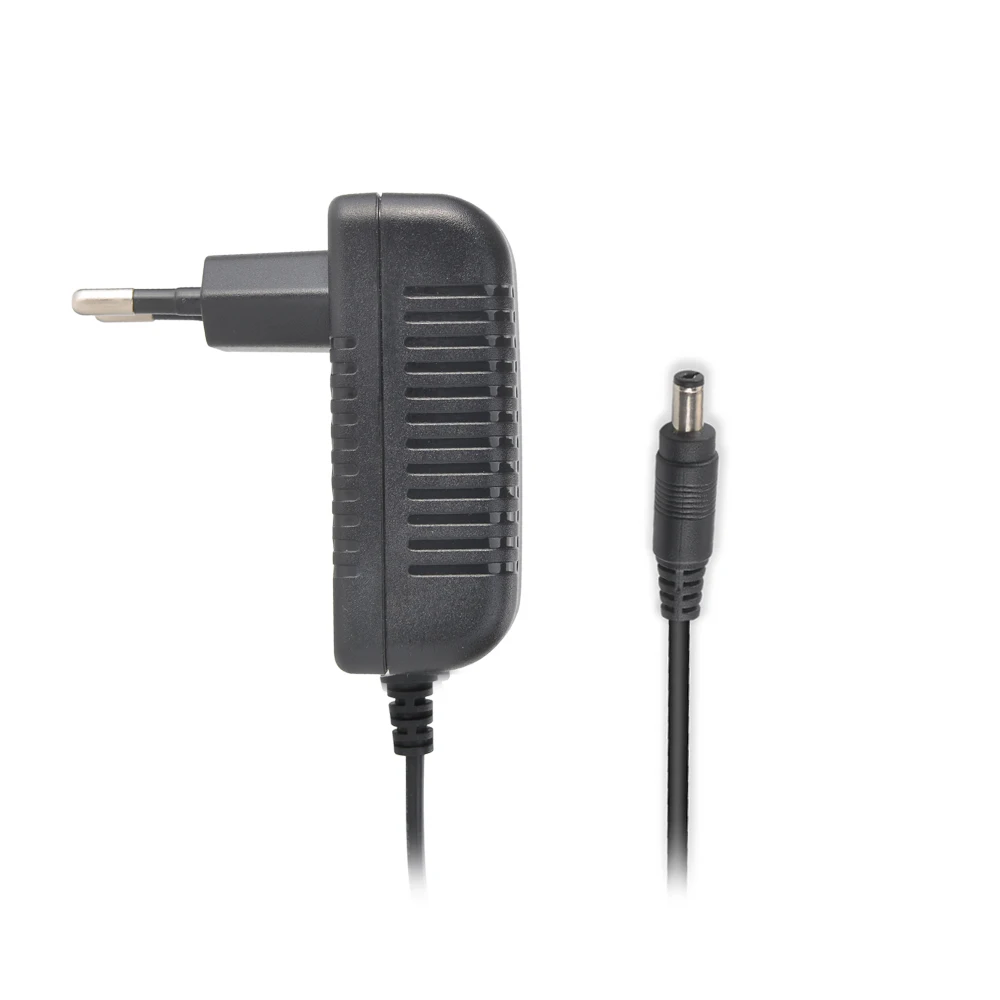

Wall-Mounted

AU: 68x40x50mm
EU: 68x40x63mm
US: 68x40x49mm
UK: 68x40x55mm

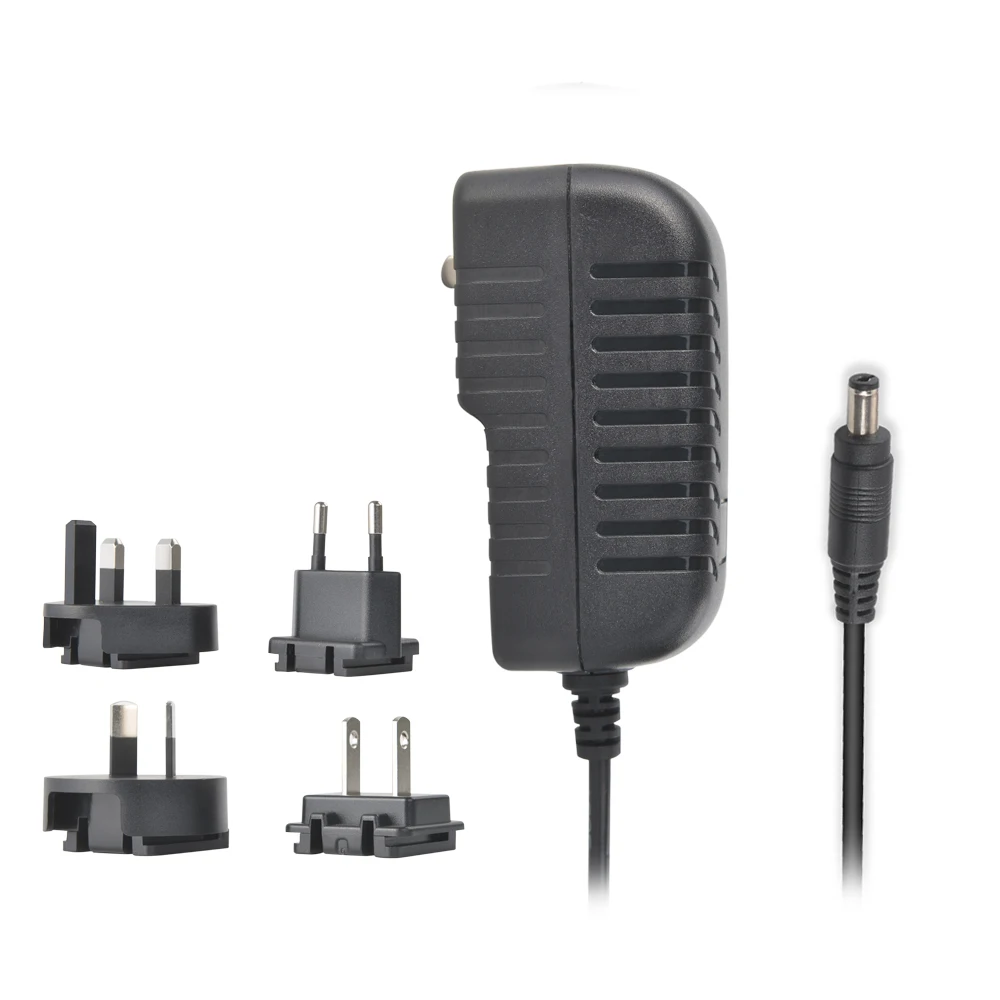

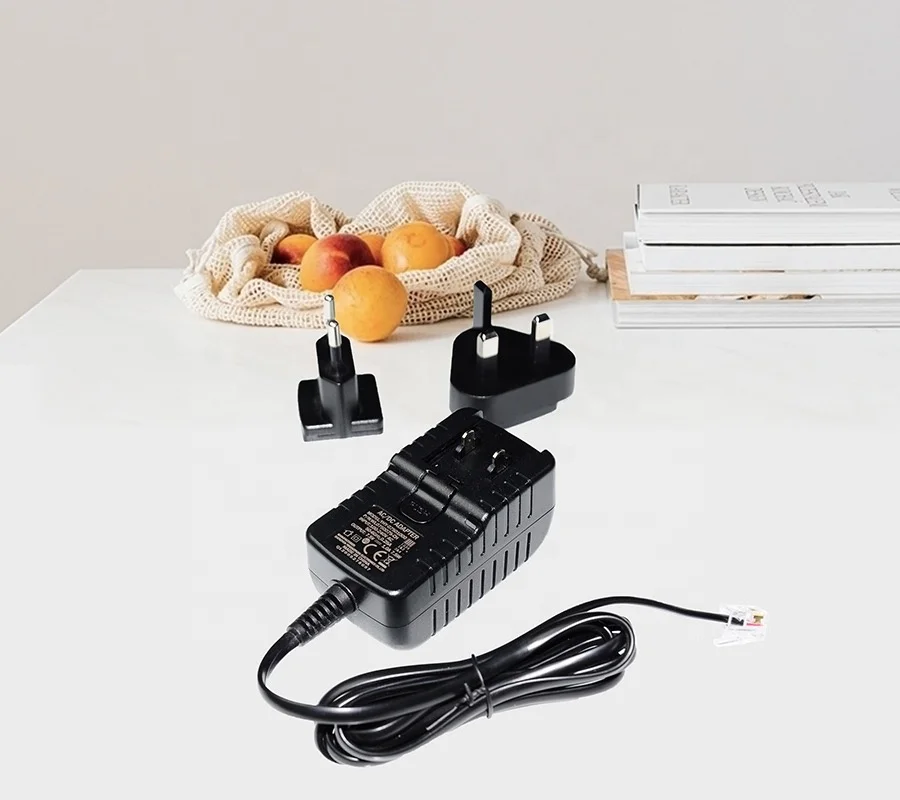

Interchangeable: 74x40x38.5mm



Safety Approval

UL cUL ETL CE FCC PSE SAA C-tick CCC








Application


Wall mount / Desktop Switching Power Supply
* Meet relative safety request, energy label programs.
* Universal Input : 100 – 240V
* You can select wall mount / desk top types per your need.

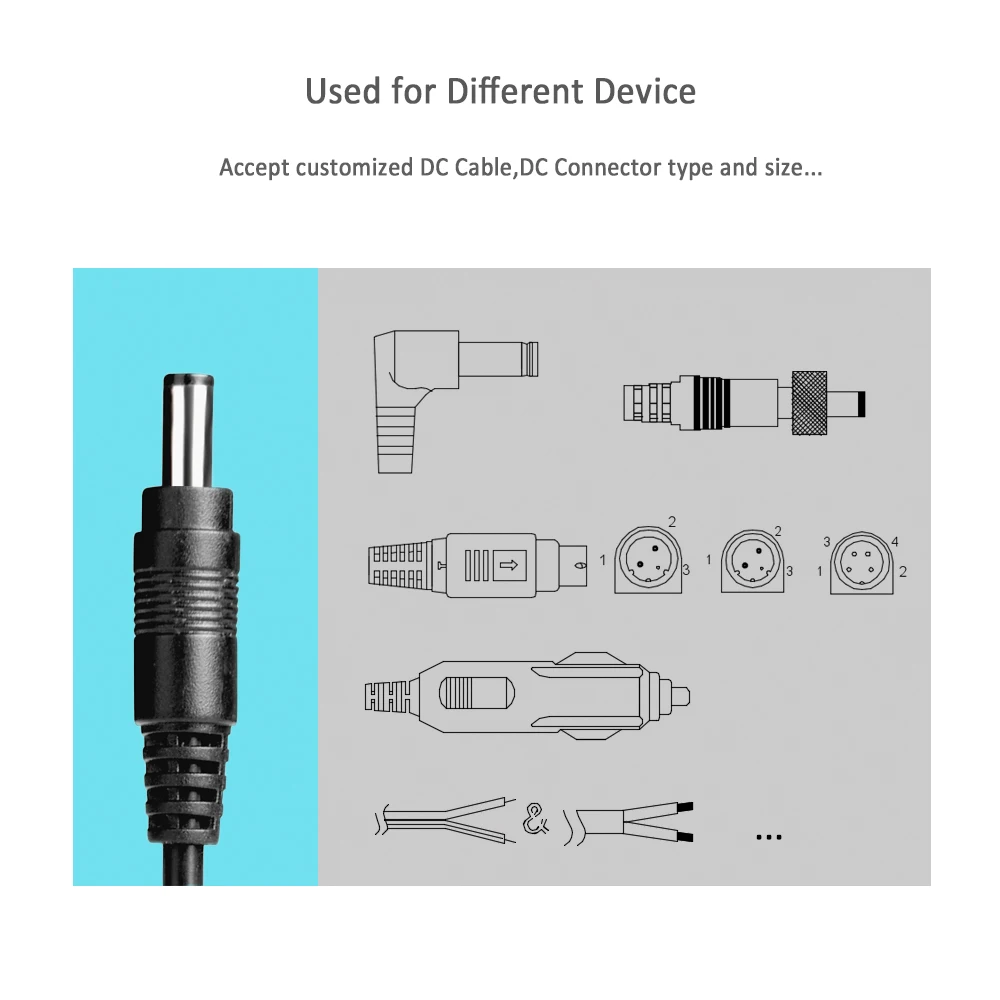

* Varied DC plug provided for customer to meet customer request.
* Usage : cell phone, small DC consumer electronics, pet relative appliances, required DC voltage / current- driven appliances, external hard drive, related computer peripheral equipment and other required information built-in power supply of related equipment.


Recommend Products




More Models
Fixed Type








Interchangeable Type








Company Profile


Shenzhen Yinghui Yuan Electronics Co.,Ltd is a leading manufacturer of power supplies in China

-Since 2007

-Real Service From Real People

-Global certifications,ISO 9001 Quality management

-More Than 2000 clients from all over the world

Our products are widely used by led lighting,3D Printer,Laptop,loudspeaker box,digital products,house-hold appliances,security products,etc
