Automatic grommet machine/ banner eyelet machine/tarpaulic punch eyelet machine





Introduct of flex banner eyelet machine

1.The automatic eyelet machine is composed of upper-lower auto feeding part , electromagnetic punching part and laser guiding part , ect . It is automatically controlled by microcomputer , which can works in high efficiency that can save much labor .

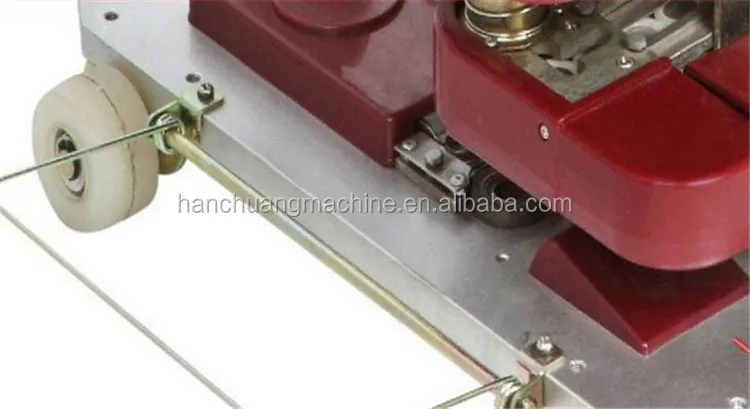

2.Four wheels carry the machine that can move by hand pushing . It also can be fixed on the worktop if the wheels are removed .

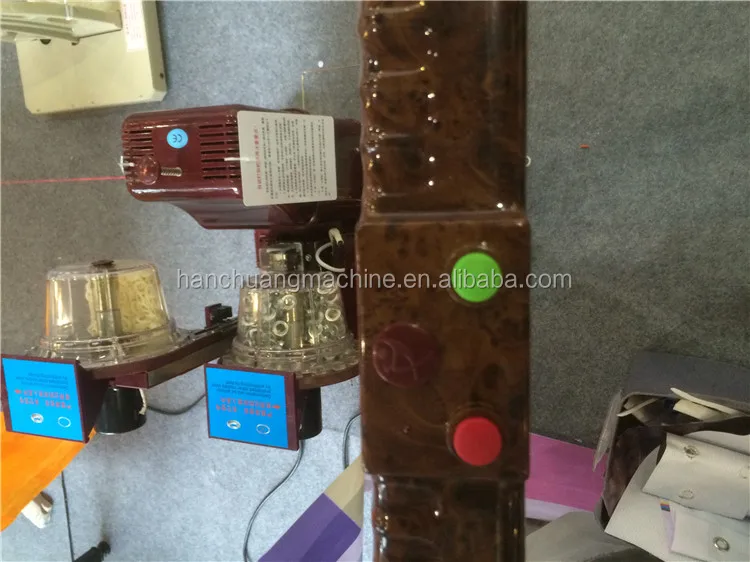

3.Each set has three button (red , green and yellow color) , the green button is for feeding , the red is for punching and the yellow is for resetting .

4.When power is on , the guiding laser beam on the front part of the machine will illuminates . Two splitting buckets will run and deliver the fabric to slot then the machine is standing by . When the slot is full of the fabric , the buckets will stop to deliver to save electricity .



5.The machine works with electromagnetic power to punch . It only uses electricity within 1% second for each eye button . The left standing by time use electricity less than 3walt . So the machine is an environmental protection , energy saving machine .





Feature of automatic grommet machine for banner



1.The machine can punch along the cloth freely in fast speed .

2.The eye button punched by this machine is very firm and hard to turn .

3.The guiding laser controls the distance between the eyebutton and ruler .

4.The flinging has no crevasses , which is very beautiful and impossible to fray the rope .

5.The pressing plate is designed by project plastic that couldn’t get rusted or dirt the picture .



6.It is one of the necessary equipments for spray painting industry . Because of its advantages of labor saving , time saving and good punching quality.



Parameters of full-automatic grommet machine







Model	HC-100A
Voltage	220V
Power	electromagnetism
Speed	30-50pcs/min
Grommet size	10mm, 13mm
Net weight	41kg
Gross weight	55kg
Packing size	50*65*65cm



Punching eyelet sample:

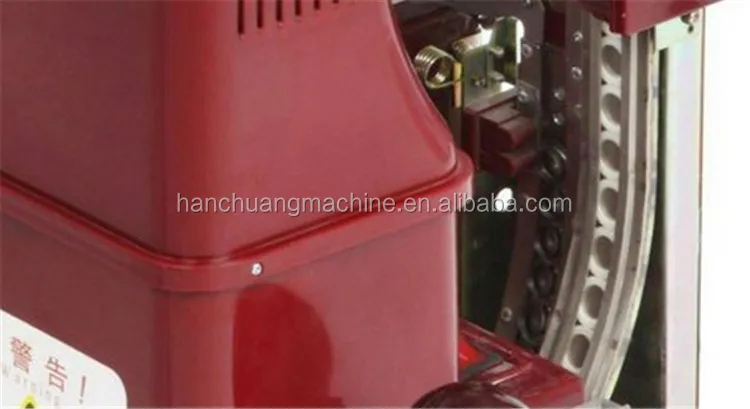

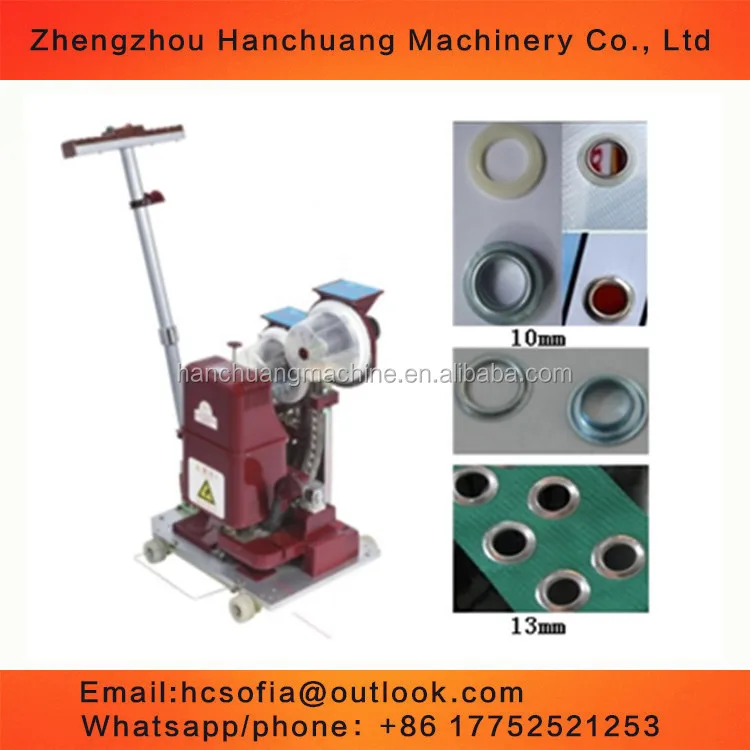

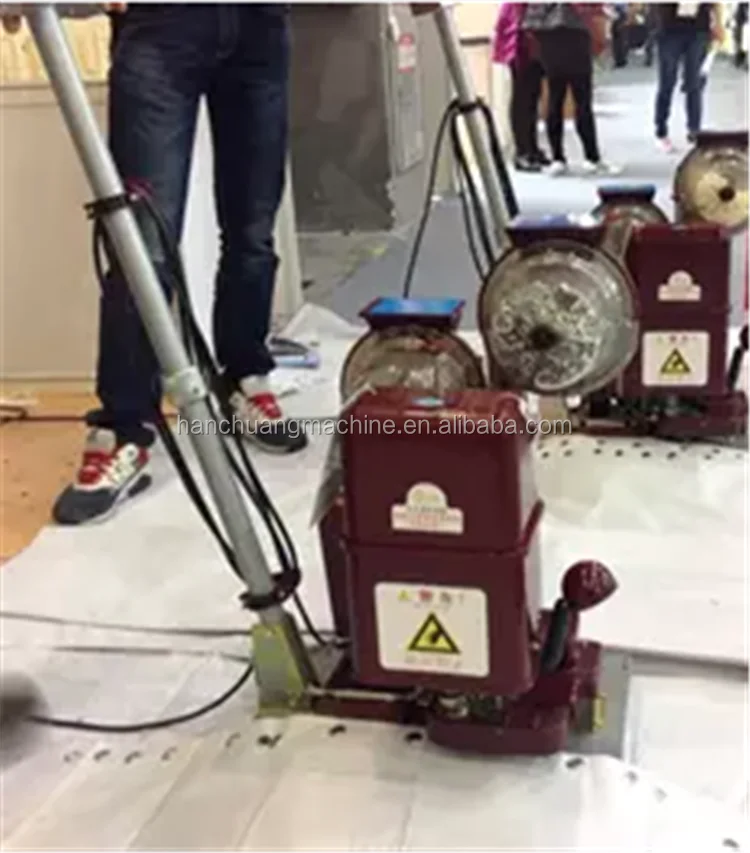

Picture of automatic eyelet machine





Eyelet picture:

plastic + metal



Metal + metal



Packaging & Shipping



1. Testing Machine before package

2. Package : Inside plastic bag, outside wooden case.

3. Shipping: By sea, By air.

    By sea: if customer not urgently the machine, we advice by sea, even though by sea took time is long, but by sea reduce much money about the freight, and it is good for customer if the machine is heavy and big size.

    By air: it is faster than by sea, but its freight is higher much than by sea, so this kind of type always suggest for light, small size and urgently demand machine.

Pre-sale service
1.Related machines’s technical parameter will be supplied to customer.
2.According to customer’s factory size, factory layout can be provided in advance.

3. According to customer’s material cost, general formulation can be prepared well.
4.Special machine can be supplied as customer’s request.
5.Professional Advice about Market, machines, processing , materials, packing can be supplied
 6. Suggesting professional ship agent or helping book ship as customer request.

 After sale service:



1.Allocation chart as the buyer’s request will be supplied.
2.Operation manual will be supplied after shipment.
3.One year warrantee, life time maintenance with cost price.
4.Free easy broken spare parts will be sent with container .
5.First installation can be done by engineer.
6.Training workers in customer’s factory.
