Professional agriculture drone sprayer long range crop UAV
Product Introduction

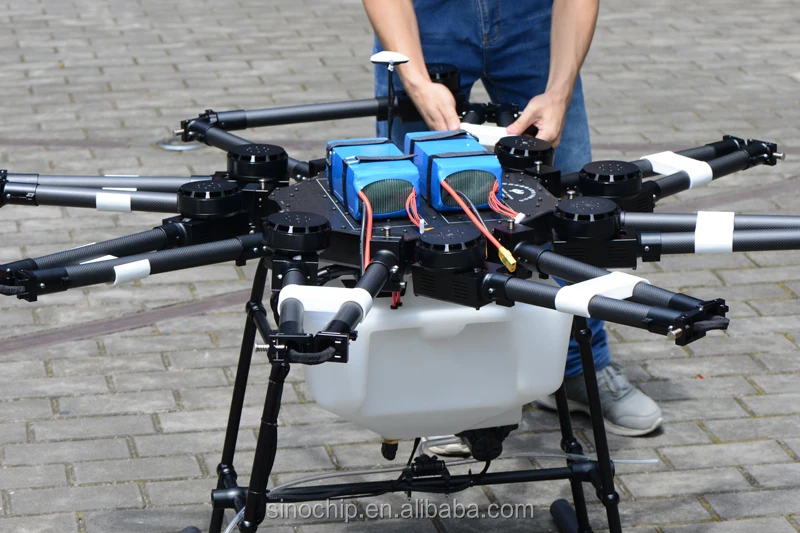

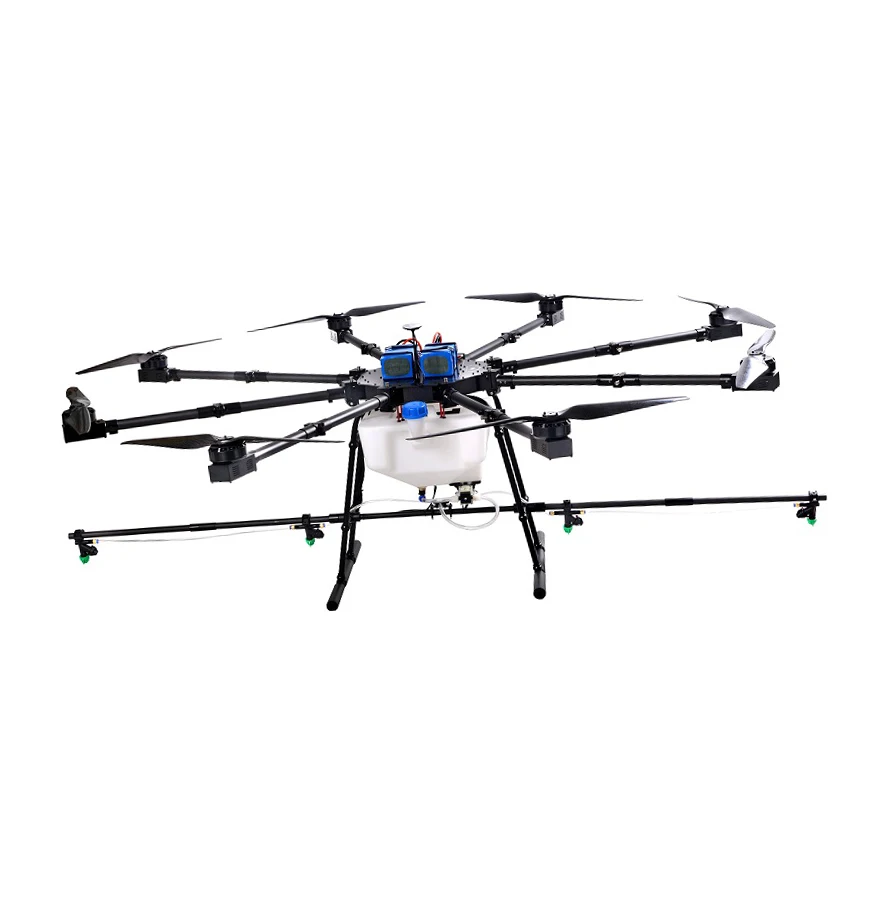

Our T5 sprayer drone is a high performance aircraft capable of offering comprehensive solutions for agricultural care.
It has a 20L payload capability. Each minute, our spray efficiency is around 4~8 hectare/hour(speed 4~5 m/s).
Function Introductio
Radar Detects Height
The downward radar provides high-precision height. As the radars scan, the device is able to perceive the change of terrain, adjust its altitude and maintain its altitude above the crops.
Accurate Spraying
A new spraying system enables more accurate spraying.

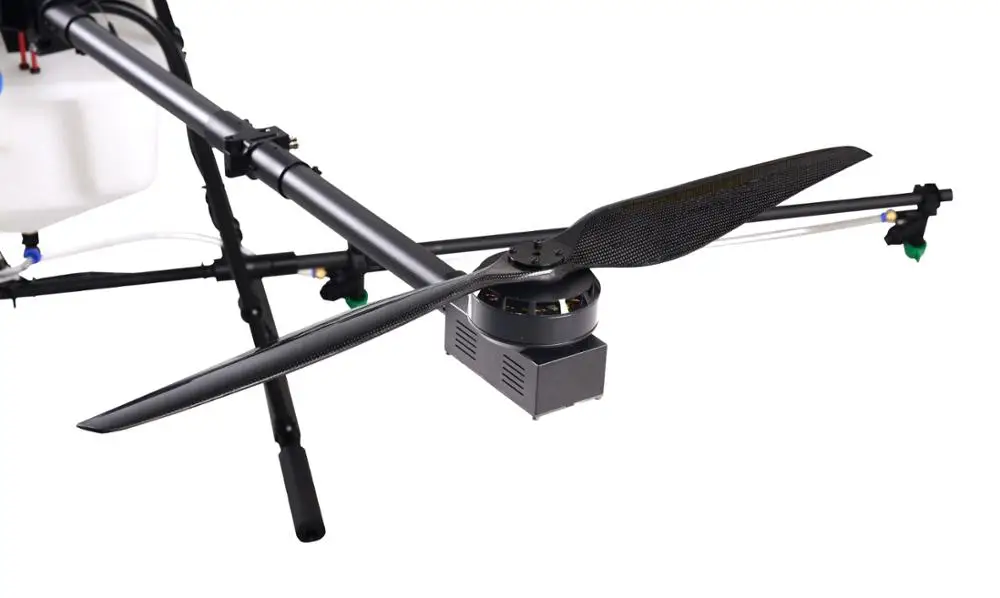

A new pressure sensor and flow sensor monitors the spraying rate in real-time, realizing dynamic control over spray speed and amount during operation. Nozzles with extended spray booms have been used to make better use of downward airflows. This spraying system now responds more accurately to commands, adding accuracy and effectiveness to spraying operations

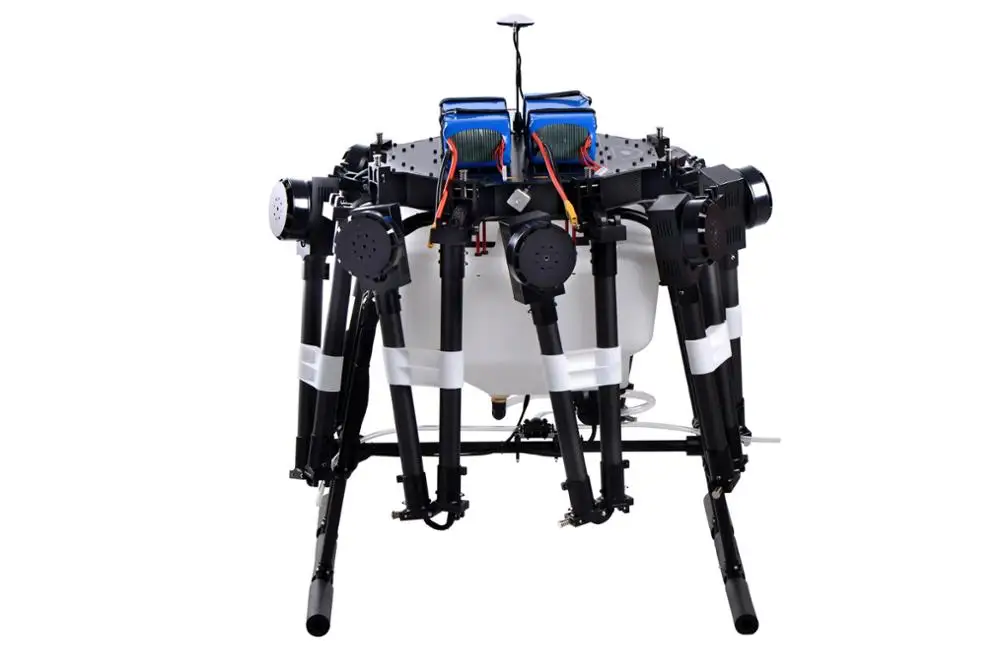

Foldable Structure

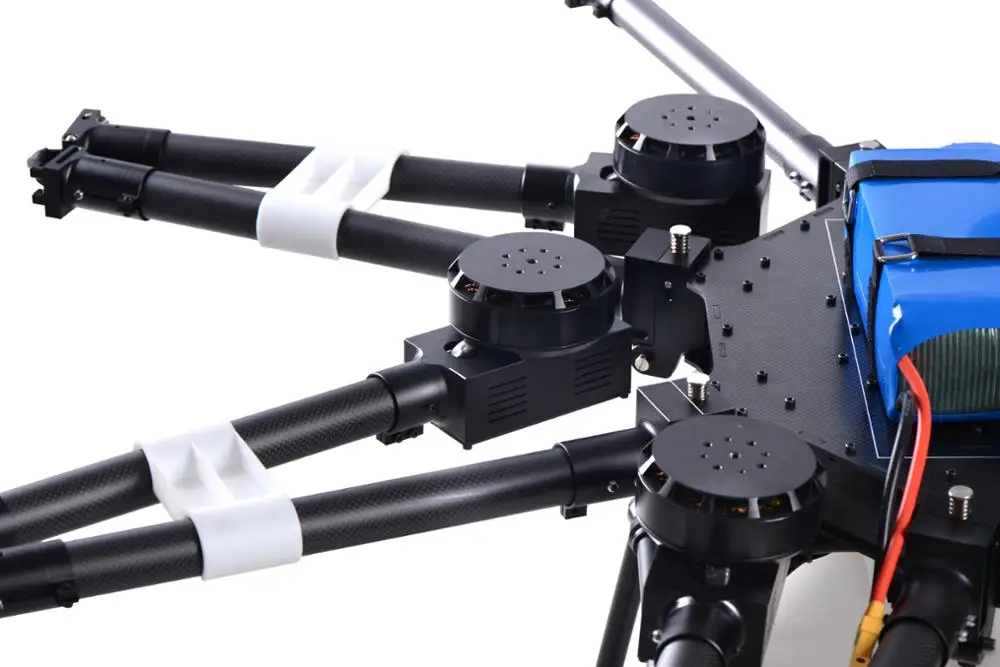

The frame arm of the MG-1S is detachable, and the landing gear is optimized, lowering potential maintenance costs. A water-resistant film has been added to protect the ESCs. The liquid valve has been placed on the side of delivery pump, and the delivery pump is located above the spray tank, making liquid injection, demounting and cleaning more convenient.
Intelligent Battery
The MG-1S uses an intelligent battery with a capacity of 12000mAh, it can
hover for 22 minutes* without load. A high-strength protective shell and
dampers are applied outside the battery, and the cables are also
well-protected for safety and reliability. In addition, the battery provides more
stable voltage, extending its lifespan.
Highly Precise RTK Function
The high-precision RTK System provides centimeter-level accuracy, making it
ideal for precise, targeted spraying. It also supports precision field mapping and
enhanced flight reliability.
Technical Specificat
Aircraft Frame
Size Spreaded L*W*H
2120*2120*700 mm
Size Folded L*W*H
710*710*700 mm
Diagonal wheelbase
2035mm
Material of Chassis
Carbon Fiber
Material of Propeller
Carbon Fiber
Motor
Brushless, 8318 120KV
Flight Parameters
Total Weight
23 kg (without battery)
Max Takeoff Weight
48 kg
Spray Flight Time
10-14 mins
No Load Flight Time
18-23 mins
Max Flight Speed
10m/s
Max Service Ceiling Above Sea Level
30 m(GPS mode)
Anti-wind
<8.0m/s (28.8km/h)
Operating Modes
Standard/Spray/GPS
Operating Temperature
0 ℃ to 50 ℃
Spray System
Container Material
Rigid Plastic
Container Volum
20 L
Standard Operating Payload
20 kg
Spray droplet diameter
60~180μm
Nozzles
4 pcs
Spray Flow Rate
1.8~2.6 L/min
Spray Width
3~6 M
Spray Height
2~5 M
Work Efficiency
4~8 hectare/hour(speed 4~5 m/s)
Remote Controller
Operating Frequency
2.4 GHz
Max Transmission Range
1 km (unobstructed, free of interference)
RC Battery
2200mAh 11.1V 3S Lipo
Operating Temperature
0 ℃ to 50 ℃
Aircraft Battery
Power Battery
22000mAh-25C 22.2V 488.4Wh 6S Lipo 2pcs
Charging Time
1.0-1.5h
Recharge Cycles
300-500 times
Packing List
Aircraft Frame
1 pcs
Battery
2 pcs
Recharger
1 pcs
Remote controller
1 pcs
RC battery
1 pcs
RC recharger
1 pcs
Propeller
4 pairs
Spray lance
2 pcs
Funnel
1 pcs
User manual
1 pcs
Toolkit (Include: screw, screwdriver, OTG, USB cable, 4 nozzles, certification)
