Высококачественная Водоструйная машина для резки
- Категория: Water Jet Cutters >>>
- Поставщик: Guangzhou,Sino,Achieve,Mechanical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.22 $* | 0.54 $* |
| Aug-16-2025 | 0.88 $* | 0.96 $* |
| Jul-16-2025 | 0.45 $* | 0.58 $* |
| Jun-16-2025 | 0.87 $* | 0.18 $* |
| May-16-2025 | 0.21 $* | 0.1 $* |
| Apr-16-2025 | 0.81 $* | 0.77 $* |
| Mar-16-2025 | 0.0 $* | 0.97 $* |
| Feb-16-2025 | 0.26 $* | 0.83 $* |
| Jan-16-2025 | 0.40 $* | 0.14 $* |
Характеристики
Our Company
WHY US
1) SAME Waterjet Co. focusing on waterjet cutting machines and waterjet parts developing and Manufacturing since 1997, with more than 22 years of experience to help customers on any kind of waterjet cutting projects.
2) SAME waterjet CO. is one of the 5 members who made the Chinese national standard of Ultra-high pressure waterjet cutting machines.
3) We have offered machines to more than 70 countries and area. You can get machines or service from our partners in Germany, the USA, Saudi Abrasive, Australia,Iran, Russia ,Mexico and Malaysia.
4) English Speaking technicians for after-sales support online or at-site.
5) SAME offering both completed set of direct -drive waterjet and intensifier waterjet cutting machines for different material cutting purpose. Our direct drive waterjet pumps with VFD to be highly recognized by its energy-saving feature (only 8KW/hour) and low-noise working condition.
Factory
Our Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
Office
Our Office
Our Certifications
Product Description

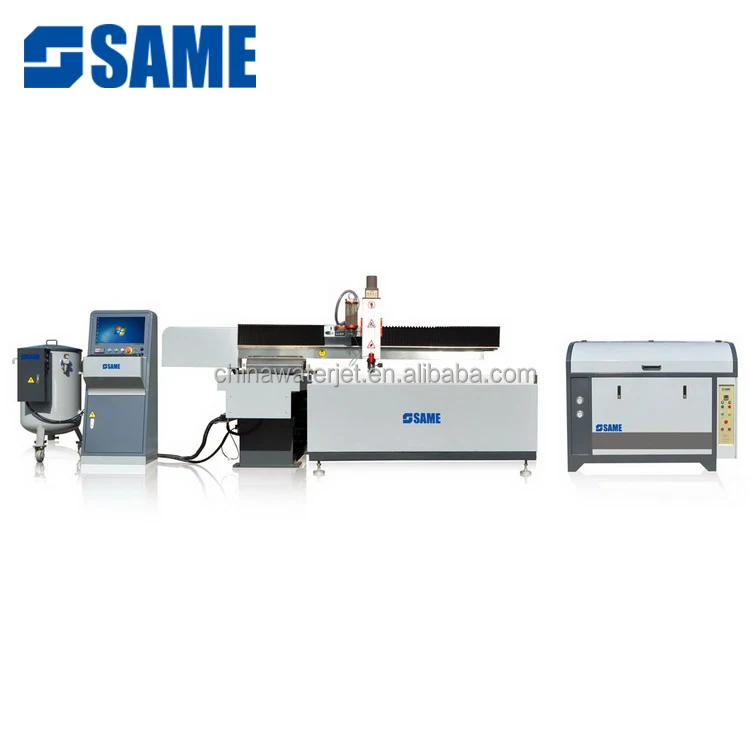

CE Certified High Precision Water Jet Metal Steel Waterjet Cutting Machine
● Designed base on CE, ISO9001 standard
● Imported parts of intensifier● Use of Bosch Rexroth hydraulic pump & hydraulic valve
● Pressure control by servo-proportional
● Setting different pressure for cutting different materials.
● Stable working pressure and easy maintenance.
Products Show

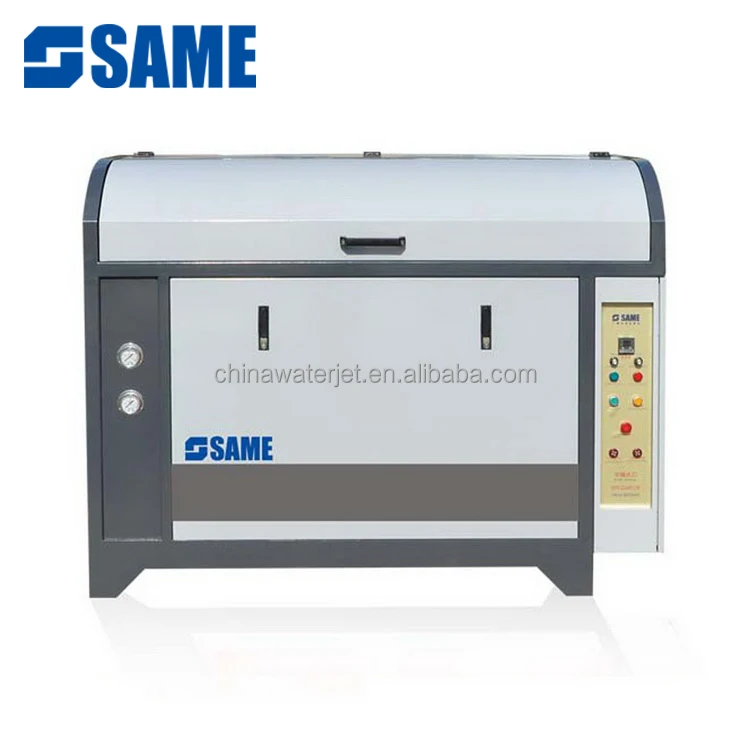

Model | 50HB high pressure pump |
Dimension(L*W*H) | 1800mm*1000mm*1400mm |
Power rate | 37kw/50hp |
Max. pressure | 420Mpa /4200bar |
Working pressure | 300-350Mpa |
Power supply | 380V 50hz |
Hydraulic pump | Bosch Rexroth brand |
Electro-hydraulic proportional valve | Bosch Rexroth brand |
Cooling system | Air cooling system |

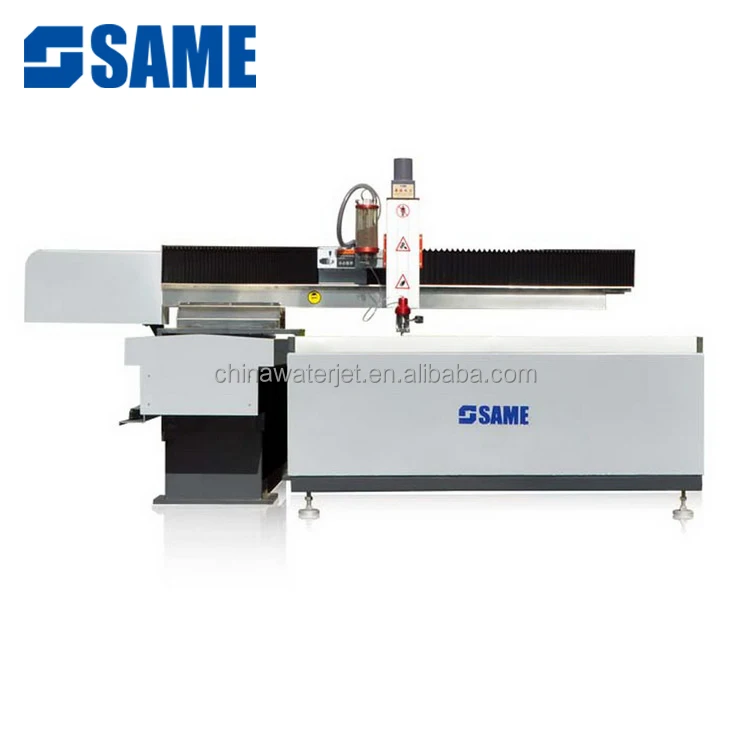

Cutting Table
The cutting table consists of transmission part with X axis Y axis and Z axis, water tank,cutting head, lubrication part and servo driving system. Cantilever mechanical structure is fit to small size machines, short running distance of X and Y axis, simple structure, suitable for processing a variety of complex small parts.
Type | 1616 | 2516 | 3020 | 4020 | |||||||
Dimension(mm) | 2550*3200 | 3450*3200 | 3950*3800 | 4950*3800 | |||||||
Max.cutting range(mm) | 1600*1600 | 2500*1600 | 3000*2000 | 4000*2000 | |||||||
Travel of Z axis | 150mm | ||||||||||
Servo system | YASKAWA | ||||||||||
Control accuracy | ±0.01mm | ||||||||||
Cutting accuracy | ±0.1mm | ||||||||||
Re-positioning accuracy | ±0.025mm/m | ||||||||||
Max. moving speed | 6000mm/mi | ||||||||||

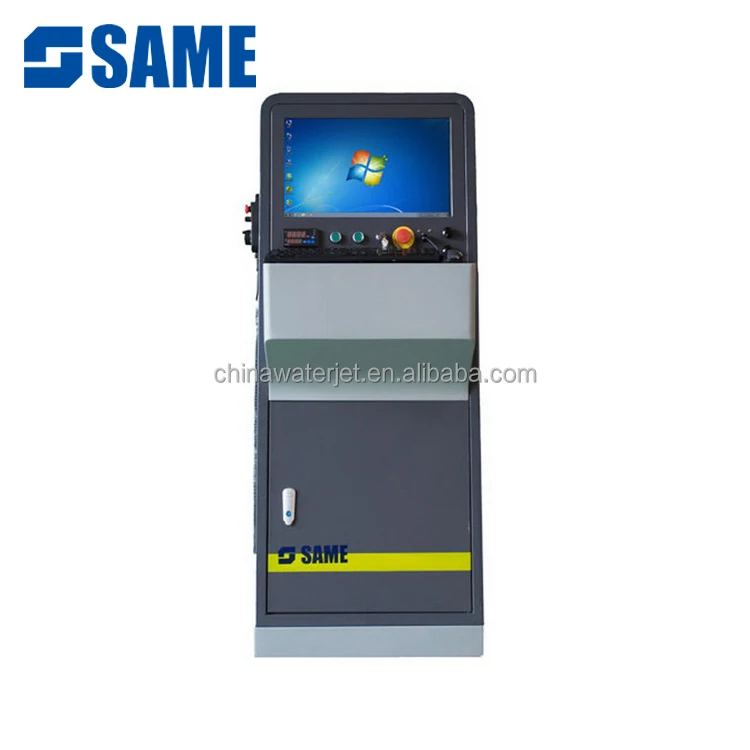

Model | CNC Control System |
Dimension (L*W*H) | 600mm*550mm*1200mm |
Weight | 200Kg |
Power supply | AC220V 50/60Hz |
Drawing system | Auto-CAD |
Professional Water jet software | NC Studio |
Servo Driver | Yaskawa ,Japan |

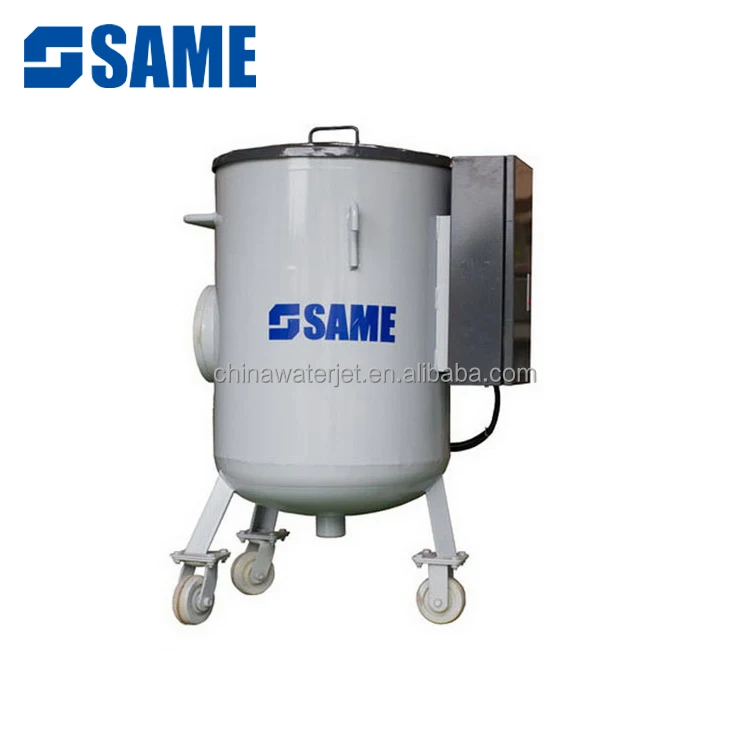

Model | Auto Abrasive Feeding System |
Dimension(L*W*H) | 600mm*600mm*1400mm |
Weight | 80kg |
Max.capacity | 200kg |
Max. air pressure supply | 0.2Mpa |
Voltage | 24V |
Power rate | 30W |

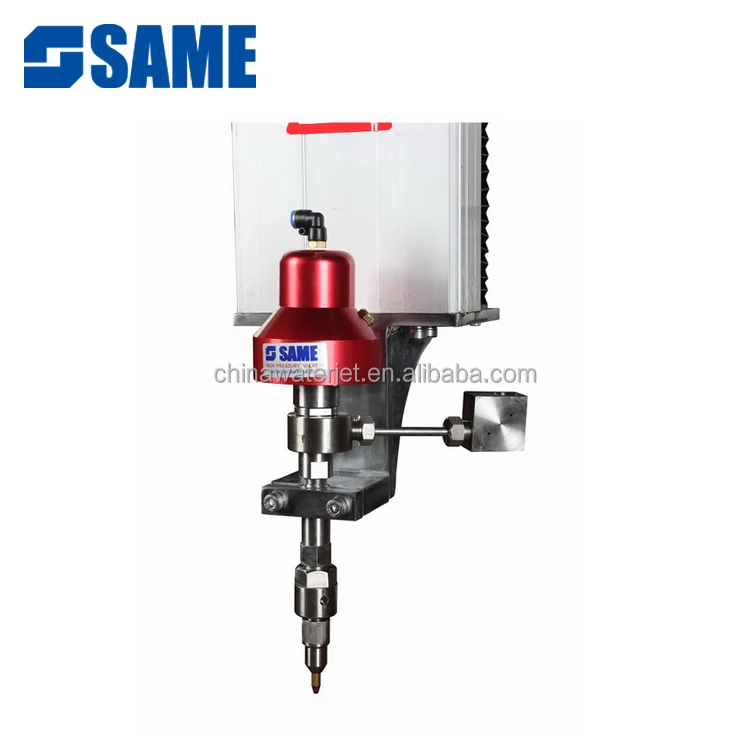

Model | 3 Axis Cutting Head |
Positioning accuracy | ±0.05/1000mm |
Re-positioning accuracy | ±0.02/1000mm |
Cutting accuracy | ±0.1/1000mm |
Packing & Delivery
Packing Details : water jet cutting machine in wooden packing ,water-proof , All way well protection
1. Special logistics packaging
2. Suitable carton size
3. All way well protection
After-sale service
1. Training personnel for operation and maintenance of equipment, make sure customers know and master the principle, skills of operate and maintenance SAME waterjet.
2. Providing the equipment installation and commissioning, 12 months (or 2000 hours) warranty period, except spare parts.
.
5. Upgrading new products and new technologies with discount price.
