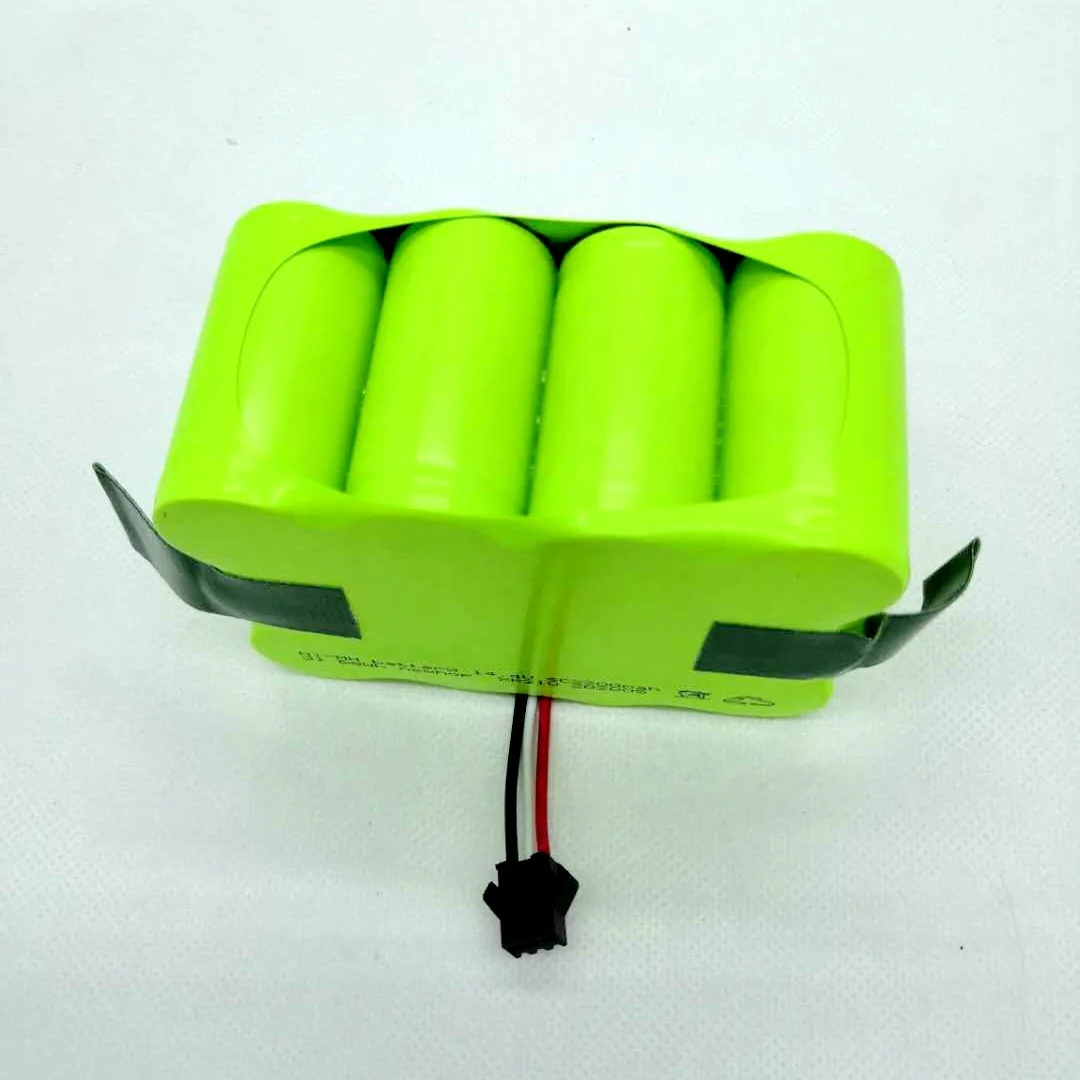

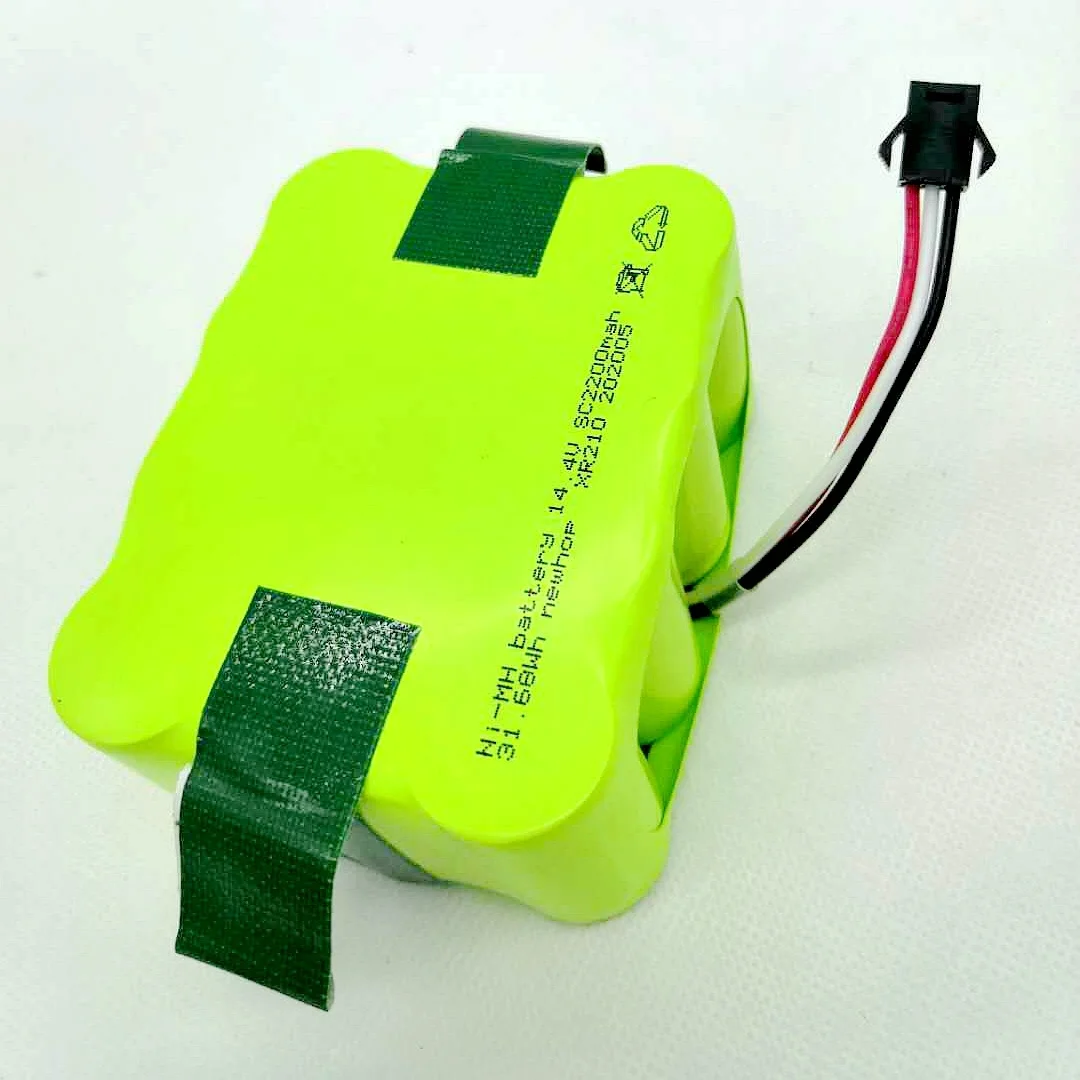

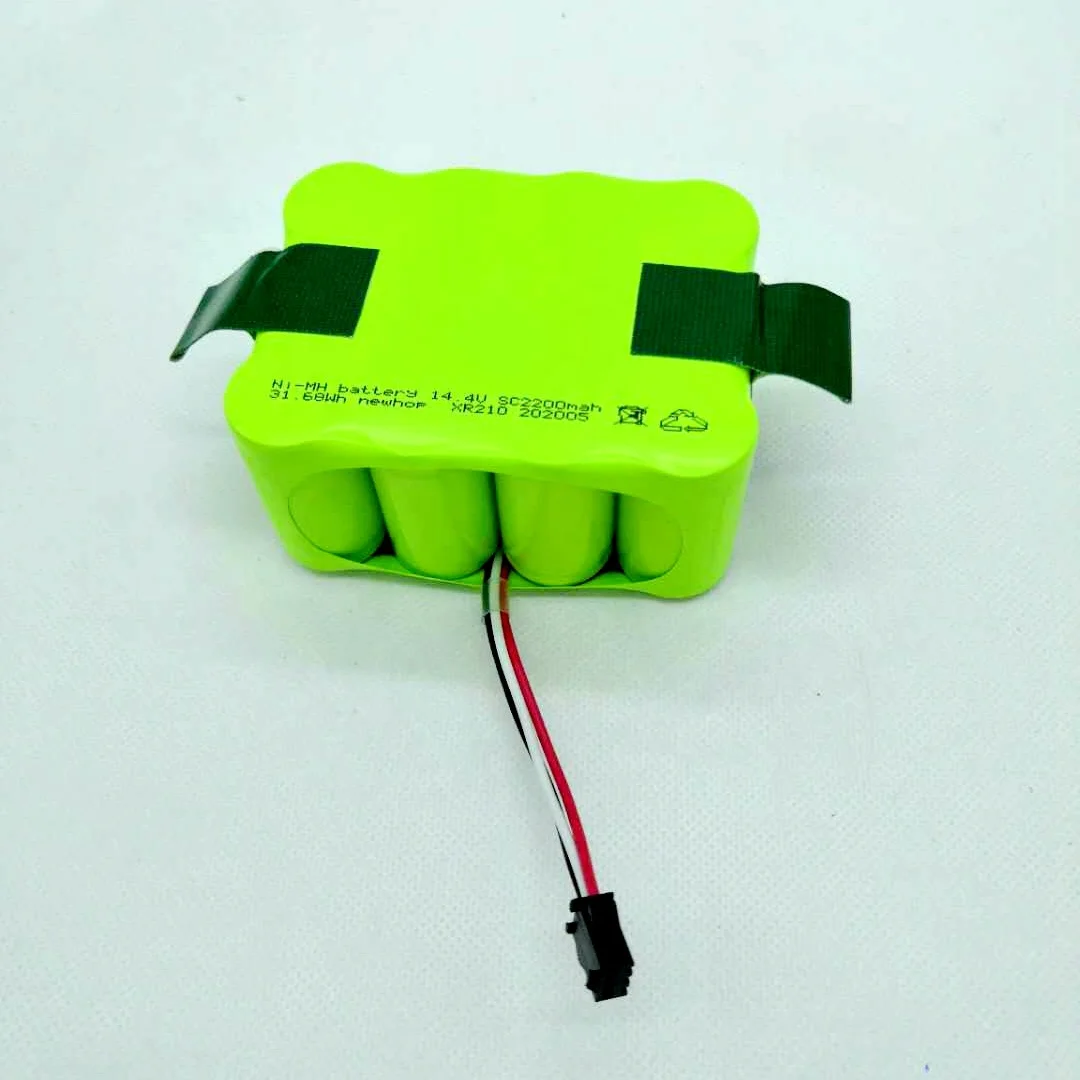

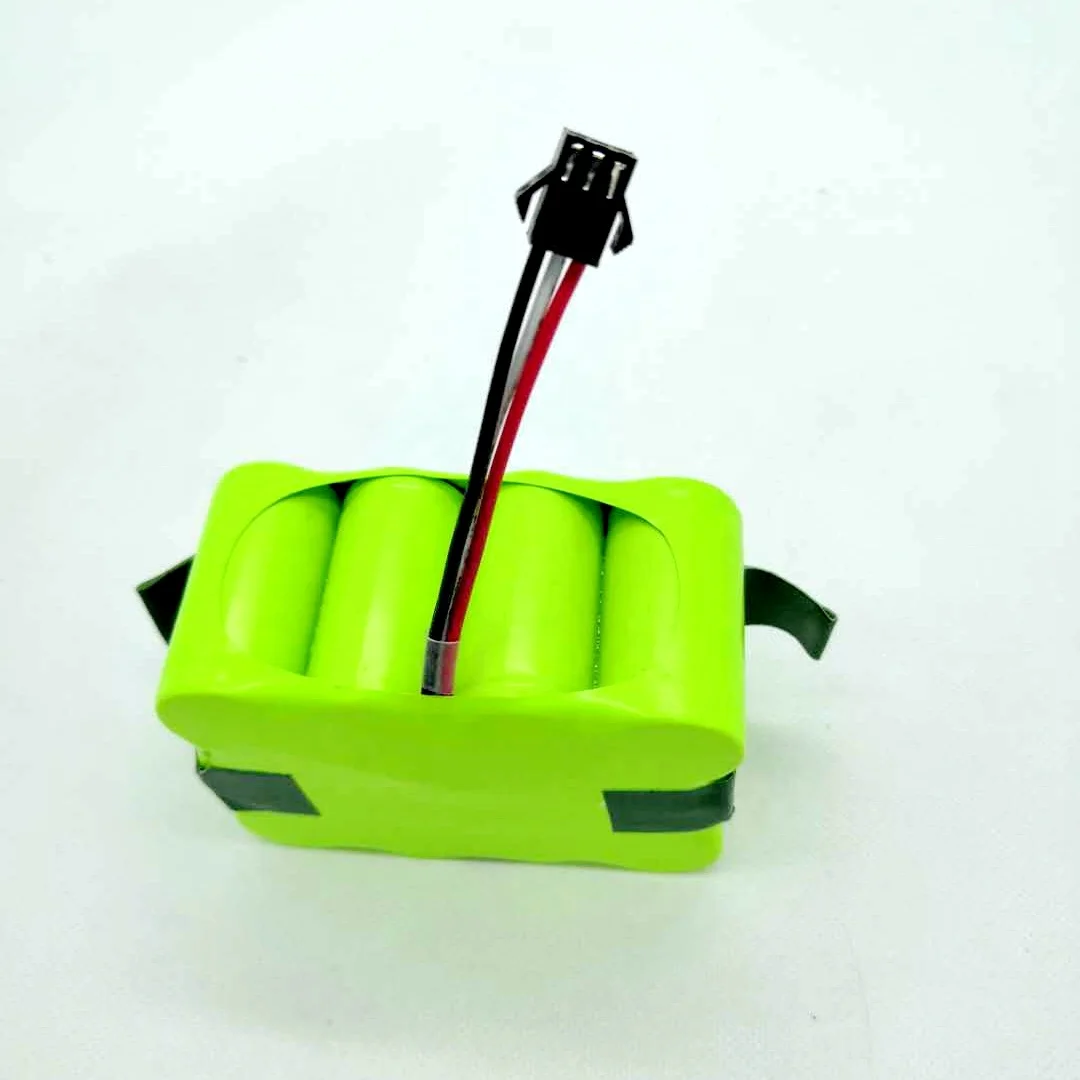

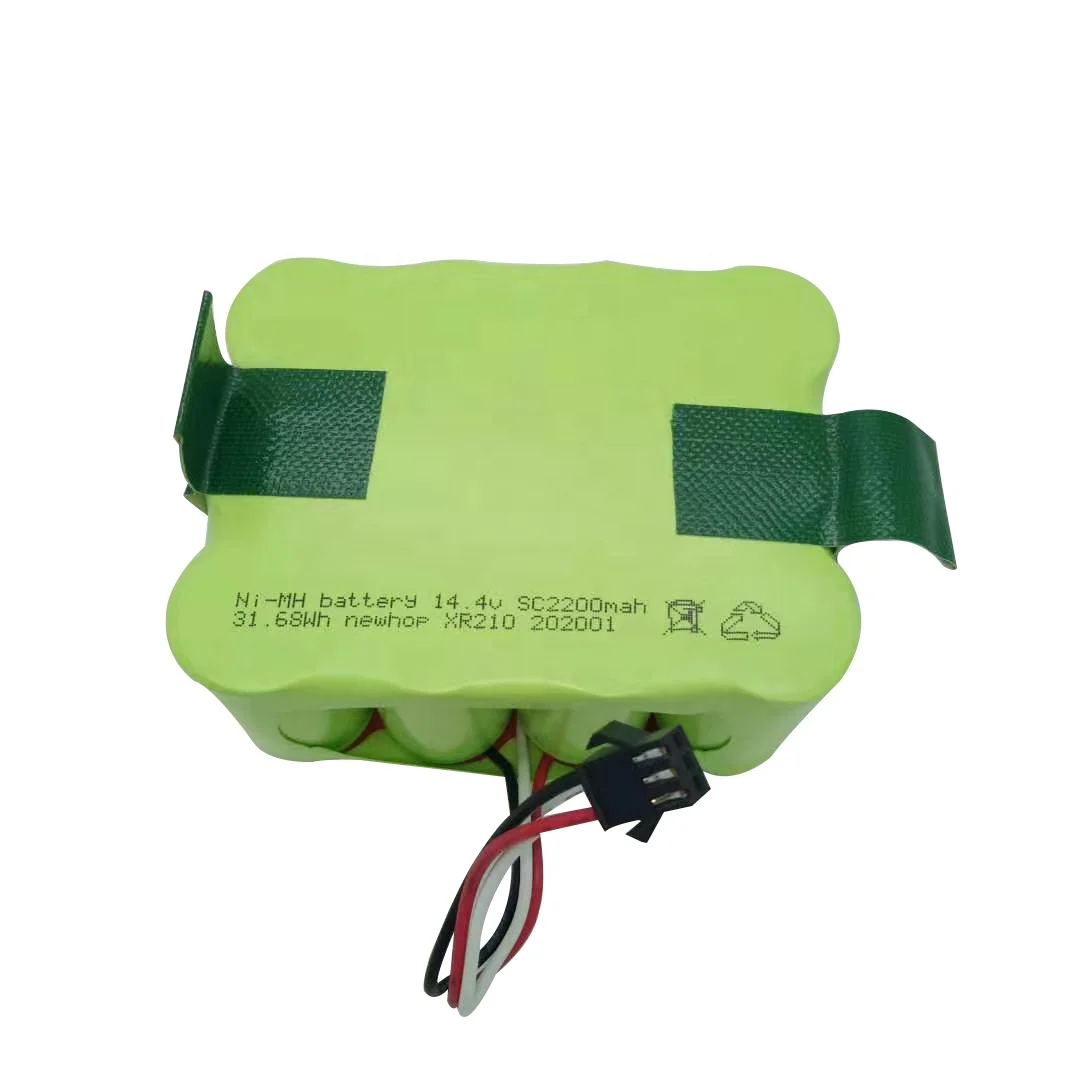

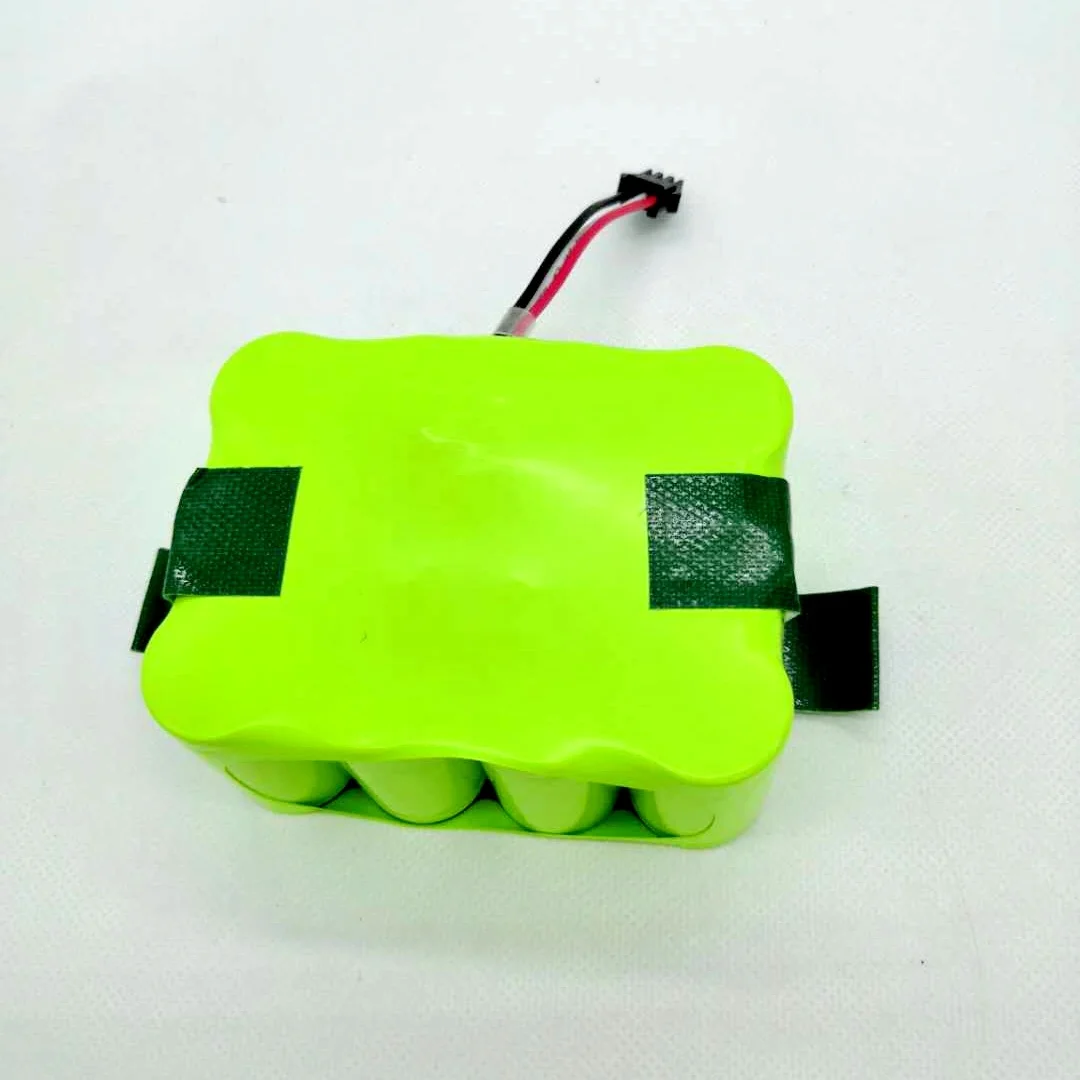

sc 2200mah 14.4v ni-mh battery pack for vacuum cleaner xr510



1,14.4v 2200mah ni-mh battery specification:

2.NOMINAL SPECIFICATION
2-1.Nominal voltage	14.4V
2-2.Nominal capacity*	2200mAh
2-3.Minimum capacity*	2150mAh
2-4.Charging**
Standard charging	0.1C for 16 hours
Quick charging	0.2C for 7 hours
Rapid charging	0.5C for 2.4hours, –ΔV=5mV/cell
2-5.End voltage of discharge	12.0V
2-6.Temperature (recommended)
Standard charge	0~55 degrees Celsius
Quick charge	10~40 degrees Celsius
Rapid charge	10~30 degrees Celsius
Discharge:	-20~50 degrees Celsius
Storage: Less than 30 days	-20~50 degrees Celsius
Less than 90 days	-20~40 degrees Celsius
Less than 1 year	-20~30 degrees Celsius
2-7.Relative humidity	45~85%
2-8.Weight	Approx. 650g



2,Parts list of the nimh battery cells



Parts lists of the nimh rechargeable batteries



Transportation:

1.To ensure battery safety during delivery, SOC( state of charge) must be below 35% ,

inside temperature of container could not be over 35°C. Product holder should be

responsible for any possible loss during delivery if above conditions cannot be met completely.



2,Inside temperature of container must be below 20°C if any client requires SOC(state of charge)above 35%,

the distance between battery master cartons should be not less than 10cm in container, and coercive air cross

ventilation system is required in container to ensure even temperature for each master carton. Product holder

should be responsible for any possibly accidental loss if above conditions cannot be met completely.





4,nickel metal hydride battery Testing Equipments and Facilities:All the products we are 100% testing before ship to our customers.







5,Ni-mh rechargeable battery Testing Curvs and Chart:





6,Certificates:Our batteries past UL/IEC62133/UN38.3/MSDS/ROHS/REACH testing.
