Intel Atom D2550 встроенный сетевой 4
Intel Atom D2550 встроенный сетевой 4
Intel Atom D2550 встроенный сетевой 4
Intel Atom D2550 встроенный сетевой 4

Intel Atom D2550 встроенный сетевой 4


Поделиться:


Цена:150,00 $ - 160,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 179.50 $* 188.2 $*
Aug-19-2025 177.31 $* 186.83 $*
Jul-19-2025 149.87 $* 156.86 $*
Jun-19-2025 174.70 $* 183.79 $*
May-19-2025 152.70 $* 160.91 $*
Apr-19-2025 171.5 $* 180.54 $*
Mar-19-2025 170.96 $* 179.89 $*
Feb-19-2025 168.38 $* 176.69 $*
Jan-19-2025 167.77 $* 175.83 $*

Характеристики


Advantage

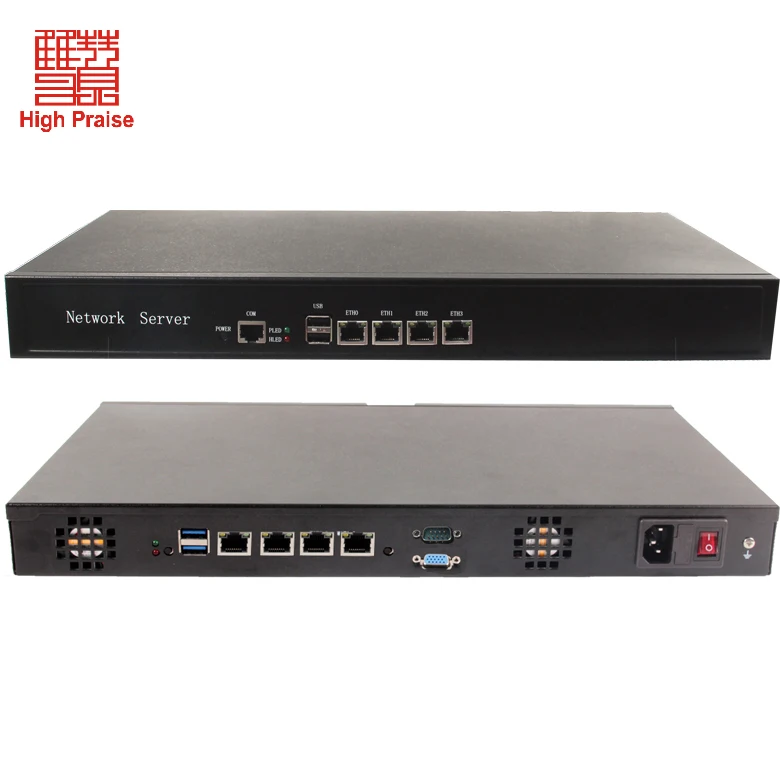

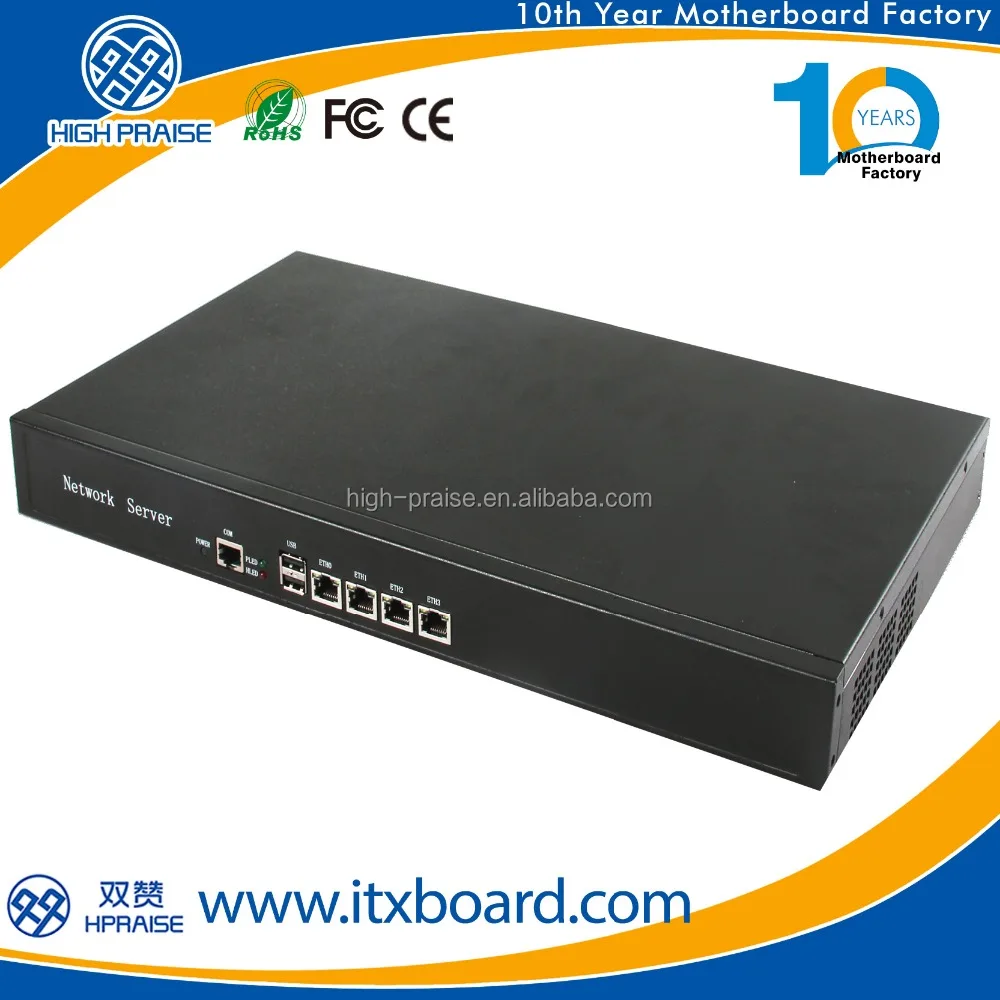

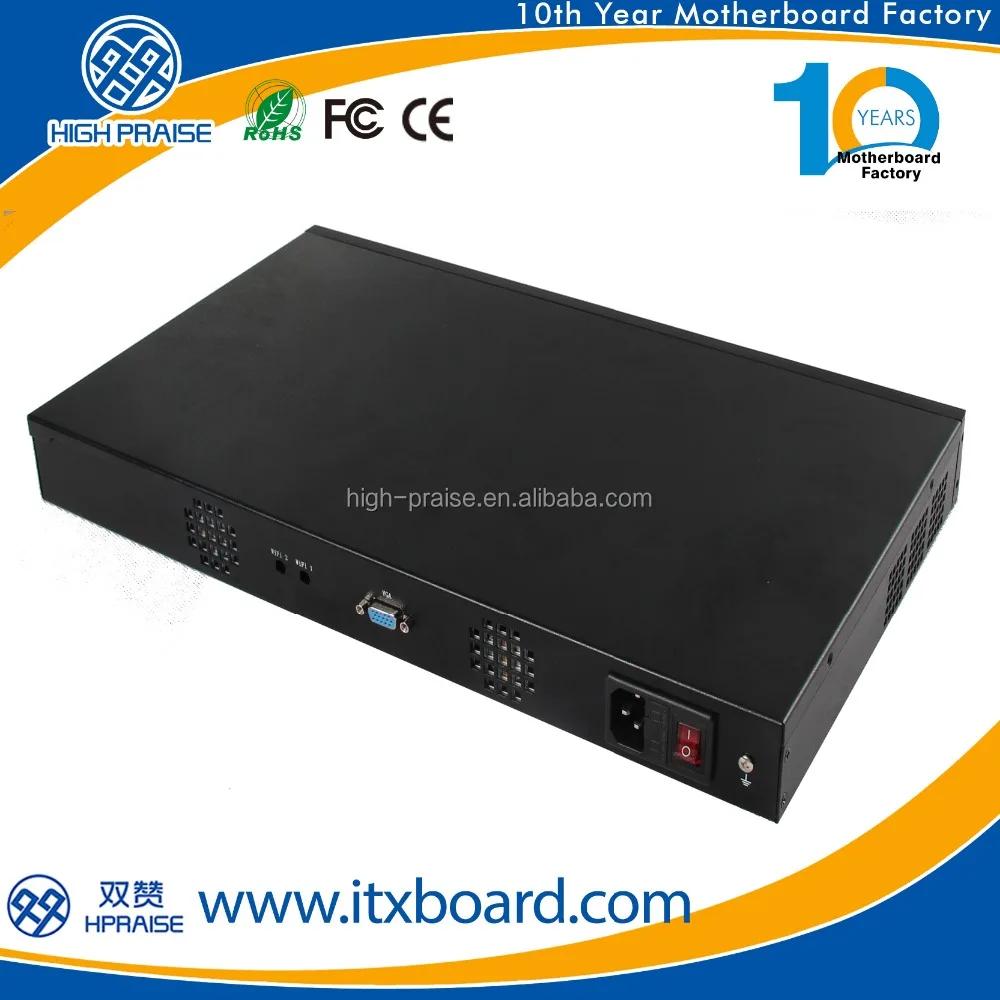

1.Intel ATOM D2550 Dual Core 1.86GHz Embedded 4 Lan network server


2. 4 LAN Firewall Mini ITX motherboard


3. 6 USB,1 COM,On board VGA Pin, PS/2 Pin


4. Support WIFI, CF card. PCI Slot


\t
Model No.
\t
HP-D2550-4LPC
\t
CPU
\t
Intel ATOM D2550 Dual Core 1.86GHz
\t
Chipset
\t
Intel Nm10
\t
System Memory
\t
1 SO-DIMM , DDR3 1600/1333/1600MHz Memory Maximum Suppor 8G
\t
Graphics
\t
PowerVR SGX545, support DirectX 10.1
\t
Display Connector
\t
Built-in VGA Pin
\t
On board LAN
\t
On-board 4*Intel 82583V Gigabit Ethernet
\t
On board Audio chip
\t
Realtek ALC662 HD Audio Decode Controller
\t
Storage
\t
2*SATA 2.0
\t
Expand Socket
\t
1*PCI 1*MINI-PCIE(For M-SATA Wifi ) 1*CF
\t
USB
\t
6*USB2.0 (4*USB2.0 need to expand)
\t
Power Supply
\t
DC 12V Power Supply
\t


Front I/O Interface
\t
2×USB2.0 Port
1×RJ-45 to COM Port
4×RJ-45 GLAN Port
1×DC Port
1×RESET Button
1 group×LED light
\t





Rear I/O Interface
\t
2*USB2.0 Pin(Can Expand to 4*USB2.0 Port)
1*12 Pin VGA
1*PS/2
1*COM Pin
1*GPIO Pin
1*AUTO-ON Jump cap
1* 4 Pin DC power supply
1*4 LAN LED Pin
1×F-PANEL Pin
2×SYS-FAN Pin
1×CLR_CMO clear CMOS jump cap
\t
BIOS
\t
AMIBIOS 4/8Mbit Flash
\t
Form Factor
\t
MINI-ITX (6 layers PCB) , 170mm*170mm
\t
System Monitoring
and Management
\t
Wake on LAN System Power Management Temperature management, voltage management Fan speed monitoring
\t
Working Humidity
\t
0% ~ 95% (relative humidity, non-condensing)
\t
Operating Temperature
\t
-15°C ~ 60°C

pre-sales&after sales

Free Technical Support                 Reassuring Guarantee

3 Years Warranty.

ODM&OEM

Design and Product  base on customer request

20 People R&D Department

Latest Equipment Factory

Ultimate one-stop Service

Quality Control System

72 Hours Strict Burn-in Test

Running Board In Different Condition

Re-Testing Before Shipping Out

Firm Packing for Express

Factory

Our Factory

Workshop

Our Workshop

Warehouse



Team



Packing Details  : 20pcs/carton

Carton Size: 50*49*20 CM








Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 3-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample, but need to pay the cost.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:

Skype: yoyoliao1983

Phone No.:0086 20 39150578
