Шнековый конвейер/винтовой конвейер 3500 кг в

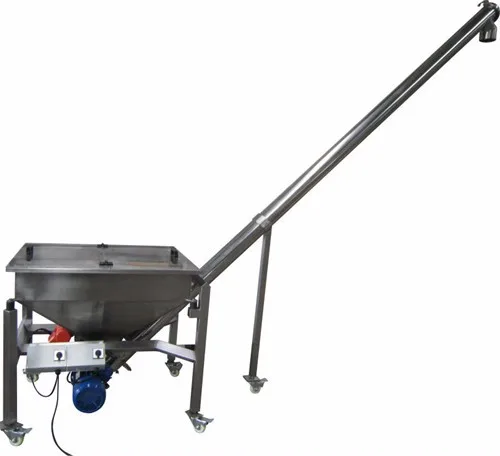

This Vibrating Screw Charging Machine can convey sorts of material. it can do material situation tracing.
Combined with the package-machine of our company, Also can be used separately.
Complete machine made in stainless steel, except for the motors.

Product  Application

Technical  Parameter

Model	HZ-2A2	HZ-2A3	HZ-2A5	HZ-2A7	HZ-2A8	HZ-2A12
Charging Capacity	2m3/h	3m3/h	5m3/h	7m3/h	8m3/h	12m3/h
Diameter of pipe	Ø102	Ø114	Ø141	Ø159	Ø168	Ø219
Hopper Volume	100L	200 L	200L	200L	200L	200L
Power Supply	3P AC208-415V 50/60Hz
Total Power	610W	810W	1560W	2260W	3060W	4060W
Total Weight	100kg	130Kg	170Kg	200Kg	220Kg	270Kg
Overall Dimensions   of Hopper	720x620x800mm	1023 ×820×900mm
Charging            Height	Standard 1.85M, 1-5M could be designed and manufactured.
Charging angle	Standard 45degree,30-60 degree are also available

Main Features

1) two motors: vibrating motor & feeding motor

2) fully welded screw

3) a discharge hole on the tube bottom

4) safety grid & cover

5) optional device: mixing bar in the hopper

Detailed Images

                 Two Motors

              One for screw feeding
           One for hopper’s vibrating

          Fully polished stainless steel

              Safty grid

                       Dust-proof and safty grid

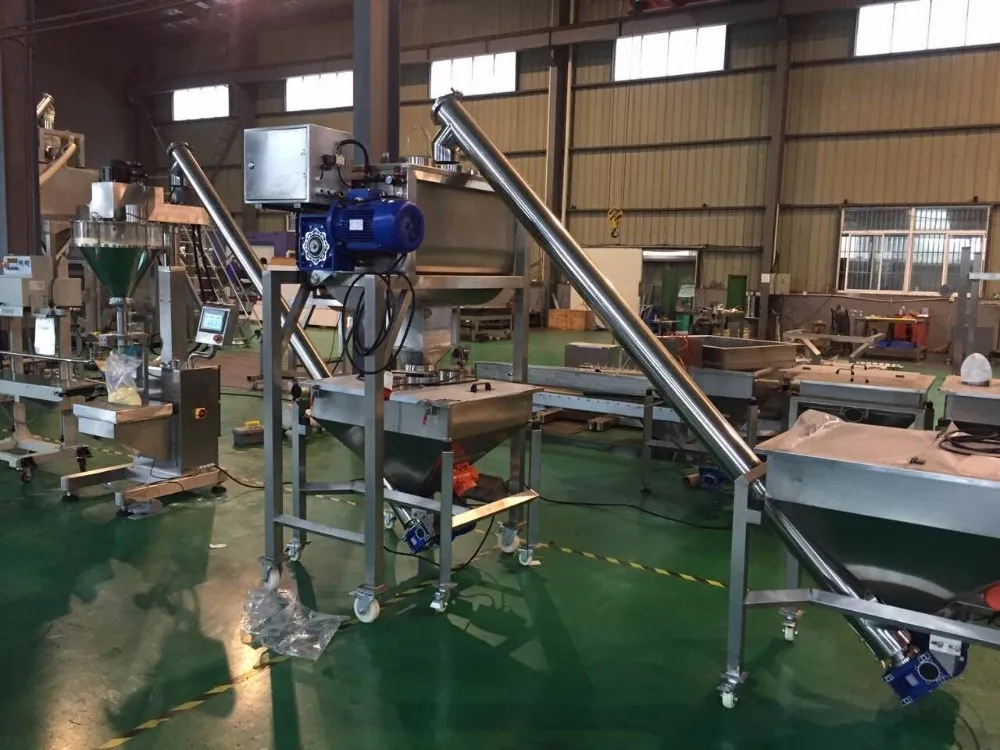

Factory Show

We customize related machines:
• bottle unscrambler,
• powder feeder
• powder mixer
• bottle capping machine,
• labelling machine etc.

Related Product

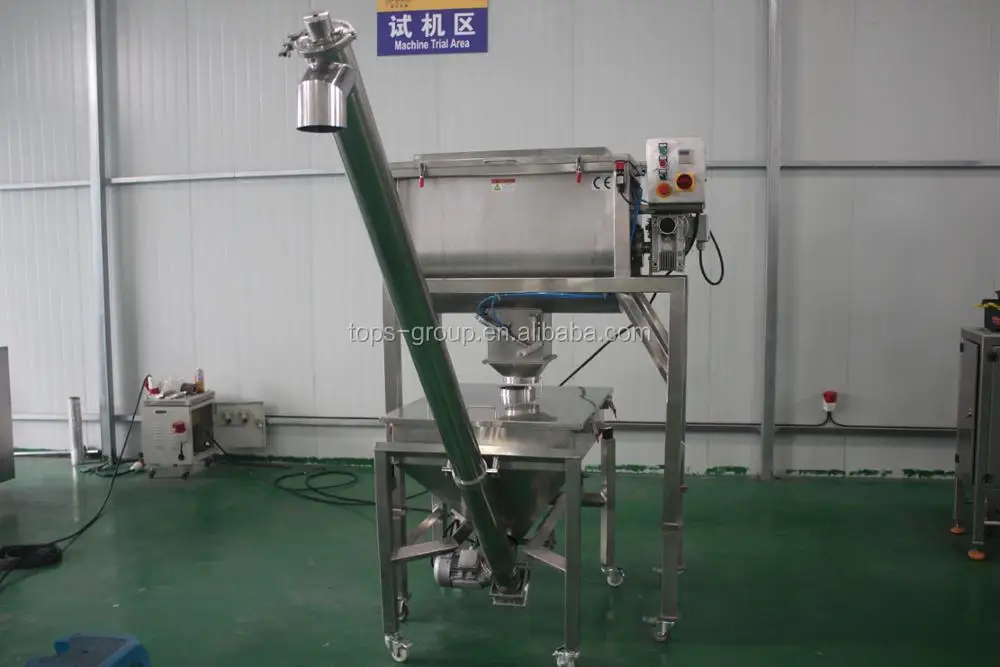

                   Powder mixer+Screw Feeder

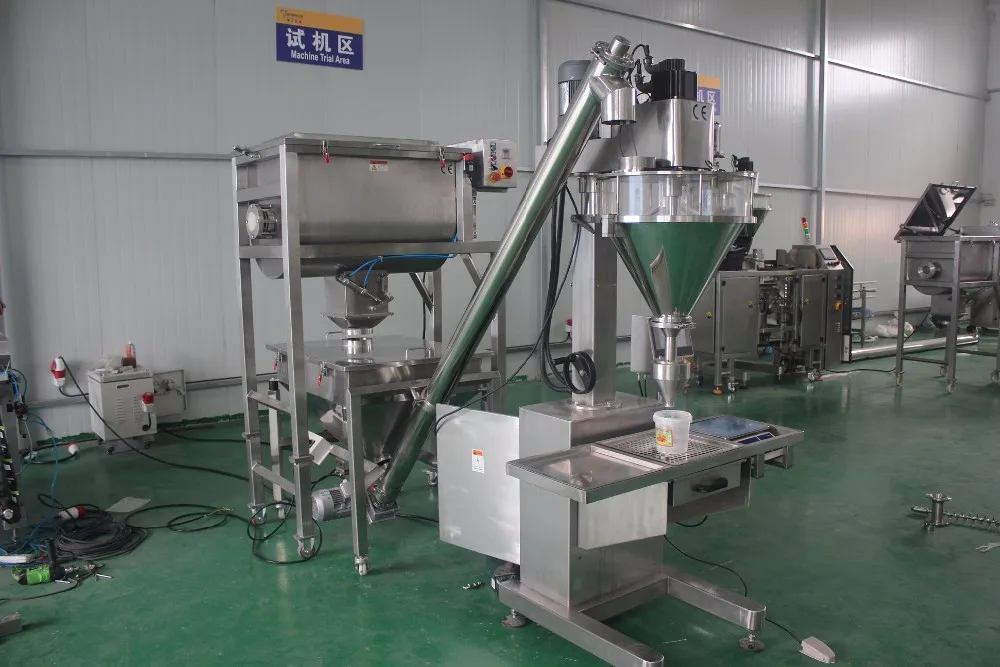

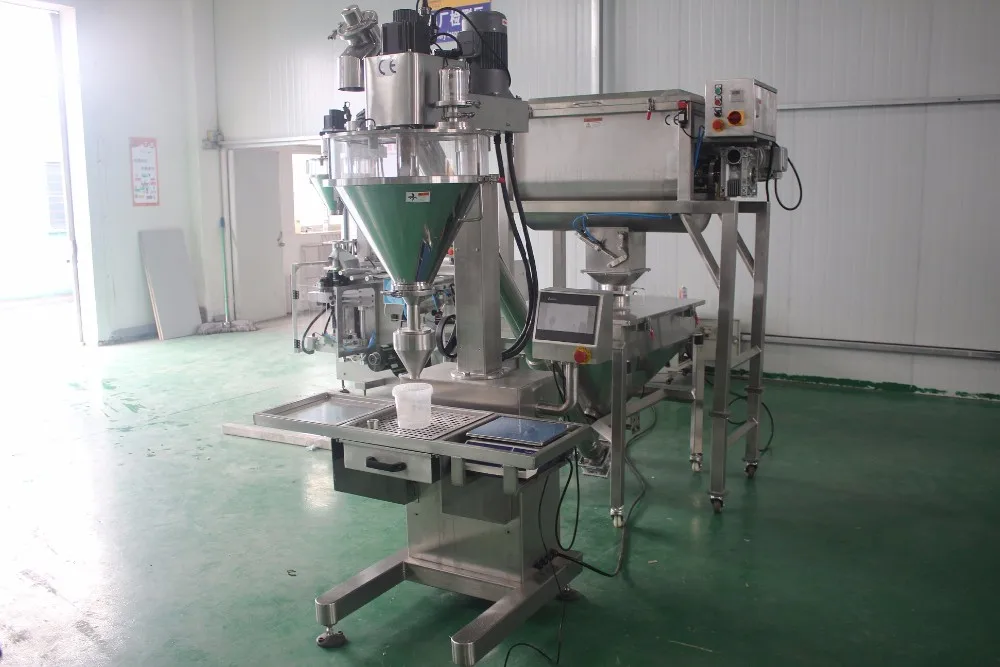

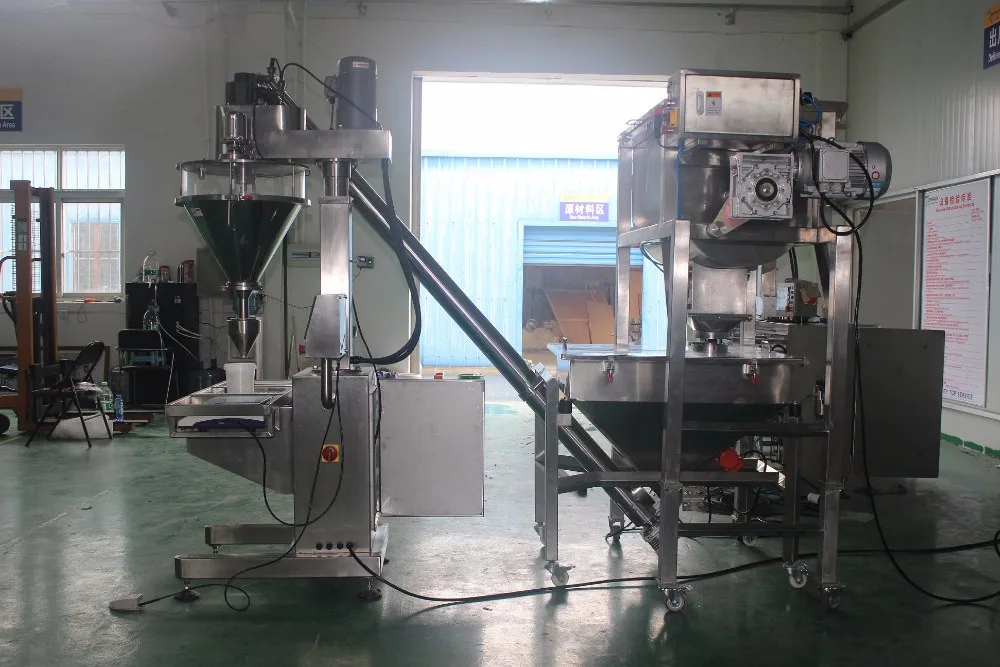

                Augar filler+ Screw Feeder

   Packing mchine+Screw Feeder

                     Grinder+Screw Feeder
