Angle Plate Corner Brace Flat L Shape

Product Name : Angle Bracket

Material : Aluminium Alloy
Widely used in home and factory area. Easy installation.
Specially designed with 90 degrees right angle, is an important fastener to make furniture parts stay firm.

Angle Plate Corner Brace Flat L Shape Repair Bracket

Product Features:
Make extra rigid 90 degree connections between pieces of aluminum extrusion;
Compatible with all 20mm-based aluminum extrusion with a slot opening of 6mm, including Misumi 5 series, Openbuilds V-Slot(TM), and Openbuilds C-Beam(TM);
Unlike smaller cast brackets, these should only be used to join extrusions such that the slots of the joined pieces intersect and run perpendicularly along their length;
Different Styles have different tab and hole sizes.

Angle Plate Corner Brace Flat L Shape Repair Bracket

Product Description:

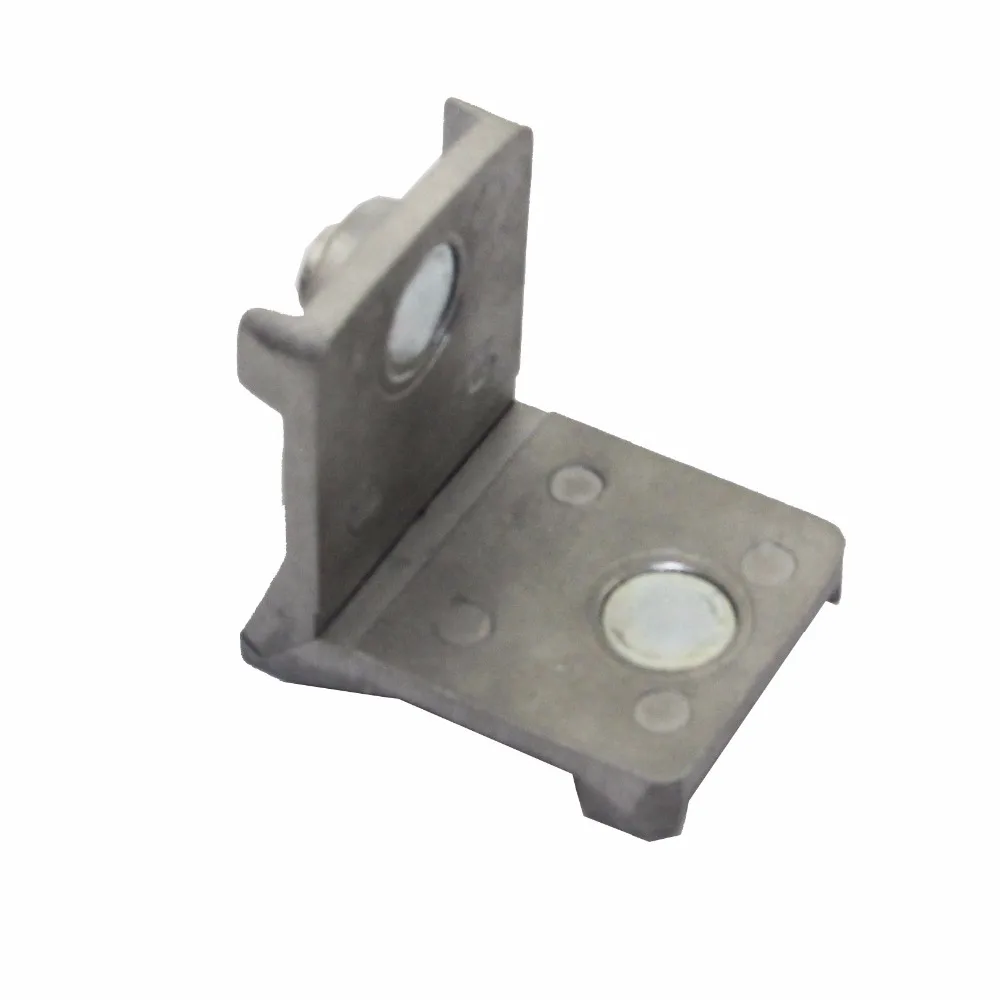

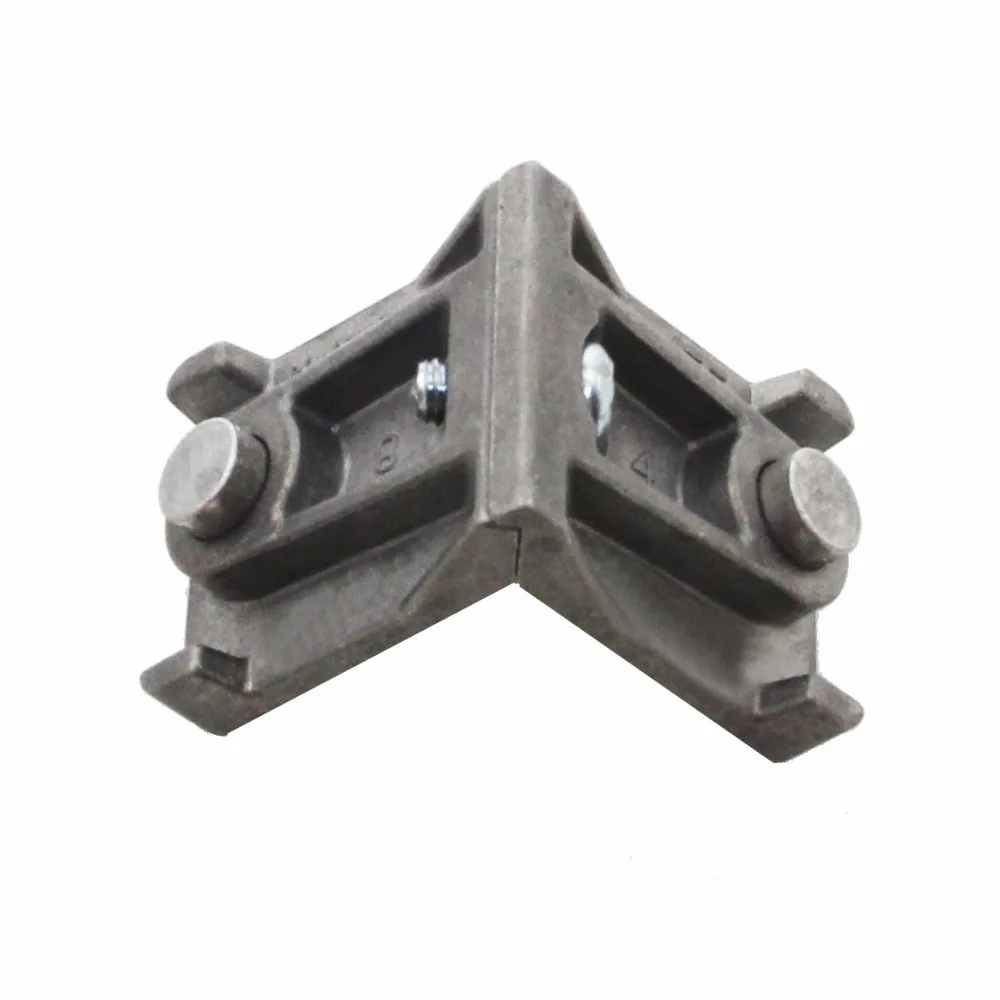

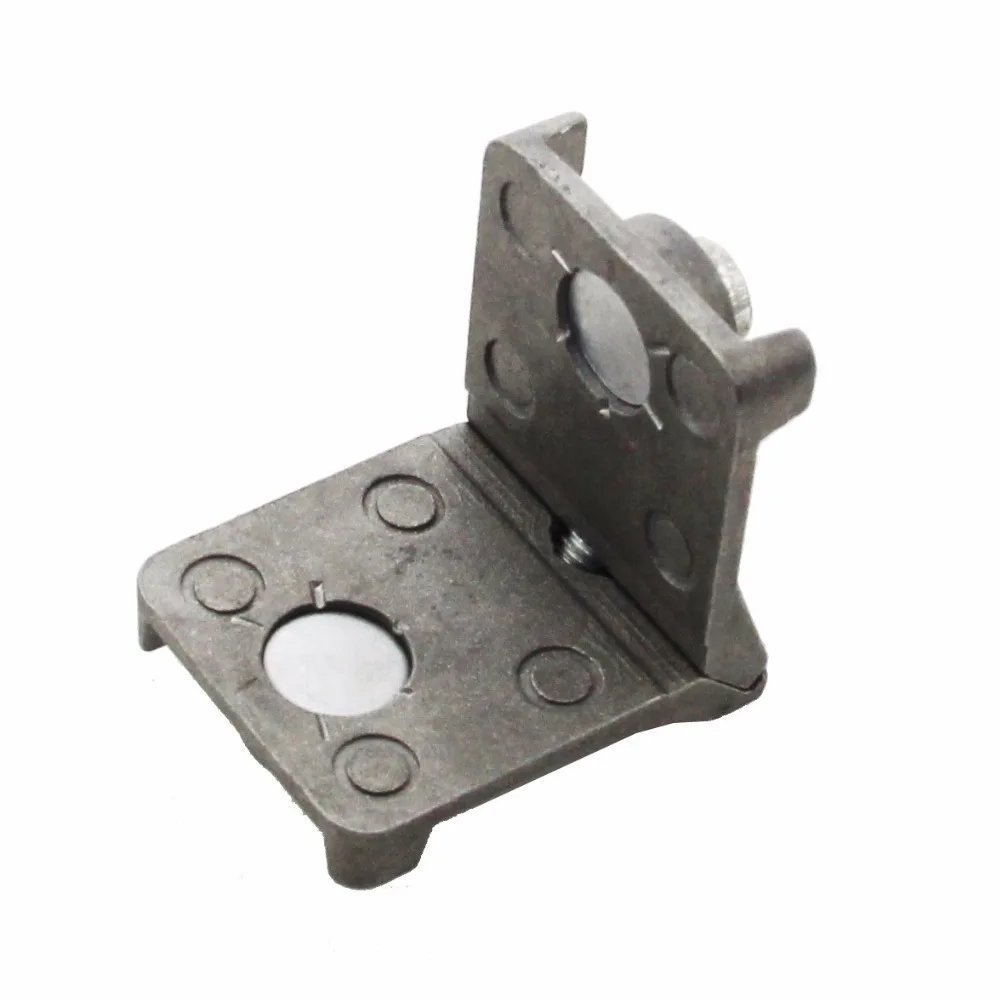

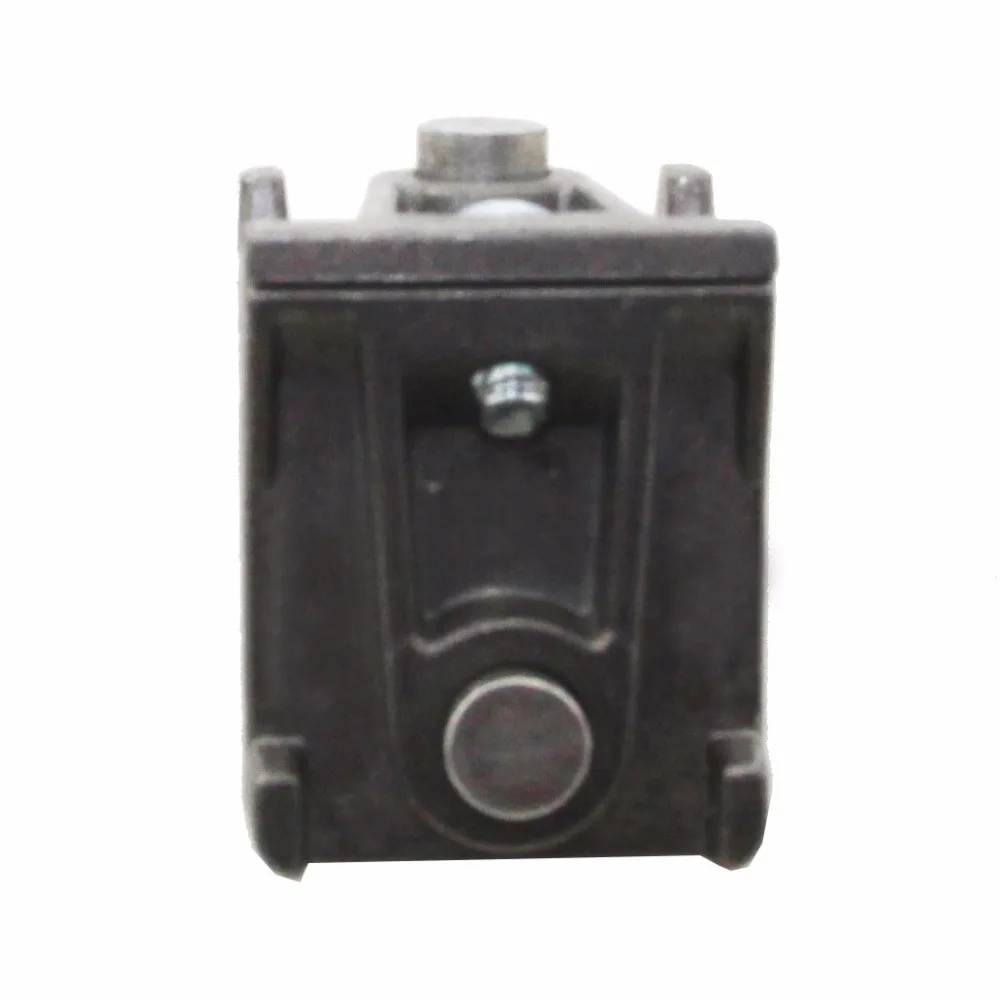

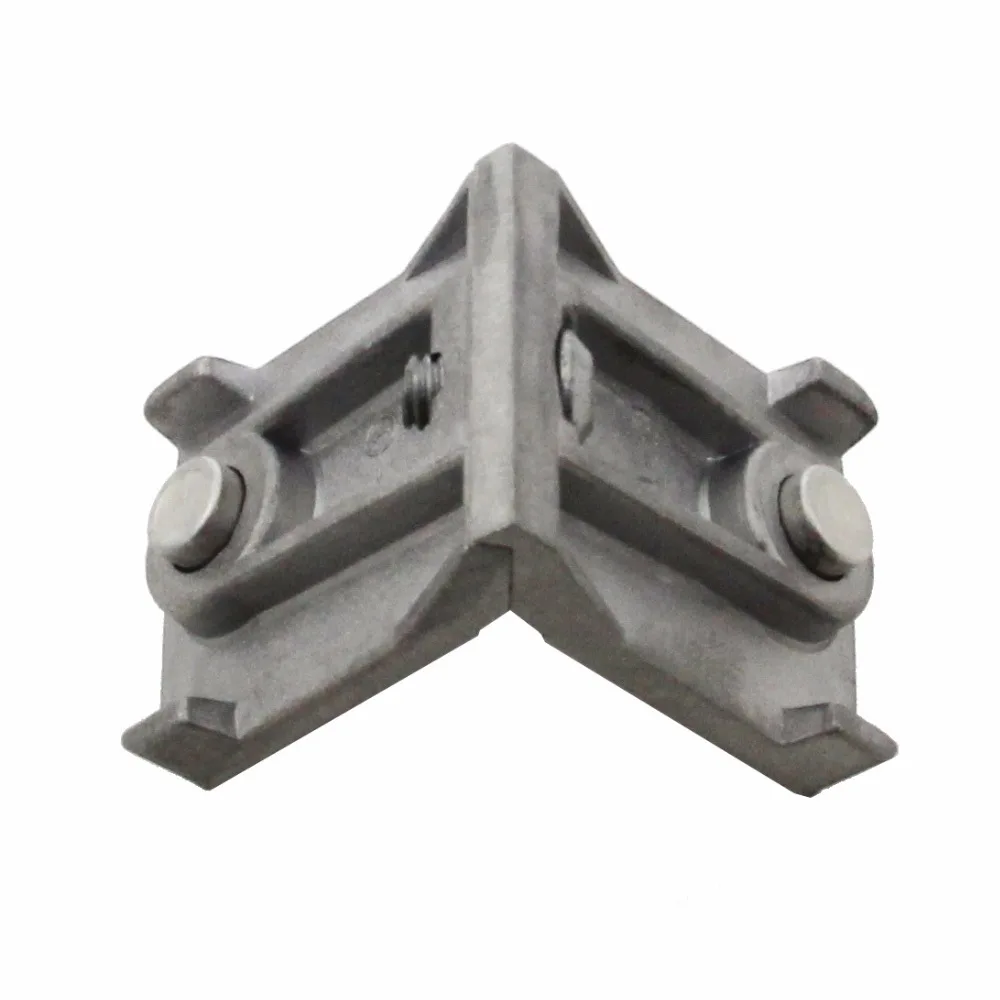

These cast aluminum brackets are used to connect pieces of 20mm aluminum extrusion at a 90 degree angle. The gussets guarantee a solid, rigid connection. We recommend M5 8mm button head or low profile screws and any slot nuts that are compatible with 20mm extrusion (neither are included). Build CNC routers, 3D printers, CNC laser cutters, CNC plasma cutters, robotics projects, 3D carvers, machine guards, workstations, etc. Note: unlike with the smaller 20mmx14mm cast brackets, the holes in these brackets are located such that both sets of tabs should sit in the slots of the extrusions that they connect in order to work properly, i.e. these brackets require that the two connected pieces intersect and are perpendicular to each other as in the picture.

How to use:

  Angle Plate Corner Brace Flat L Shape Repair Bracket

20pcs/opp bag, 8bags/ctn,G.W./N.W.:7.5/6.5kg
