Product Description
Products description: lathe center, dead center, solid dead center, face drive center, drive center.
Item | Content |
Selection Guidance | 1, The model of machine's spindle or tailstock 2, The weight and OD of workpiece. 3, Machining range and accuracy requirement. |
Products Advantage | 1, The hardness of center shaft or the body is HRC 60±3. 2, The TIR is less than 0.005mm. 3, Waterproof design prevent cutting fluid and dust from entering into the center. |
Use Tips | 1, For oiling type, please fill in lubricating oil of SKF-LGMT2 per 4 hours. 2, The radial force is referred to the workpiece weight and turning force. 3, The axial force is referred to the hydraulic pressure of the tailstock. |
Price Description | 1, The price is just for one set of SC-66-A-4A. other spec need inquiry. 2, "A" of the center model denotes a draw-off nut attached. 3, The price includes the accessories. |
Products Details
Item | Description |

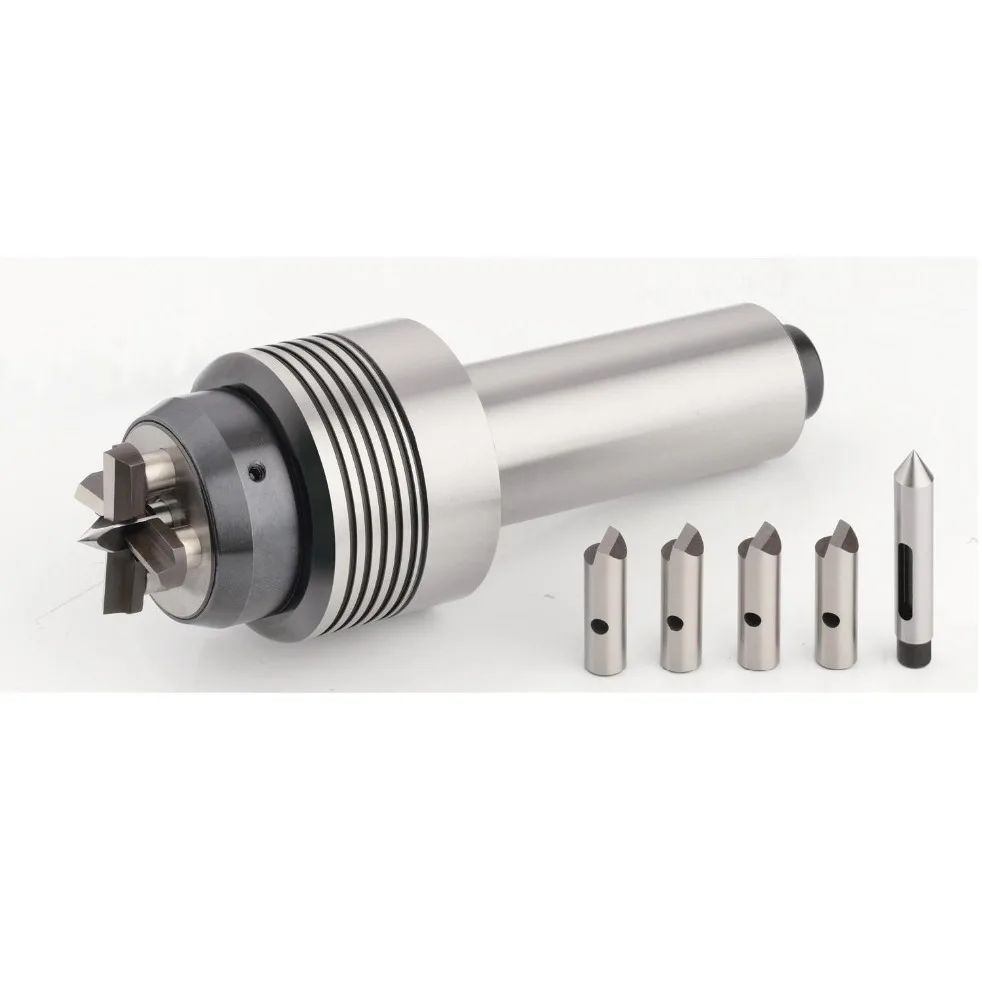

SC-66-A Series | Changeable self compensating face diver. |
Application Machine | CNC lathe and high speed lathe and auto feeder or other machine tool. |
Working Usage | Without turning the workpiece face and each drive pin can adjust the transmission force, better precision and stability for turning and reversing lathing process. |
Structure | Adopted the design of mechanical balance structure. |
TIR | Less than 0.005mm |
Mores Taper shank | 3MT, 4MT, 5MT |
Accessories | 1, For SC-66-A group, center pins 09-09 and drive pins 10-10. 2, For SC-66-B group, center pins 09-09 and drive pins 10-13. 3, For SC-66-C group, center pins 09-06 and drive pins 10-17. |
Quality Promise
Item | Omatei Promise on Quality |
1 | 100% inspected and 100% qualified |
2 | In case of quality defects before use, buyer should notify Omatei within a week after receiving goods, Omatei is responsible for returning and resending freight charge. Buyer should package the goods firmly for returning transportation safety. |
3 | If buyer need changing before use, buyer should notify Omatei within a week after receiving goods, Buyer is responsible for returning and resending freight charge, Buyer should package the goods firmly for returning transportation safety. |
Contact us
Packing & Delivery
Packing Details : Our packing is firm and safe and suitable for air or sea shipping way.
Lead time: 1 day after received payment if in stock, otherwise, the lead time is 30 days.
