Водяной насос для бурения скважин на солнечной батарее mppt сельского хозяйства погружной Комплект dc 24 В 48 Солнечный водяной цена
- Категория: Solar Water Pump >>>
- Поставщик: Feili,Pump,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 202.65 $* | 206.58 $* |
| Jul-16-2025 | 164.5 $* | 167.2 $* |
| Jun-16-2025 | 199.85 $* | 203.17 $* |
| May-16-2025 | 197.67 $* | 201.87 $* |
| Apr-16-2025 | 157.47 $* | 160.50 $* |
| Mar-16-2025 | 194.21 $* | 198.39 $* |
| Feb-16-2025 | 192.33 $* | 196.92 $* |
| Jan-16-2025 | 191.96 $* | 195.57 $* |
Характеристики
Pump Description
Pump details
MPPT Controller
(1) Waterproof grade: IP65
(2) Ambient temperature: -15C-60C
(3) MPPT function, the solar power uilization rate is higher.
(4) Automatic charging function: Guarantee the pump normally working, meanwhile charge the battery; And when there
is no sunshine, the battery can make the pump continuously working.
(5) LED displays the power, voltage, current, speed etc working condition.
(6) Frequency conversion function: It can automatically run with frequency conversion according to the solar power, and
user also can change the speed of pump manually.
(7) Automatically start and stop working.
(8) Water proof and leak-proof: Double seal effect.
(9) Soft start: No impulse current, protect the pump motor.
(10) High voltage/Low voltage/Over- current/High temperature protection
(2) Ambient temperature: -15C-60C
(3) MPPT function, the solar power uilization rate is higher.
(4) Automatic charging function: Guarantee the pump normally working, meanwhile charge the battery; And when there
is no sunshine, the battery can make the pump continuously working.
(5) LED displays the power, voltage, current, speed etc working condition.
(6) Frequency conversion function: It can automatically run with frequency conversion according to the solar power, and
user also can change the speed of pump manually.
(7) Automatically start and stop working.
(8) Water proof and leak-proof: Double seal effect.
(9) Soft start: No impulse current, protect the pump motor.
(10) High voltage/Low voltage/Over- current/High temperature protection
Product Parameters and Connection
Solar Submersible Water Pump
Model: 3FLD3.4-65-48-600
Power: 600W
Voltage: DC48V
Max flow: 3.4m3/h=20400L/day
(pump 6hours on daytime)
Max head: 65m(suitable for 50m deep well)

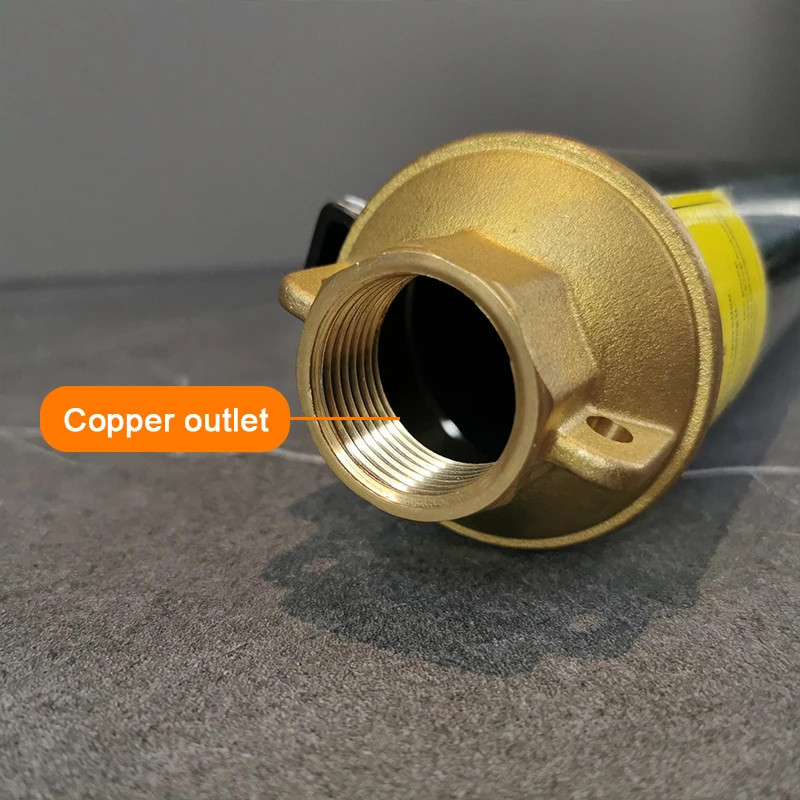

Outlet Dia: 1 inch
Pump Dia: 3 inch
Cable: 3M
Suggest equip solar panels: 4x275W
Power: 600W
Voltage: DC48V
Max flow: 3.4m3/h=20400L/day
(pump 6hours on daytime)
Max head: 65m(suitable for 50m deep well)
Outlet Dia: 1 inch
Pump Dia: 3 inch
Cable: 3M
Suggest equip solar panels: 4x275W
(2pcs in series, 2 groups in parallel)
A mm | B mm | C mm | D mm |
654 | 426 | 228 | 73 |
▶Solar Pump Curve

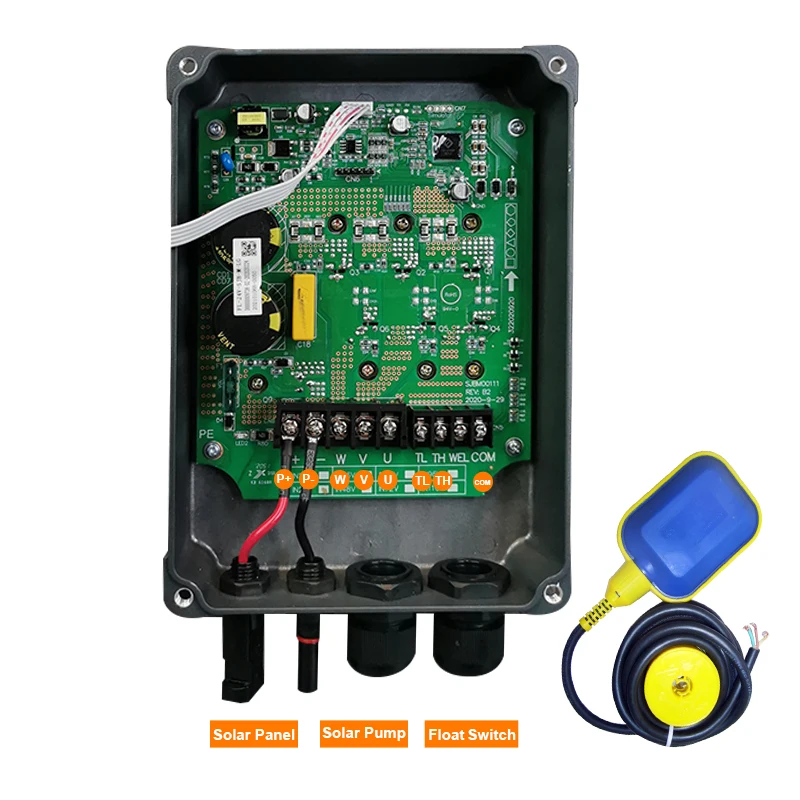

▶Connection Way
Package

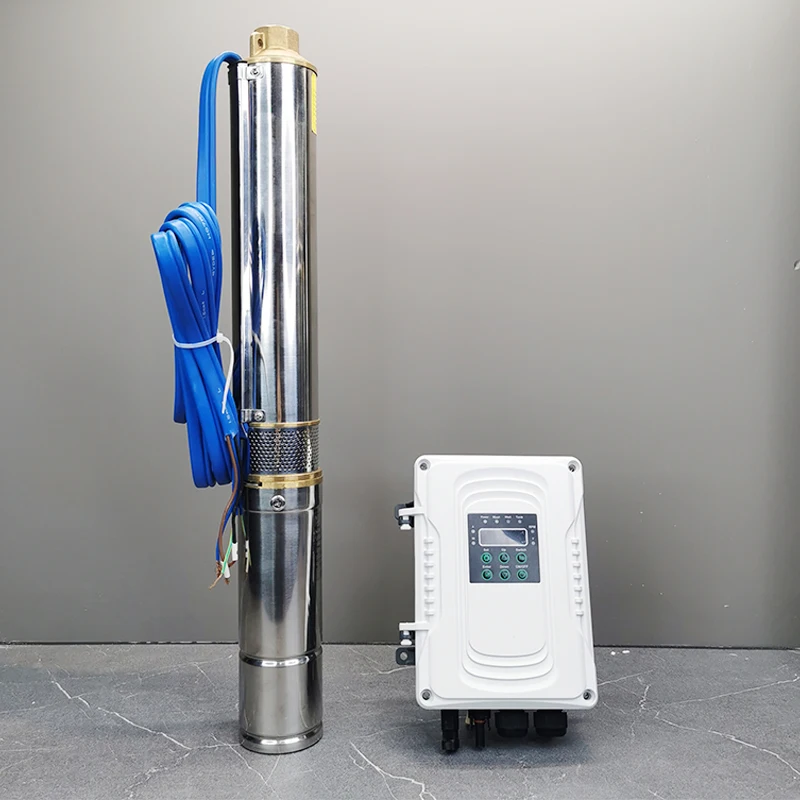

Complete Solar Pump System
Work principle of Feili solar pump system
1. solar panels convert sunlight into electricity
2. MPPT DC controller connect the solar
panel with pump.
3. Pump out water into tank
4. Start and stop pumping automatically
according to water level.
5. The tank supplies water to the community
(gravity feed).
2. MPPT DC controller connect the solar
panel with pump.
3. Pump out water into tank
4. Start and stop pumping automatically
according to water level.
5. The tank supplies water to the community
(gravity feed).
Related Solar Products
How to Follow Us!
Feedback
Brief Introduction of Company
FEILI PUMP CO., LTD. was founded in 1992 with a sharp focus on water treatment and solar solutions
for moving water and reducing energy costs across more than 110 countries.
for moving water and reducing energy costs across more than 110 countries.
With the highest standards
, we have kept at the forefront of our industry, leading in solar pumping system design and
implimentation in China.
During the past 10 years diesel prices have increased by 20% in average, electricity prices also moving
on an upward graph. FEILI PUMP can save your diesel or electricity costs with little maintenance and a
long product life.With fast before-after sale service and strong technical support, our reorder rate up to
80%, but 98% customers we never meet.
FEILI PUMP is committed to providing turnkey solutions to both large and small scale projects, offering
simple and affordable solutions for all customers. We would be happy to have an opportunity to work
with your company!
, we have kept at the forefront of our industry, leading in solar pumping system design and
implimentation in China.
During the past 10 years diesel prices have increased by 20% in average, electricity prices also moving
on an upward graph. FEILI PUMP can save your diesel or electricity costs with little maintenance and a
long product life.With fast before-after sale service and strong technical support, our reorder rate up to
80%, but 98% customers we never meet.
FEILI PUMP is committed to providing turnkey solutions to both large and small scale projects, offering
simple and affordable solutions for all customers. We would be happy to have an opportunity to work
with your company!

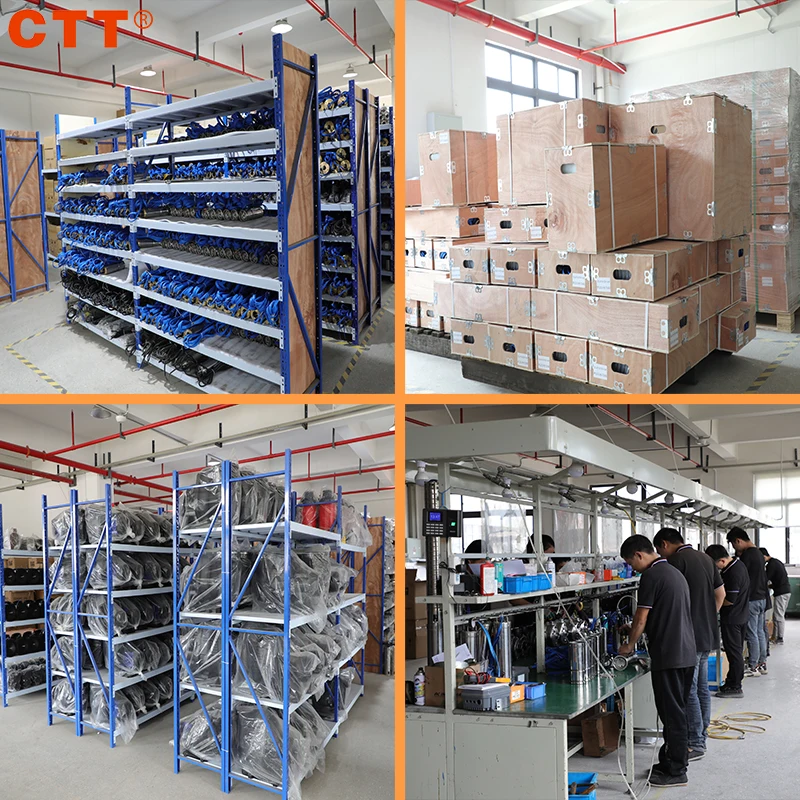

From Production to Delivery
