LED Lighting Automatic Water Supply Water Wash Paint Booth





Company Information

Shandong Tianyi Equipment&Technology Co.,Ltd is specialized in manufacturing coating line equipments with two mills, over 10,000 square meters working space. With a group of more than 10 talents in machanical engineering and electric engineering, We keep on designing and producing as well as after sales service all by our own to delivery the best success for clients.
Our products includes all kinds of spray booth including car spray booth and furniture spray booth as well, most of our coating line equipments can be customized to meet customers’ end production requirements! Our products are powering customer businesses in Europe, Australia, America, Africa etc, because of excellent appearance, first-class quality, stable operation and competitive price!

Product Description

1. High quality,competitive price and fast delivery.

2. Save energy and cost.

3. Stainless steel water curtains.

4. High air capacity: two axial fans.

5. Performance characteristic:

Water Spray Booth is a equipment of recycling and handling paint waste that were discarded during painting. Construction is a pool at the bottom, painting room at the front and spray chamber at the rear.

 6. Working theory:

With pump as power for water circulation and spray, it will be water curtain on one side or three sides in the painting room, and be spray in the spray room. The redundant painting spray that produced during painting will flow down with the water curtain when meeting the water curtain, others are took by exhaust fan, washing again when through spray room, to ensure the air that released to outdoor to meet the environmental requirements.





Main structure and parts

Consist of cabin, air circulation system and control system

Wallboard: Sandwich style EPS (epispastics polystyrene) 50mm thickness. Galvanized steel roof panel.

Door: 3 pcs of front doors with powder coating treatment frame. Size: 2400(w) x 2600(h). 1 pc of emergency door.

Lighting System: Ceiling light has 24 pcs of 36w lamps. 800 Lux.

Intake Air Circulation System: 2x4kw intake fan. Air Flow 24000 m3/h. Powder coated cabinets.

Exhaust Air Circulation System: adopts water curtain filter treatment device. Structure characteristics: Two sets of water curtain painting cabinet in the booth. Water pool adopts 3mm welded steel plate. Air circulation boards adopt 1.5mm thickness steel plate; Water curtain board is stainless steel, each water curtain painting cabinet equips 1 x 3kw pipe type fan for exhausting.1 set of 5.5kw pump for water supply. Water can be recycling use.

Control system: Adopts famous domestic components, Equoip with over load & shortcircuit protected, safe and reliable.

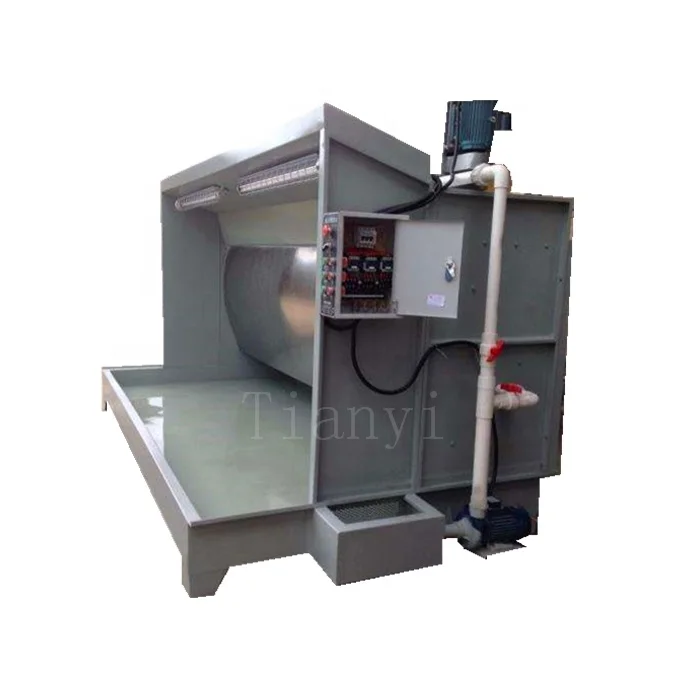

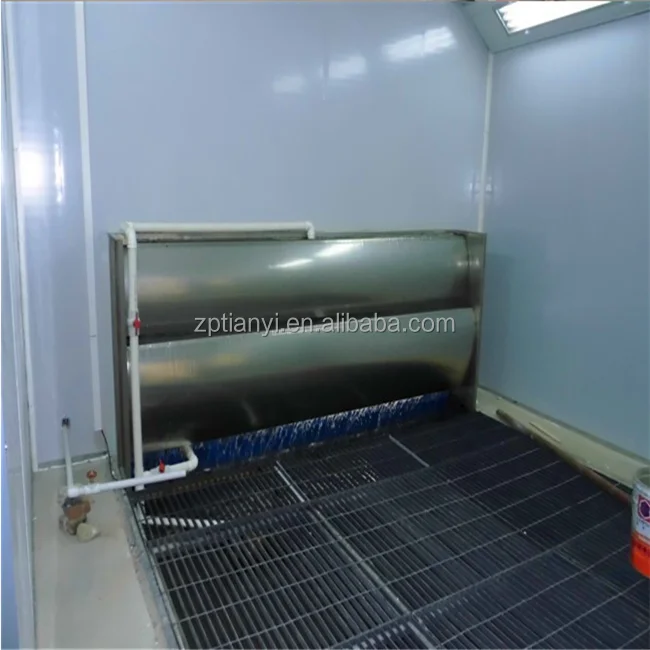

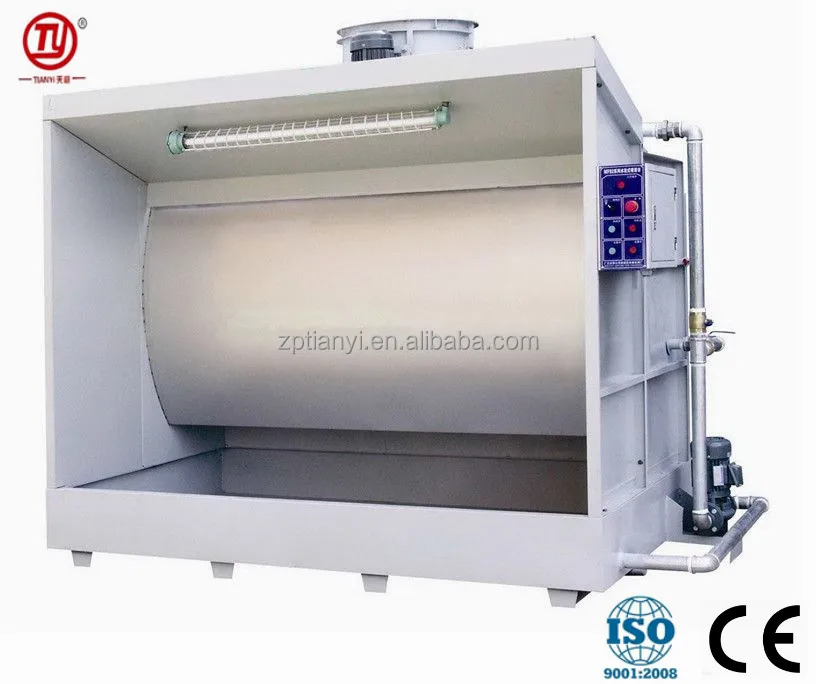

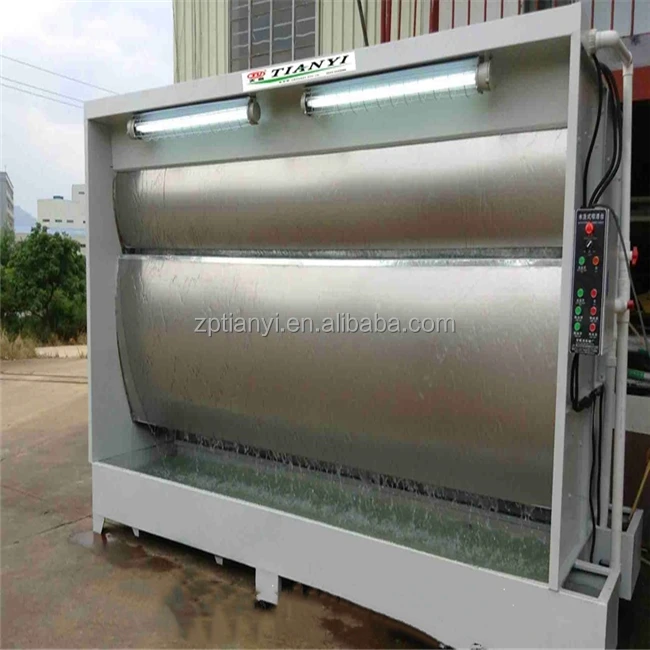

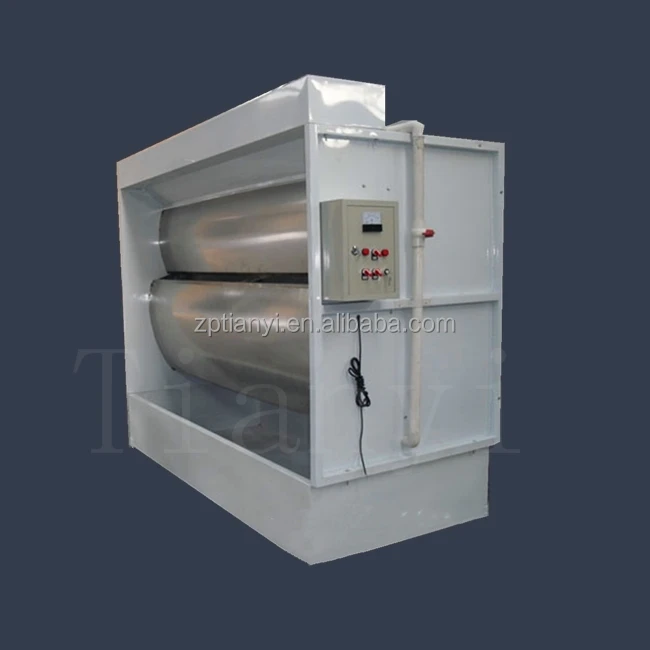

Water Wash Paint Booth



Air is drawn through a continuous curtain of moving water, and suspended paint particles are scrubbed out.

When air changes direction, centrifugal force slings the solid particles out of the air stream.

Entrained paint particles are thrown against adjacent walls and curtains.

Water flushes the particulate into the collection pan.

Air reaching the exhaust stack is free of airborne particles, keeping the stack area cleaner longer.



Water Rotary Paint Booth



No pump water rotary spray booth avoids blockage in water circulation systems.

Outdoor air is filtered at the top of the spray chamber and then goes into the spray booth. Top-down flows around the workpiece and operating workers will exhaust air containing particulate matter quickly to water-rotator under the floor grilles because the role of outdoor ventilation exhaust fan. The overflow is atomized under the action of high-speed air and then be mixed with air stream inside the rotator. Particles will be washed into the water, after swept through the channel and static pressure chamber by air, the separated water flows back automatically to overflow plate, purified air is discharged outside the high-altitude exhaust fan. This back and forth cycle can effectively remove all the particles in the air.





  We can provide all kinds of water spray booth, any size is possible. Our commonly water spray booth are as following:





Outside demensions(mm)	Inside demensions(mm)	Fan	Light	Pump	CMB (M3)	weight
4000(L)*2500(D)*2600(H)	3900(L)*1550(D)*2000(H)	2sets,2.2kw motor each,	Two sets, explosion-proof	1 set	6.5	1000kgs
3000(L)*2350(D)*2600(H)	2900(L)*1400(D)*2000(H)	2 sets,1.5kw motor each	Two sets, explosion-proof	1set	5.6	800kgs
2500(L)*2250(D)*2600(H)	2400(L)*1300(D)*2000(H)	1 set,2.2kw motor	One set, explosion-proof	1 set	4	650kgs
2000(L)*2150(D)*2500(H)	1900(L)*1200(D)*1900(H)	1 set,1.5kw motor	One set, explosion-proof	1 set	3.6	500kgs
1500(L)*2150(D)*2500(H)	1400(L)*1200(D)*1900(H)	1 set,1.5kw motor	One set, explosion-proof	1 set	3	400kgs
