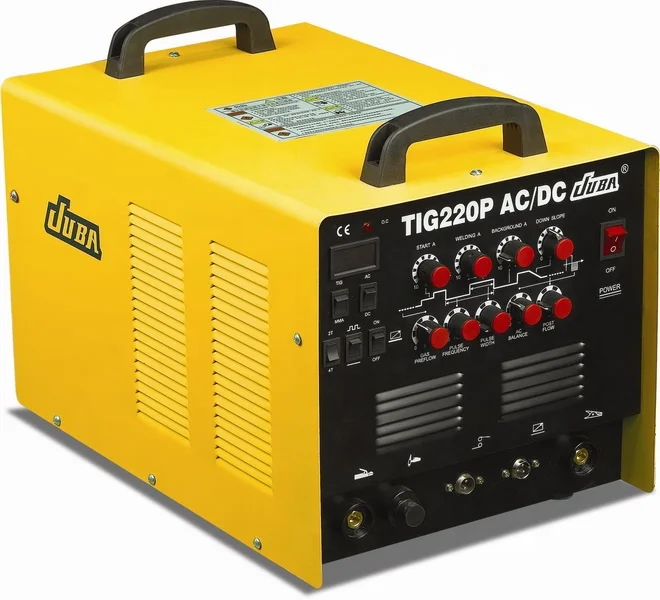

Сварочный аппарат TIG 200A
US $152.00-$161.00
Сварочный аппарат AC DC TIG 200P поставщик марки
- Категория: TIG Welder >>>
- Поставщик: Taian,E.S.K.,International,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.89 $* | 0.90 $* |
| Aug-19-2025 | 0.82 $* | 0.67 $* |
| Jul-19-2025 | 0.56 $* | 0.37 $* |
| Jun-19-2025 | 0.52 $* | 0.13 $* |
| May-19-2025 | 0.53 $* | 0.20 $* |
| Apr-19-2025 | 0.63 $* | 0.98 $* |
| Mar-19-2025 | 0.46 $* | 0.2 $* |
| Feb-19-2025 | 0.47 $* | 0.53 $* |
| Jan-19-2025 | 0.42 $* | 0.37 $* |
Характеристики
Product Description
AC/DC WELDING MACHINE
Features:
1. Multi-function : Ac/Dc MMA, Ac/Dc pulse TIG
2. Quality square wave power supply, short current zero-crossing time,stable arc
3. Super cleaning ability of oxide film,continuosly adjustable cleaning width, bright and beautiful weld seam ,Especialy adapted to weld aluminum,magnesium and its alloy materials.
4. Comprehensive protection function of over voltage, low voltage, over current ,over heat .safe and relible
5. Easy to start arc, stable welding current, quick dynamic response, focused arc,AC welding without bias and beautiful welding forming.
6. panel with remote control interface, optional to be equipped with foot switch.
item | tig-200p |
power voltage(V)(1PH) | 220±15%AC,single -phase |
Frequency(HZ) | 50/60 |
Rated input current (A) | 24.6 |
Output current (A) | TIG 10-200 / MMA 10-150 |
Efficiency | 0.85 |
Duty cycle % | 60 |
No load Voltage(V) | 56 |
Rated duty voltage (V) | TIG 18 / MMA 26 |
Pulse frequency (Hz) | 0.5-5 |
Pulse width % | 10-90 |
Ac balance % | 20-80 |
Current fall tims(s) 4T | 0-10 |
Remote control | yes |
Arc initiation way | HF |
Current range(A) | 5-200 |
Max current(A) | 200 |
Rated duty cycle(%) | 60% |
Power factor | 0.73 |
Protection degree | IP21S |
Insulation class | F |
Measurement(mm) | 600*440*415 |
Weight(kg) | 20 |
Cod.(NO.) | 112003 |
| Accessories of TIG series | ||||

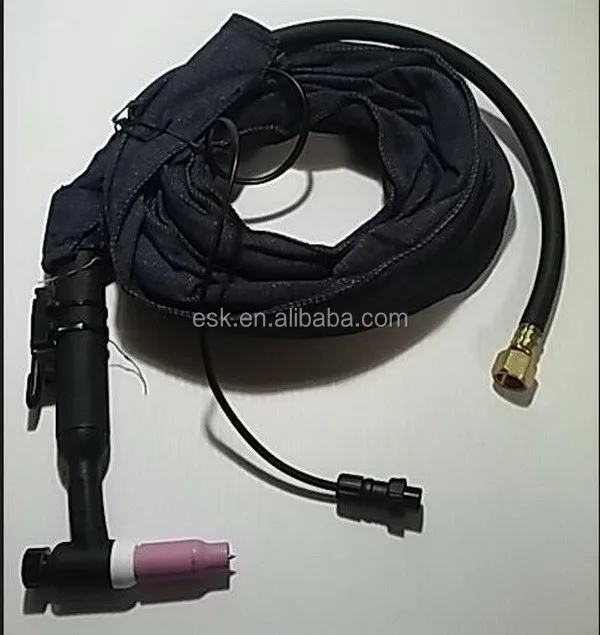

| 1.TIG torch | 1pc | |||
| 2.earth clamp with cable | 1pc | |||
| 3.protection mask | 1pc | |||
| 4.brush+chippping hammer | 1pc | |||

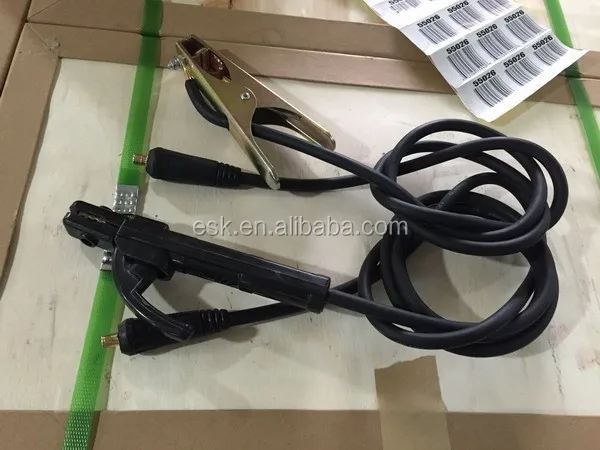

| 5.electrode holder with cable | 1pc | |||
Packaging & Shipping
Our Services
Q: what is warranty time ?
A: 12 months from you got the cargo.
During warranty time, we will supply the free parts by air in free,
after that date, we will supply spare parts in the base of part cost
Q: what is delivery time / lead time ?
A: 30 days
Q: what is your minimum order ?
A: 5 pcs
Q: what is your payment term ?
A: 1- 30% down payment for order confirmation, 70% before shipment.
2- 100% at sight LC
Q: can we visit your factory ?
A: yes you can at your free time.

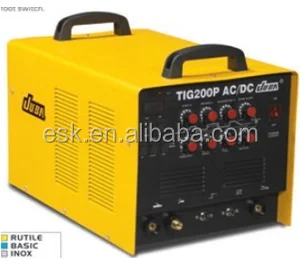

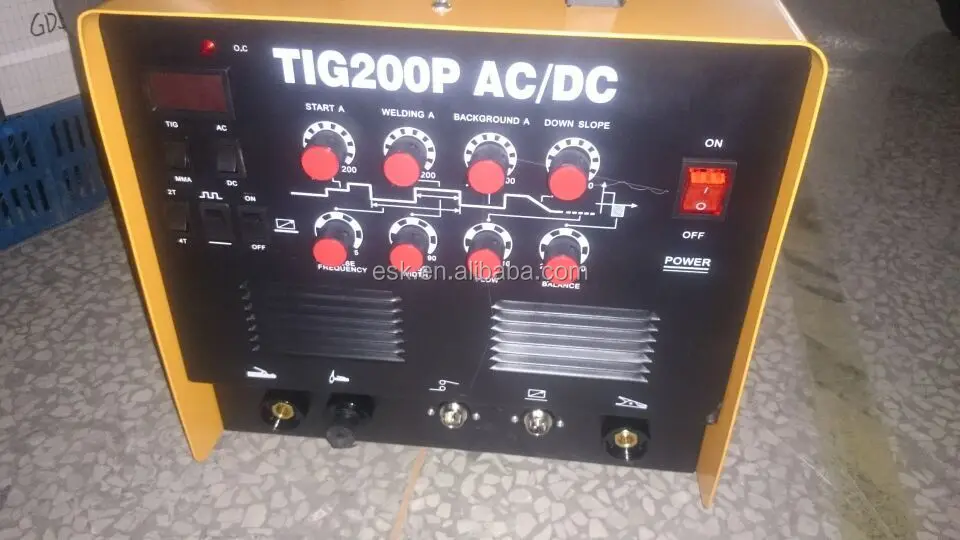

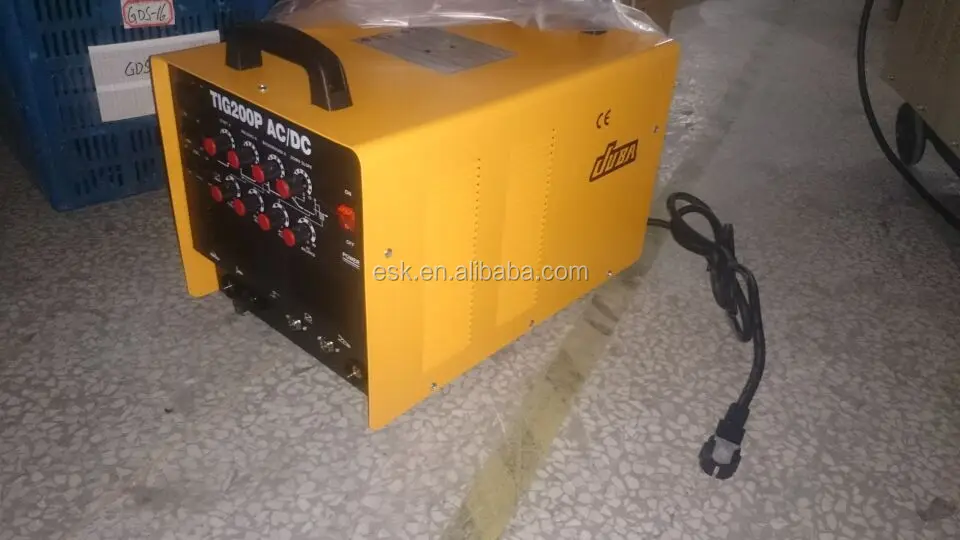

Machine pictures
optional foot pedal
