Specification:

• Power: 27W


• LED quantity: 9pcs


• Materail of lamp: Titanium Alloy


• Lumen: 1800LM


• Color option 1: RGB 16 colors changable


• Color option 2 (single color): Red / Green /Blue / White / Yellow


• Working Voltage: 12/24V DC


• Beam Angle: 180°

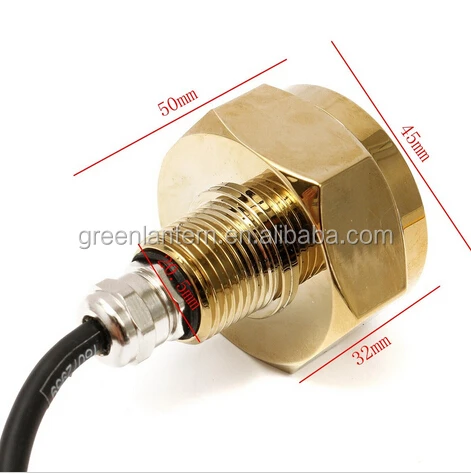

• Size: Like the picture show


• Cable Length: approx. 189cm

• - Single LED 3W with 9pcs LED insides ,total 27W super brightness.


• - Make of Titanic Aluminum Alloy housing materials, anti-corrosion.


• - easy installation, no drilling hole are needed, just screw it into the holes on your boat.


• - Install for both small or large boat with DC8-28V built-in driver.


• - Low power consumption, energy saving, environmental protection.

• Light are for underwater use only!


• Professional installation is recommended.


• 1.5A (For 27W model) fuse must be used on all positive connections.


• Color changing function works only with color controller.


• Do not operate the light above water for more than 5 minutes.

• 1. Loosen the drain plug.


• 2. Run the cable leads thru the garboard drain opening and screw the drain plug light assembly into the existing garboard fitting. The garboard fitting is 1/2″ NPT . (Or your special customized thread).


• 3. Connect to a 12V DC or 24V DC on/off switch after wiring the driver box and remote control. Please see wiring instruction.


• 4. Switch on the power and press the "on/off" button on remote controller, then change to different modes th check if it works well.

• - There is a corrosin resistant coating on surface, to avoid the damage of surface and corrosion performmance, do not use wrench for installation and do not scratch the surface with hard stuffs.


• - The light must be test on DC 12-24V.


• - If text in air, the light will turn off automatically after several minutes. This is because the Overheat Protection Circuit work. It will recover to work after the inside temperature is lower than 60 degree.


• - Do not rotate the wire outlet joint or shake the wire strongly at installation. This may damage to the inside circuit and cause the light doesn't work well

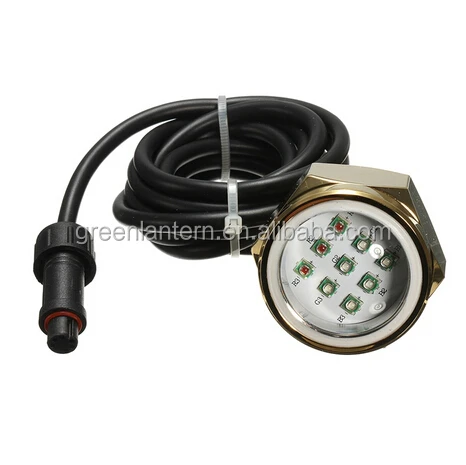

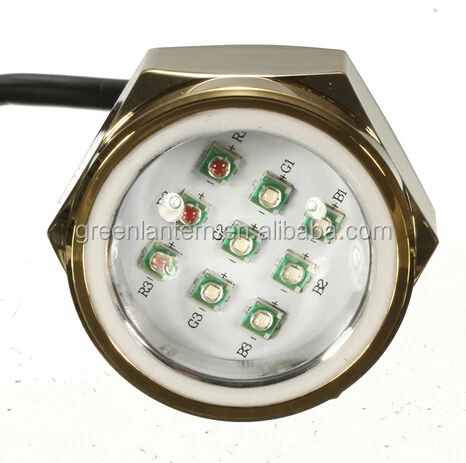

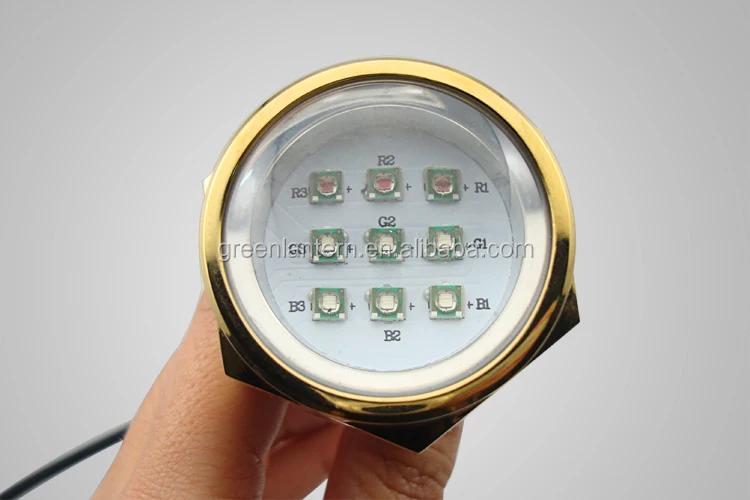

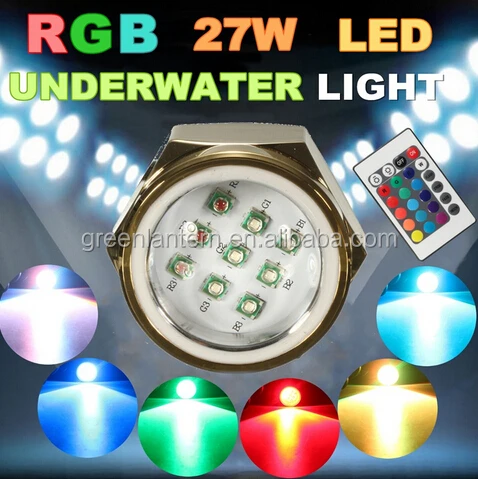

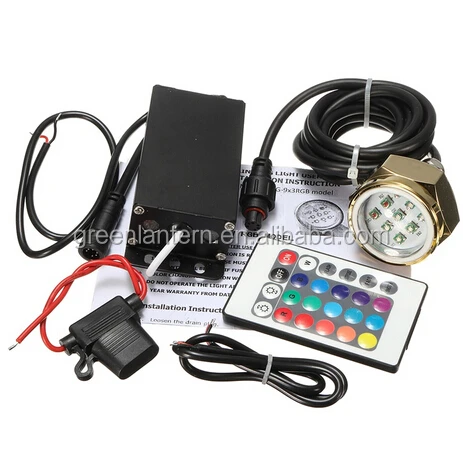

Prodcut pictures for RGB

Prodcut pictures for Single color:
