Oled-дисплей 2 4 дюйма 42 белого цвета 128*64 128x64 SSD1305Z M00486 31pin припаянный FPC 00480 V19A314A2700486 ЖК-экран
- Категория: OLED\/E-Paper Module >>>
- Поставщик: Shenzhen,Liyuan,Huida,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 11.35 $* | 11.20 $* |
| Jul-19-2025 | 9.57 $* | 9.11 $* |
| Jun-19-2025 | 11.92 $* | 11.62 $* |
| May-19-2025 | 11.31 $* | 11.74 $* |
| Apr-19-2025 | 9.79 $* | 9.85 $* |
| Mar-19-2025 | 11.90 $* | 11.40 $* |
| Feb-19-2025 | 11.64 $* | 11.16 $* |
| Jan-19-2025 | 11.71 $* | 11.35 $* |
Характеристики
Product Type: oled display screen

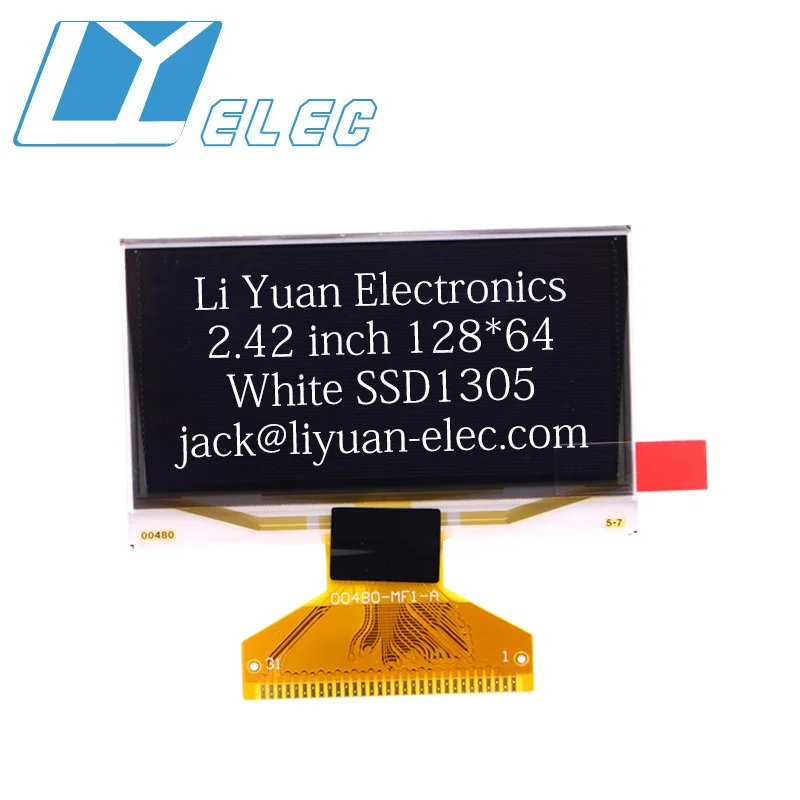

2.4'' 2.42 inch oled white color 128*64 128x64 SSD1305Z M00486 31pin soldered FPC 00480 V19A314A2700486 LCD OEL display screen
Product Description
1. Display Specifications
1) Display Mode: Passive Matrix

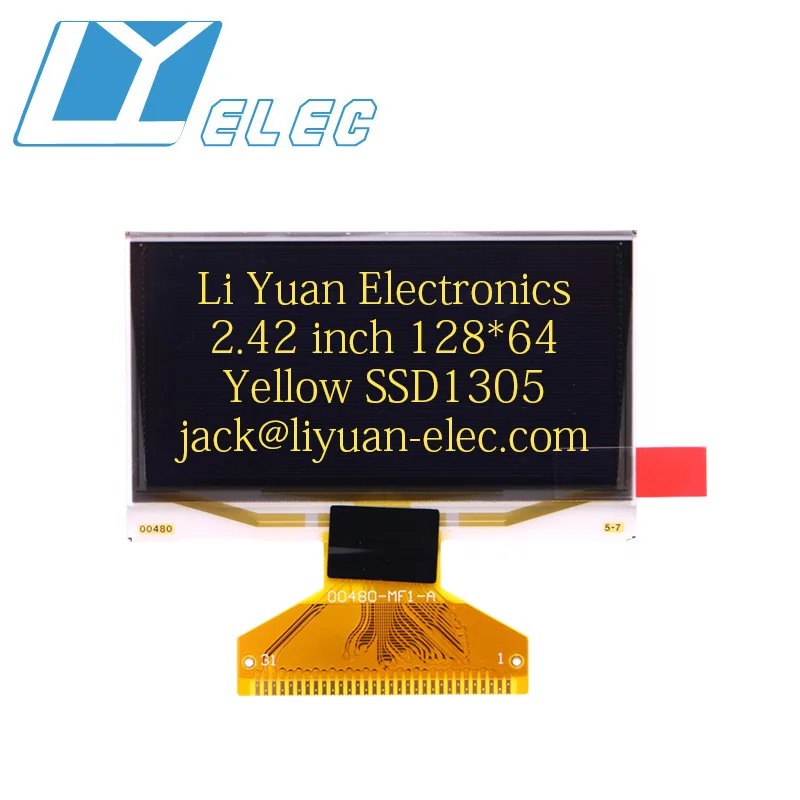

2) Display Color: Monochrome (white or yellow)
3) Drive Duty: 1/64 Duty
4) Wide viewing angel: >160 degree
5) Brightness: 120 cd/m2
6) Dark Room Contrast: >2000:1
7) Sleep Mode Current for VCC: 1uA
2. Mechanical Specifications
1) Number of Pixels: 128 × 64
2) Panel Size: 60.50(W) x 37.00(H) x 1.80(T)(mm)
3) Active Area: 55.01(W) × 27.49(H) (mm)
4) Pixel Pitch: 0.43 × 0.43 (mm)
5) Pixel Size: 0.40 × 0.40 (mm)
6) Weight: 8.81(g)

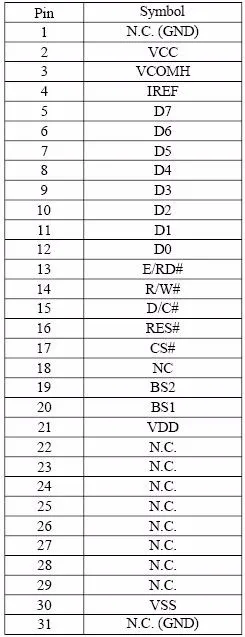

3. Pin: 31pin (Soldered type).
4. Driver: SSD1305Z
5. Interface: 8-bit 68XX/80XX Parallel, 4-wire SPI, I2C
Application Circuit.
If you have any questions in application circuit,we will provide detailed technical support.

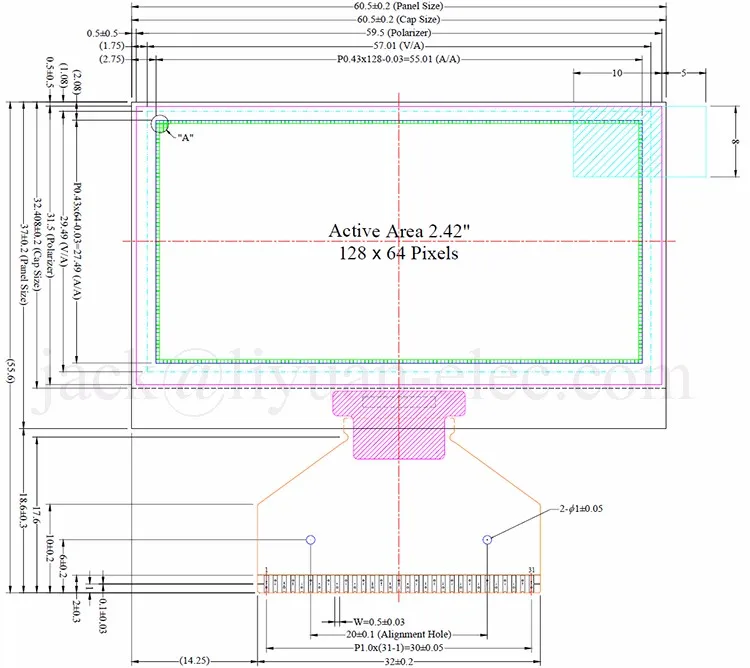

6. Drawing:
Detailed Images
Detailed Images
Shipment
Delivery
By DHL/UPS/FedEx/TNT: 3-8 business days.
By EMS: 7-25 business days.
By Post Air Mail: 10-30 business days.
By other ways.... Please contact us.
Packing
1. Anti-static bag or Bubble bag; (For samples)
![Package ok]()
2. Plastic pallet;
3. Carton box.
