Маленький портативный Бетономешалка дизельного типа

Маленький портативный Бетономешалка дизельного типа

Категория: Concrete Pumps >>>
Поставщик: Zhengzhou,Weiyuan,Mechenical,Equipment,Co.,Ltd.

Цена:22 000,00 $ - 24 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	26180.0 $*	27489.41 $*
Aug-16-2025	25960.56 $*	27258.41 $*
Jul-16-2025	21780.30 $*	22869.22 $*
Jun-16-2025	25520.81 $*	26796.49 $*
May-16-2025	22220.12 $*	23331.72 $*
Apr-16-2025	25080.60 $*	26334.89 $*
Mar-16-2025	24860.31 $*	26103.51 $*
Feb-16-2025	24640.0 $*	25872.39 $*
Jan-16-2025	24420.4 $*	25641.15 $*

Характеристики

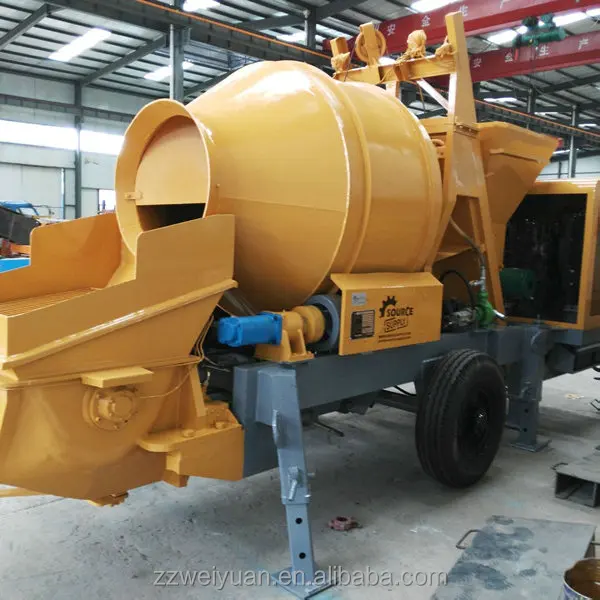

Diesel type Small Portable Concrete mixer Pump for sale

Product Description

concrete mixer pump 3_.jpg

Concrete Mixer pump, also known as concrete pump, composed of pump body and pipeline. Is a use of pressure, the concrete along the pipeline continuous conveyor machinery, mainly used in residence buildings, Bridges and the tunnel construction. At present mainly divided into concrete pump and gate valve valve S concrete pump

Item	HBTS30-10-85R
Max Theoretical Concrete Output (m³/h)	30
Max Concrete outlet Pressure (Mpa)	10
Concrete slump (mm)	120-230
Aggregate Size (mm)	gravel≤30
Powder (KW)	Diesel motor 85
Speed (r/min)	2300
Conveying Cylinder Diameter (mm)	110/1000
Concrete Cylinder Diameter (mm)	160/1000
High-Low Pressure Switch	Yes
Oil Tank Capacity (L)	300
Hopper Capacity (m³)	0.35
Fuel Tank Capacity (L)	100
Filling Height (mm)	1200
Max Theoretical Conveying Distance (vertical Height/Horizontal Distance) (m)	50/150m
Pipe Cleaning Mode	Washing
Overall Dimension (mm)	5800×2150×2600
Total Weight (kg)	4500
Discharging capacity	350L
Feeding capacity	560L
Production rate	10-14m3/h
Mixing drum speed	14R/min
Maximum aggregate particles	60mm
Maximum towing speed	20Km/h
