Batten 80/156 ПВХ пенопластовый экструдер конический винтовой
- Категория: Запасные части для станков для резины и пластика >>>
- Поставщик: Zhoushan,Batten,Machinery,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.5 $* | 0.35 $* |
| Aug-16-2025 | 0.79 $* | 0.85 $* |
| Jul-16-2025 | 0.36 $* | 0.52 $* |
| Jun-16-2025 | 0.36 $* | 0.20 $* |
| May-16-2025 | 0.37 $* | 0.65 $* |
| Apr-16-2025 | 0.11 $* | 0.94 $* |
| Mar-16-2025 | 0.37 $* | 0.11 $* |
| Feb-16-2025 | 0.62 $* | 0.98 $* |
| Jan-16-2025 | 0.99 $* | 0.90 $* |
Характеристики
| φ35/73 | φ35/75 | φ37/75 | φ40/83 | φ45/90 |
| φ45/97 | φ45/100 | φ50/93 | φ50/103 | φ50/105 |
| φ51/104 | φ51/105 | φ53/106 | φ55/110 | φ55/120 |
| φ55/113 | φ58/125 | 58/126 | φ60/120 | φ60/125 |
| φ61/125 | φ64/128 | φ65/120 | φ65/132 | φ68/123 |
| φ68/147 | φ70/156 | φ72/151 | φ80/143 | φ80/156 |
| φ80/174 | φ92/188 | φ95/191 | φ105/216 |
Since 2008Y Focus on screw barrel
Features:
1.Accurate size
2.High capacity design
3.Wear resisting material
4.Easy maintenance

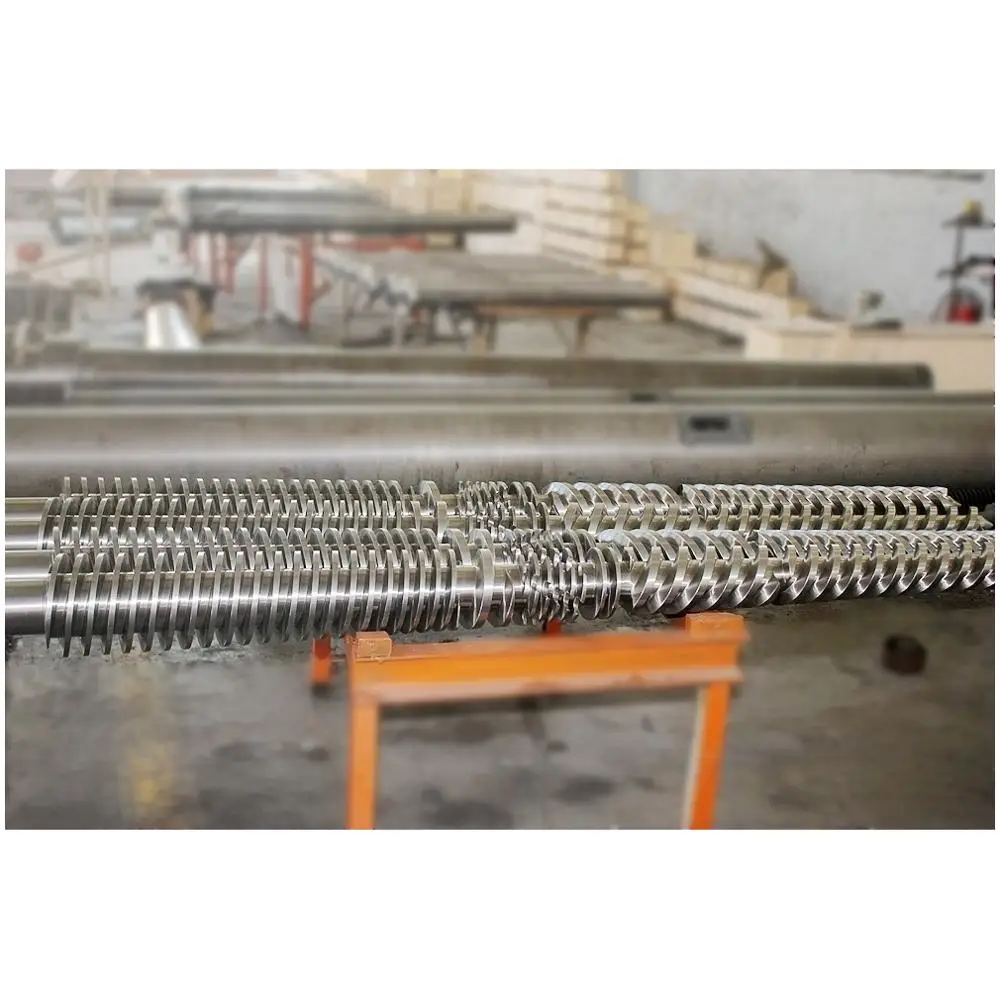

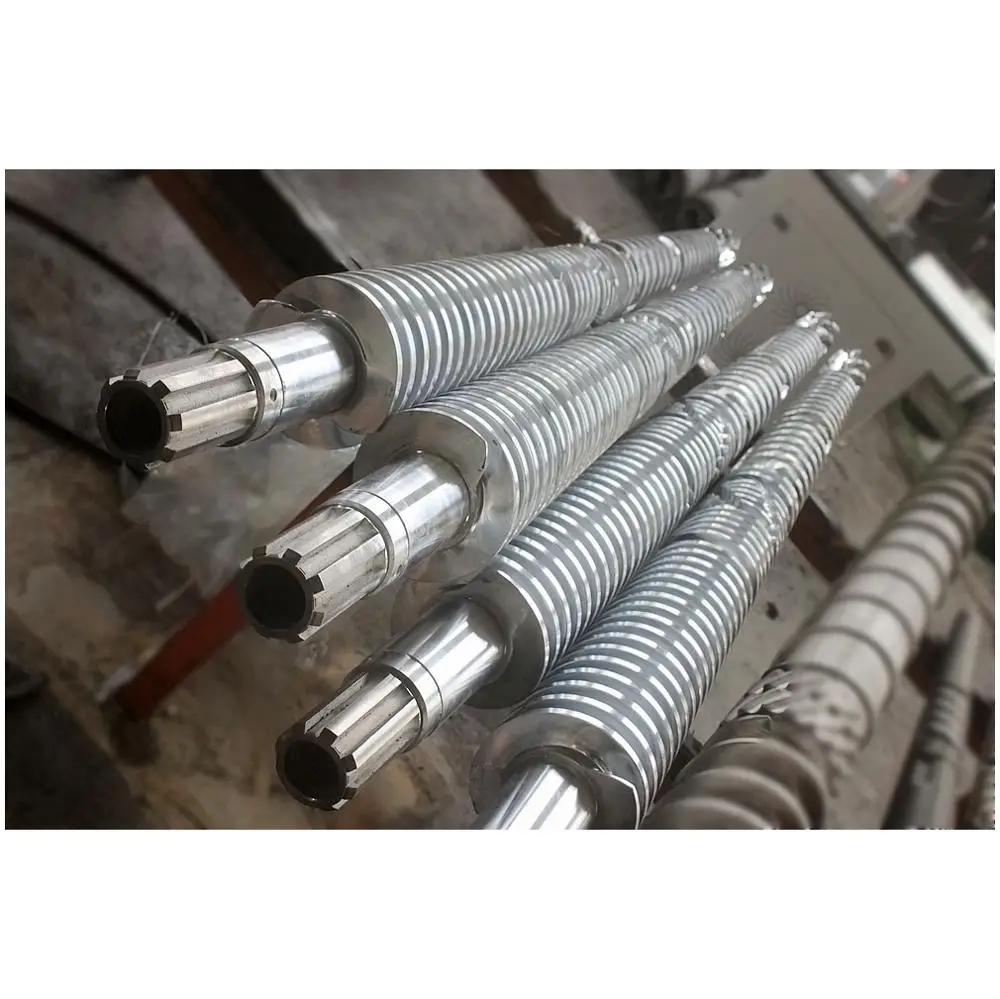

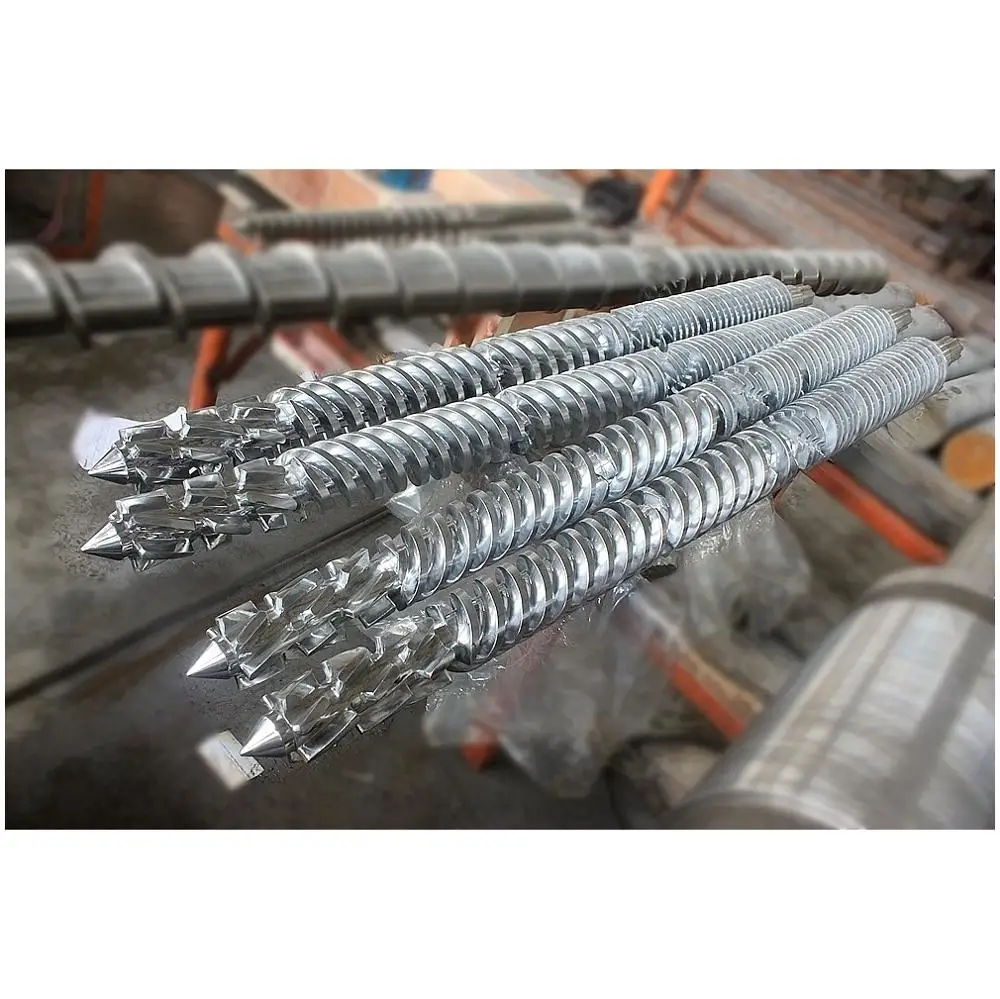

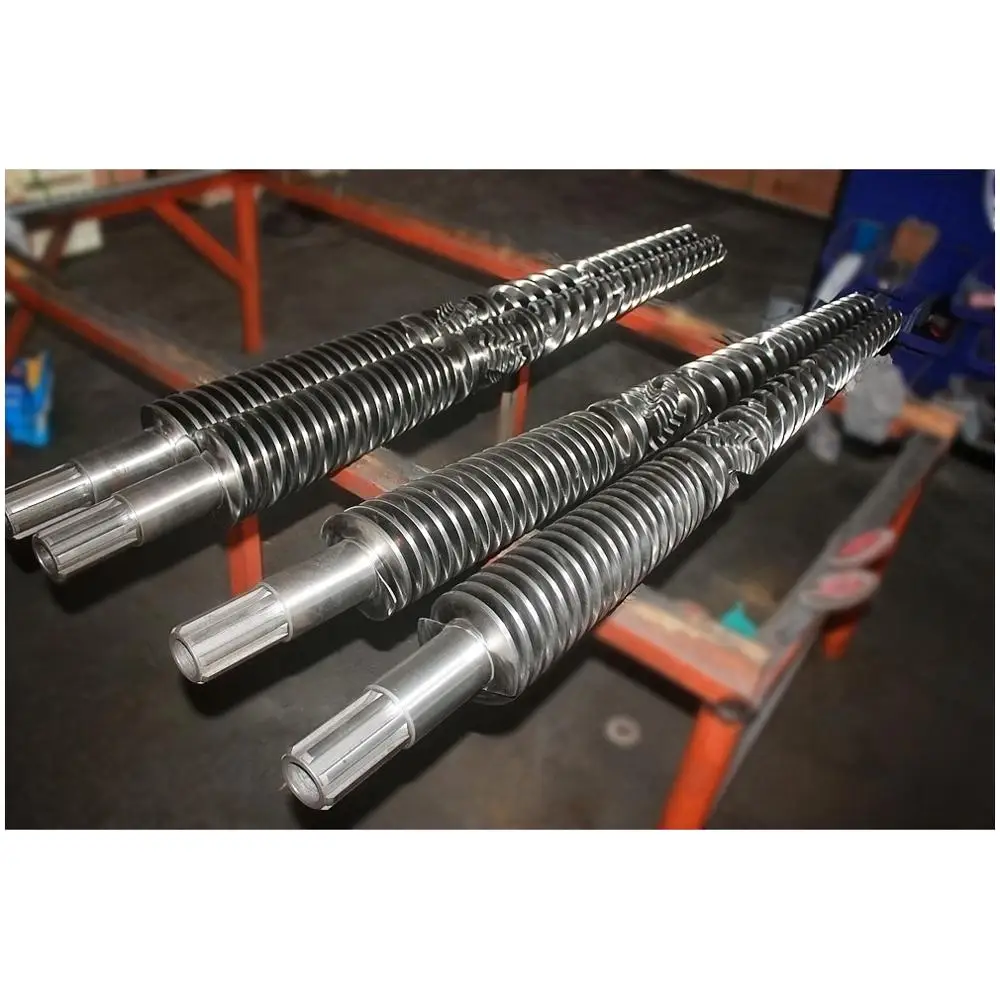

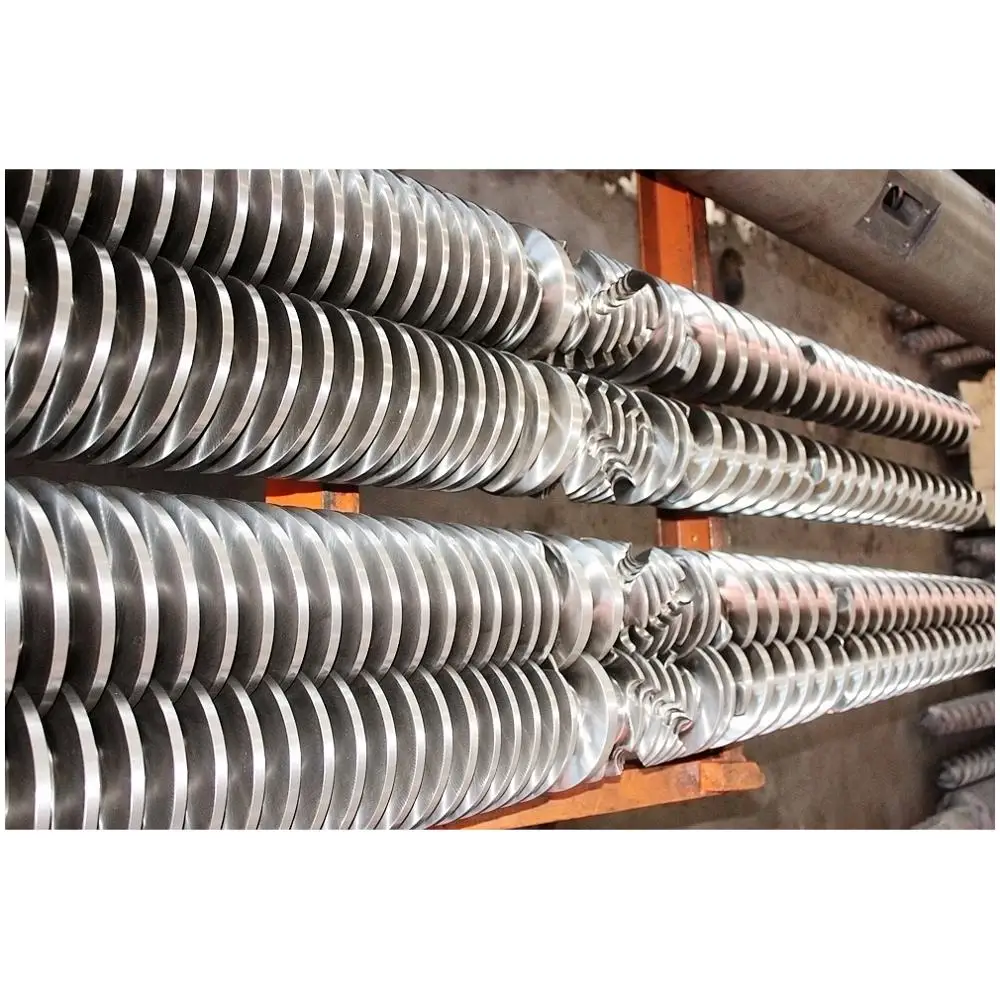

Product Photos
Technical Specification
Type | Conical Twin Screw and Barrel |
MOQ | 1 set (1 pair of screws and 1 pc barrel) |
Design Details | Screw I TYPE:inside is water/oil cooling system II TYPE:outside is oil cooling system Barrel I TYPE:outside is air cooling system II TYPE:out side is copper pipe around cooling system |
Accessories | Stop ring+washers to adjust the space between screw and barrel |
Technical Specification | Material:High quality 38CrMoAlA Process:Advanced nitriding & bimetallic process Hardness After Hardening & Tempering:HB280-320 Nitrided Hardness:HV900-1000 Nitrided Case Depth:0.45-0.8mm Nitrided Brittleness:Less than Grade 2 Surface Roughness:Ra 0.4 Screw Straightness:0.015mm Alloy Hardness:HRC 50-65 Alloy Depth:0.8-2.0mm |
Packaging
| Step 1-Rust Preventing Oil | Step 2-Casting Film Wrapped | Step 3-Polywooden Case |
Quality Control
Company Information
Batten is specializing in kinds of plastic machine screw barrel. Our mission is to help you to supply suitable screw barrel according with your request.Valued information rapid feedback is our vision. Product including: *Twin screw barrel:China & other countries standard design for PVC. *Single screw barrel:Application for kinds thermoplasticity material,we can give you right design and suggestion. *Injection screw barrel:Different sizes and different application,we can give you right solution. |  |
FAQ
1. What is Batten -Machinery feature goods?
Batten are leader Producer in:
-HDPE/LDPE/LLDPE blowing film extruder single screw and barrel:different design to meet client request on production
-PP/PE granulation or recycling screw barrel:New geometry design according experience modify.
-PVC pipe/profile/componds/sheet/foam board:Professional Produce Experiece on both China & Europe extrusion machine.
-HDPE/PPR pipe high capacity single screw barrel:Big L/D design,high speed,high capacity.
-Haitian,ChenHsong brand machine injection screw barrel supplier in China
2. Batten main market
-Europe / Middle East / South America / South Africa.
3. Any oversea service or not?
-Oversea service is available if client request. Buyer afford cost.
------------------------------------------------------------------------------
Contact Us
Lily Li Sales manager Mob:+86 186 0580 0326 (whatspp,wechat) sales@ batten-machinery.com Web:www.batten-machinery.com |
Office No.5,1st Branch,Lingang 2nd Road, Shuangqiao Industry Zone, Zhoushan City,China T:+86 580 8015962 F:+86 580 8015961 |
----------------------------------------------------------------------------------------------------------------------------
Thanks for your visting!
Let's Replace Your Screw Barrel
