SJ PP Film Blowing Machine



The extruder,barrel and screw rods are made of high quality 38CRMOALA alloy steel that have been nitrized and processed in a precision way,It is good in hardness,durable in corrosion resistance,The special designed screw is of high quality,which helps increase the production capacity,lt is applied to blowing the plastic films like low density polytene,high density polytene and linear low density polytene,lt is widely applied to producing the packing bags for foodstuff,clothing,rubbish bad and vest ones.



Feature:

1).This machine set adopt bottom blow type to produce polypropylene plastic film with good fransparency and without such phenomena as flow liner, corrugation and fold, etc.



2).This screw material cylinder is elabroately made of 38CRMOALA alloy steel after nitrogen treatment and has best rigidity and corosion resistance.



3).The nould head is plated with hard chromium and has screw mandrel structrue with uniform and smooth material

discharging. And the aircooled device has labyrinth type stucture with characteristica as uniform air-jut quantity, automatic temperature control and automatic heating.



4).The coiling device adopts torque motor to keep proper tension with even rolling and convenient roll replacing.

 Extra optional devices:

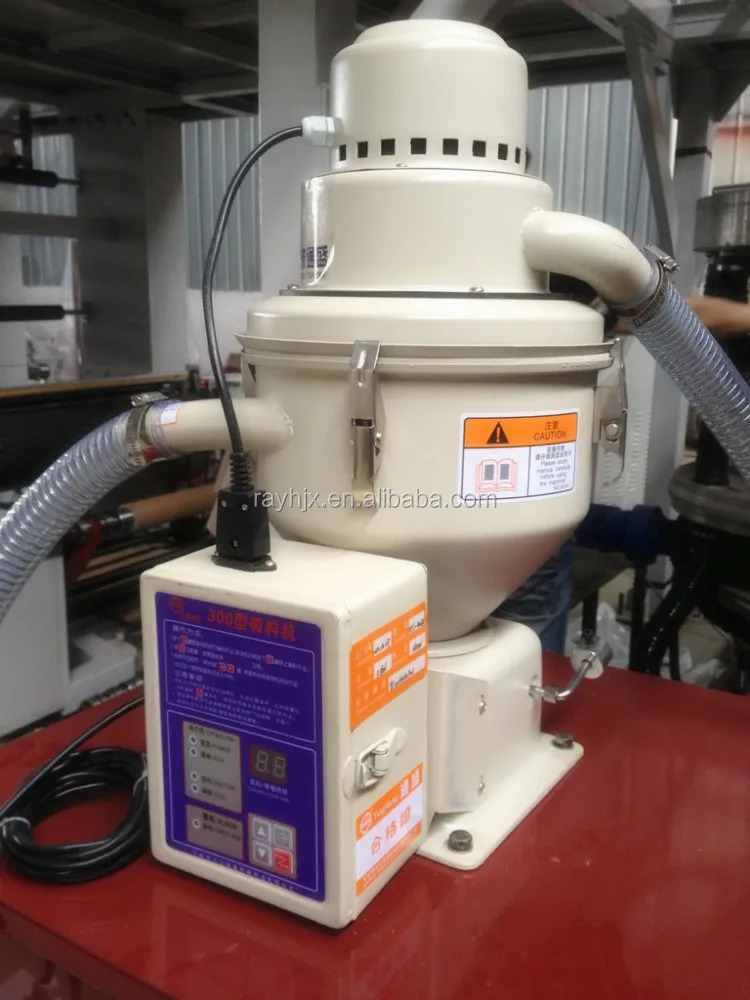

1) Auto Loader

2) Quick Screen Changer

3) Film Surface Treater (Digital Corona Treatment)

4) Air Compressor

5) Rotary Die Device

6) Double-winder Device

Main Technical Parameters:



Model	SJ55	SJ60	SJ65
screw diameter	Φ55	Φ60	Φ65
screw ratio L/D	28:1	28:1	28:1
screw speed	15-100r/min	15-100r/min	15-100r/min
main motor power	15kw	18.5kw	22
extrusion output(single)	45kg/h	55kg/h	60kg/h
range of die	Φ220	Φ250	Φ280
single-sided thickness of film	0.015-0.10mm	0.015-0.10mm	0.015-0.10mm
max folding width of film	500mm	600mm	700mm
electric total capacity	32kw	40kw	44kw
overall dimension	4500×2000×3500	4500×2500×4500	4500×3800×3800
weight of machint	3.0T	3.5T	4.5T



















Our Service :



1. Purchase Service



We have a specialized and efficiency working team. If you are new on the Plastic Machinery area, Some samples of your products could be show to us will be appreciated ,we will give you specialized suggestion of whole work .



2. Shipping Service



We have a specialized and independent department which just for shipping the buyer's goods .The workers are knowing T/T, L/C Items very well. All Exported documents could be made perfectly.



We cooperated with the most famous shipping company in China also. They could provide the best and economic shipping ways to the buyer's port.



3.Installation and Training Services



Installation Services are available with all machines. We will dispatch technician to The Buyer's factory to installation and preoperation of machines .But the buyer need to supply the round trip tickets ,food ,hotel and other cost.



 Training on our factory also be welcome.



4.After Sales Service



Our machines guarantee time is one year.



Many easy broken spare parts will be prepared in the tool box together with machines.



Any parts broken, Just a pictures or a videos.Then new free parts will reach within 3-7 Express working days .
