Приводы для демпфера 24 В привод моторизованного
- Категория: Системы ОВКВ и запчасти >>>
- Поставщик: Xiamen,Zhongxinglong,Air,Conditioning,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 31.63 $* | 33.54 $* |
| Aug-16-2025 | 31.26 $* | 33.11 $* |
| Jul-16-2025 | 26.97 $* | 27.47 $* |
| Jun-16-2025 | 30.80 $* | 32.58 $* |
| May-16-2025 | 26.82 $* | 27.18 $* |
| Apr-16-2025 | 30.62 $* | 32.89 $* |
| Mar-16-2025 | 29.28 $* | 30.78 $* |
| Feb-16-2025 | 29.54 $* | 30.57 $* |
| Jan-16-2025 | 29.52 $* | 30.0 $* |
Характеристики

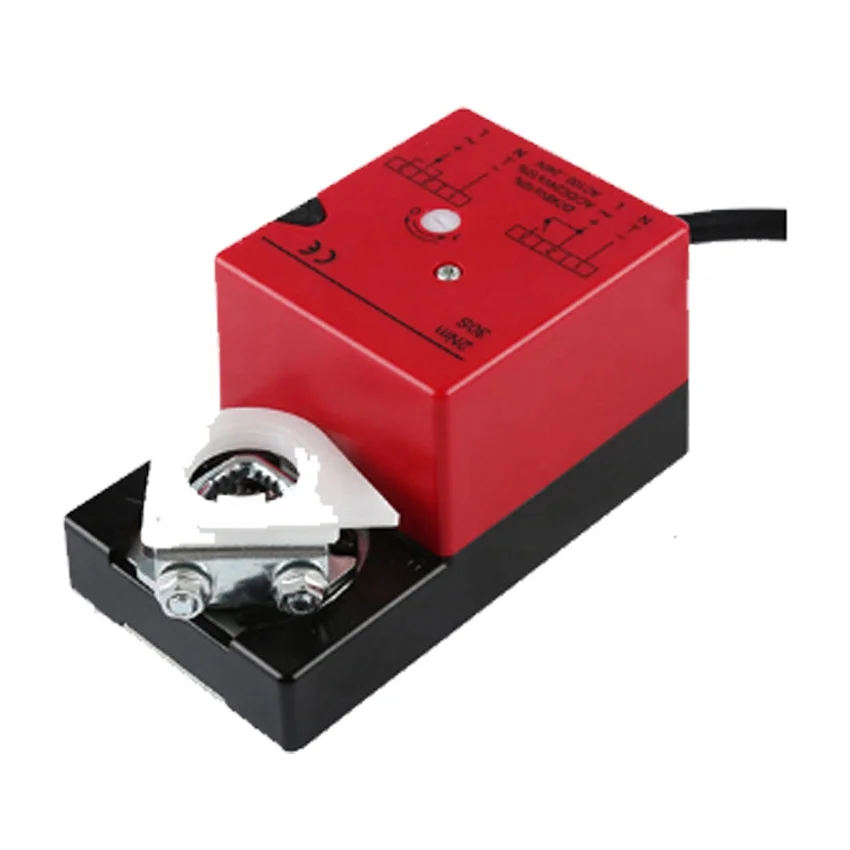

Damper Actuator for HVAC system
Introduction:
For operation of air control dampers in HVAC system
Features:
Easy installation: can be fixed on the throttle shaft by universal shaft holde
Manual control: can have manual operation if necessary
High reliability: with the overload protection, it will stop automatically without limit switch.
Mechanical stop: with the mechanical stop inside.
Output signal: can output one switching signal within the limit of 0-100%
DS type include 1 auxiliary switch
Technical Specification:
Torque
| 2 Nm | |
| Service life | 60,000 times |
| Damper size | 0.5 sqm(m2) |
| Running time | 30S(90°) |
| Supply power | AC/DC 24V |
| Frequency | 50/60HZ |
| Control signal | 2-point or 3- point |
| Direction of rotation | Manual regulation |
| Manual override | With |
| Angle of rotation | 0- 90°,Max95° ,adjustable by mechanical stops |
| Position indication | Mechanical |
| Power | 2W @nominal torque 0.5W @holding |
| Sound power level | 45dB |
| Protection class | Ⅱ |
| Protection degree | IP54 |
| Ambient temperature | -20~+50℃ |
| ambient humidity | 5-95%RH |
| Shaft length | 50mm |
| Shaft diameter | Dia. 6-16mm / Square 12×12 |
| Weight | 0.52Kg |
| Standard | CE Requirement |
