Пылесборник воздушный фильтр из синтетического волокна для чистых
- Категория: Мешочный фильтр >>>
- Поставщик: Dongguan,Senbao,Purifying,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.2 $* | 0.69 $* |
| Aug-19-2025 | 0.2 $* | 0.63 $* |
| Jul-19-2025 | 0.54 $* | 0.11 $* |
| Jun-19-2025 | 0.69 $* | 0.33 $* |
| May-19-2025 | 0.61 $* | 0.71 $* |
| Apr-19-2025 | 0.78 $* | 0.69 $* |
| Mar-19-2025 | 0.13 $* | 0.29 $* |
| Feb-19-2025 | 0.55 $* | 0.56 $* |
| Jan-19-2025 | 0.11 $* | 0.21 $* |
Характеристики

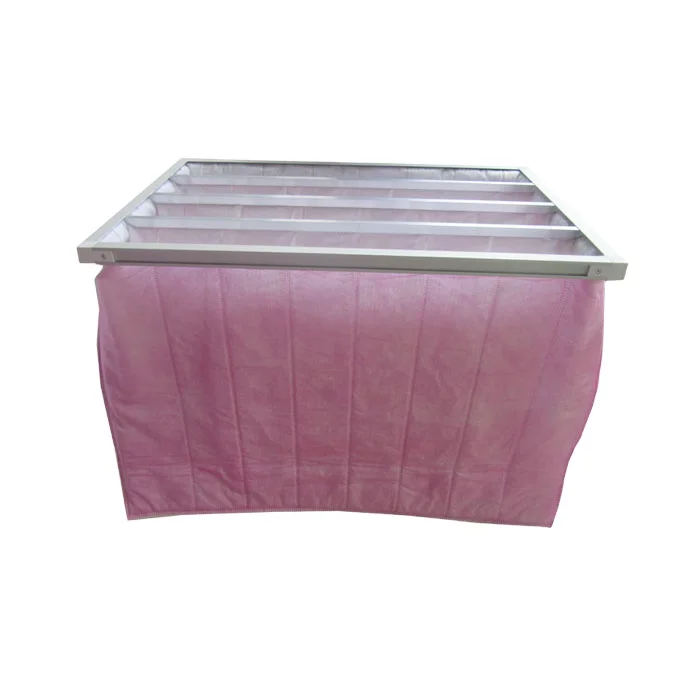

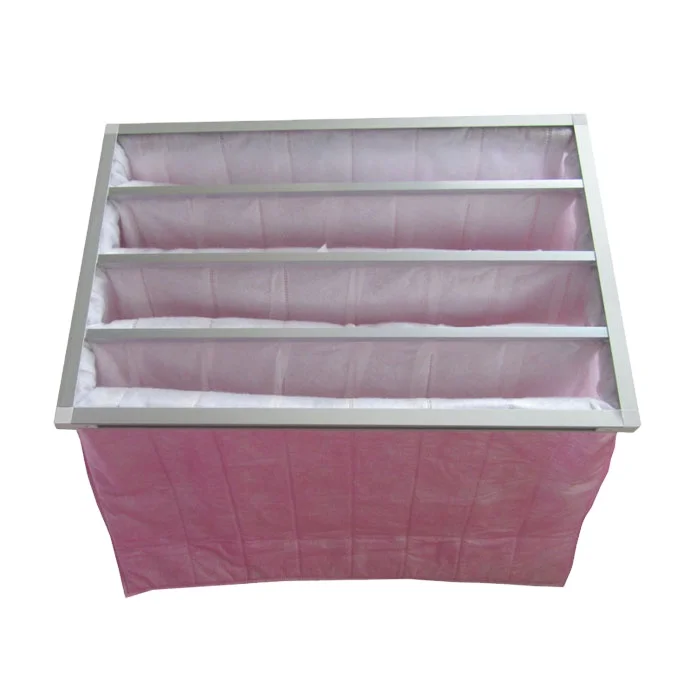

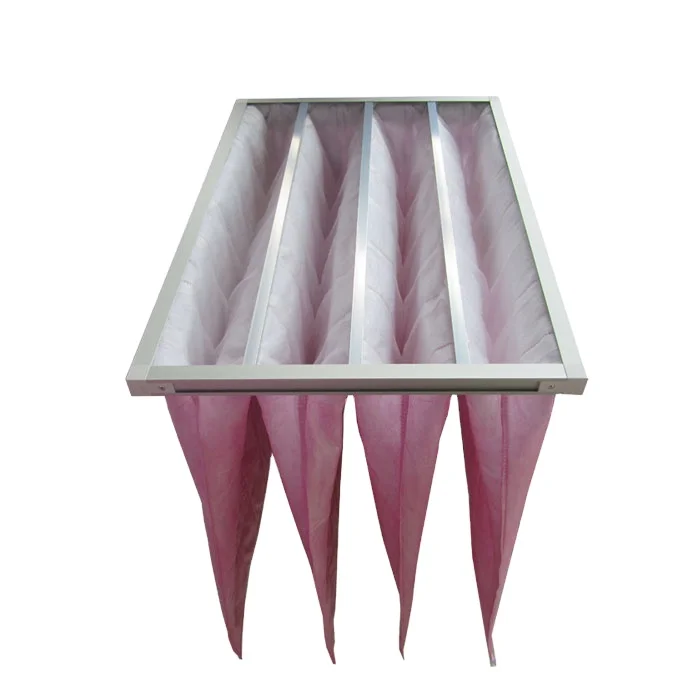

Dust collection synthetic fiber bag air filter for clean room
Product Description
Competitive Advantage
- Ensure a long operation reliability and high dust holding capacity
- Low initial pressure drop,high efficiency.
- To catch the fine dust and microorganism efficiently.
- Offer different pocket number design to meet different airflow requirements.
- Special Characteristics of Each Fine Filter Class
- F5 to F8fine filters wholly can be used as the pre-filters for HEPA filter.
- F5,F6 is mainly for the ventilation system for comfortable air supply for office building
- F7 is to prevent the specks engender in the air supply ceiling of hotels.
- F8 can be used as the final filters for 300,000 class clean room.
- Media: Dual layer synthetic fibre
- Frame: Aiuminum
- Efficiency range from F6,F7,F8 (EN 779)
- Average Efficiency: 65%;85%;95%;
- Initial resistance: 45 Pa
- Recommended final pressure drop : 400Pa
- Humidity resistance: 100%
- Max Temperature: 80 °C
- Media color available: White;Green;Pink;Yellow;Purple.
- Filter standard depth available 15 inch (381mm); 20inch(500mm)24 inch(600mm)
Specifications
Size(HxWxD)mm | No.of Pockets | Rated Airflow(CFM) | Initial Resistance(Pa) |
595x595x600 | 8 | 2000 | 85 |
595x595x600 | 6 | 1650 | 85 |
595x595x381 | 8 | 1500 | 85 |
595x595x381 | 6 | 1250 | 85 |
595x495x500 | 6 | 1650 | 85 |
595x495x500 | 3 | 1000 | 85 |
595x295x500 | 3 | 1000 | 85 |
595x295x600 | 3 | 750 | 85 |
595x295x381 | 4 | 750 | 85 |
Other sizes is available!
Applications
The pocket filters are used as the fine filtration in air handling systems and units of any kind as in commercial buildings, hospitals, and computer and telephone centers, optical, fine mechanical,electronic and pharmaceutical, manufacturing plants.
Photo Show
Packaging & Shipping
Our Services
1.Provide free small samples.
2.Offer free design service.
3.100% product quality protection.
4.100% on-time shipment protection.
5.100%payment protection .
6.Welcome factory visit,passed MET,ISO9001.
7.Skilled workers and strict quality inspection (QA Report).
8.17 years factory & focus on high end air filter.
9.Small MOQ:10 pcs to start.
