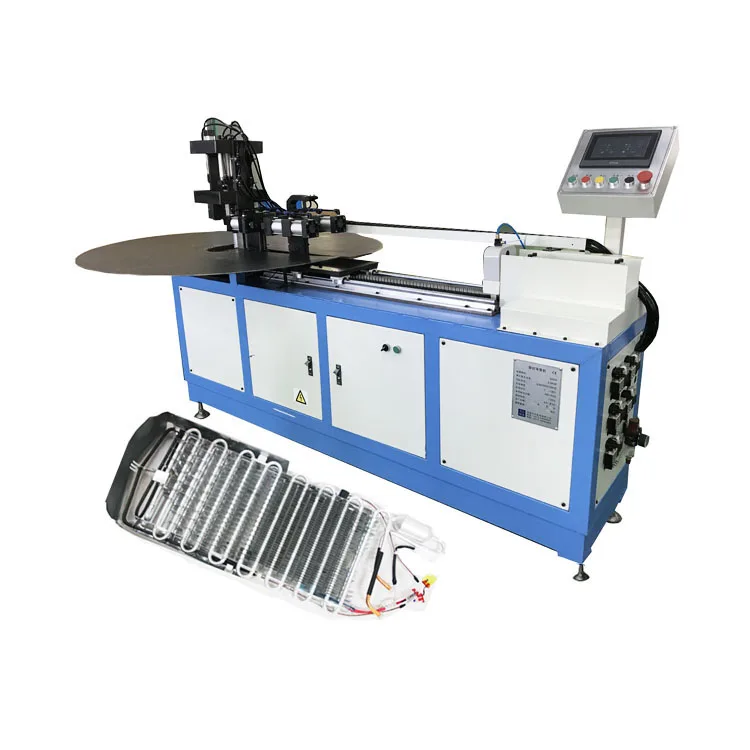

Refrigerator condenser evaporator steel bundy aluminum copper pipe serpentine tube bending

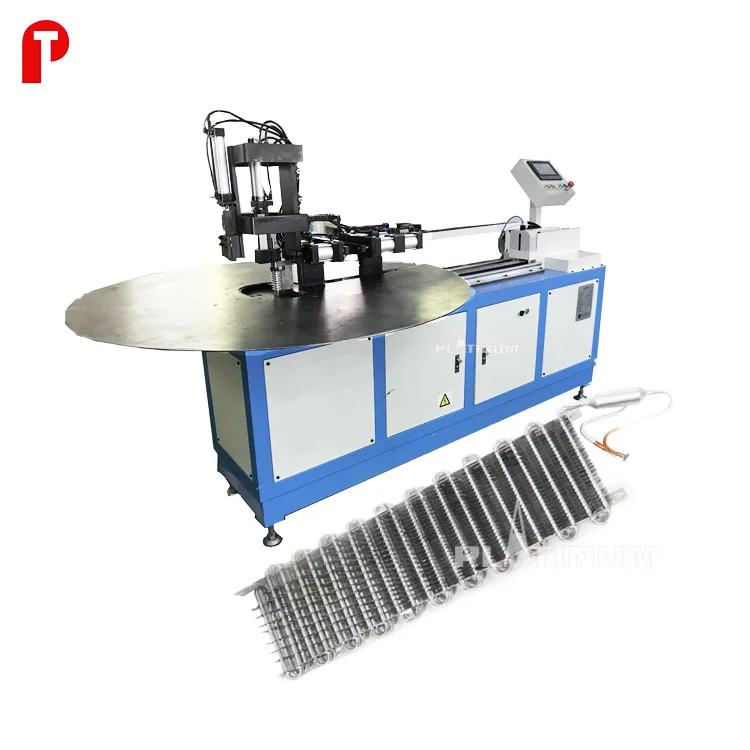

Tubes bending machine with rotary table and or fixed table to meet different requirements from customers .The bending shapes could be setting in the PCL controller .

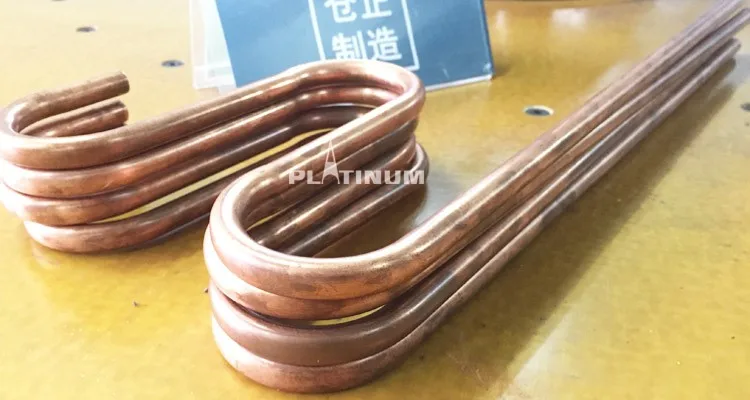

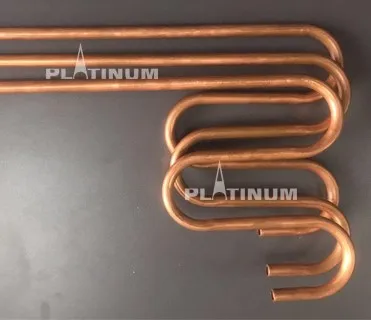

single tube or multi tubes all could be ''D'' shape (for better heating transfer ).

No	Item	Data
1	Tube Material	Copper / Aluminum / Bundy tube
2	Tube Diameter	3-12mm
3	Thickness range	0.3-1mm
4	Feeding Speed	10-700mm/time/max. 3 times
5	Bending radius	R9-R35

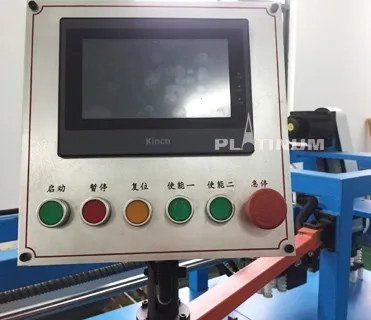

6	Control System	PLC control / HMI
7	Motor Power	6.5KW
8	Electric System	220V, 50Hz, (Customized)
9	Table diamter	2m
10	Station	1-12, adjustable
11	Weight	1600KG

Main Features

1, PLC contro , could be working with tube cutting machine as a production line .

2,  8 working stations ,adjustable

3, Auto running table ,protect the tube surface smooth .

4, The bending angle can be up to 180 degree.

Smart single copper tube bending production line  . From  decoil , straightening and chipless cutting , till bending finished.

Detailed Images

Packing & Delivery

Packaging
Size	2900*700*1520mm
Weight	510 KG
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
