Product Description
Main Features:

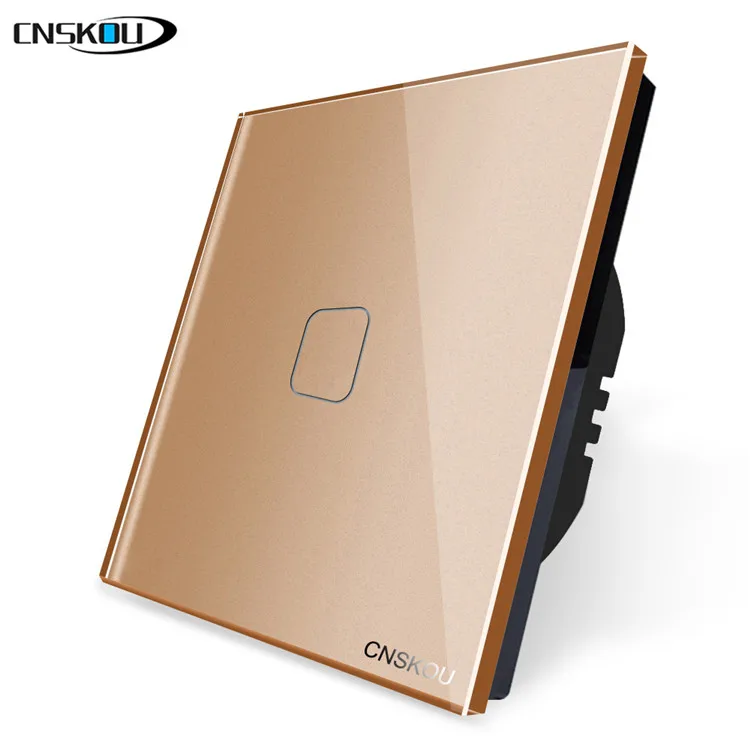

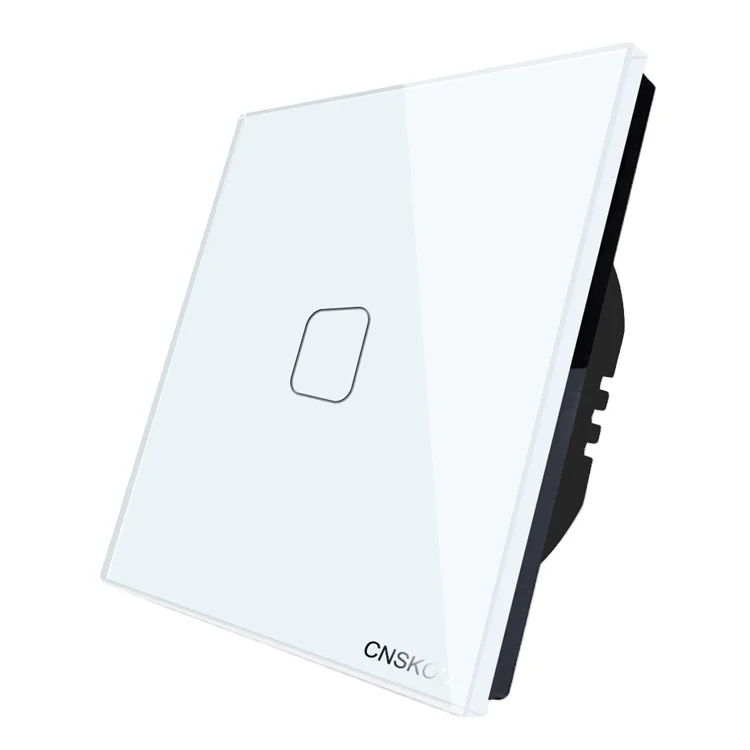

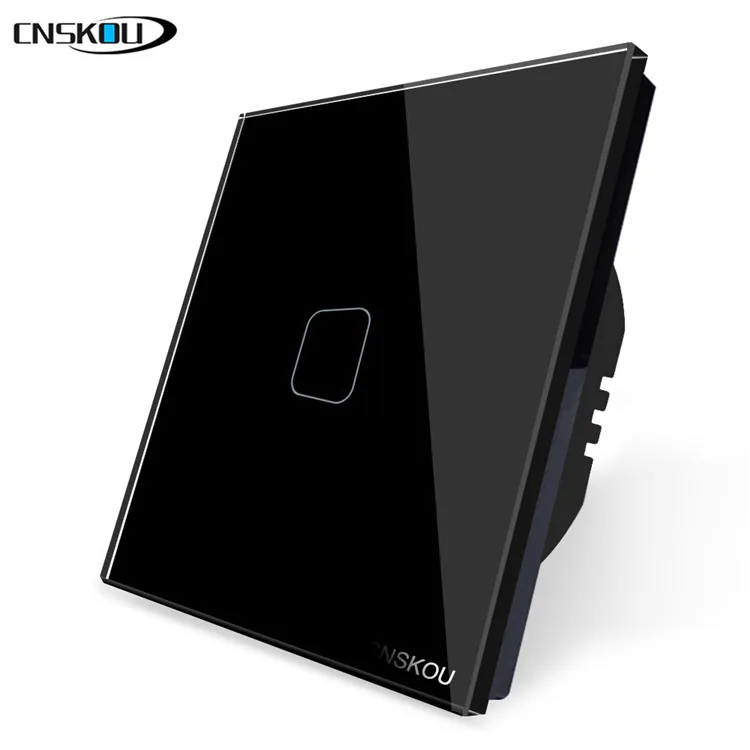

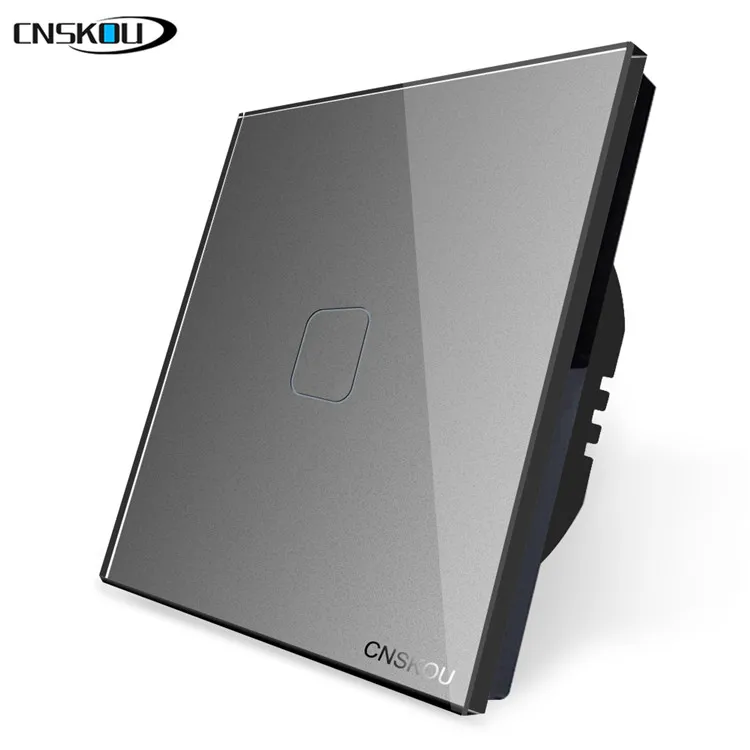

- Toughened crystal glass panel, no fading, elegant and stylish
- Integrated panel design, waterproof and anti-creeping, safe to use
- Touch control ensures longer service life than mechanical switch
- New imported IC processor for nice sensitivity and stable performance

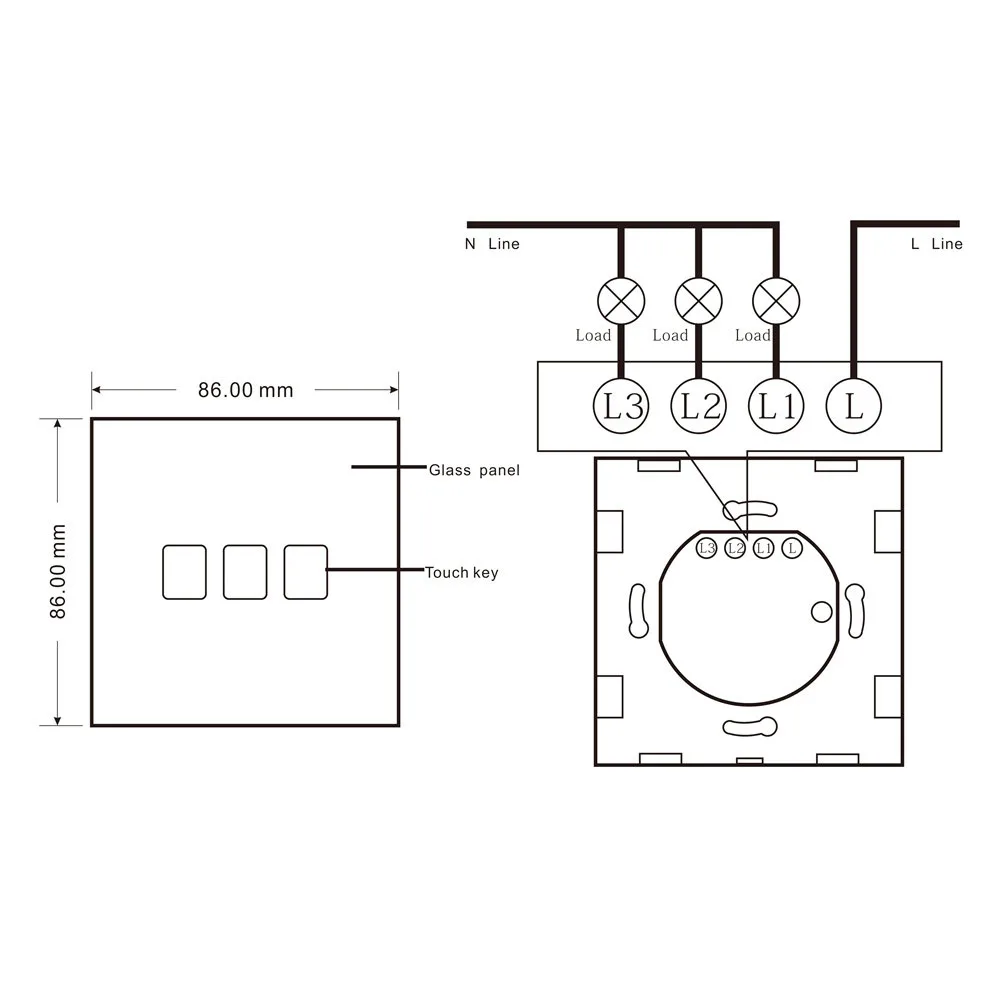

- Control by Single live wire, easy for installation, do not need rewiring and replacing the switch before directly
- Humanized design, The switch can automatically disconnect when electricity breaks and it will be in the OFF station when electricity comes back
- Widely used for commodity houses, villas, hotels, etc.
EU 1Way Touch Switch |
Model |
SK-A801-01-EU |
SK-A802-01-EU |
SK-A803-01-EU |
Control Gang |
1gang 1way |
2gang 1way |
3gang 1way |
Rated Voltage |
AC110V/AC220V |
Rated Power |
600w/1000w |
600w/2000w |
600w/2000w |
Rated Frequency |
50Hz/60Hz |
Power Supply |
Single Live Line |
Panel Material |
Crystal glass panel, high quality flame retardant PC bottom case |
Self Power Consuming |
≤0.1mA |
Dimension |
86*86*33mm/80*80*33mm |
![_01.jpg]()
![_02.jpg]()
![_03.jpg]()
![_04.jpg]()
![_05.jpg]()
![_06 (2).jpg]()
![_07.jpg]()
![_08.jpg]()
FAQ
FAQ
Q: Are you a touch switch directly factory or touch switch trading company?
A: We are touch switch manufacturer.
Q: How does your factory do regarding quality control?
A: Quality is the priority. We always attach great importance to quality
controlling from the start to the end. All our products have gained CE, FCC, ROHS certification.
Q: What can you do?
A: 1.AII of our touch switch products have proceeded aging test before shipment and we guarantee safety while using our products.
2. OEM/ODM orders are warmly welcomed!
Q: Warranty and return:
A: 1. Products have been tested by 48hours continuous load aging before ship out.
2. We own the best after-sale service team, if any problem happens, our team will do our best to solve it for you.
Q: Is sample available and free?
A: Sample is available, but the sample cost should be pay by you. The cost of sample will be refund after further order.
Q: Do you accept customized order?
A: Yes, we do.
Q: What's the delivery time?
A: It usually takes 7-20 days after confirming payment, but specific time should be based on the order quantity.
