Радиоантенна на крышу автомобиля грузовика
US $12.00-$15.00
JCN074 пользовательская 3DB антенна чип диэлектрическая Встроенная 2 мм патч 1575 42 МГц внутренняя Активная
- Категория: Car Antenna >>>
- Поставщик: Zhejiang,JC,Antenna,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.25 $* | 0.59 $* |
| Aug-18-2025 | 0.54 $* | 0.30 $* |
| Jul-18-2025 | 0.77 $* | 0.27 $* |
| Jun-18-2025 | 0.67 $* | 0.42 $* |
| May-18-2025 | 0.17 $* | 0.47 $* |
| Apr-18-2025 | 0.44 $* | 0.39 $* |
| Mar-18-2025 | 0.75 $* | 0.30 $* |
| Feb-18-2025 | 0.96 $* | 0.41 $* |
| Jan-18-2025 | 0.42 $* | 0.91 $* |
Характеристики

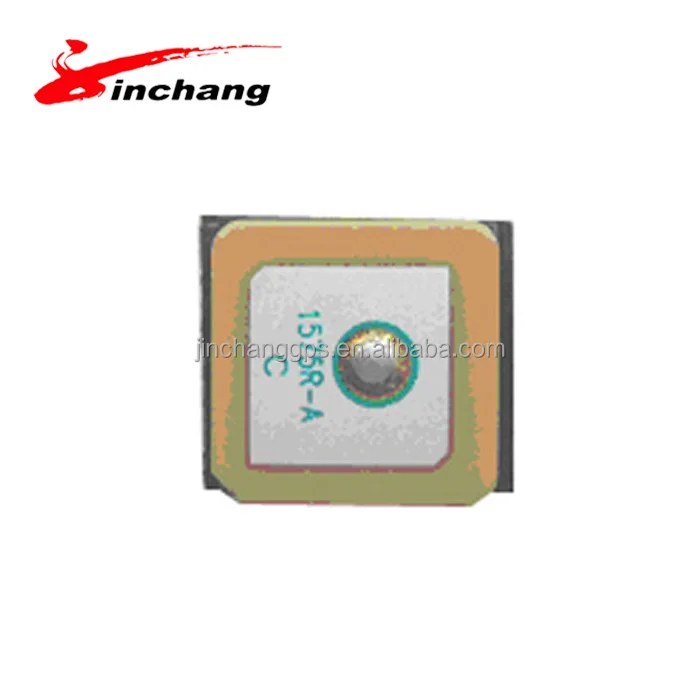

JCN074 Custom 3DB antenna chip Dielectric built in 2mm patch 1575.42 mhz internal active gps antenna
| Item | Specifications | |
| Antenna | Center Frequency | 1575.42±3MHz |
| Band Width | CF±5MHz | |
| Polarization | RHCP | |
| Gain | 2.5dBic(Zenith) | |
| V.S.W.R | <1.5 | |
| Impendance | 50Ω | |
| Axial Ratio | 3dB(max) | |
| Dimension | 18*18*4mm | |
| LNA | Gain | 15±2dB |
| Noise Figure | <1.5 | |
| Supply Voltage | 2.2~5V DC | |
| Current Consumption | 5~12mA | |
| V.S.W.R | <2.0 | |
| Mechanical | Cable | RF1.13 or others |
| Connector | IPEX or others | |
| Environmental | Operating Temperature | -40℃~+85℃ |
| Relative Humidity | Up to 75% | |
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
| Environmentally Friendly | ROHS Compliant | |
GPS Internal Antenna
If you need a personalized product, we offer professional customization!
Q: Are you a manufacturer or a trading company?
A: We have been professional antenna manufacturer for 20 years.
Q: Have gps gsm combo antenna 100% assembles well in stock?
A: 1-4 days for the sample, 5-10 days for quantity below 5K, 10-30 days for the quantity below 20K.
Q: Could I use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
A: T/T, Paypal, western union etc.
Q: Where is your factory located? Can I visit your factory?
A: One year and can repair for the whole life.
If you have any questions please send message to us , we will reply in time. Thanks for you time!
