Launch X431 V 8"inch bluetooth/Wifi car full system diagnostic tool support DPF Oil SAS 11 reset functions actuation test ECU coding adjust A/F with 2 years free update
Introduction :
X-431 V is a new diagnostic tool release by Launch tech. It composec of anX-431 V pad computer,aprotection sleeve, a DBScar diagnostic connector and many OBD1 to OBD2 connector. It communicatewith your car by DBSCAR connect with bluetooth, it read car DTC and do diagnose function by the X-431Pro Pad computer, it achieves X-431 series full car model and full system diagnostic.
X431 V support full system diagnose Function:
X-431 V can diagnose the electronic control system of prevailing vehicle models covering Asian,European, American and China. Full range car models and full car system diagnose make itaprofessional automotive diagnostic tool.
Include : ABS system, Engine system, SAS system , TPMS system , IMMO system , Battery system ,Oil service system , SRS system , ect...
Diagnosis functions include: Read DTCs, Clear DTCs, Read datastream, Actuation Test , ECU coding and 11 Special Function ect.
Product Description
Launch X431 V Wifi/Bluetooth Tablet Full System Diagnostic Tool
11 Kinds of Special Reset Service Functions:
This option allows you to detect whether the system parameters are normal or not. It mainly includes: Injector test, fuel pump test, purge control solenoid and so on.
In addition to amazing & powerful diagnostic function, X-431 V also features various service functions. The most commonly performed service functions contain:
Oil Reset :allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.
EPB Reset : is important in the maintenance of electronic braking system's safety and efficiency.
BMS Reset: allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.
DPF Reset:specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.
SAS Reset: helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.
TPMS Reset :makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.
IMMO reset: it is mainly used to disable the lost vehicle keys and program a new replacement key fob.
ABS Bleeding:ABS brake bleeding to get a firm brake pad after air exhaustion.
Throttle reset:The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount ofair entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensorcommunicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair
Gear Learning : The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running
Injector Coding: Leaking injectors and some dead injectors can be missed even when an injector is disabled. Otherproblems with the ignition system and mechanical components also may not show an rpm loss when aninjector is turned off
Note : These special function NOT for all car models, if you are confused, Please send your car brand, model and release year to seller to check it for you .
Full Diagnosis Function:
X431 V can diagnose the electronic control system of prevailing vehicle models covering Asian, European, American and Chinese. Full range car models and full car system diagnosis make it a professional automotive diagnostic tool.
X431 V-series product have so many advantage such as widely coverage at vehicle model, powerful test function, more special function, more accurate test data etc.
1.With special function such as for BMW idle study, for BMW injection rate adjustment, for BMW battery replacement, for Nissan matching key.
2. In addition to support for Benz, for BMW, for Ford and other mainstream models, also support IRKIA, PERODUA, Proton,TATA, Maruti, Lancia and other domestic model from all over the world.
3.Full system Diagnosis.
Application:
Operating system
Android 4.2
CPU
Quad core 1.3 GHz
Display
8” 1280 x 800 IPS display with 189 ppi
RAM
1 GB
Capacity
(internal / SD card) 16GB (expandable by up to 32 GB)
Battery
4200mh rechargeable polymer lithium battery
Camera
Front-facing 2 MP camera and rear-facing 5 MP camera with 1080p HD video recording
Communication Wi-Fi
WLAN 802.11b/g/n
Bluetooth
Bluetooth 4.0
Working temperature
0 ℃ - 45 ℃
Storage temperature
-10 ℃ - 50 ℃

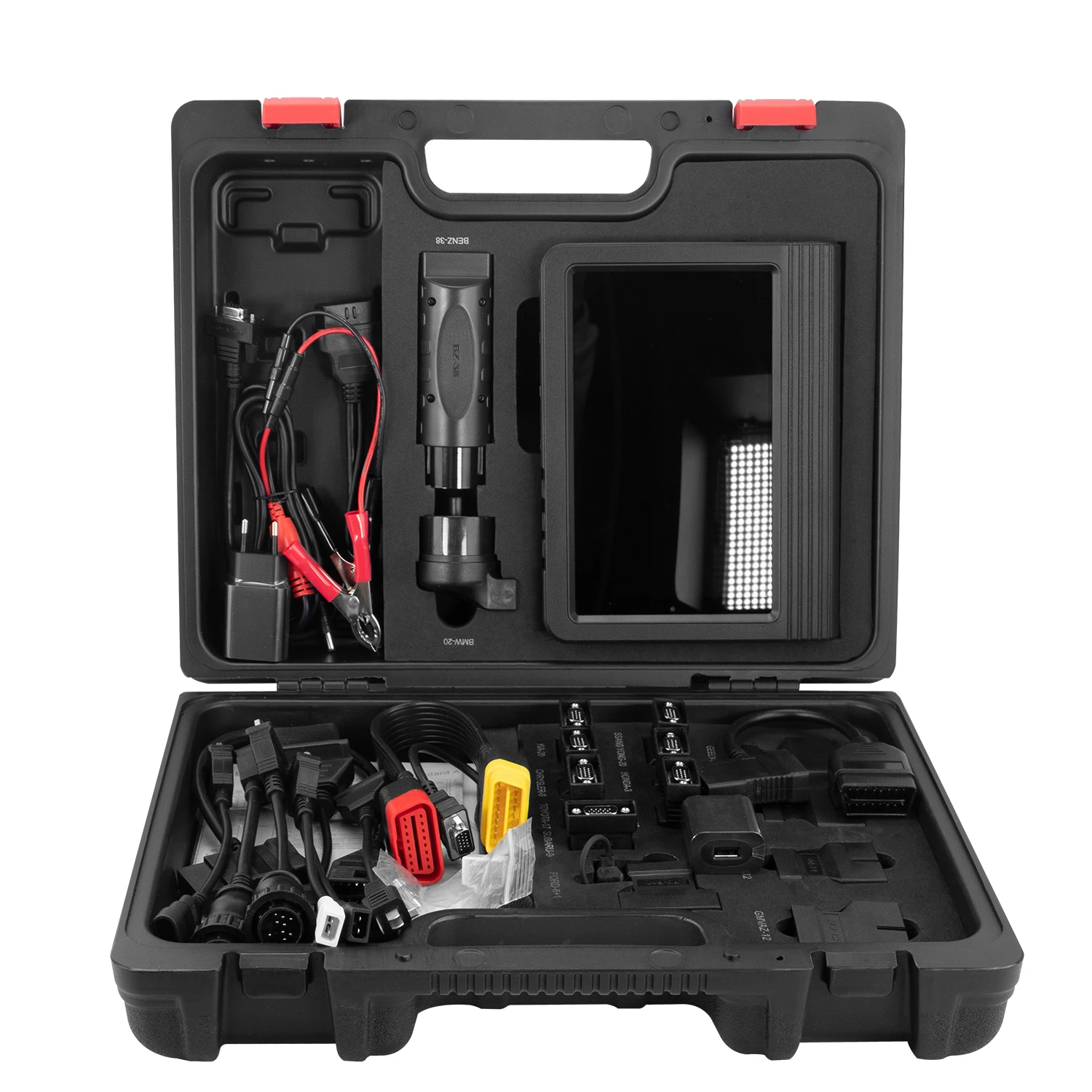

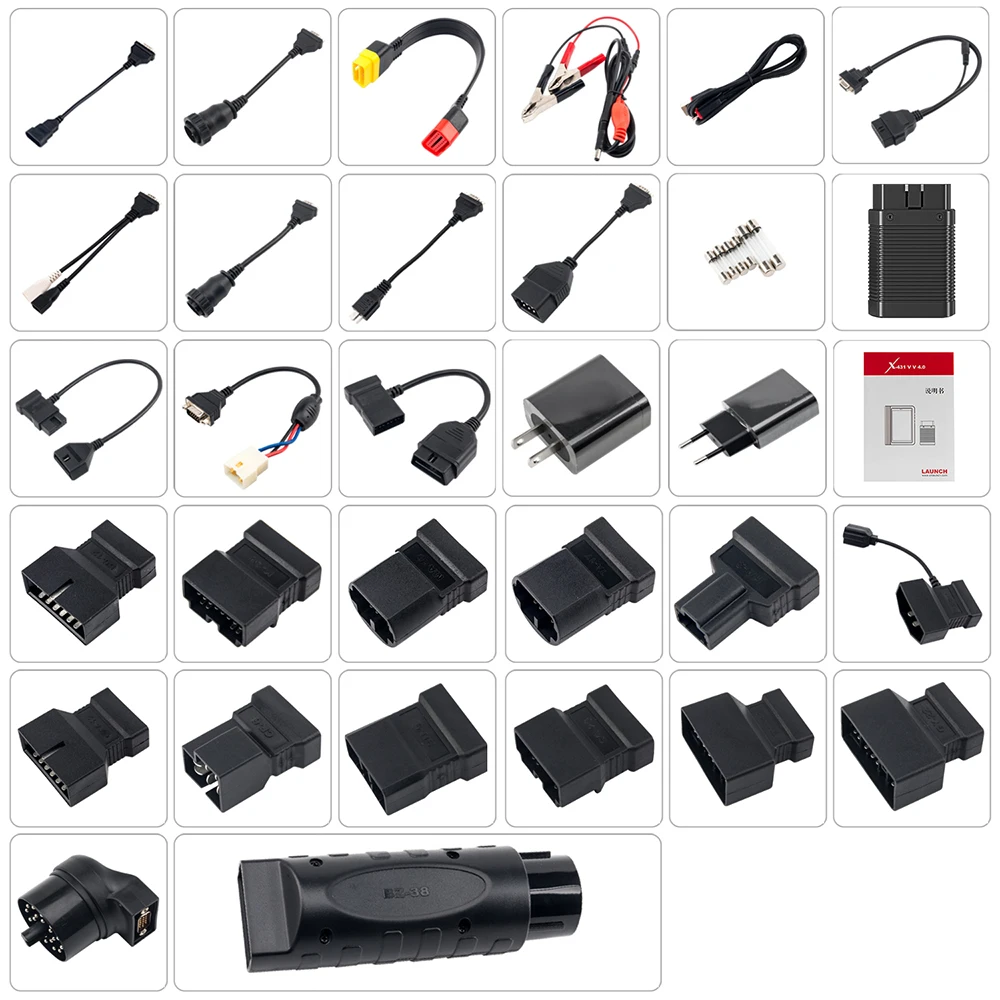

Launch X431 V Packing List:
While opening X-431 V package for the first time, please carefully check the following components:
1pc x X-431 v handset
1pc x Password envelope
1pc x X-431 v protection sleeve
1pc x DBScar diagnostic connector (For connecting OBD II vehicles)
1pc x OBD II extension cable
1pc x Cigarette lighter cable
1pc x Power adaptor
1pc x USB data cable

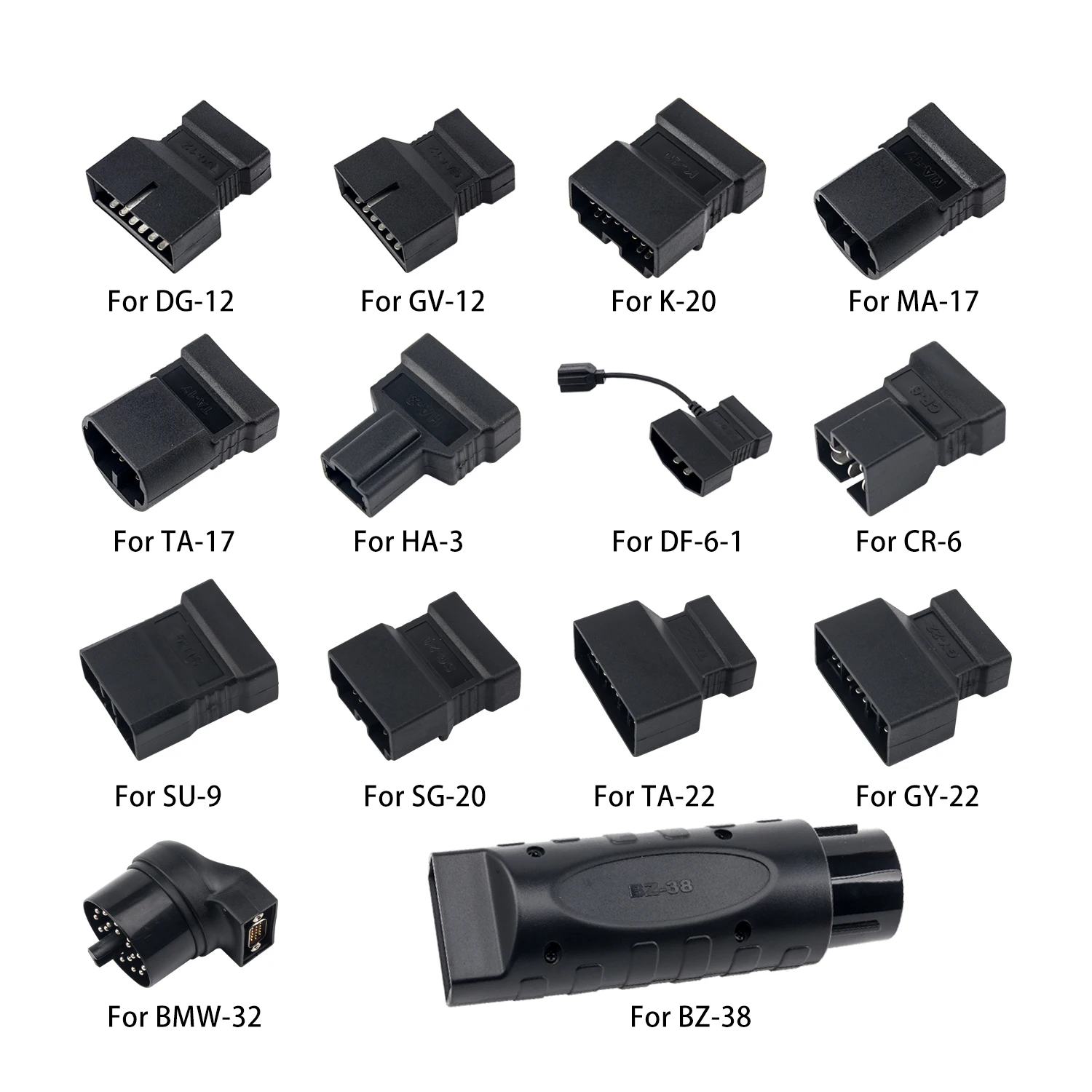

1pc x Non-16pin connector (For connecting non-OBD II vehicle)
