Шанхай yiyou пластиковое изделие Термоформовочная Машина дизайн
US $120000-$150000

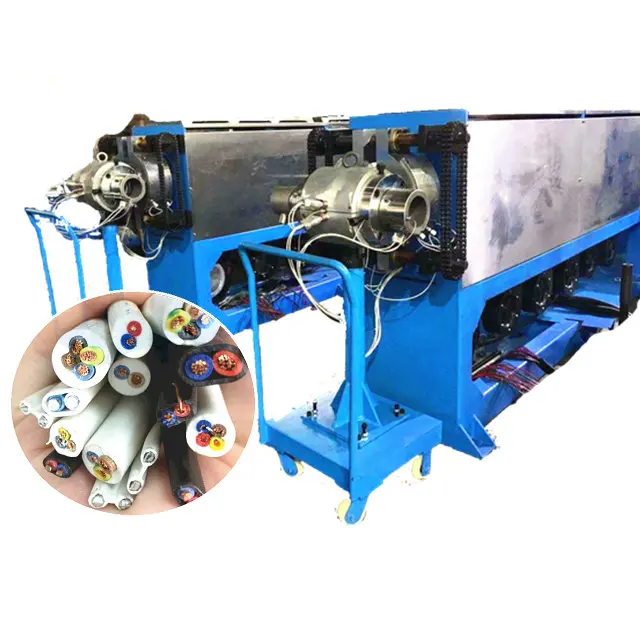

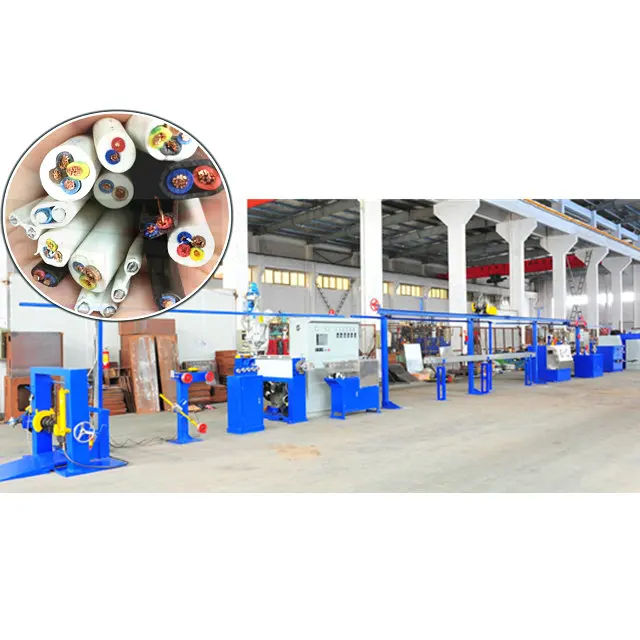

Производственная линия для экструзии электрических проводов ПВХ LDPE XLPE LSHF нейлона
- Категория: Оборудование для обработки пластика и резины >>>
- Поставщик: Jiangsu,Jiacheng,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 22477.27 $* | 23601.50 $* |
| Aug-15-2025 | 22288.67 $* | 23402.42 $* |
| Jul-15-2025 | 18699.87 $* | 19634.80 $* |
| Jun-15-2025 | 21910.39 $* | 23006.42 $* |
| May-15-2025 | 19077.71 $* | 20031.16 $* |
| Apr-15-2025 | 21532.28 $* | 22609.6 $* |
| Mar-15-2025 | 21343.19 $* | 22410.14 $* |
| Feb-15-2025 | 21155.44 $* | 22213.55 $* |
| Jan-15-2025 | 20966.21 $* | 22014.86 $* |
Характеристики
Product Description
Production line consist+optional parts
pay off,main machine;cabinet,fixed trough,traction,take-upcaterpillar,sparking machine,diameter-testing laser gauge,LSZH
screw,gantry typetake-up and pay-off,end-shaft type take-up and pay off
screw,gantry typetake-up and pay-off,end-shaft type take-up and pay off
Main technical parameter | Screw Parameters | Extrusion Capacity (kg/h) | |||||||||
Dia(mm) | L/D Ratio | Rotation Speed(r/min) | PVC | LDPE | PP | ||||||
JCJX-30 Extrusion | Φ30 | 25:1 | 20-110 | 25 | 16 | 13 | 0.2-1 | ||||
JCJX-40 Extrusion | Φ40 | 25:1 | 20-110 | 40 | 20 | 17 | 0.4-3 | ||||
JCJX-50 Extrusion | Φ50 | 25:1 | 20-110 | 80 | 40 | 34 | 0.8-5 | ||||
JCJX-60 Extrusion | Φ60 | 25:1 | 15-110 | 100 | 53 | 41 | 1-8 | ||||
JCJX-70 Extrusion | Φ70 | 25:1 | 15-110 | 130 | 86 | 68 | 2-12 | ||||
JCJX-80 Extrusion | Φ80 | 25:1 | 10-90 | 200 | 122 | 94 | 3-25 | ||||
JCJX-90 Extrusion | Φ90 | 25:1 | 10-80 | 240 | 133 | 124 | 5-35 | ||||
Single core bare wire extrusion cable
Multi core bare wires extrusion cable
Multi core extrusion cable
Detailed Images

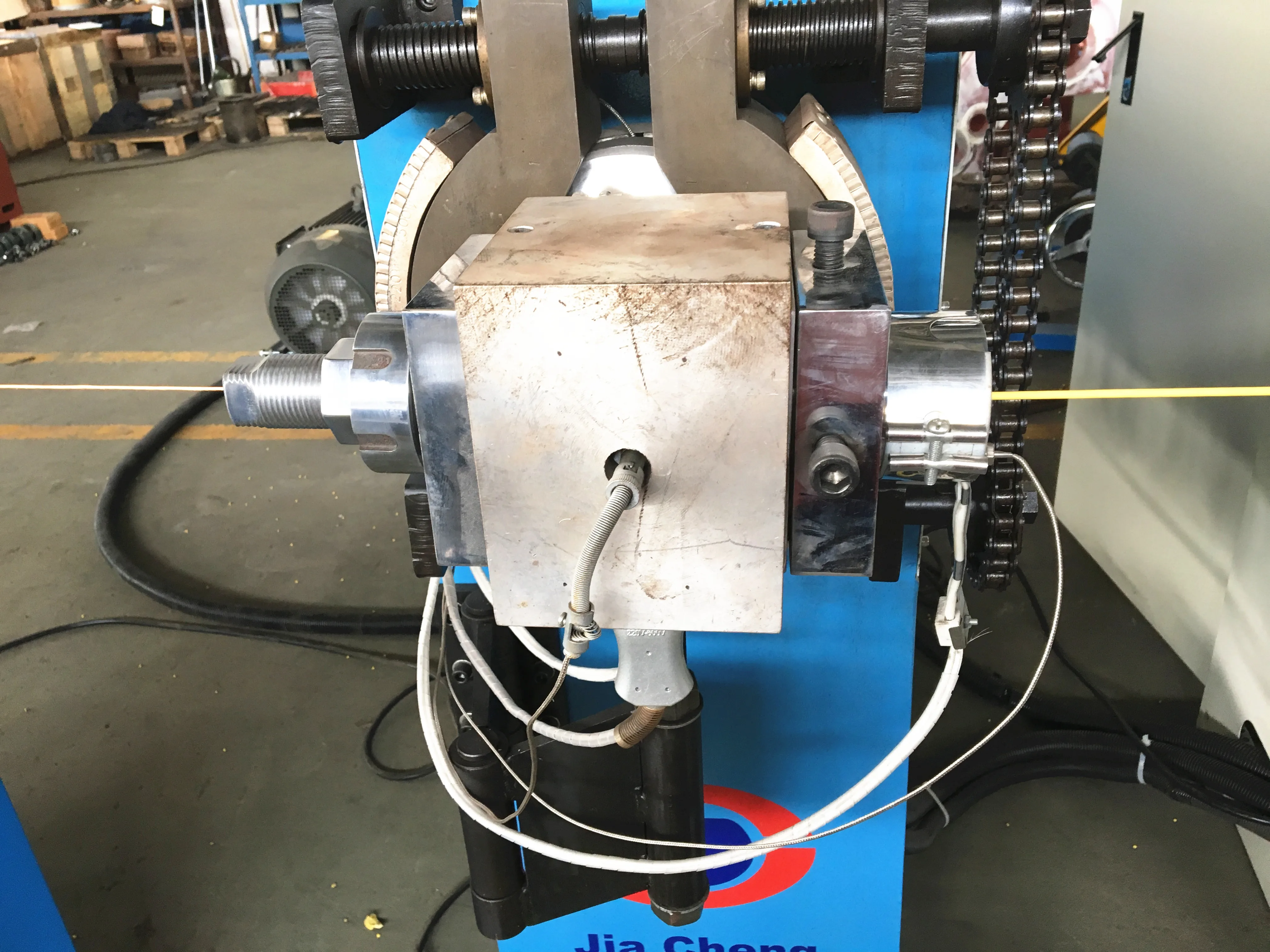

Extruder Core
precise design of the screw,durable,non-mucus,not take off chrome,change color quickly,with
high capacity,high quality,
high capacity,high quality,
SAL-300 Suction feed machine
A. Type: SAL-300
B. Motor: Carbon Brush type:1000W
C. Sending capacity:200kg/h D. Hopper capacity:3L
B. Motor: Carbon Brush type:1000W
C. Sending capacity:200kg/h D. Hopper capacity:3L
Dual heads 630 passive pay off
A. pay off bobbin size: Φ500-630mm B. Shaft clamping type:screw nut clamping type C. Machine stop automatically while wire broken
D. Install type: manual
D. Install type: manual
Packing&Shipping
After Sales Service
Pre-Sales Service
In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training,
includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple proble
includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple proble
After-Sales Service
①Free service guarantee period is: 12 months after shipping (except wearing parts)
② Provides long term spare supply, technical support and maintenance service for the machine, but we will charge for travel fee
and other basic cost.
We guarantee when we get the information of the customer, our engineers will analyze immediately, then response as soon as
possible, if need our engineers come, 24hours will be arrived inland, and one to two week oversea based on getting visa on time.
② Provides long term spare supply, technical support and maintenance service for the machine, but we will charge for travel fee
and other basic cost.
We guarantee when we get the information of the customer, our engineers will analyze immediately, then response as soon as
possible, if need our engineers come, 24hours will be arrived inland, and one to two week oversea based on getting visa on time.
Company Introduction
we established in 1990.We are the professional manufacturer have more than 20 years of experience in making all kinds of wire and
cable machinery,realize the wire from drawing to extruding.
cable machinery,realize the wire from drawing to extruding.
we are the factory not the trade company,Machine's body and other key components and parts are produced by our own factory,
quality is reliable.,and we can control .the price;.the quality and .the delivery time;
quality is reliable.,and we can control .the price;.the quality and .the delivery time;
We have annealing,stranding,extruding machine and cable auxiliary equipment(for example:wire winding machine,take up and pay-off
machine,wire wrapping machine and so on)
machine,wire wrapping machine and so on)
FAQ
A:I just get into this industry, I don't know how to plan?
Q : Every salesman of us can tell you how to plan the workshop ,how to install the equipment,how to save the costs and so on.
A: How can i install my machine when it arrives?
Q: We will send our engineers to your factory to install the machines and train your staff how to operate the machines
A:How could find the most suitable machine?
Q:Tell us your request in details: inlet wire and out wire diameter range, production capacity.
A:How could find the reliable supplier?
Q: 1)Check the background information which is assured and certificated.
2) Visit the factory, have a face to face meeting.
A:Why there are big differences price between different suppliers?
Q:After visiting factory, compare the price based on same quality and service.
Q : Every salesman of us can tell you how to plan the workshop ,how to install the equipment,how to save the costs and so on.
A: How can i install my machine when it arrives?
Q: We will send our engineers to your factory to install the machines and train your staff how to operate the machines
A:How could find the most suitable machine?
Q:Tell us your request in details: inlet wire and out wire diameter range, production capacity.
A:How could find the reliable supplier?
Q: 1)Check the background information which is assured and certificated.
2) Visit the factory, have a face to face meeting.
A:Why there are big differences price between different suppliers?
Q:After visiting factory, compare the price based on same quality and service.
Add:Juqiao Economic Development Zone, Tangqiao Town,Zhangjiagang City, Jiangsu Province, China.
We can pick you up!
We can pick you up!
