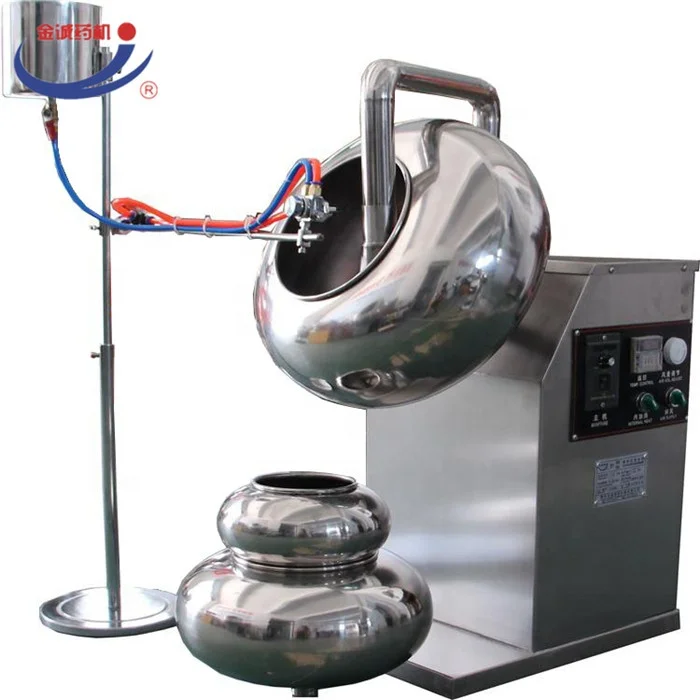

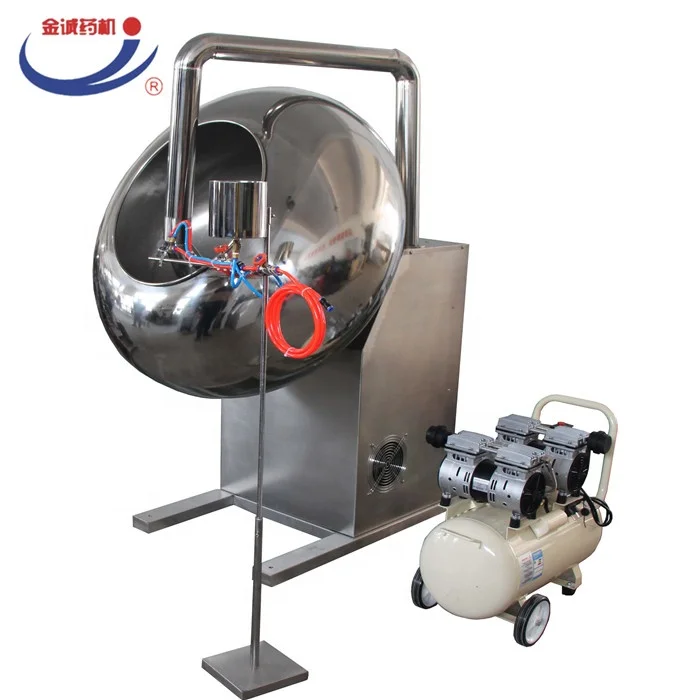

Structure of pharmaceutical tablet coating:
As its feature, the pharmaceutical tablet coating whose round pot is elevated, the heater such as gas electrical heater can placed directly under the pot. A separated blower with electrical heater is provided with the machine. The pipe of the blower stretches into the pot for heating of cooling purpose. The thermal capacity of this nuts sugar coatingpharmaceutical tablet coating is adjustable.



Specification of pharmaceutical coating pan:pharmaceutical tablet coating

Model		BY-300	BY-400	BY-600
Diamater(mm)		300	400	600
Revolution(r/min)		(1-46) adjustable	(1-46) adjustable	50
Main power(KW)		120	120	750
Drum power(W)		40	40	100
Heating power(W)		700	700	800
Capacity(kg/time)		1-3	3-5	20-30
Dimension(mm)		550*400*850	550*400*850	650*450*920
Weight(kg)		30	30	85
Model	BY-800		BY-1000	BY-1250
Diamater(mm)	800		1000	1250
Revolution(r/min)	32 adjustable		32 adjustable	25 adjustable
Main power(KW)	1.1		1.5	2.2
Drum power(W)	180		180	370
Heating power(W)	2000		3000	3000
Capacity(kg/time)	30-50		50-70	80-150
Dimension(mm)	925x900x1400		1100x1100x1500	1200x1250x1630
Weight(kg)	205		220	350

And we have special model:BY-1500

Diameter of pot:1500mm

capacity :300-400KG/Drum ,if you need more information just feel free to contact with me.

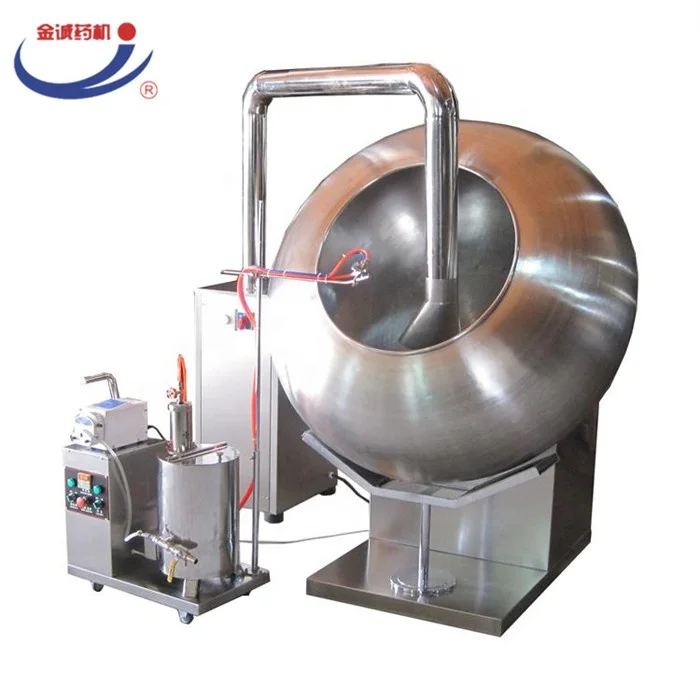

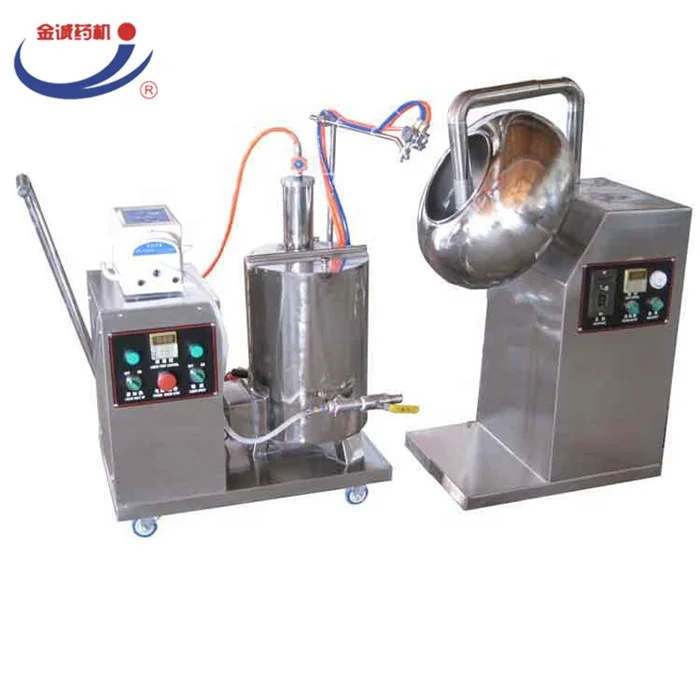

Jincheng Chocolate Coating System:

1.hot and cool air drum

2.heating device

3.speed inverter

4.automatic sugar or chocolate blowing system

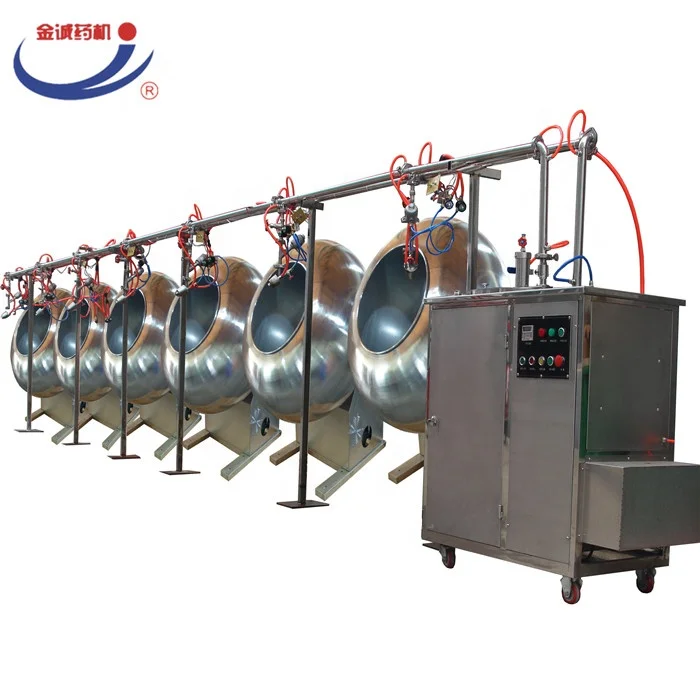

Application of chocolate coating machine with cool air system

 JINCHENG chocolate coating machine composed by BY coating systems, QKL110 chocolate spraying system, KL-53 refrigeration(air cooling)systems, piping systems. Its chocolate coating machine main function is spray the chocolate slurry on variety of different shapes of nuts,snacks(we call it nuts in in this whole manual) in the coating pan under the pump pressure through the insulation pipes.

 The chocolate coating machine chocolate slurry can be coating evenly on the nuts because the coating pan rotate and rotate,and then the cool air offered by cool air system blow in to solidified the chocolate slurry rapidly, after several repeated spraying, mixing, and solidifying ,there will form chocolate layer on the nuts, then you can adjusted the rotate speed to make it rotate faster to polish the nuts ,and you can also spraying edible color on the nuts to get shining colorful nuts.
